High Precision Surface Roughness Tester, Handheld Profilometer Gauge, 0.001μm Accuracy, Ra Rz Measurement Range, Max 160μm for Accurate Surface Measurement, for Professionals in Saudi Arabia High Precision Surface Roughness Tester, Handheld Profilometer Gauge, 0.001μm Accuracy, Ra Rz Measurement Range, Max 160μm for Accurate Surface Measurement, for Professionals in Saudi Arabia High Precision Surface Roughness Tester, Handheld Profilometer Gauge, 0.001μm Accuracy, Ra Rz Measurement Range, Max 160μm for Accurate Surface Measurement, for Professionals in Saudi Arabia High Precision Surface Roughness Tester, Handheld Profilometer Gauge, 0.001μm Accuracy, Ra Rz Measurement Range, Max 160μm for Accurate Surface Measurement, for Professionals in Saudi Arabia High Precision Surface Roughness Tester, Handheld Profilometer Gauge, 0.001μm Accuracy, Ra Rz Measurement Range, Max 160μm for Accurate Surface Measurement, for Professionals in Saudi Arabia High Precision Surface Roughness Tester, Handheld Profilometer Gauge, 0.001μm Accuracy, Ra Rz Measurement Range, Max 160μm for Accurate Surface Measurement, for Professionals in Saudi Arabia

High Precision Surface Roughness Tester, Handheld Profilometer Gauge, 0.001μm Accuracy, Ra Rz Measurement Range, Max 160μm for Accurate Surface Measurement, for Professionals

SAR 4,098
– 1 +

Special Features

  • 【Versatile Parameter Measurement】The roughness gauge, offers the capability to measure Multiple surfaces roughness parameters, including Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rku, Rsm, and Rmr

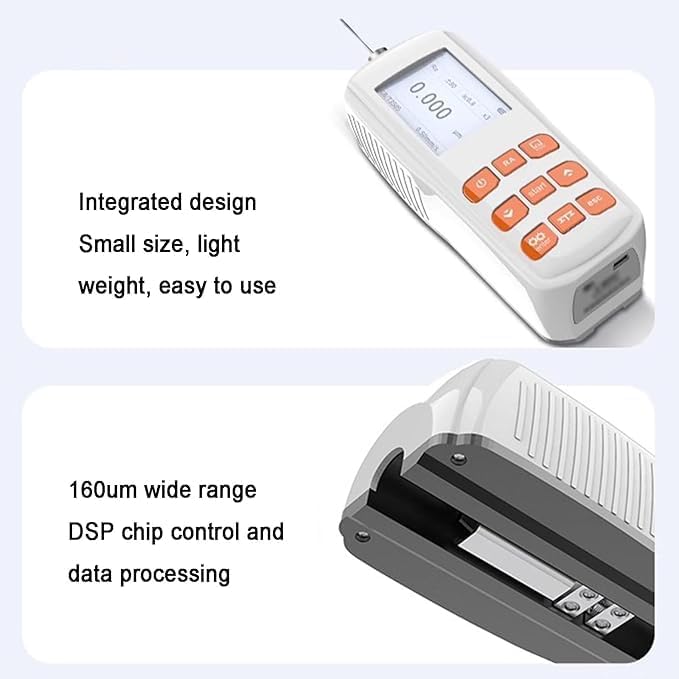

  • 【Measuring Sensor】Surfaces Roughness Tester is equipped with a highly sophisticated inductance sensor that offers exceptional precision. Maximum measuring range 160μm and can achieve a remarkable precision of 0.001μm

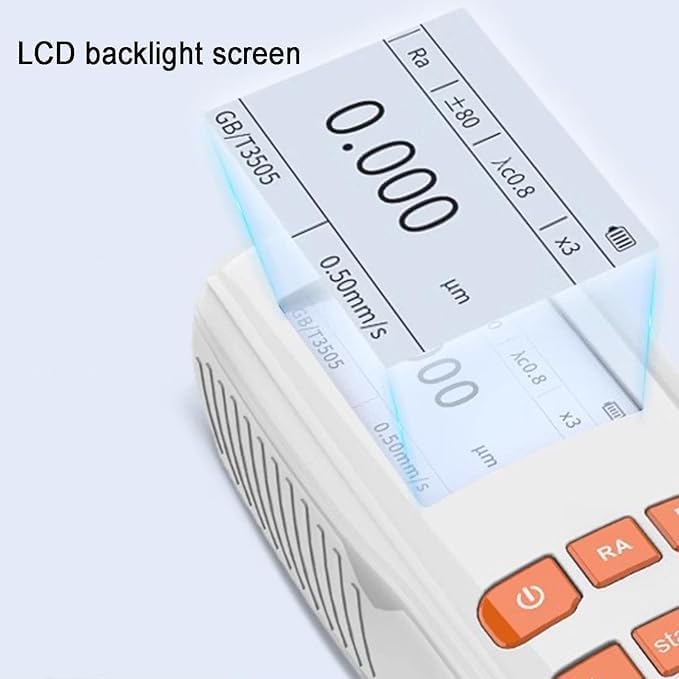

  • 【Advanced Digital Signal Processing】The exclusive DSP technology processes and calculates measurement results efficiently, providing accurate and reliable data. The results are displayed on the LCD, making it easy for users to read and interpret the information
  • 【Application】Powered by rechargeable lithium battery or external power adapter. Its digital convenience, durability and high accuracy make it a reliable tool
  • 【Service】: We are very sorry for the shopping experience you have experienced. If you have any problems with the goods you received, please contact us and we will serve you 24 hours a day.

Description

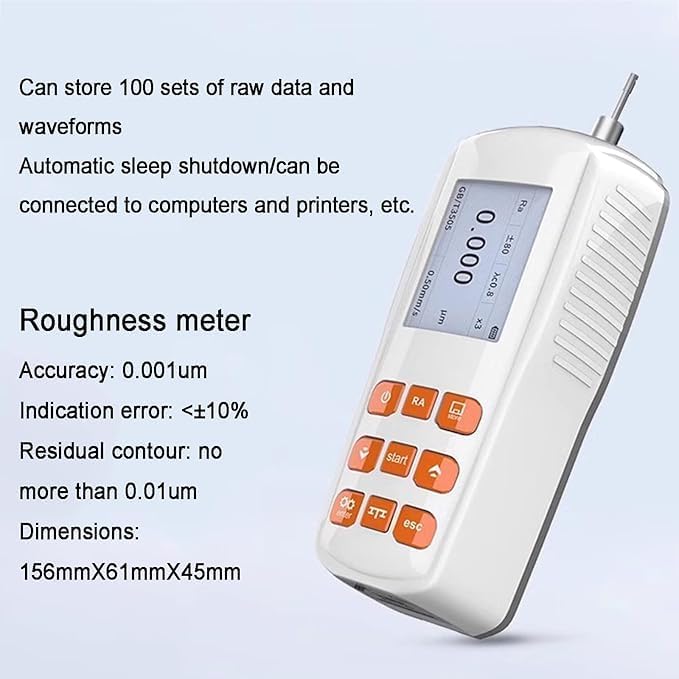

The roughness measuring head uses high precision inductance sensor, and the measurement value is stable and accurate

Specification:
Measurement parameters: Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rku, Rsm, and Rmr
Measuring range: Z axis (vertical) 160um, X axis (horizontal) 17.5mm (0.71inch)
Measurement accuracy: 0.001μm
Sensor type: inductive
Graphics: support rate curve, roughness, original profile, filtered waveform
Stylus material: diamond, 90 cone angle, tip radius 5um
Measurement force: less than 4mN
Guide: carbide, sliding direction radius 40mm
Power supply: 800mAh lithium battery

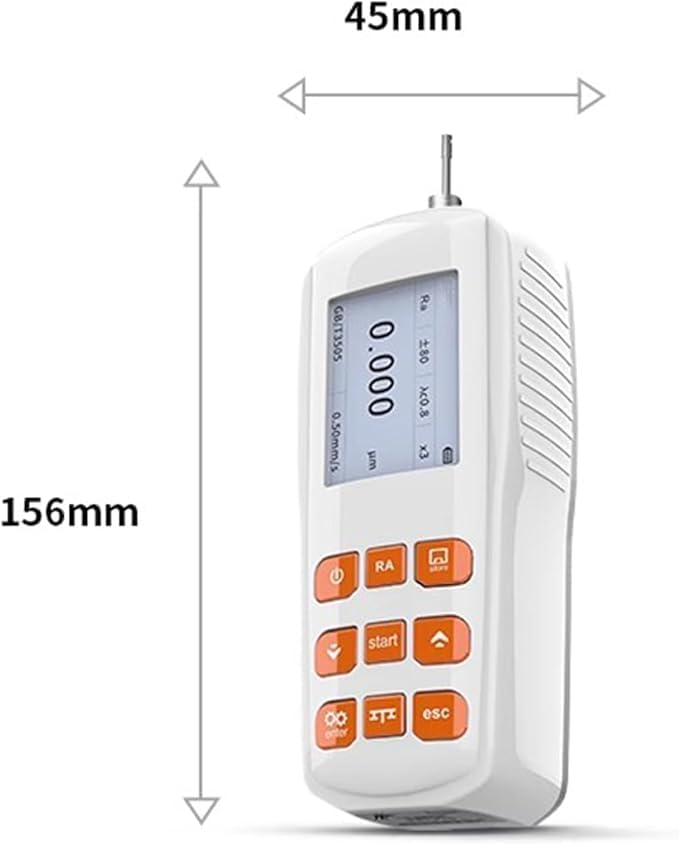

Overall dimensions: 156*61*45mm

Products include:
1*Surface Roughness Tester
