مميزات خاصة

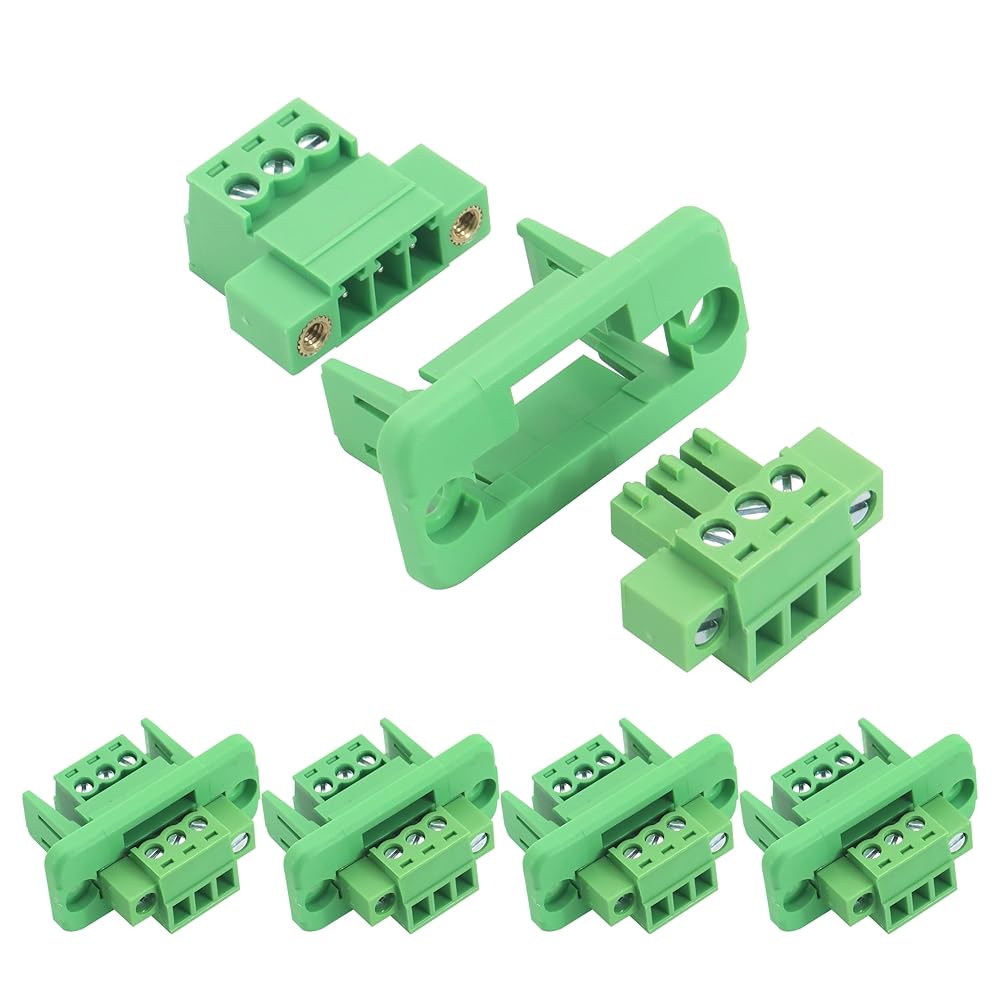

Product Name : Through-wall screw Terminal Block;Model : 3.81mm-4P Material : Plastic
Rated Value : AC 300V 8A 28-16AWG;
Durable & Flame-Retardant: Made of PA66 high-temperature V0 flame-retardant material. No leakage, no short circuit, long service life.
These PCB screws are snap together well.have a quick release capability.Just need to loosen the screws to land the wires.Widely used in electronics,communication equipment,instruments
Package Content:5 Set 4pin (Male Plug+ sleeve+ female socket)

وصف

Feature
-Type: Through-Wall Terminal Connectors
-Pin: 4 Pin
-Pitch: 3.81mm
-Gender: male & female
-Contact (Female Socket): Tin Plated Brass
-Contact (Male Plug): Nickel Plated Phosphor Bronze
-Plastic Components: PA66, Flame-Retardant
-Rated Value: 8A 300V
-Wire Range:16-28AWG
-Withstanding Voltage: AC1500V/1Min
-Torque:0.4Nm (3.5lb-In)
-Stripping length:7-8mm
-Temperature range:-113°F ~ + 221°F
-Screw and Push-in connection design
Package:
-5set x 4 Pin 3.81mm Pitch male plug & female socket PCB Terminal Block Connector
