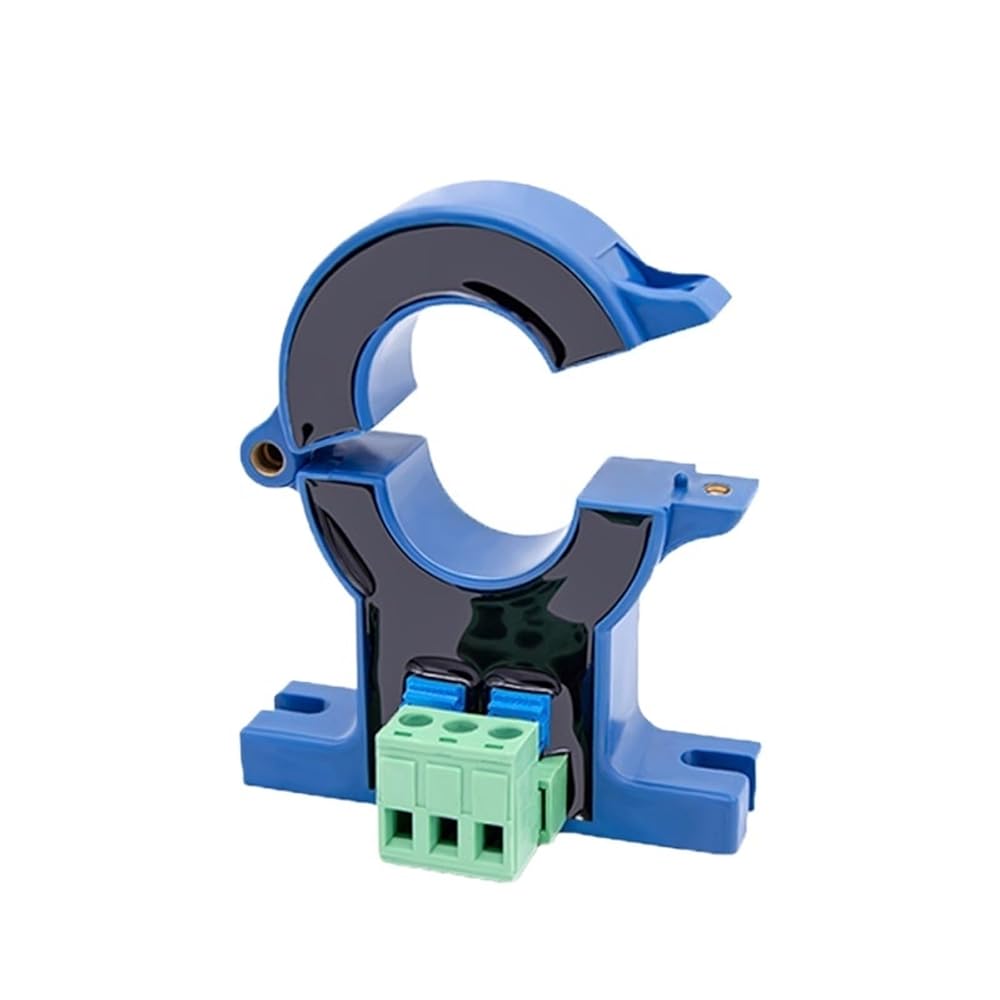

Technical Indicators And Specifications
Measuring range:
1.The diameter of the hole varies depending on the measurement range.
2.Hole diameter 20mm:DC-100A-0-10A-500A(AC0-10A-500A).
3.Hole diameter 25mm:DC-100A-0-10A-1000A(AC0-10A-1000A).
4.Hole diameter 38mm:DC-100A-0-10A-1500A(AC0-50A-1500A).
5.Hole diameter 50mm:DC-100A-0-10A-2000A(AC0-50A-2000A).
6.Hole diameter 80mm:DC-100A-0-10A-3000A(AC0-50A-3000A).
Output:
1.Output signal: 4-20mA,0-20mA,0-5V/10V.
2.Output RS485: Hole diameter 25/38/50/80mm(20mm is not acceptable).
Power supply:
1.Can be made: 12V,15V,24V,12V-28VDC.
2.220V:Hole diameter 25/38/50/80mm(20mm is not acceptable).
Technical characteristics:
High measurement accuracy Stable and structure
Strong anti-interference ability Lightweight and easy to install
==========
Hign-concerned Chemical : None
Dimensions : See size chart
Operating Temperature : -10-70
Supply Voltage : 12V,24V,12V-28VDC
Accuracy Class : 0.2%F.S.,0.5%F.S.
Model Number : SWK-7
DIY Supplies : ELECTRICAL
Certification : ,FCC,
Measuring range : DC0-10A-500A
Output : 4-20mA,0-20mA,0-5V,0-10V
Power supply : ±12V,±15V,24VDC,12V-28VDC
Response time : 10ms
Installation method : Screw fixation
