Notes:
We can make AC/DC0-1000A(Min 50A,Max 1000A)
Power supply:±12VDC,±15VDC,24VDC,12V-28VDC
Technical characteristics:
High measurement accuracy
Stable and structure
Strong anti-interference ability
Lightweight and easy to install
==========
Dimensions : See size chart
Operating Temperature : -10-70
Supply Voltage : 12V,24V,12V-28VDC
Accuracy Class : 0.2%F.S.,0.5%F.S.
Model Number : SW-K7
DIY Supplies : ELECTRICAL
Certification : ,FCC,
Measuring range : AC-DC 0-1000A
Output : 4-20mA,0-20mA,0-5V,0-10V,RS485
Power supply : ±12V,±15V,24VDC,12V-28VDC
Response time : 10ms
Isolation strength : 3000V AC/1min

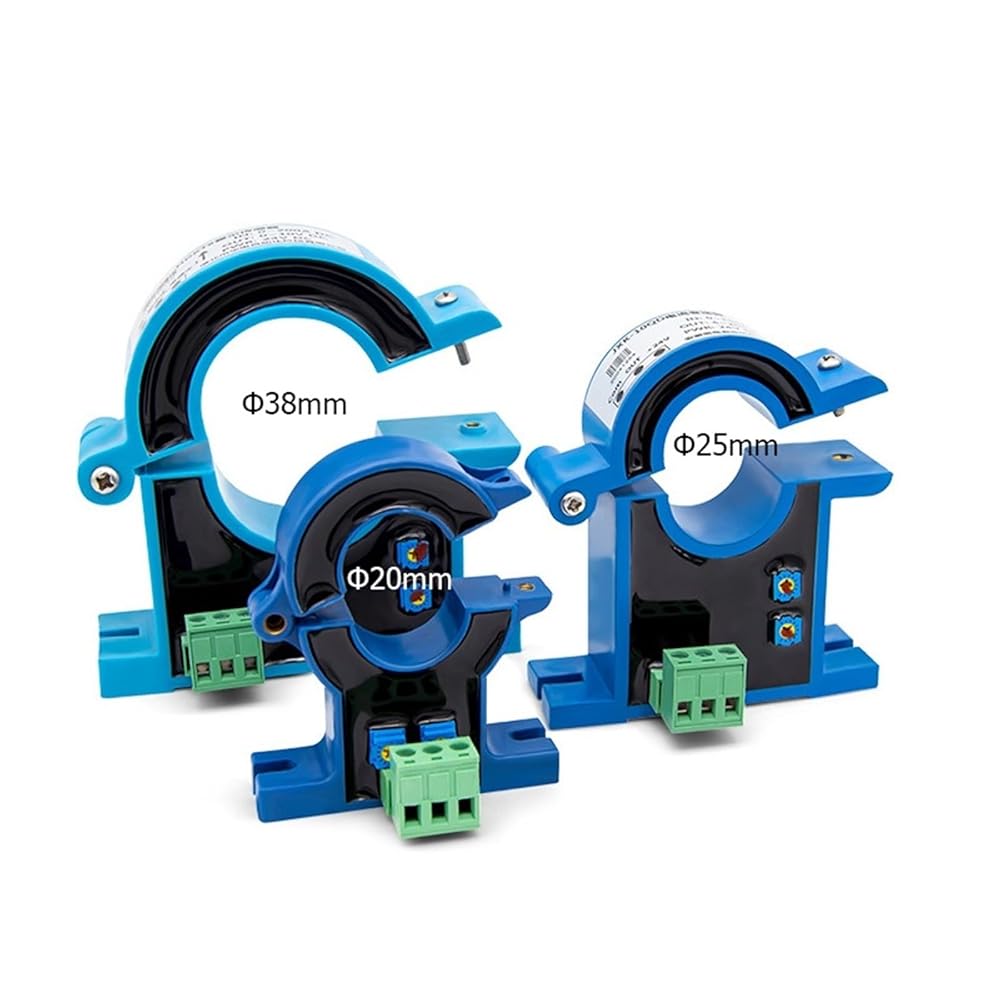

Hole diameter : 25mm,38mm
Operation temperature : -10-65
