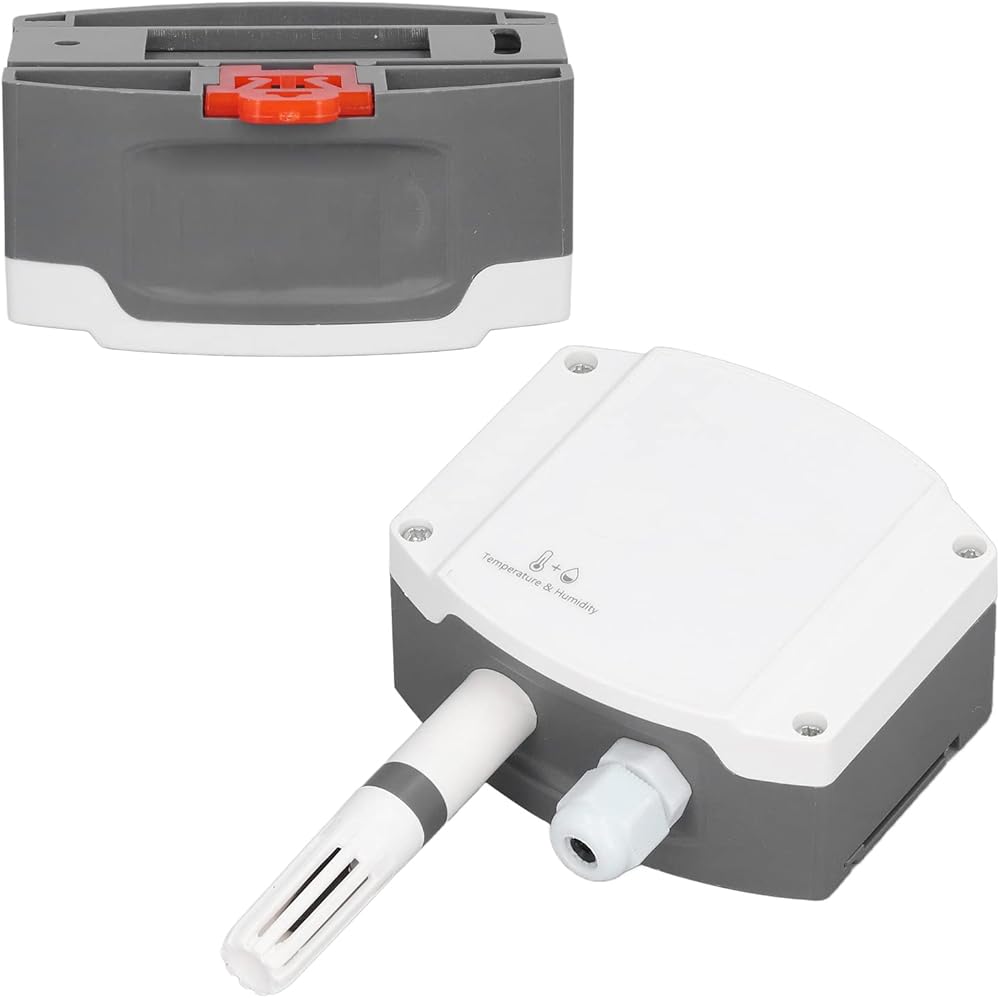

Item Type: Temperature Humidity Transmitter
Material: ABS

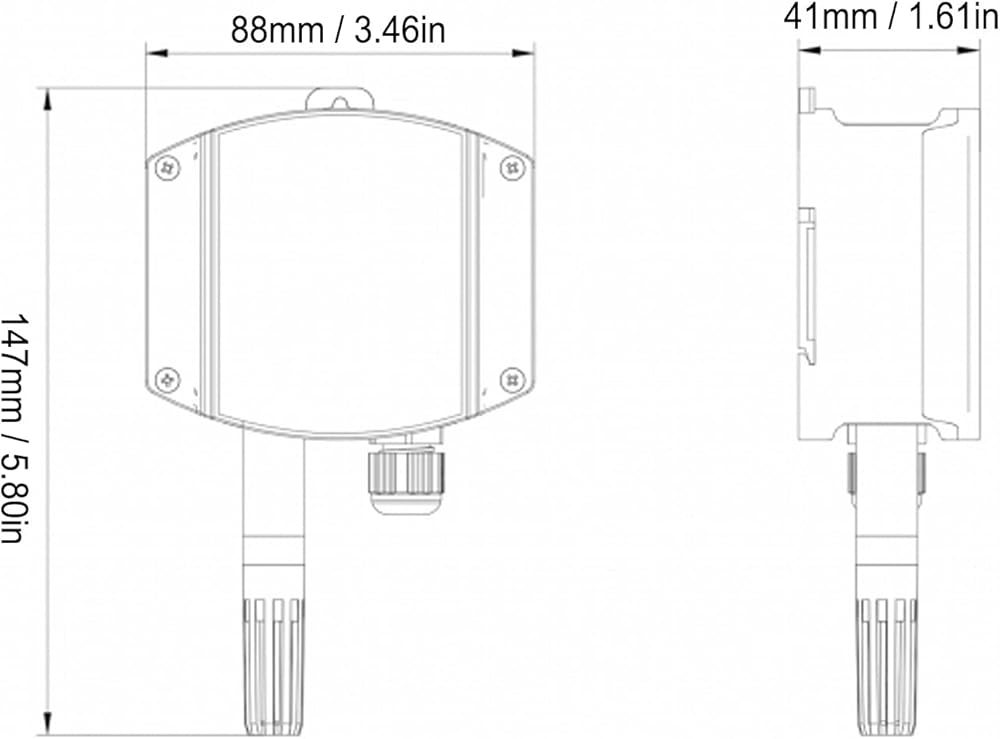

Product Size: Approx. 147 x 88 x 41 mm / 5.8 x 3.5 x 1.6 in
Anti Dust Protection Grade: IP65
Power Supply Wiring: Wide voltage 10~30V DC power input
Output Interface Wiring: The device is equipped with 2 independent analog outputs as standard
Weight: Approx. 157g / 5.5oz
Specific Wiring:

Circuit Identification Instruction
Power Supply VCC Positive Power Supply
GND Negative Power Supply
Output TH Positive Temperature Signal
RH Positive Humidity Signal
(Note: The device does not provide a communication line by default) Parameter:

DC Power Supply (Default) DC 10~30V
Maximum Power Consumption Current Output 1.2W
Voltage Output 1.2W
A Accuracy Humidity ±2%RH (60%RH，25℃)
Temperature ±0.4℃（25℃）
B Accuracy Humidity ±3%RH (60%RH,25℃)
Temperature ±0.5℃ (25℃)
Temperature Range -40℃~+120℃, default -40℃~+80℃
Humidity Range 0%RH-100%RH
Transmitter Circuit Working Temperature And Humidity -20℃~+60℃, 0%RH~95%RH A9:C28(non B25condensing)
Probe Operating Temperature -40℃~+120℃, default -40℃~+80℃
Probe Working Humidity 0%RH-100%RH
Long Term Stability Humidity 1%RH/y
Temperature 0.1℃/y
Response Time Humidity 8s(1m/s wind speed)
Temperature 25s(1m/s wind speed)
Output Signal Current Output 4-20mA
Load Capacity Voltage Output Output resistance250Ω
Current Output 600Ω

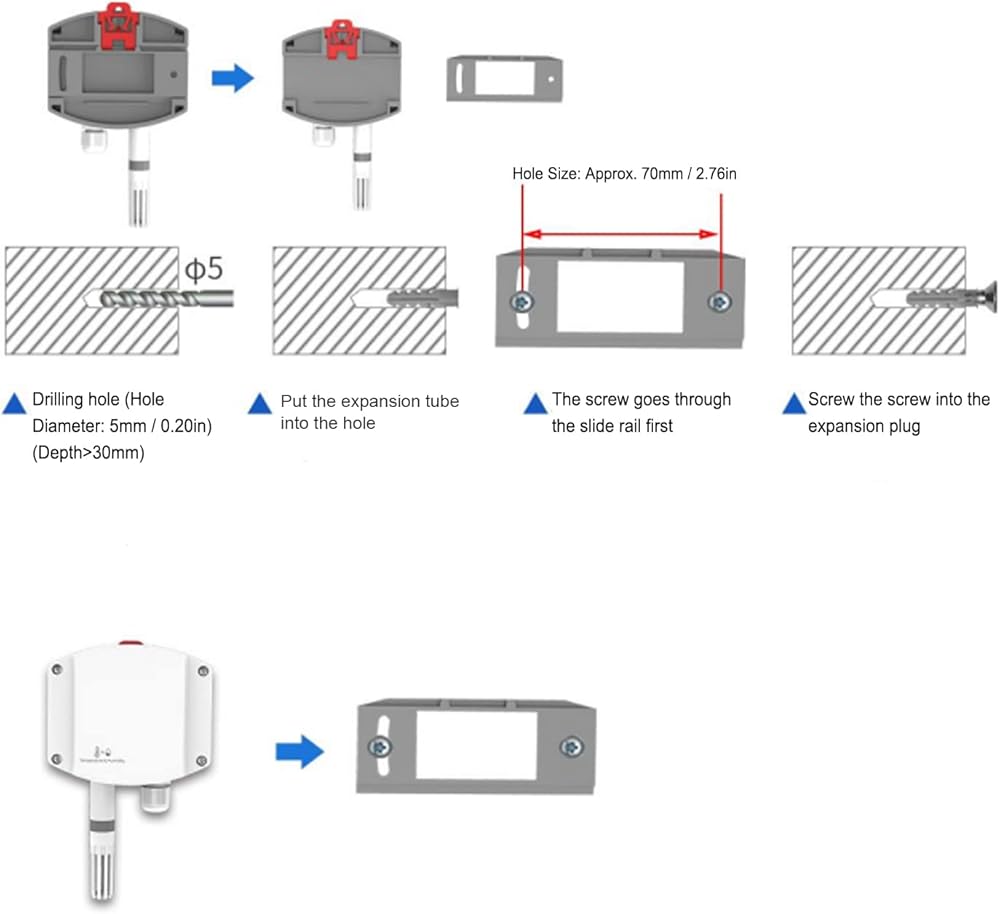

Hole Size 70mm/2.8in
Parameter Settings Set By Software Product Model:

RS- Company Codes
WS- Temperature And Humidity Transmitter, Sensor
120- 4~20mA Current Output

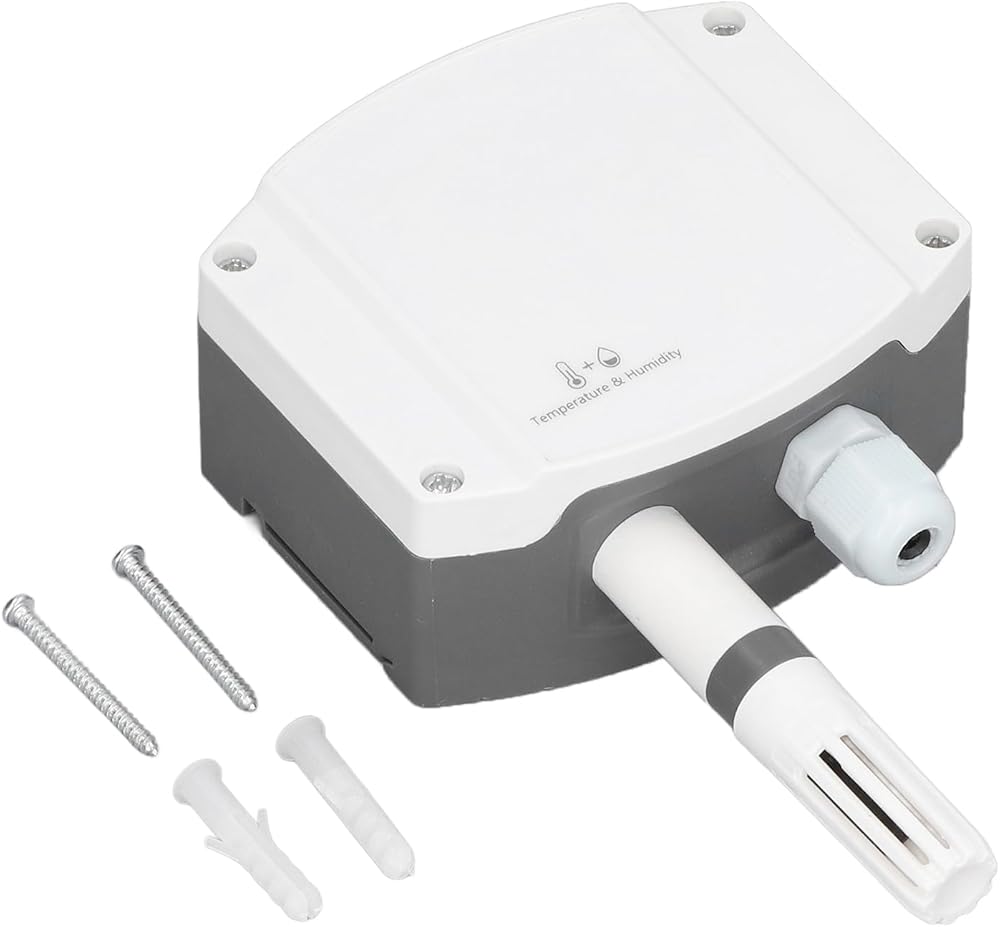

Package List：
2 x Screw
2 x Expansion Tube
1 x Transmitter
1 x Manual
