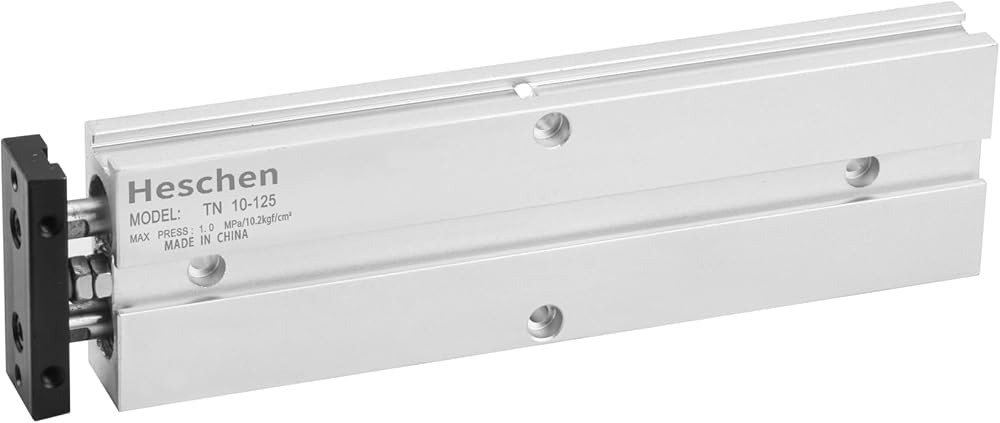

Heschen Double Rod Air Cylinder, TN10x125, 10mm Bore, 125mm Stroke, Double Acting Pneumatic Actuator with Magnetic Piston, 0.4° High Non-Rotation Precision for CNC Robotics & Pick-and-Place Automation
Size 125mm Stroke
25mm Stroke
60mm stroke
125mm Stroke
Special Features

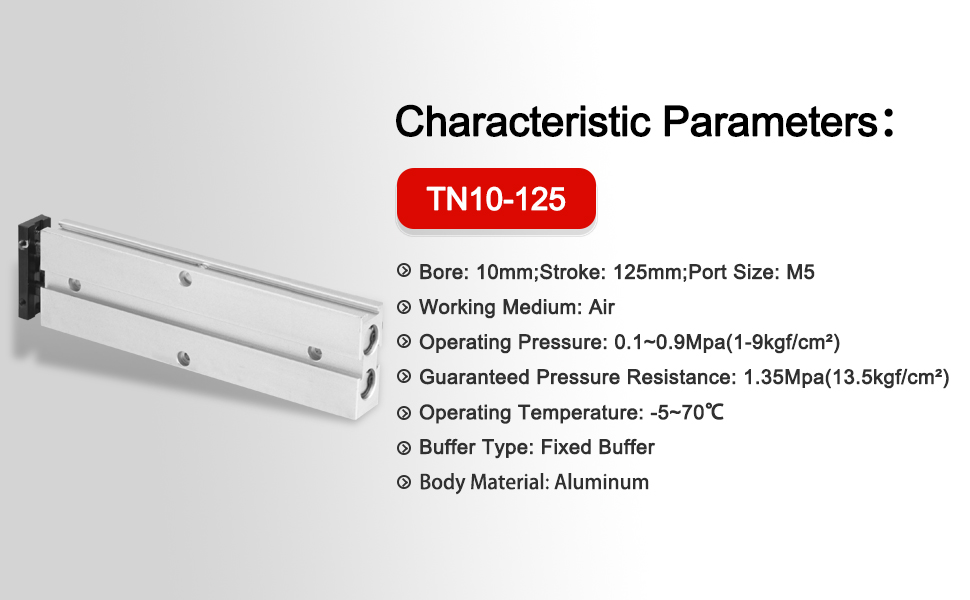

Parameters: Bore: 10mm, Stroke: 125mm; Port Size: M5; Maximum Pressure: 1.0 MPa(10.2kgf/cm2)

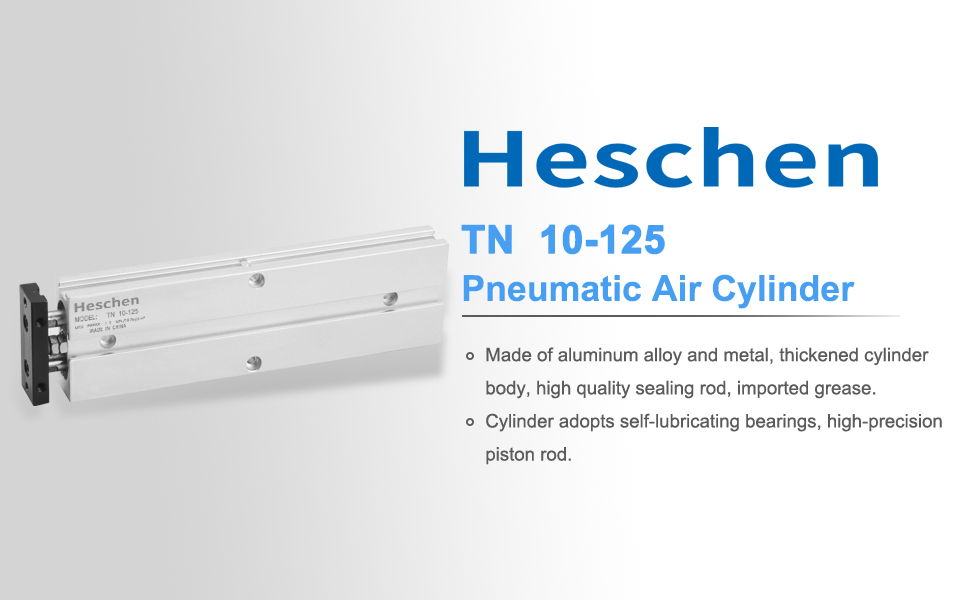

Material: Double piston pole supplise anti-bending and anti-torsion;aluminum alloy can withstand large lateral loads and moments.
Packaging: TN10-125*1PCS
Character:Action Type: Double Acting; Rod Type: Double Rod;it is convenient to assemble,disassemble and maintain.
Application Ranger:automotive, food processing, material handling and robotic applications, chemical, textile, electronic and machinery Industry.
