Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
Fearture:
* 3 same parameters in one display for 3 dimensional measurement or 1 dimensional measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Bearing condition monitoring function.

Technical Specifications

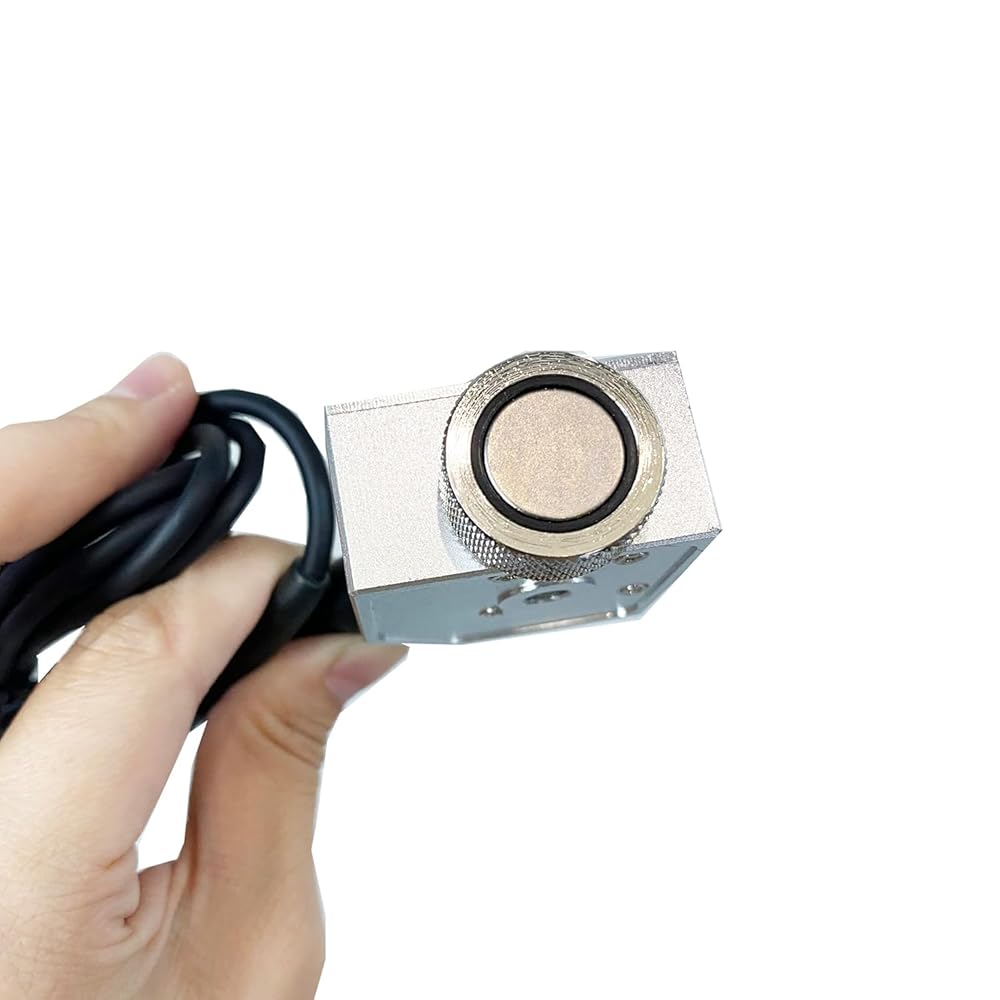

* Sensor: Piezoelectric Transducer
* Measuring Range:
* Acceleration: 0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak
* Velocity: 0.01~400mm/s 0.004~16.0inch/sTrue RMS
* Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
* Frequency Range:
Acceleration: 10Hz~10kHz
* Velocity:10Hz~1kHz
* Displacement: 10Hz~1kHz
* Accuracy: 5% of Reading+2 digits

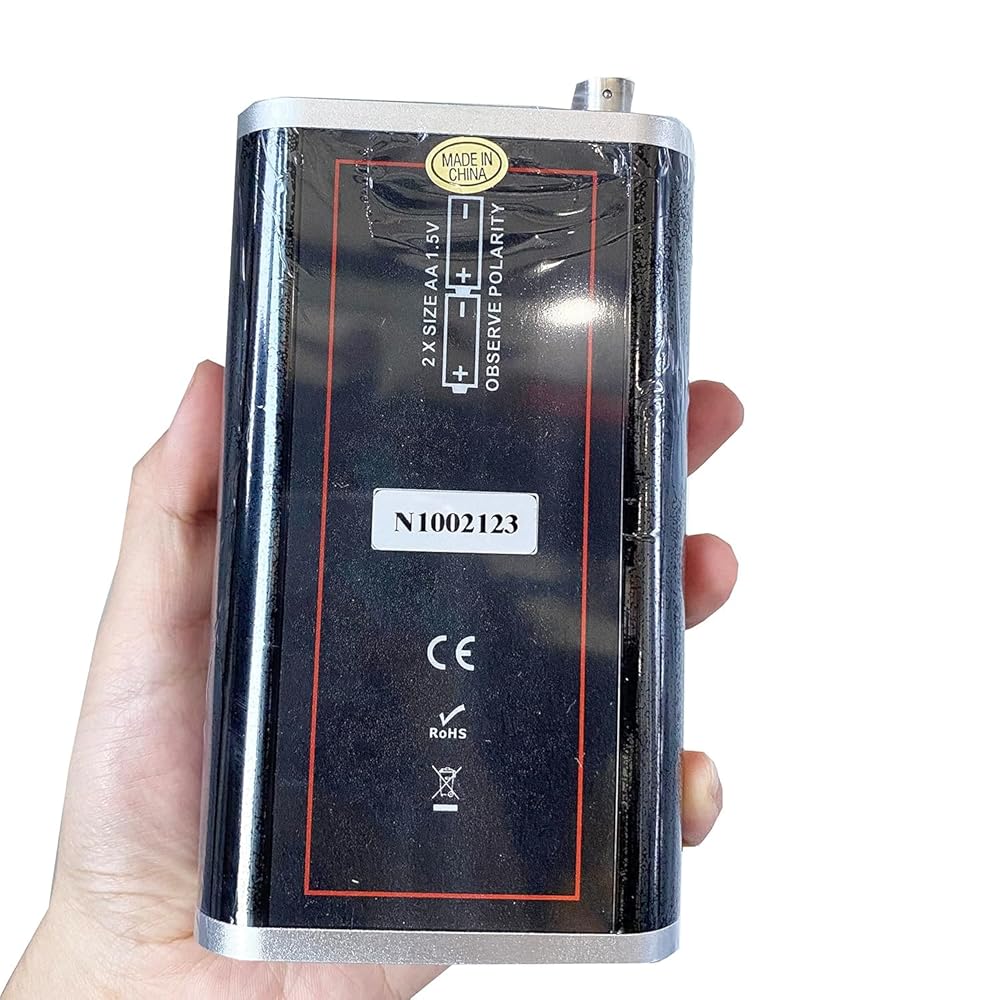

* Operating Conditions:Temperature: 0~50ºC, Humidity: * Power Supply: 2x1.5V AA(UM-3)Battery（Battery not included in the package）
* Dimensions: 130x76x32mm;Weight: 340g

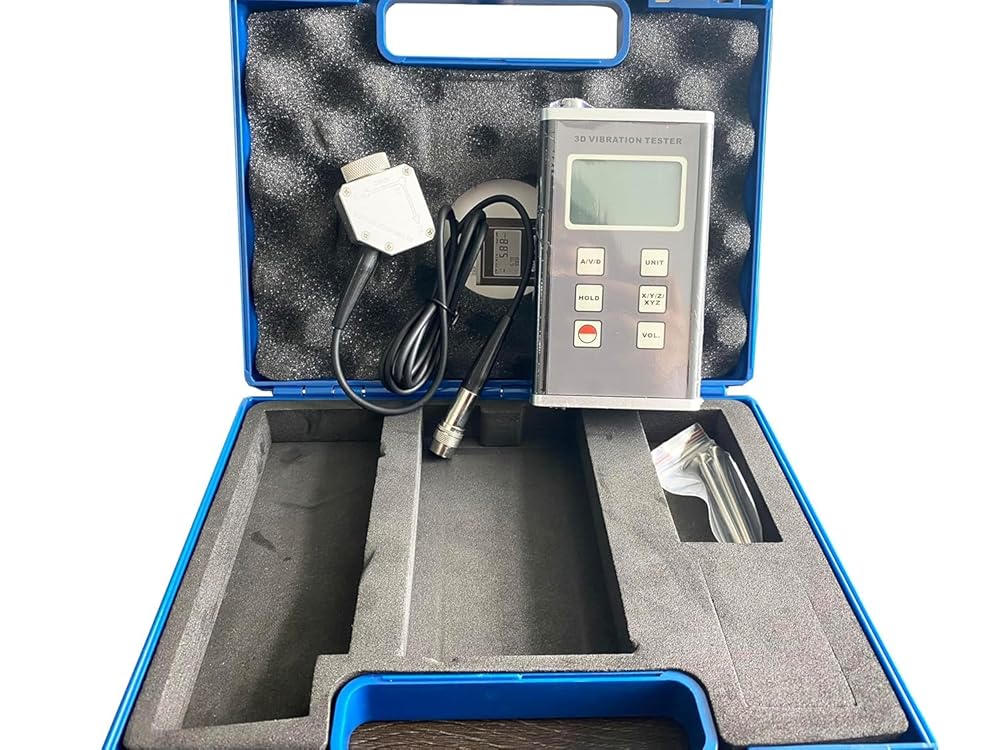

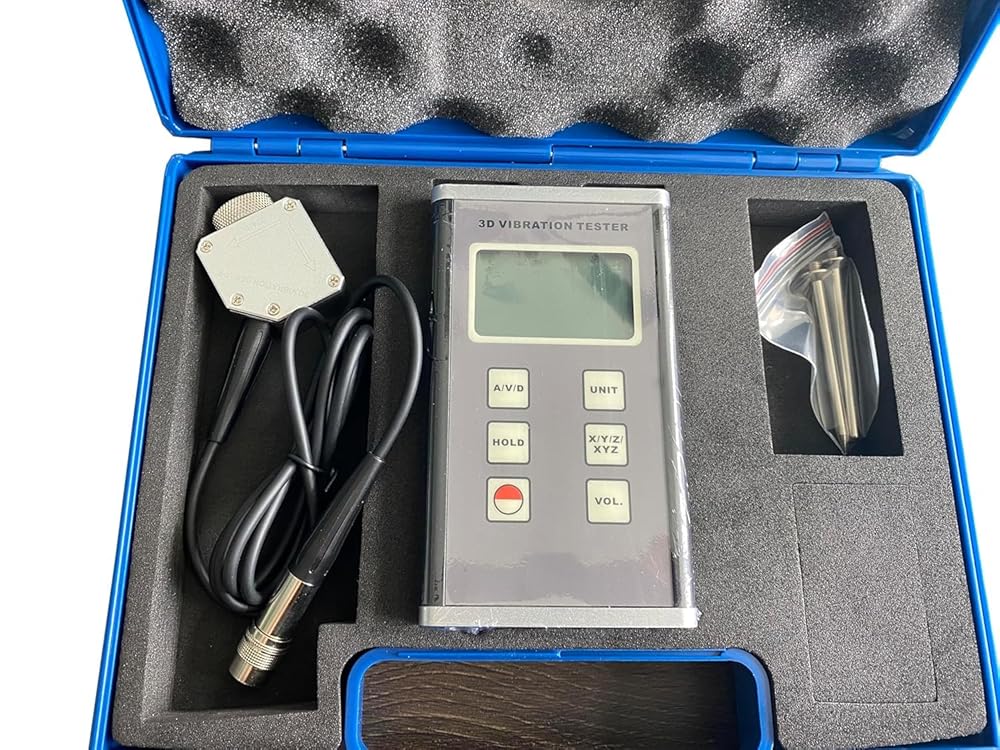

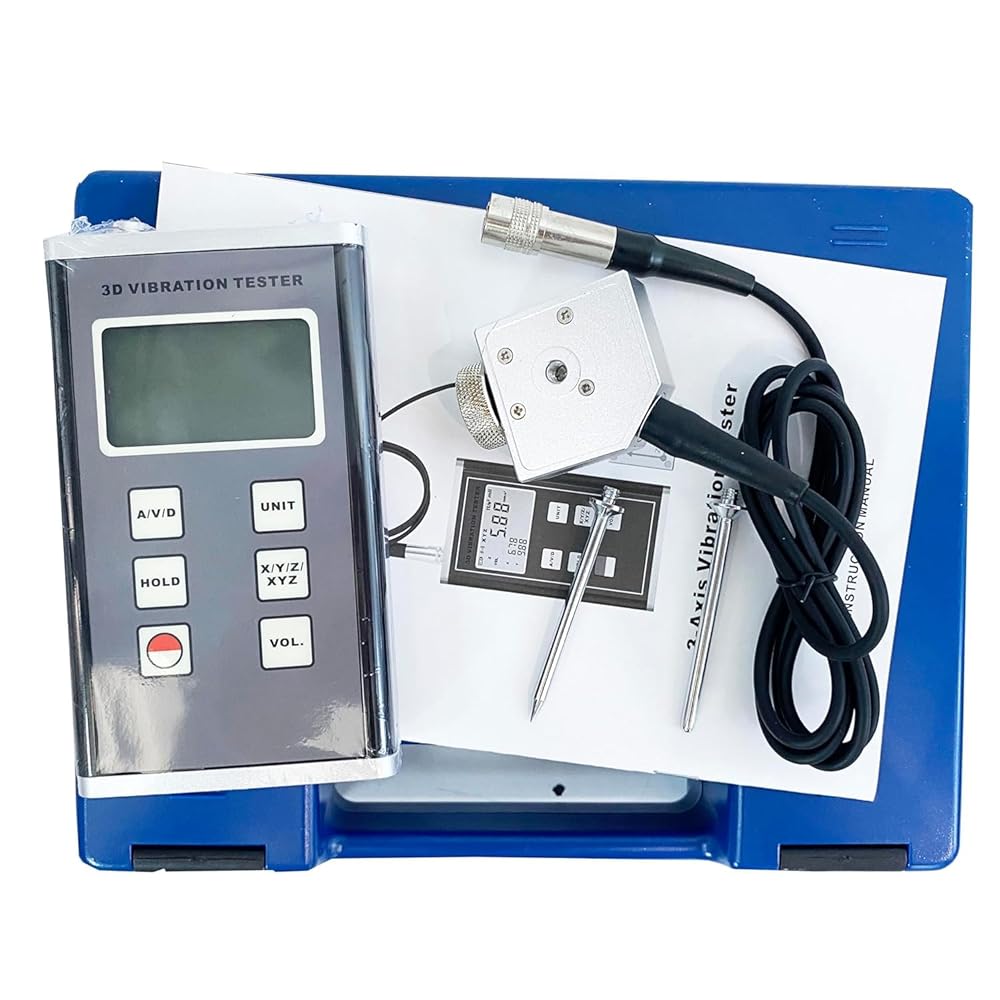

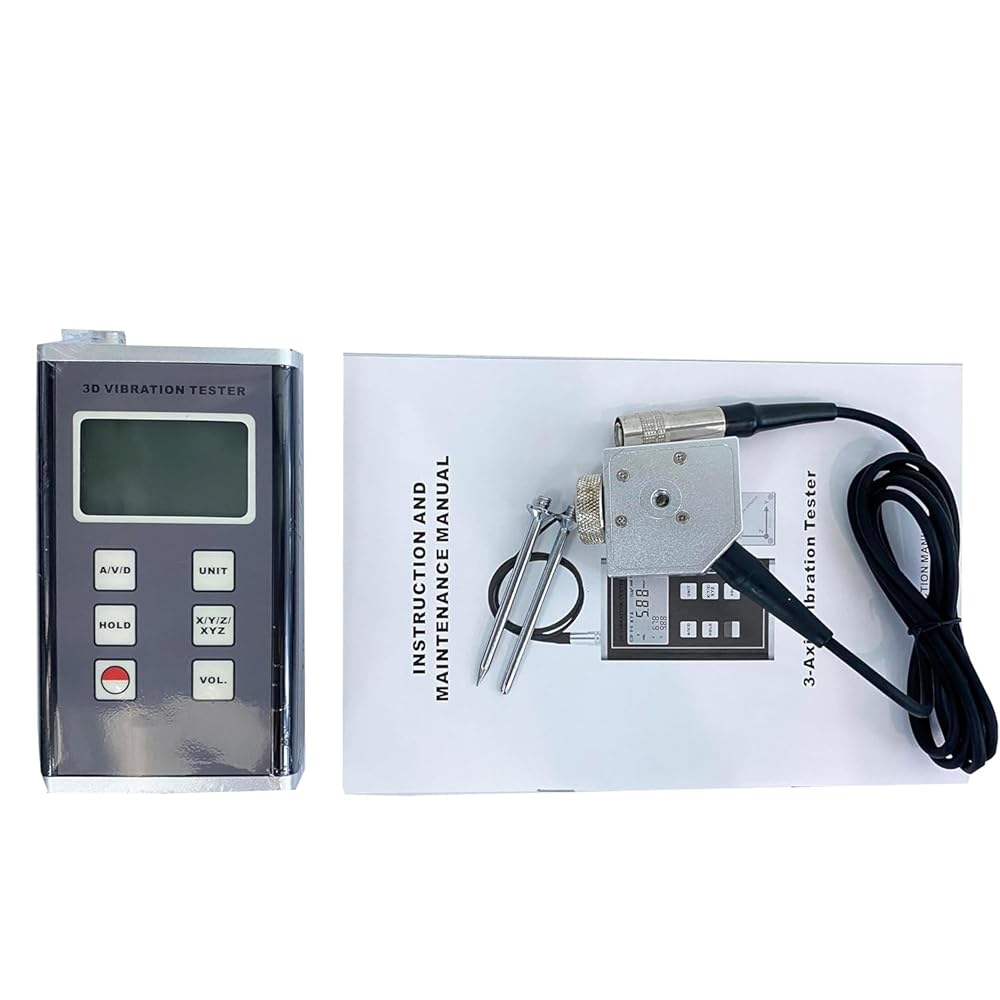

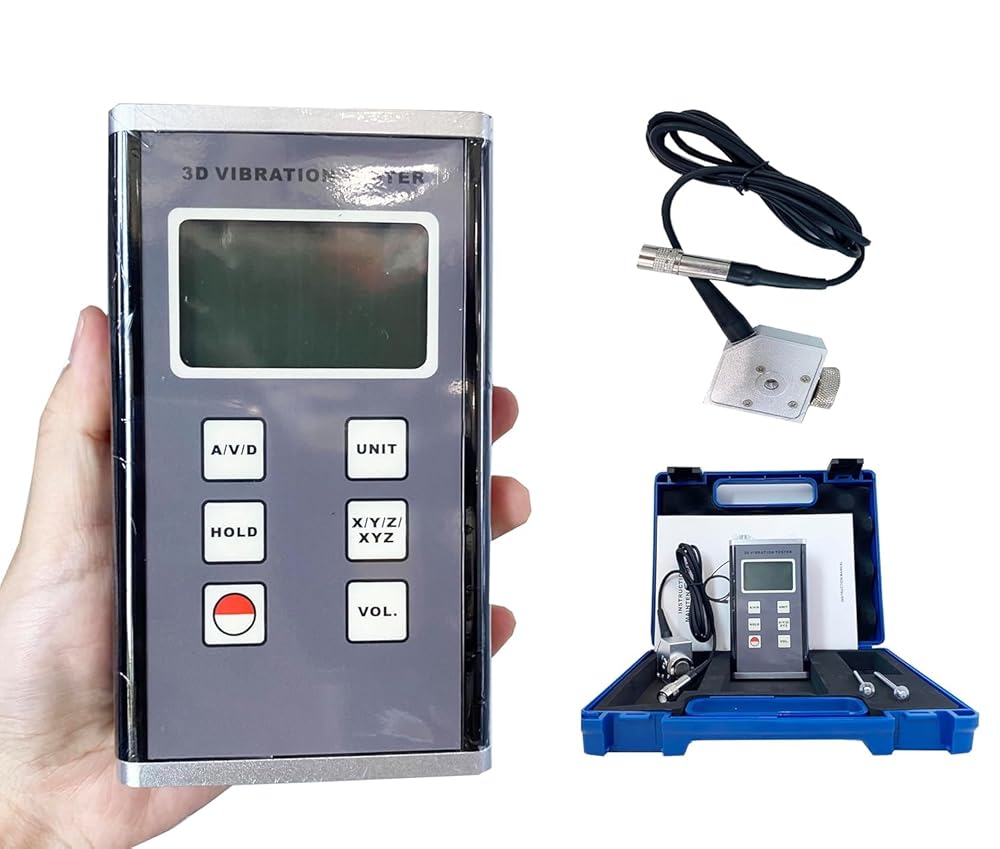

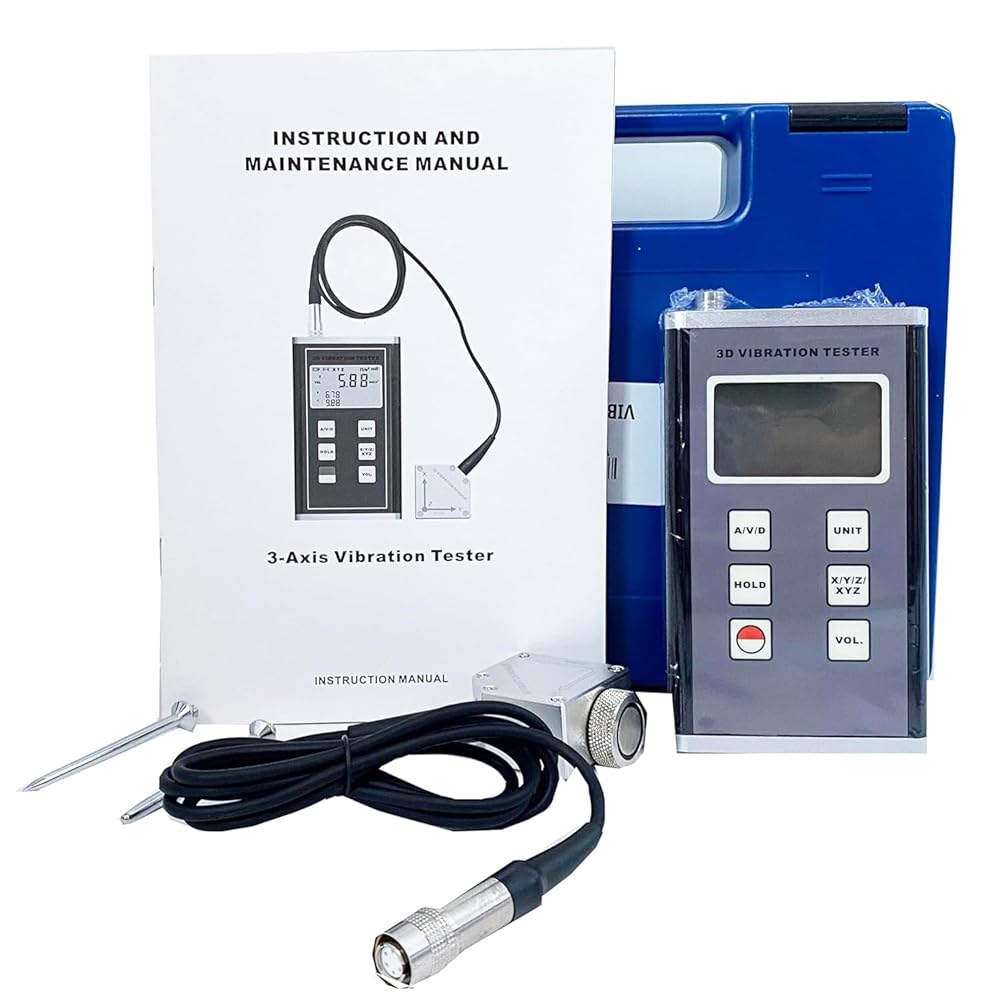

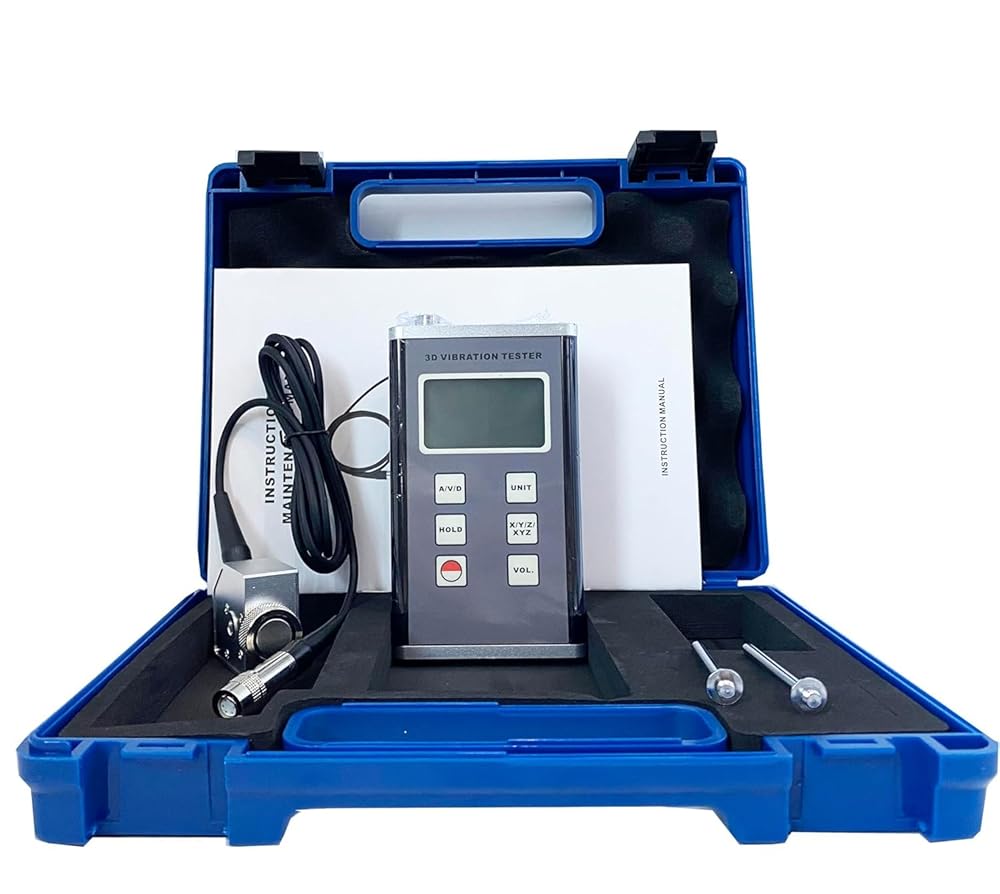

* Standard Accessories: Main Unit, Piezoelectric Transducer, Powerful Rare Earth Magnet, Probe(Cone)&Probe(Spherical) , Carrying Case(, Manual Book
* Optional Accessories: Headset , RS-232C Data Cable with Software, Bluetooth Data Adapter with Software
* Optional :Headset, USB, RS-232 data cable with software, Bluetooth data out put with software
If you need Optional Accessories,Please contact us.
