Product Description

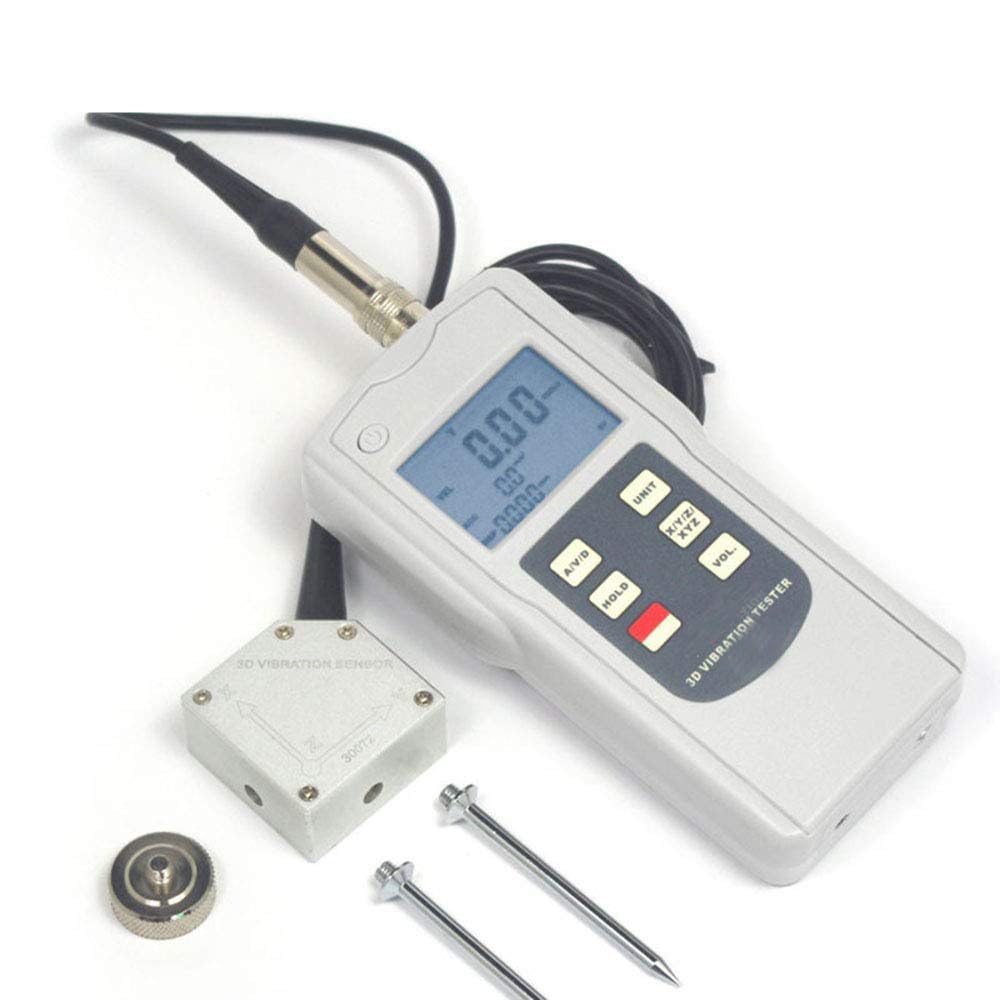

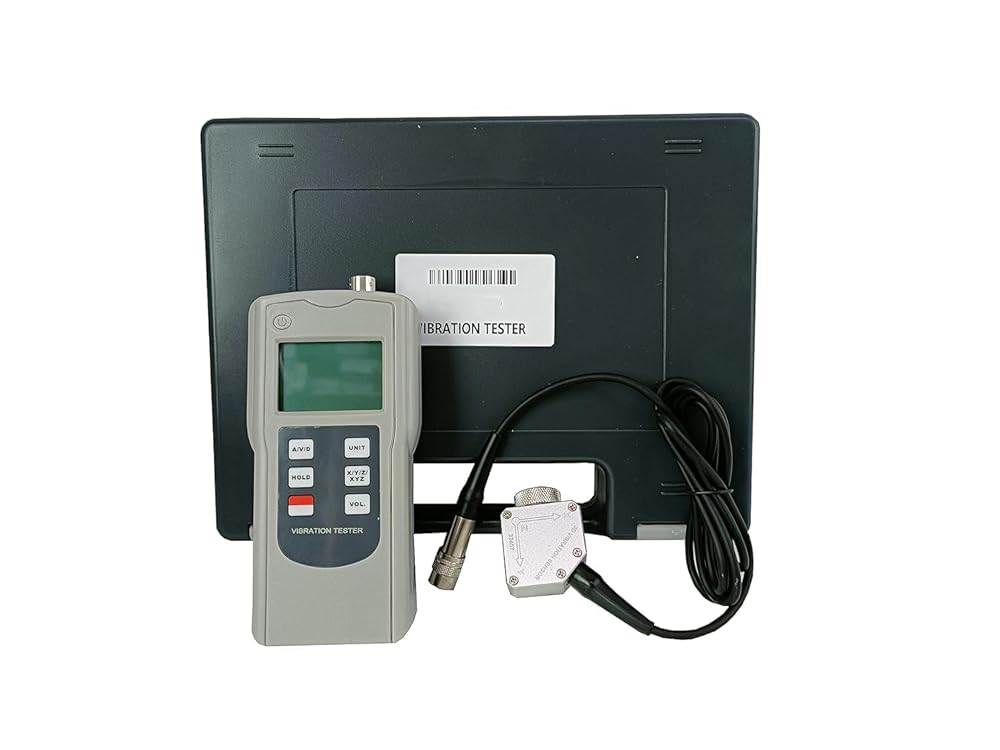

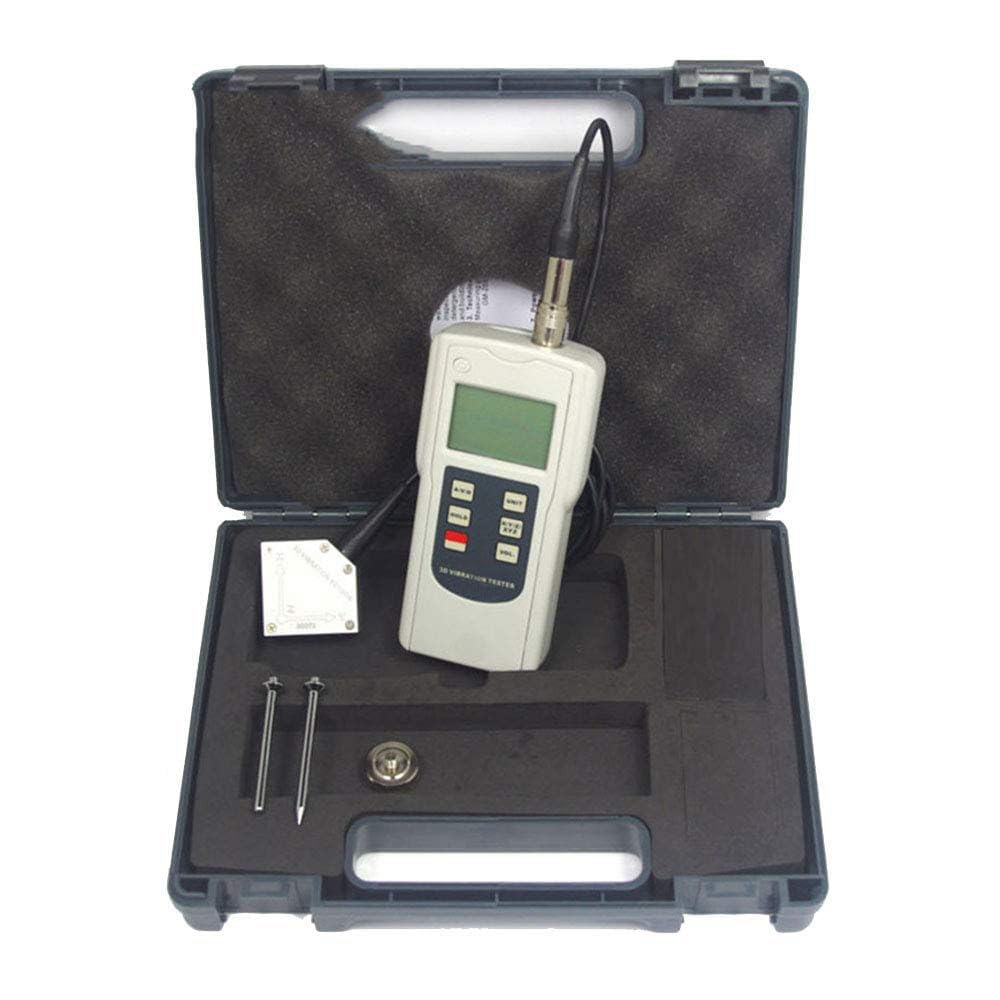

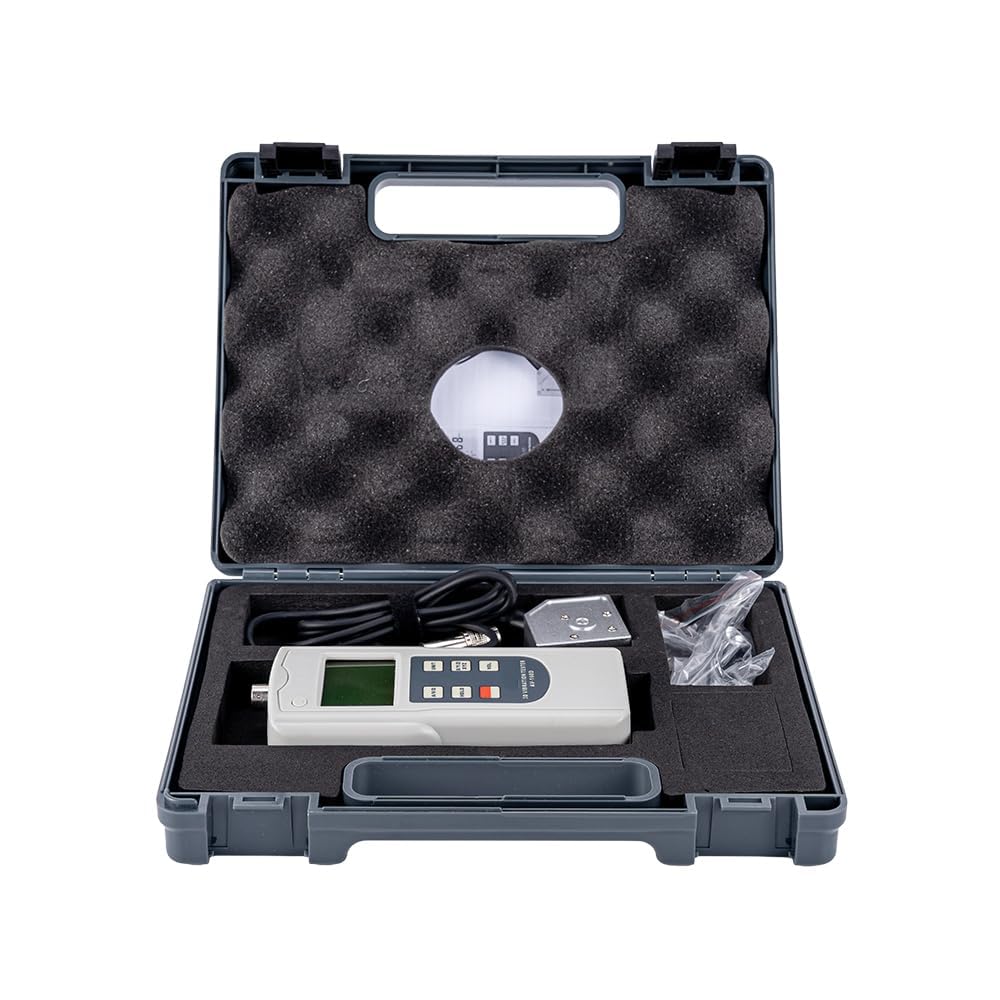

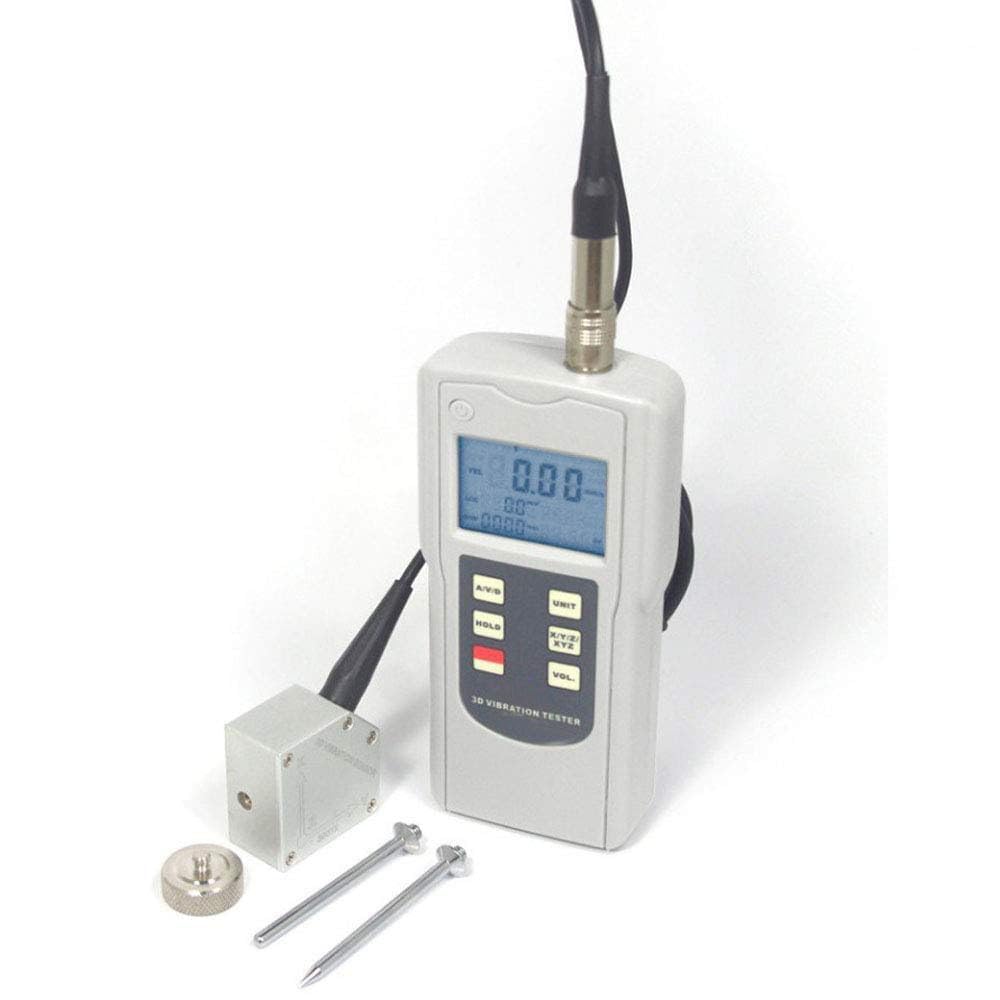

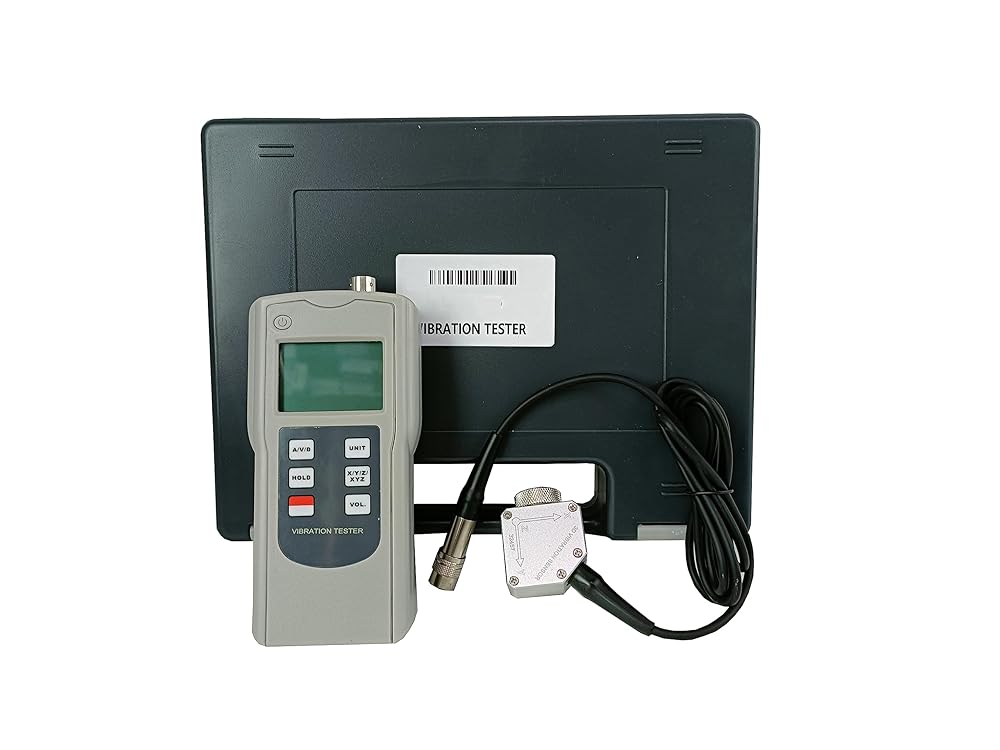

◆ The 3D Vibration Tester Applied to the periodic motion measurements to detect moving mechanical imbalances and misaligned. Designed for on-site measuring various mechanical vibration, for quality control, running time and prior equipment maintenance data. Selection of high-performance accelerometers to achieve accurate, replicable measurement It has a bearing condition measurement function.

Product Feature
◆ In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
◆ Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
◆ Individual high quality accelerometer for accurate and repeatable measurements.
◆ Wide frequency range (10Hz~10kHz) in acceleration mode.
◆ Bearing condition monitoring function.

Technical Specifications
◆ Transducer: 3-Axis Piezoelectric accelerometer
◆ Axial Vibration:Any one axis of X ,Y,Z or 3 axes of XYZ
◆ Accuracy: ±5%+2 digits
◆ Measurement Range:
Displacement: 0.001-4.000 mm equivalent peak-peak / 0.04-160.0 mil
Velocity: 0.1-400.0 mm/s true RMS / 0.004-16.00 inch/s
Acceleration : 0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g
◆ Frequency Range:
Displacement : 10Hz. ~ 1kHz.
Velocity :10Hz. ~1kHz.
Acceleration: 10Hz. ~ 10kHz.
◆ Operating Conditions: Temperature : 0-50 ℃; Humidity : below 95% RH
◆ Analogue Output: AC output 0~2.0V peak full scale (load resistance: above 10k)

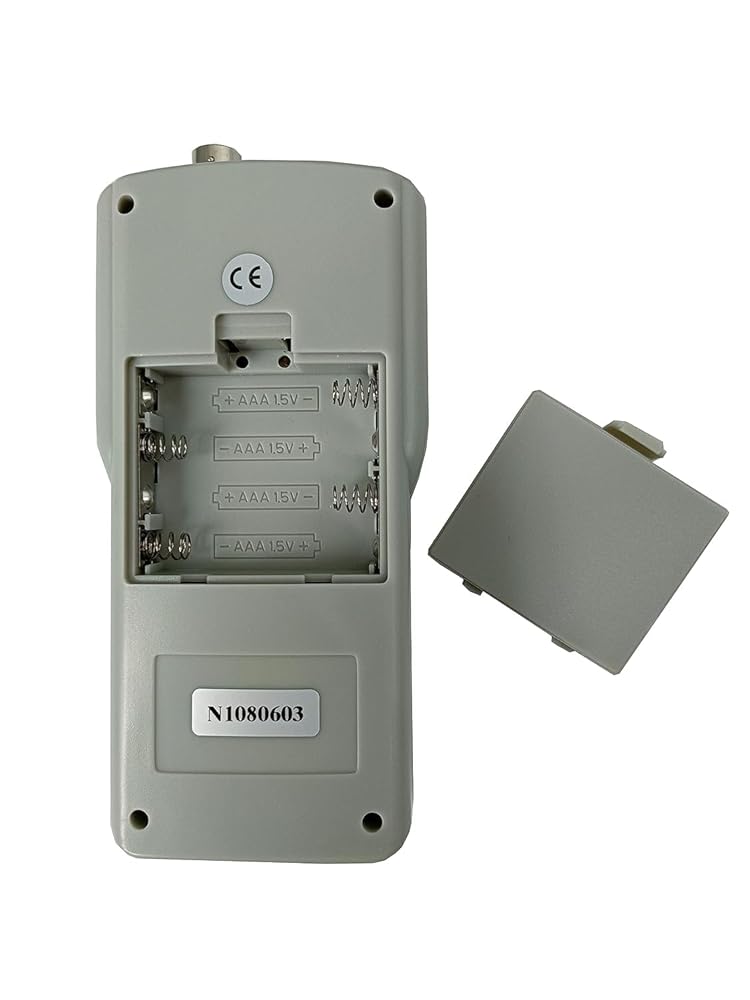

◆ Power Supply: 4x1.5vAAA (UM-4) Battery(Battery Not Included in the Package）
◆ Size: 140x70x30mm
◆ Weight:130g
