Rotary Shafts

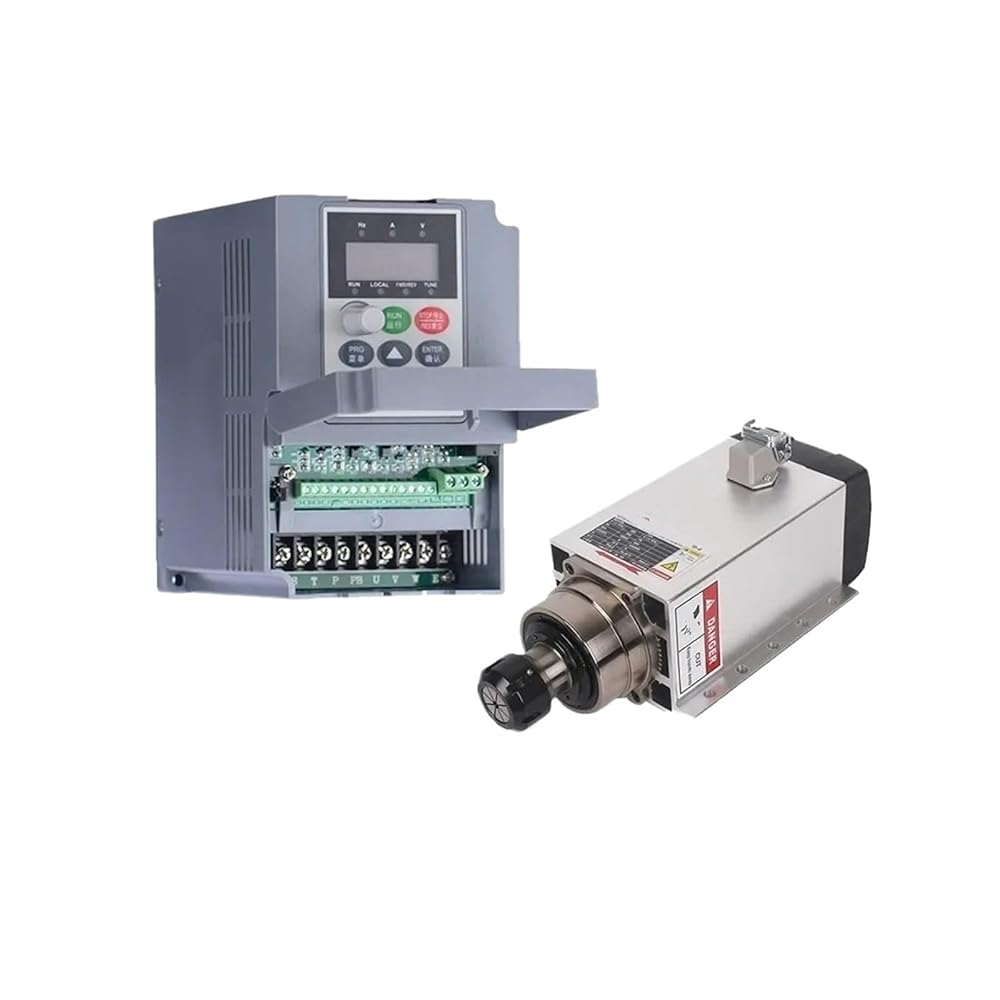

Package includes:
1 x Spindle Motor
1 VFD
1 x Chuck Set (1-1M)

Power: 2.2KW
Voltage: AC 380V (must be used with VFD)
Speed: 0-24000 rpm
Frequency: 0-400Hz
Air Cooling
Chuck: ER20 chuck
Clamping range: 1-1M
Runout: less than 0.02mm
Bearings: C7002 x 2; C7002 x 2 (ceramic bearings)
Runout: 0.01mm
VFD Specifications:
Model: V8M4T3R0GB
Power: 3Kw
Input voltage: 3-phase 380V
Output voltage/current: 3-phase 0~380V/6A
Frequency input: 50/60Hz
Output: 0~400Hz
Working temperature: -10~40 degrees Celsius
Humidity: 0-95% relative humidity (no condensation)
Material: Industrial ABS plastic
Protection level: IP20
Cooling type: air cooling

Chuck set:
13 pcs ER20 collet chucks:
1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm
Runout tolerance: 0.008mm
Material: 65Mn
