SMD Digital Bridge Test Fixture, High Precision Capacitance Test Fixture, Frequency Range DC-30MHz,for 0201-1812 SMD Component, Benchtop LCR Meter

SAR 917
Brand
QUGURLID
– 1 +

Special Features

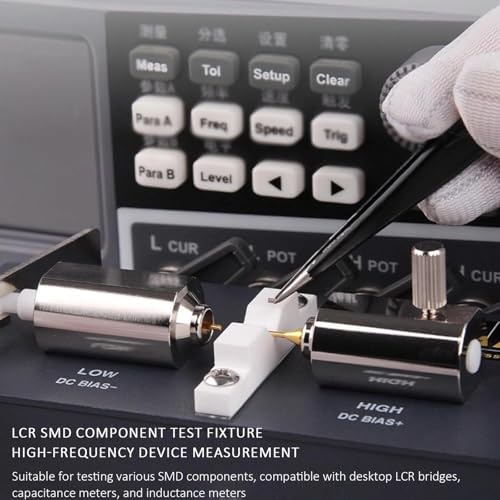

  • Ready to Use: Featuring an integrated design that requires no assembly, this SMD Digital Bridge Test Fixture allows for immediate operation upon arrival, saving time and significantly enhancing testing efficiency.
  • High Compatibility: Supporting a frequency range of DC-30 MHz and a maximum DC bias of ±42 V, this fixture ensures stable performance for accurate testing of small-value SMD components like high-frequency capacitors and inductors.

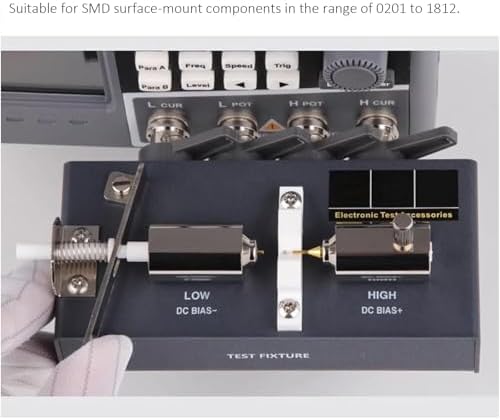

  • Universal SMD Size Support: Designed for SMD components sized from 0201 to 1812, this fixture is ideal for testing scenarios where frequency ≥100 kHz, capacitance ≤ 3pF, or inductance ≤1 uH, covering your daily testing needs.

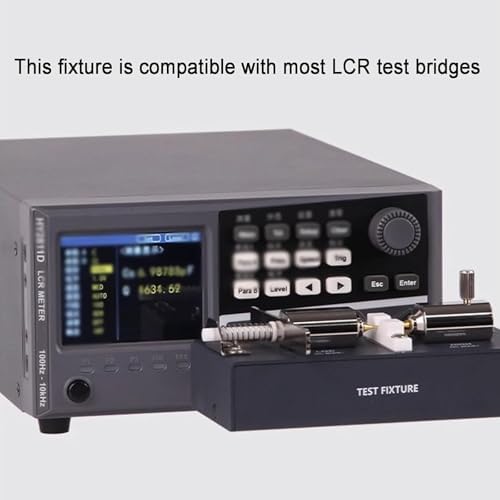

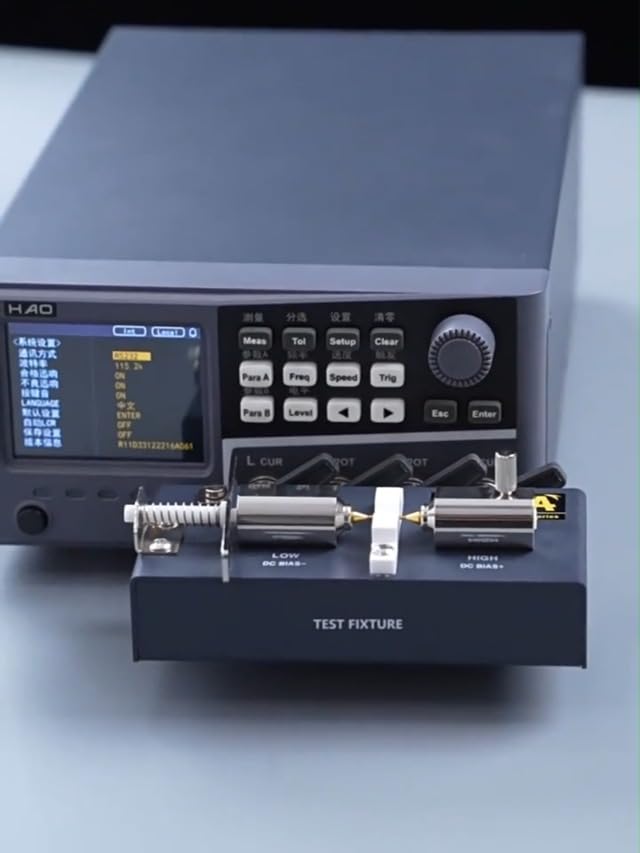

  • Wide Tester Compatibility: Compatible with mainstream LCR Digital Bridges, precision LCR testers, capacitance testers, and inductance testers, eliminating the hassle of matching equipment for your testing tasks.
  • Enhanced Measurement Precision: Featuring a gold-plated pin design, the fixture ensures excellent contact accuracy, effectively reducing measurement errors and providing reliable data for your electronic component inspections and R&D efforts.

Description

SMD Digital Bridge Test Fixture, Portable High Precision Digital Bridge SMT/SMD Components Capacitance Test Fixture for SMD Chiip Components Tester Multi-Meter

Features:

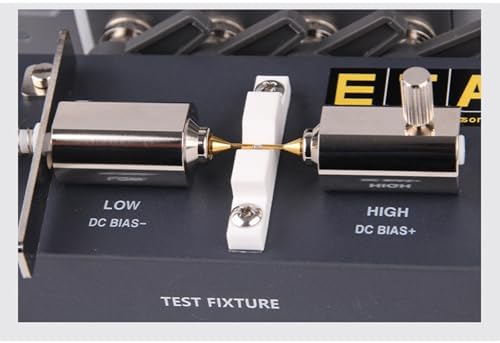

1.The gold-plated pin design makes the contact more accurate and the measurement more accurate.
2.The user-friendly adjustable design enables a fixture to meet the measurement of chiip capacitance, inductance, and resistance of different specifications.
3.Application: LCR digital bridge, precision LCR digital bridge, capacitance tester, precision capacitance tester, inductance tester and precision inductance tester.

Specifications:

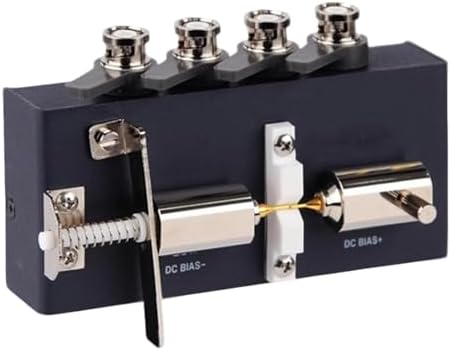

Name: SMD Digital Bridge Test Fixture
Frequency Range: DC-30MHz
Maximum DC Bias: DC ±24V
Product Use: SMD component test fixture, especially for high-frequency small capacitors or inductors. This type of SMD fixture is suitable when the test frequency is ≥100kHz, capacitance ≤3pF, or inductance ≤1uH.
Applicable SMD Component Range: 0201-1812

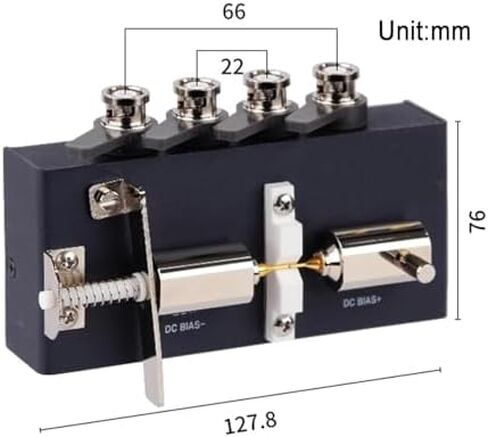

Product Dimensions: 127.8 × 76 mm (5 × 3 in)
Package Dimensions: 22 × 12 × 5.8 cm (8.7 × 4.7 × 2.3 in)
Gross Weight: 500g

Package List:
1 × SMD Digital Bridge Test Fixture
