Adjustable Digital Bridge Test Fixture,LCR/RCL Meter Test Fixture, Frequency Range DC-30MHz, High Precision,for 0201-1812 SMD Component

SAR 884
Brand
QUGURLID
– 1 +

Special Features

  • Compact & Portable: Designed for effortless mobility, this test fixture allows accurate SMD Component measurements in both laboratory and on-site field testing environments.

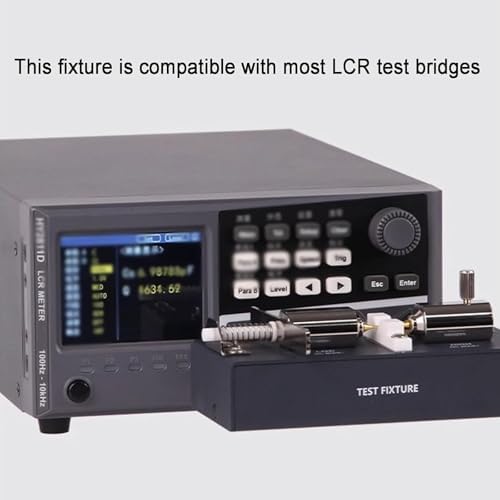

  • LCR Meter Compatibility: Universally compatible with major LCR Bridge Tester brands, it simplifies workflows with plug-and-play operation, enhancing productivity for rapid SMD Component validation.
  • Precision SMD Component Analysis: Capable of handling SMD Components from 0201 to 1812, this fixture delivers reliable results for challenging measurements like capacitors ≤ 3pF or inductors ≤ 1uH.
  • Wide Frequency Range: Address diverse testing requirements with a sweeping DC to 30 MHz frequency range and ±42 V DC bias capability, ensuring high precision for all electronic projects.
  • High Precision Performance: Optimized for high-frequency small-capacitance and small-inductance SMD Components, this fixture provides consistent data to meet the precision needs of professional electronic engineers.

Description

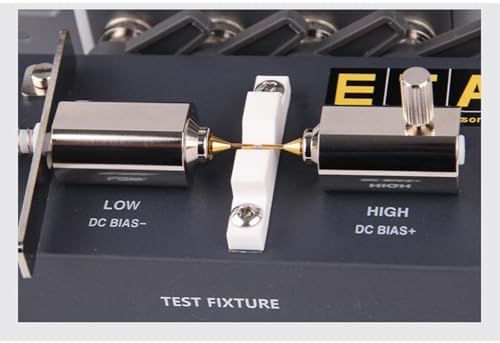

SMD Digital Bridge Test Fixture Used to Test SMD Chip Capacitors Chip Inductors, LCR/RCL Meter Test Fixture for Various Sizes , for SMD Component

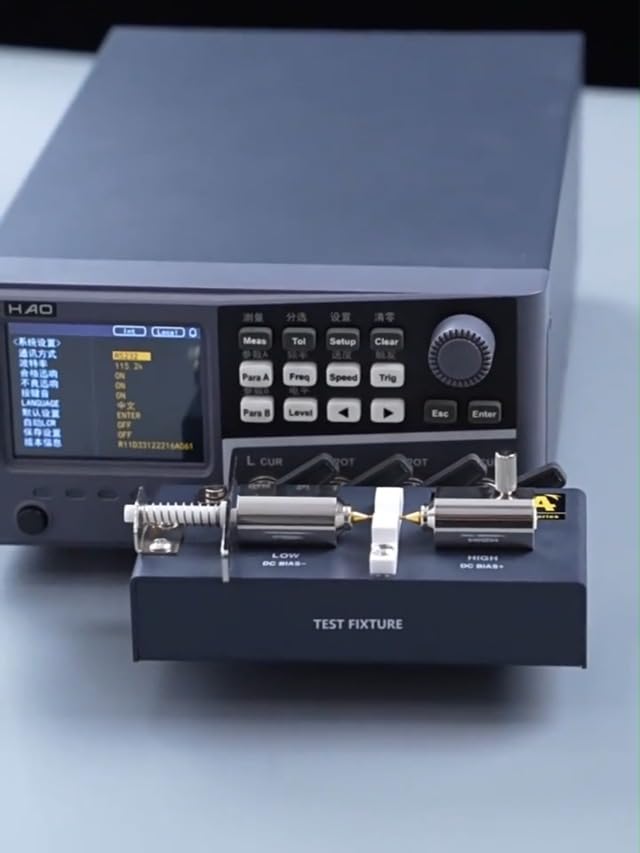

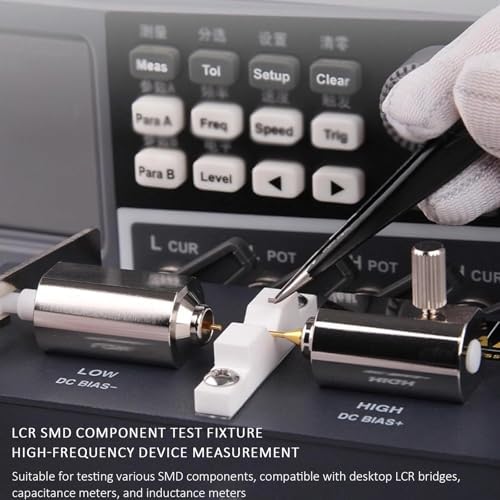

LCR SMD component test fixture, for high-frequency device measurement, suitable for testing various SMD components, compatible with desktop LCR bridges, capacitance meters, and inductance meters.

Specifications:

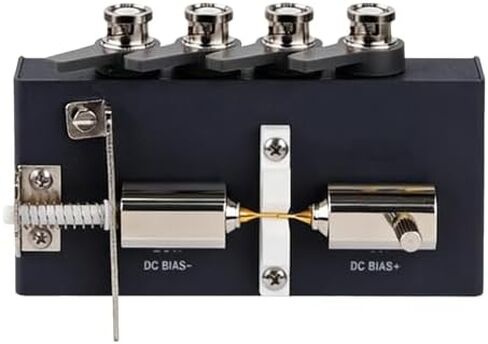

Name: SMD Digital Bridge Test Fixture
Frequency Range: DC-30MHz
Maximum DC Bias: DC ±24V
Product Use: SMD component test fixture, especially for high-frequency small capacitors or inductors. This type of SMD fixture is suitable when the test frequency is ≥100kHz, capacitance ≤3pF, or inductance ≤1uH.

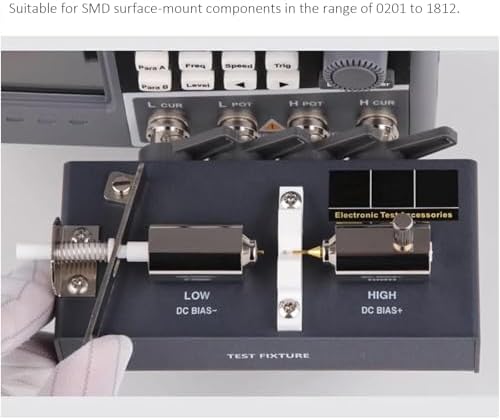

Applicable SMD Component Range: 0201-1812

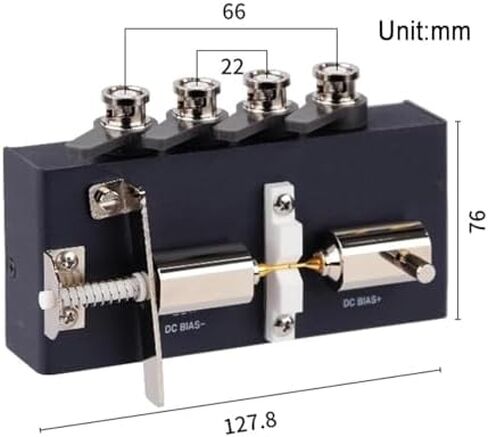

Product Dimensions: 127.8 × 76 mm (5 × 3 in)
Package Dimensions: 22 × 12 × 5.8 cm (8.7 × 4.7 × 2.3 in)
Gross Weight: 500g

Package List:
1 × SMD Digital Bridge Test Fixture
