Automatic Liquid Surface Tension Meter with Touch Screen 0-1000mN/m Test Range 0.01mN/m Precision 110V 100W

SAR 12,838
Brand
Banfluxion
Weight
11.9 kg
– 1 +

Special Features

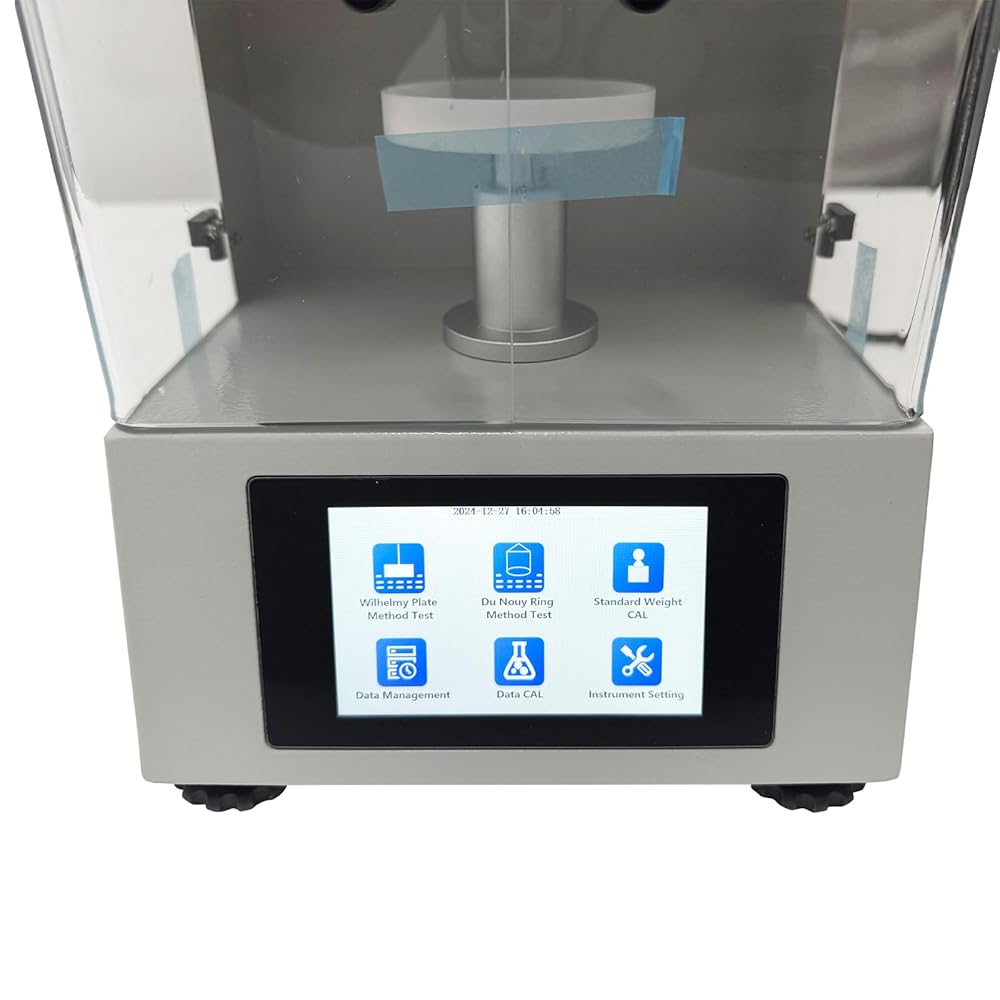

  • 4.3-inch Touch Screen: The liquid surface tension meter is equipped with a 4.3-inch LCD touch screen, which can display real-time measurement curve, save multiple sets of data, support external printer, and support Chinese/English interchangeable operation
  • Automatic Sample Lift Table: The sample stage can be automatically lifted and lowered to meet the needs of different containers and sample quantities

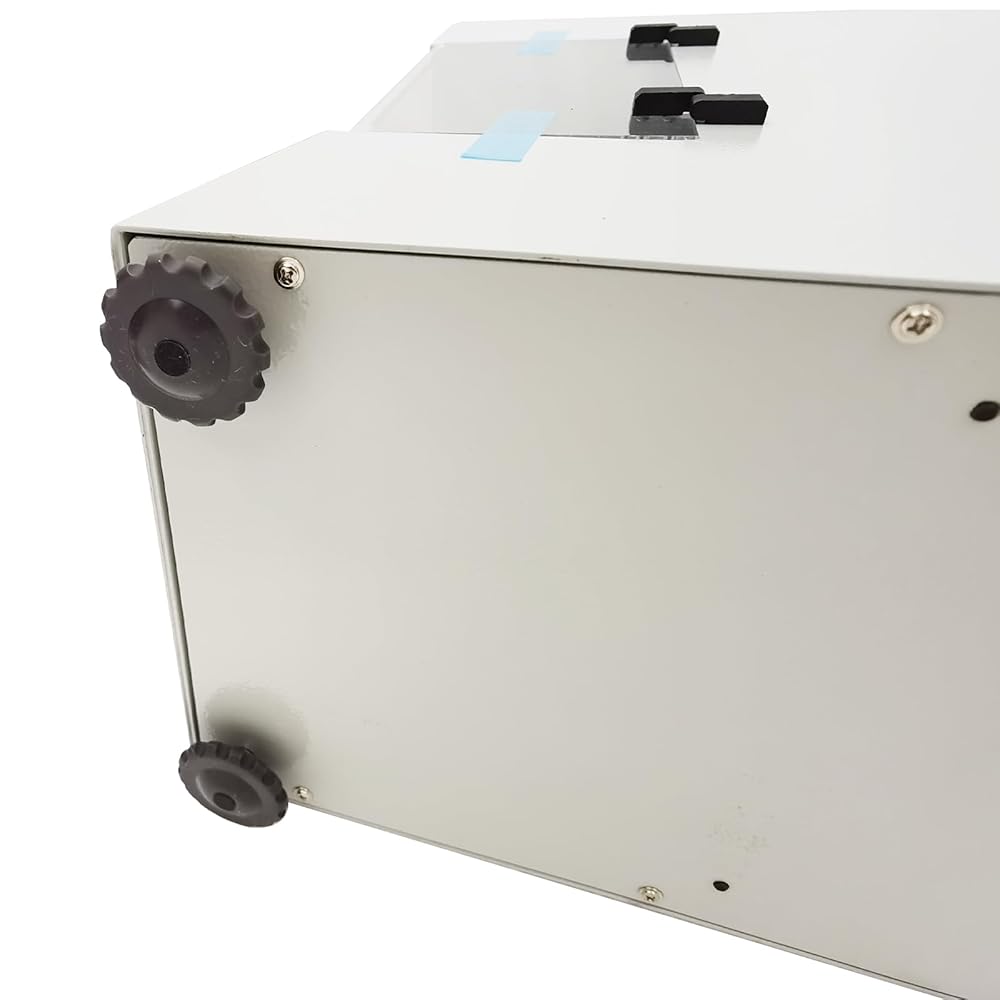

  • Precise Measurement: There is a level on the top to ensure that the machine is in a horizontal state, so as to ensure the accuracy, consistency and reliability of the measurement results. Before starting the experiment, you need to turn the level adjustment knobs at the bottom until the bubble is in the middle of the level

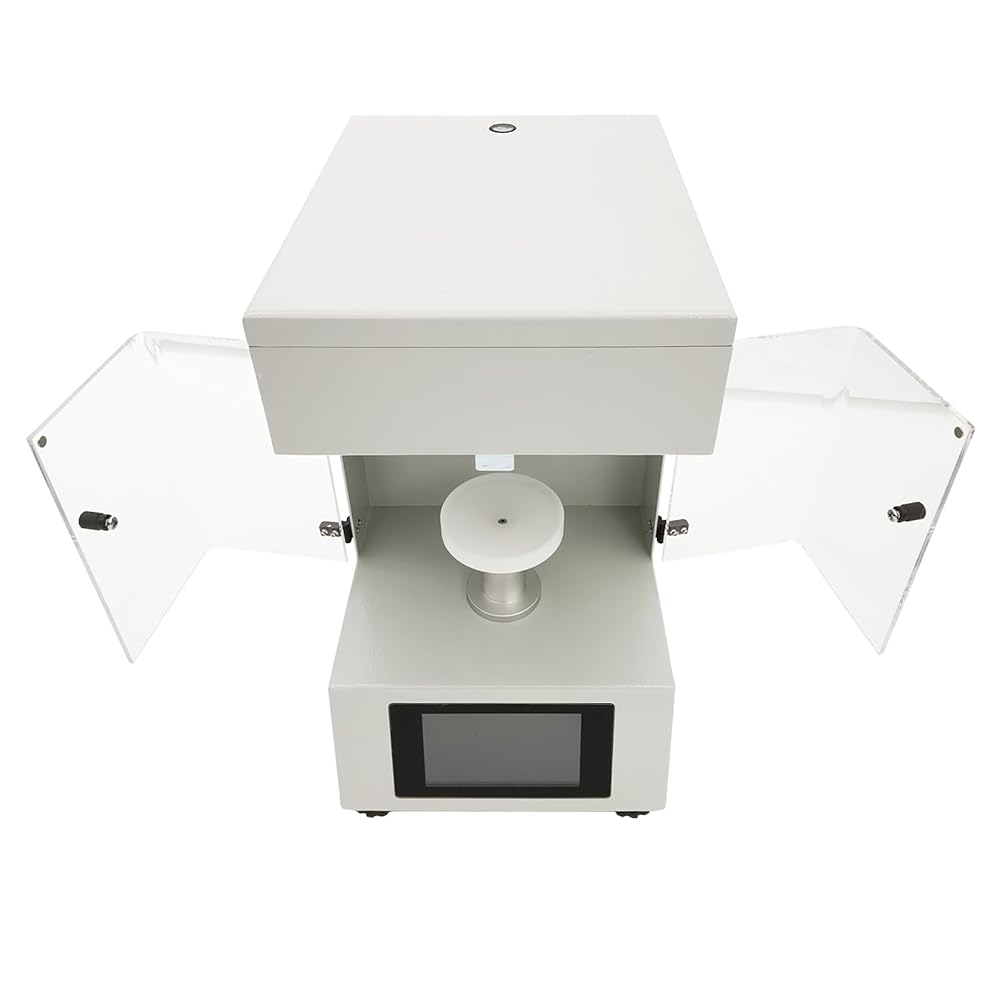

  • Transparent Door Design: The machine adopts transparent door design, which not only provides a window for observing the experimental process but also reduces external interference, ensuring a stable experimental environment
  • Wide Application: The liquid surface tension meter can automatically measure the surface tension, widely used in scientific research, industry, food, environment and education to meet diversified measurement needs

Description

Product Parameters
Voltage: AC110V
Power: 100W
Test Range: 0-1000mN/m
Precision: 0.01mN/m
Measure Time: Normally within 60 seconds
Test Method: Du Nouy Ring Method and Wilhelmy Plate Method
Ring size: Pt wire radius is 0.185mm, ring radius is 9.55mm, ring circumference is 60mm.
Display Method: 4.3-inch touch screen
Data Method: Support data storage/view/print (Printer is optional)

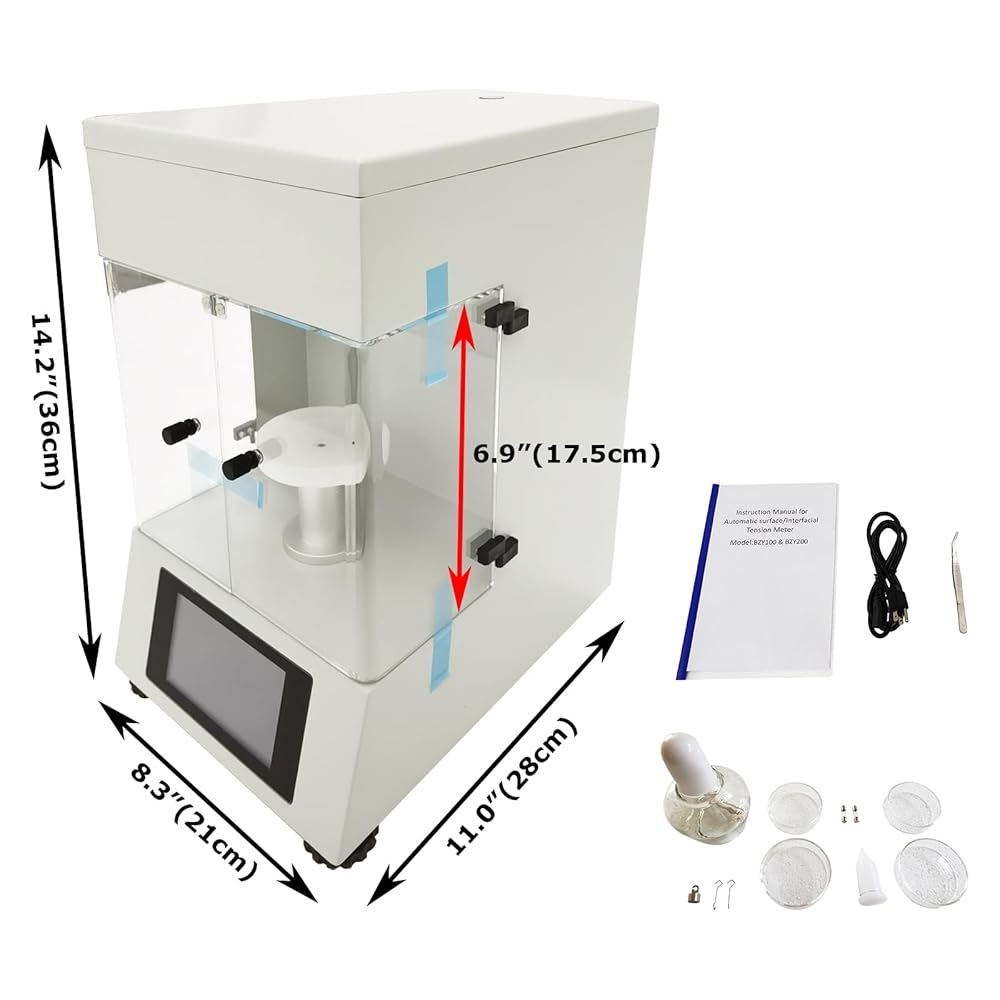

Package size: 18.9"*13.4"*21.3" (48cm*34cm*54cm)
Net weight/Gross weight: 21.8lbs(9.9kg)/26.2lbs(11.9kg)
Note: The plate/ring test method needs to be specified when ordering. The standard configuration is the ring, and the plate needs to be purchased. If the budget is sufficient, it is recommended to configure both the plate and the ring.
Item Included:
Liquid Surface Tension Meter *1
Accessory Kit *1
