SUPCO VAS-078 7/8" OD HVAC Vibration Absorber | Stainless Steel Braided Refrigerant Line Eliminator | Copper Sweat Ends | 12" Compressor Vibration Isolator | 650 PSI Working Pressure in Saudi Arabia

SUPCO VAS-078 7/8" OD HVAC Vibration Absorber | Stainless Steel Braided Refrigerant Line Eliminator | Copper Sweat Ends | 12" Compressor Vibration Isolator | 650 PSI Working Pressure

SAR 209
Brand
Supco
Weight
304 g
– 1 +

Special Features

  • REDUCES COMPRESSOR VIBRATION & SYSTEM NOISE: Installed in suction or discharge refrigerant lines, this vibration absorber isolates compressor-generated vibration before it travels through copper piping, helping reduce noise, pipe fatigue, and stress on brazed joints in HVAC and refrigeration systems.
  • HEAVY-DUTY STAINLESS STEEL BRAIDED CONSTRUCTION: Features a deep-pitch corrugated stainless steel hose reinforced with high-tensile wire braid for flexibility and durability in high-pressure HVAC applications. Designed to withstand compressor motion without transferring stress to piping.
  • HIGH-PRESSURE & WIDE TEMPERATURE PERFORMANCE: Rated for 650 PSI maximum working pressure and 3250 PSI burst pressure, with an operating temperature range of -40°F to 248°F (-40°C to 120°C), making it suitable for demanding HVAC and refrigeration environments.
  • LEAK-TESTED FOR RELIABLE REFRIGERANT SYSTEMS: Each vibration absorber is pressure tested and vacuum tested using helium mass spectrometer leak detection, then cleaned, dehydrated, sealed, and individually packaged to maintain internal cleanliness before installation.
  • PROFESSIONAL HVAC INSTALLATION COMPONENT: Copper sweat ends allow secure brazed installation directly into refrigerant piping. Designed for use in air conditioners, heat pumps, chillers, and refrigeration systems to isolate compressor movement and extend piping life.

Description

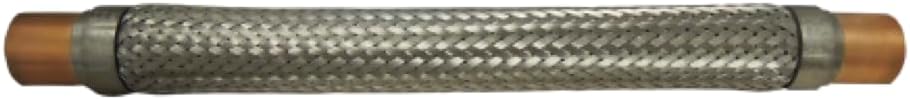

The SUPCO VAS-078 7/8" OD Vibration Absorber is a professional-grade refrigerant line component designed to isolate compressor vibration in HVAC and refrigeration systems.

During operation, compressors generate mechanical vibration that can travel through connected refrigerant piping. Over time, this vibration can cause noise, pipe fatigue, and stress on brazed joints. Vibration absorbers are installed in suction or discharge lines to dampen vibration and protect system piping.

This model features a deep-pitch stainless steel corrugated hose with a high-tensile braided outer reinforcement, providing flexibility while maintaining structural integrity in high-pressure systems. The copper tube ends allow the absorber to be easily brazed into standard refrigeration piping during installation.

Specifications:
Model: VAS-078
Connection Size: 7/8 in OD
Length: 11.85 in
Max Working Pressure: 650 PSI
Burst Pressure: 3250 PSI
Operating Temperature: -40°F to 248°F (-40°C to 120°C)
Construction: Stainless steel corrugated hose with braided reinforcement
Materials: 304 stainless steel braid, tube & ferrules
Tube Ends: Copper sweat connections
Weight: 0.67 lbs
Certifications: UL Listed (SA13233), CE Listed (CE-C-0509-04-28)
Refrigerant Compatibility: Compatible with all refrigerants including R410A
Replacement for: Part # VAB7SS

Applications: Air conditioning systems, Heat pump systems, Refrigeration compressors, Walk-in coolers and freezers, Commercial HVAC equipment, Refrigerant suction and discharge lines
