Ball Slides
1 * S
liding Table
1*
Coupling
or

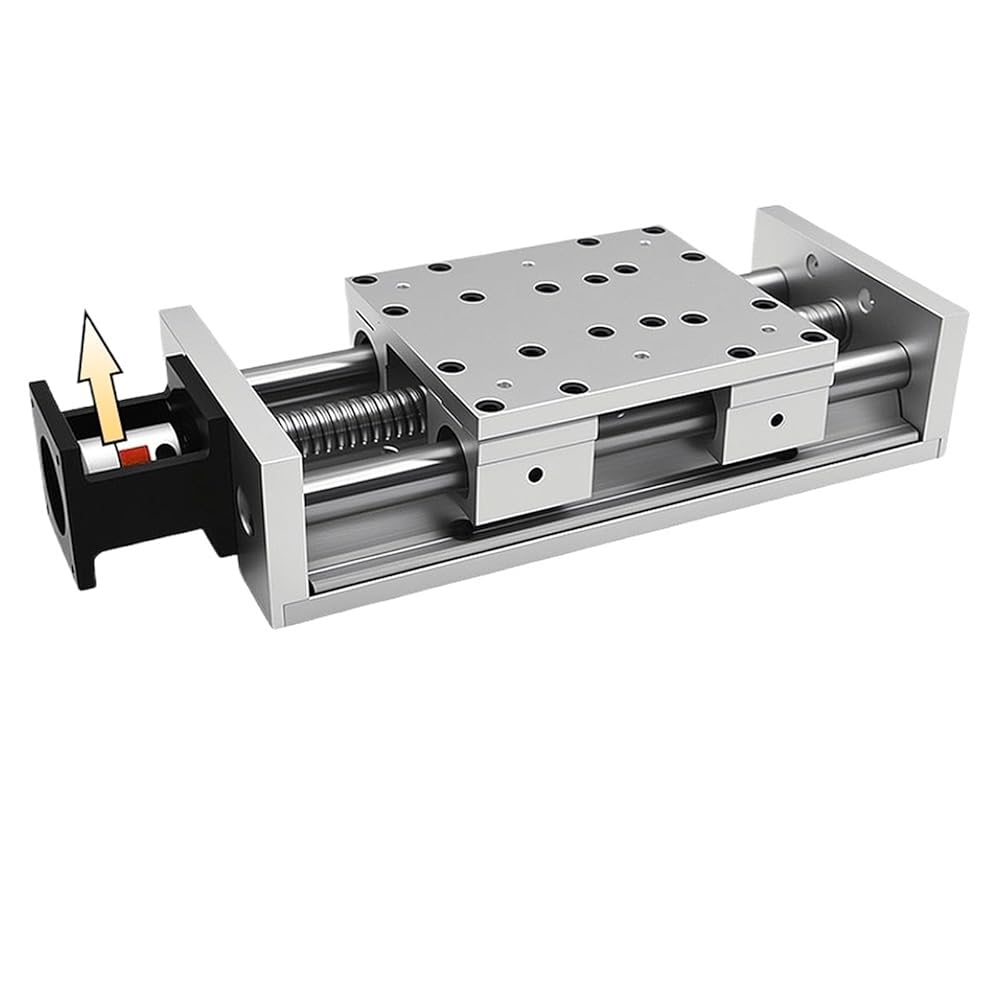

1* Manual sliding table
Model
YR140
Mobile panel size
140*160mm
Adaptation Motor
57/86mm Stepper Motor 60/80mm Servo
SBR Guideway
SBR20*2 SBR20UU*4
Ball Screw(mm)
20
Repeatability(mm)
±0.03
Total length
Effective Stroke+210mm
Lead screw(mm)
5
10
20
Max speed(mm/s)
250
500
1000
Horizontal load(KG)
80
40
20
Vertical load(KG)
50
25
20
Material
Industrial Aluminum Profile
Ballscrew type
SFU2005 (Screw Diameter 20mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm) / SFU2010/SFU2020
Effective Stroke(mm)
100
200
300
400
500
600
700
800
900
1000
1100
1200
Total length(mm)
310
410
510
610
710
810
910
1010
1110
1210
1310
1410
Weight(kg)
5.5
7
8.5
10
11.5
13
14.5
16
17.5
19
20.5
High-concerned chemical : None
Model Number : YR140
Guide Width or Diameter : 20mm
Origin : Mainland
Certification :
Effective Stroke : 100mm-1800mm Optional
Total length : Effective Stroke+210mm
Ballscrew type : SFU2005/SFU2010/2020
Module width : 140mm
Repeat positioning accuracy : 0.03mm
Ballscrew accuracy : C7
Horizontal load : 80KG(MAX)
Vertical load : 40KG(MAX)
Horizontal load1 : 176.40lb
Vertical load2 : 88.20lb
product type 1 : CNC Slide Table
product type 2 : Linear Slide Table
product type 3 : XY Table
product type 4 : Positioning Table
product type 5 : Motorized CNC Slide Table
product type 6 : Ball Screw Drive Slide Table
product type 7 : Ball Screw Slide Table
product type 8 : CNC Aluminum Slide Table
product type 9 : linear stage
product type 11 : CNC Workbench
