Ball Slides
If you choose an electric version of the sliding table:
1* Sliding Table1* Coupling
1* 23/Nema34 Motor Bracket

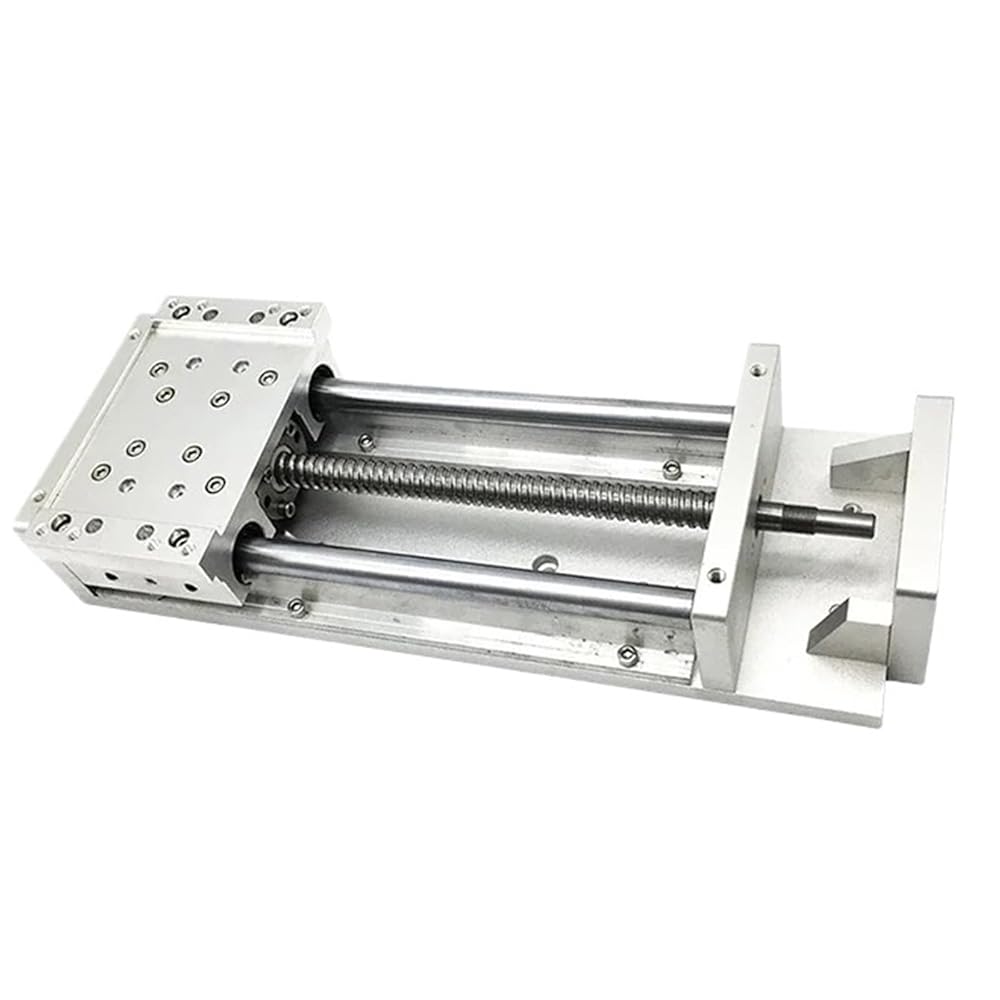

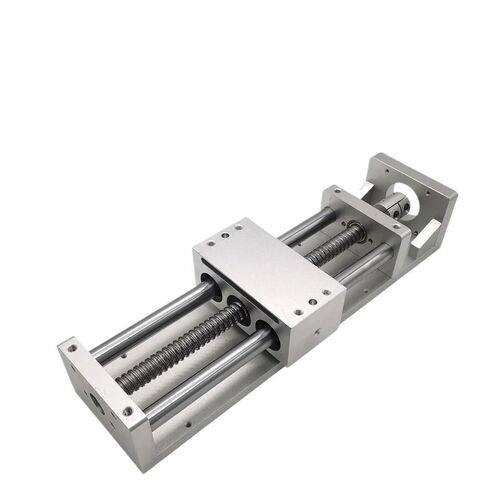

Model:TH16
Ballscrew type: SFU1605 (PS: Screw Diameter 16mm, Pitch 5mm, the screw rod rotates once and the Move Panel moves 5mm)
Ballscrew accuracy: C7 level
Matching motor type: Nema23 / Nema34(If you need a servo motor bracket, please contact us)
Motor bracket: If the Nema34 motor bracket is installed, there will be a protrusion on the bottom of the sliding table.
Please confirm whether this protrusion will affect your installation. (If you need to match other motors, please contact us for customization.)
Effective stroke: 100mm-500mm Optional (adding a dust cover will reduce the stroke)
Mobile panel size: 60*115mm
Guide diameter: 16mm
Guide type: Optical axis guide
Max. Horizontal load: 30kg
Max. Vertical load: 25kg
Ballscrew Repeat positioning accuracy: ± 0.02mm
Material: Aluminum 6061(Surface sandblasting oxidation anti-rust treatment)

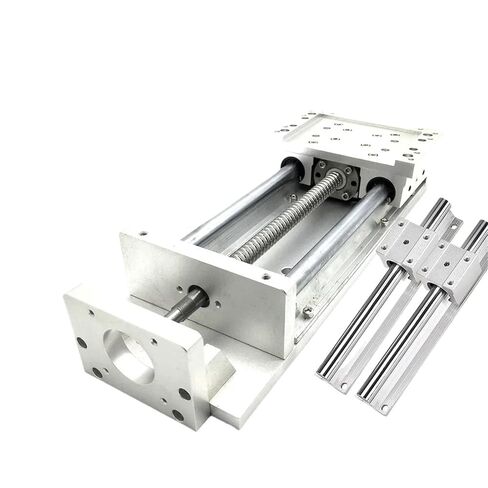

Model:TH18
Ballscrew type: SFU1605/1610 (PS: Screw Diameter 16mm, Pitch 5mm, the screw rod rotates once and the Move Panel moves 5mm)
Ballscrew accuracy: C7 level
Matching motor type: Nema23 / Nema34(If you need a servo motor bracket, please contact us)
Motor bracket: If the Nema34 motor bracket is installed, there will be a protrusion on the bottom of the sliding table.
Please confirm whether this protrusion will affect your installation. (If you need to match other motors, please contact us for customization.)
Effective stroke: 100mm-1000mm Optional (adding a dust cover will reduce the stroke)
Mobile panel size: 90*150mm
Guide:2*16mm SBR
Max. Horizontal load: 180kg
Max. Vertical load: 50kg
Ballscrew Repeat positioning accuracy: ± 0.02mm
Material: Aluminum 6061(Surface sandblasting oxidation anti-rust treatment)
Model:TH20
Ballscrew type: SFU1605/1610 (PS: Screw Diameter 16mm, Pitch 5mm, the screw rod rotates once and the Move Panel moves 5mm)
Ballscrew accuracy: C7 level
Matching motor type: Nema23 / Nema34
Motor bracket: If the Nema34 motor bracket is installed, there will be a protrusion on the bottom of the sliding table.
Please confirm whether this protrusion will affect your installation.
Effective stroke: 100mm-1000mm Optional
Mobile panel size: 90*150mm
Guide: 2*HGR15
Block: 2*HGH15 Max. Horizontal load: 250kg
Max. Vertical load: 50kg
Ballscrew Repeat positioning accuracy: ± 0.02mm
Material: Aluminum 6061(Surface sandblasting oxidation anti-rust treatment)
==========
High-concerned chemical : None

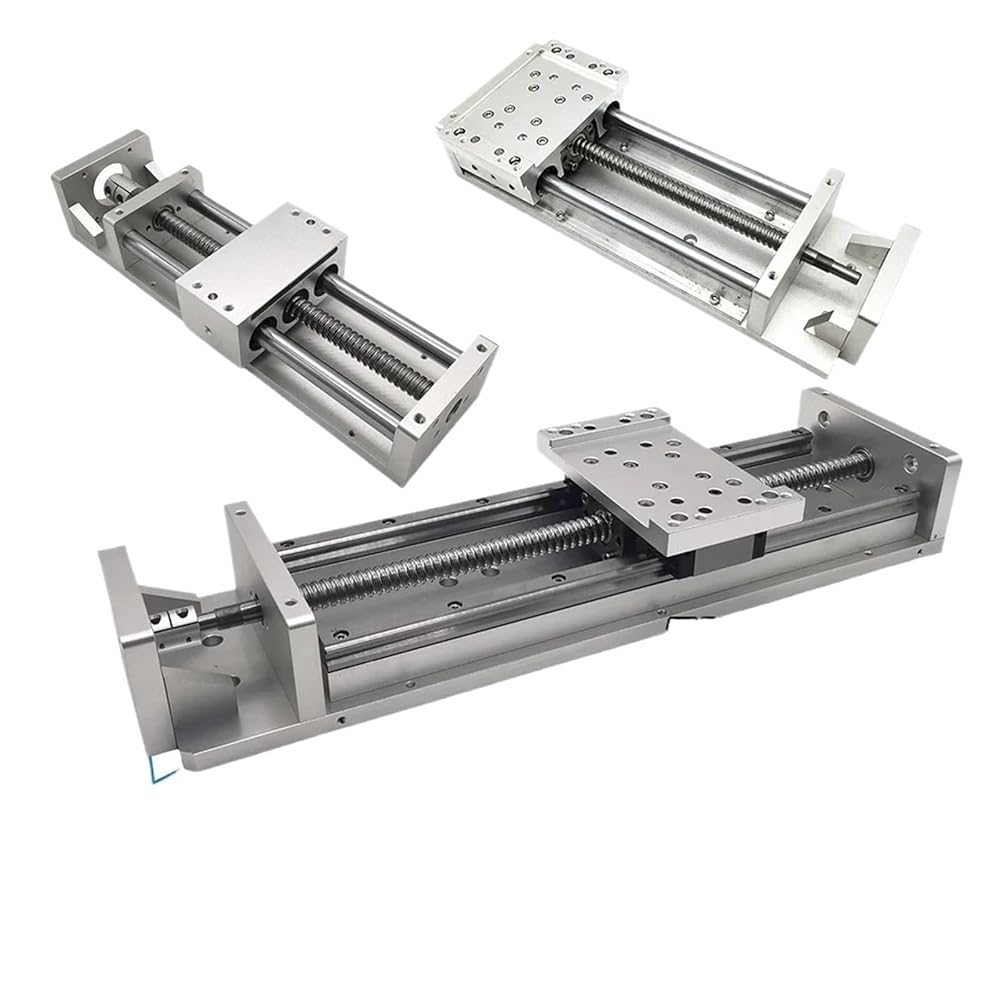

Model Number : TH16/TH18/TH20
Origin : Mainland
Certification :
Effective stroke : 100mm-1000mm Optional
Guide type : Optical axis guide
Ballscrew type : SFU1605,SFU1610
Ballscrew accuracy : C7 level
Material : Aluminum 6061
Repeat positioning accuracy : ± 0.02mm
