Ball Slides

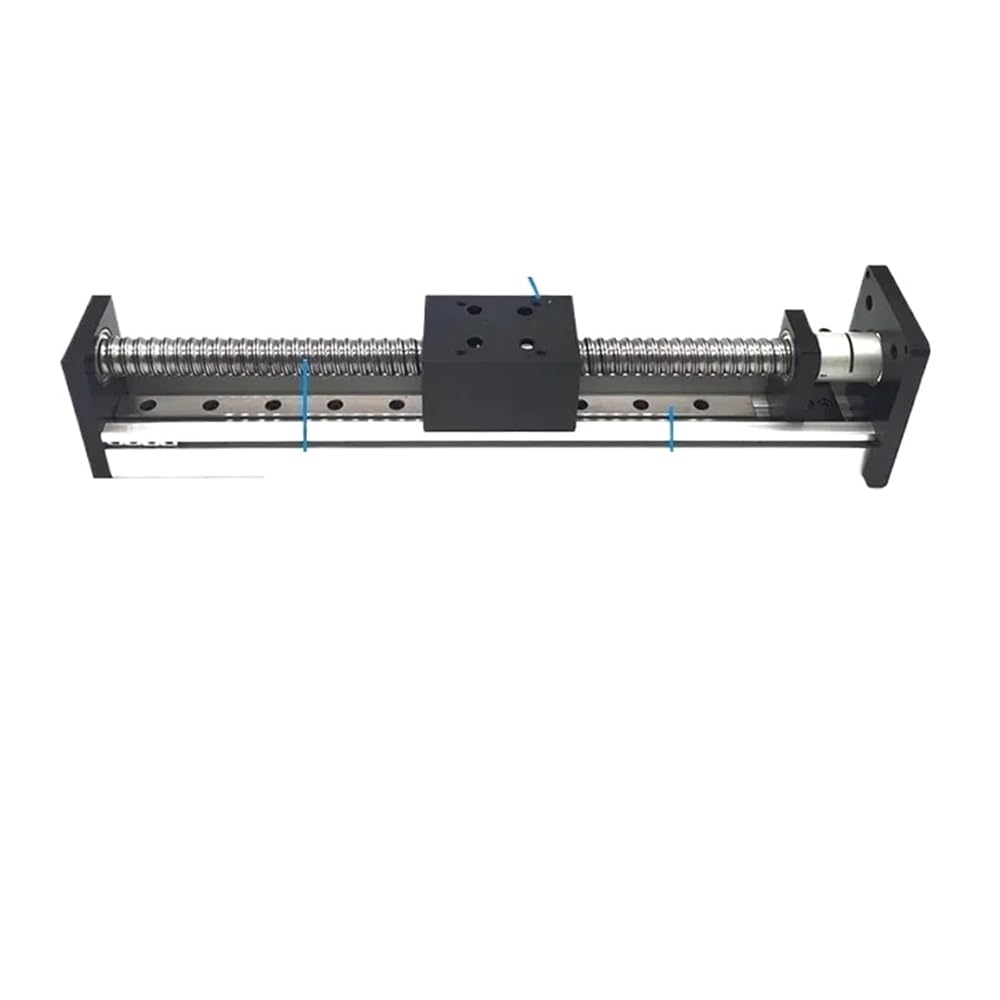

1* Sliding Table
1* 8mm to 8mm Coupling(If you need other sizes, please leave a message.)
Model: DXG6042 (60*42mm table); DXG6048 (60*48mm table)Ballscrew type:SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm) / SFU1204/ SFU1610Ballscrew accuracy:C7 levelMotorbracket Matching type:
60*42mm table: Compatible with Nema17 42mm/Nema23 57mm stepper motor bracket
60*48mm table: Default assembly Nema23 57mm stepper motor bracket, supports customization
Effective stroke: 100mm-1200mm Optional
Total slide table length:
Effective stroke+110mm (60*42 table)
Effective stroke+151mm (60*48 table)Mobile panel/ table size: 60*42mm / 60*48mmGuide diameter: 12mm
Guide Type:MGW12R
Slider Type:MGW12CHorizontal load: 60KG (Max)Vertical load: 30KG(Max)Maximum speed:500mm/sBallscrew Repeat positioning accuracy: 0.02-0.03mmMaterial: Industrial Aluminum Profile
==========
High-concerned chemical : None
Model Number : DXG6042-1204-100-57/8
Guide Width or Diameter : 12mm
Origin : Mainland
Certification :
Ballscrew type : SFU1605/SFU1204/SFU1610
Ballscrew accuracy : C7 level
Effective stroke : 100mm-1200mm Optional
Slider Type : MGW12R
Maximum speed : 500mm/s
Repeat positioning accuracy : 0.02mm-0.03
Horizontal load : 60KG (Max)
Vertical load : 30KG(Max)
Slide Material : Industrial Aluminum Profile
Type 1 : sliding table
Type 2 : linear guide
Type 3 : cnc rails
Type 4 : 400mm linear actuator
Type 5 : aluminum profile slide
Type 6 : 1000mm stroke linear actuators
Type 7 : x y axis table cnc
Type 8 : linear guide system
Type 9 : linear rail
Type 10 : xy table
Type 11 : linear stage
Type 12 : linear guide rail
Type 13 : xy stage
Type 14 : linear motion
Type 15 : linear slide
Type 16 : linear module
Type 17 : xyz stage
Type 18 : cnc axis
Type 19 : linear guides
Type 20 : sliding linear rail
Type 21 : Single Rail Mobile Module
