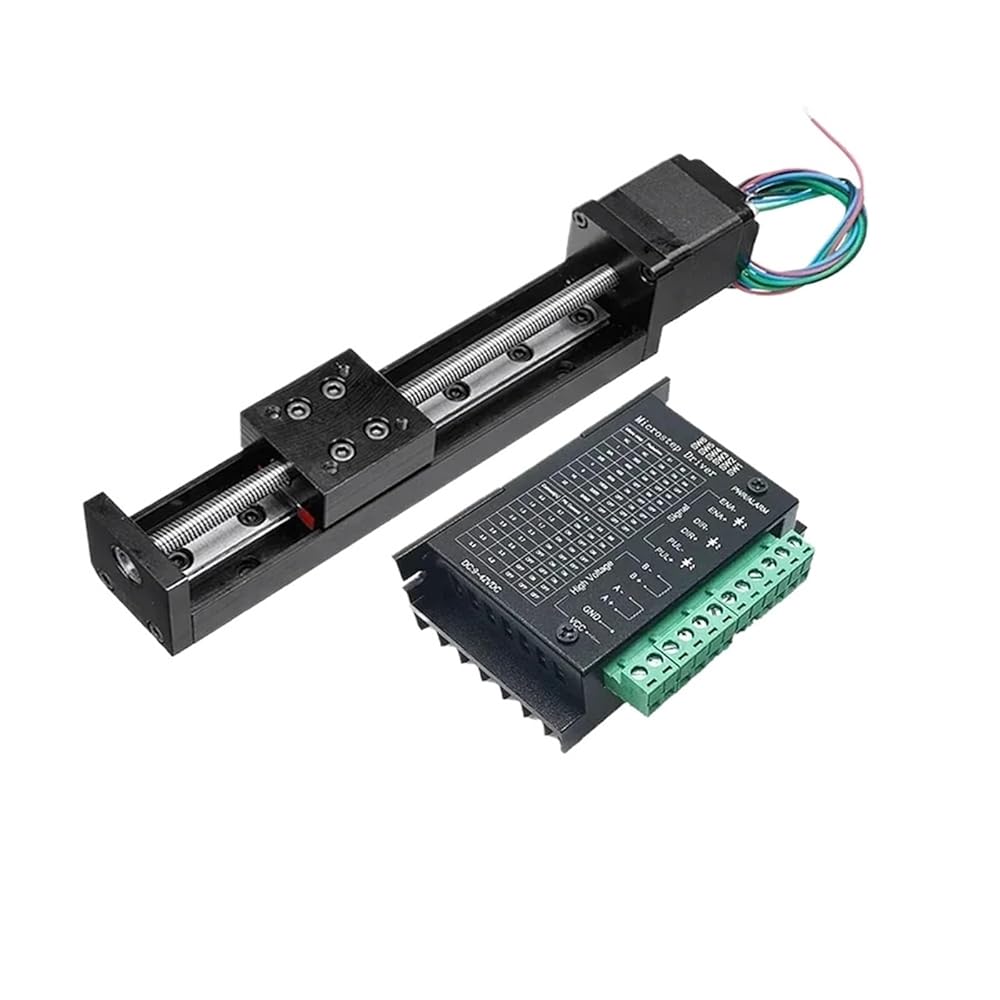

Ball Slides
1* Sliding Table
1* 11 Open-loop Stepper Motor
1* Drive (If you choose Drive)
Sliding TableSpecifications:
Model: T06
Slide type:Trapezoidal screw slide tableHorizontal load:5KG (Max)Vertical load:2.5KG (Max)
Effective stroke:50-300mm
Total Length:Effective Stroke+75mmMobile panel size:30mm*32mmRepeat positioning accuracy:0.02mm-0.03mm
Maximum speed:80mm/s
Rail width:6MM
Block:MGN9H
Screw Precision:C7
3D model:Click here to download
Pitch:1mm/2mm/4mm/6mm/12mm (If the pitch your choose is 2mm, it means that the motor rotates once and the moving panel moves 2mm.)
PS:We support connecting plates for multi-axis systems.
Stepper Motor Specifications :
Model: 28HB30-401A (Support 28HB40-401A motor)
Motor Flange Size: 11(28MM)
Holding :0.07N.m
Body length:30mmShaft diameter:5mm
Type:Hybrid MotorPhase:2PhaseCurrent :0.6ACertification:CCC, ISO
Step angle:1.8degree
Drive Specifications:
Model:TB6600
Input voltage:DC 9-42VInput/ Output current:0.5-3.5AMaximum power:150WSubdivision:1,2,4,8,16,32Operating environment temperature:-10-45Storage temperature:-40-70
==========
High-concerned chemical : None
Model Number : T06
Guide Width or Diameter : 12mm
Origin : Mainland
Certification :
Screw Model : Trapezoidal screw (T6)
Horizontal load : 5KG (Max)
Vertical load : 2.5KG(Max)
Screw Pitch : 1mm/2mm/4mm/6mm/12mm
Motor Size : NEMA11(28MM)
Holding : 6.5Ncm/0.065N.m
Mobile panel size : 30mm X 32mm
Repeat positioning accuracy : 0.02mm-0.03mm
Maximum speed : 80mm/s
Rail width : 9MM
Block : MGN9H
Stroke : 50mm/100mm/150mm/200mm/250mm/300mm
Product type 1 : linear actuator table
Product type 2 : linear stage
Product type 3 : sliding table
Product type 4 : stepper linear guide table
Product type 5 : Mini slide table
Product type 6 : Mini sliding table
Product type 7 : Mini linear Stage table
Product type 8 : XYZ axis linear guides table
Product type 9 : motor linear rail table kit
Product type 10 : T-type Sliding table
Product type 11 : XY axis Sliding table
Product type 12 : linear guide table
Product type 13 : linear rail guide table
Product type 14 : Z-axis sliding table
Product type 15 : Mini linear rail table
Product type 16 : T-type Sliding table
Product type 17 : Mini linear guide table
Product type 18 : T-type Sliding Table Rail Linear
Product type 19 : Mini T-type Sliding Table
