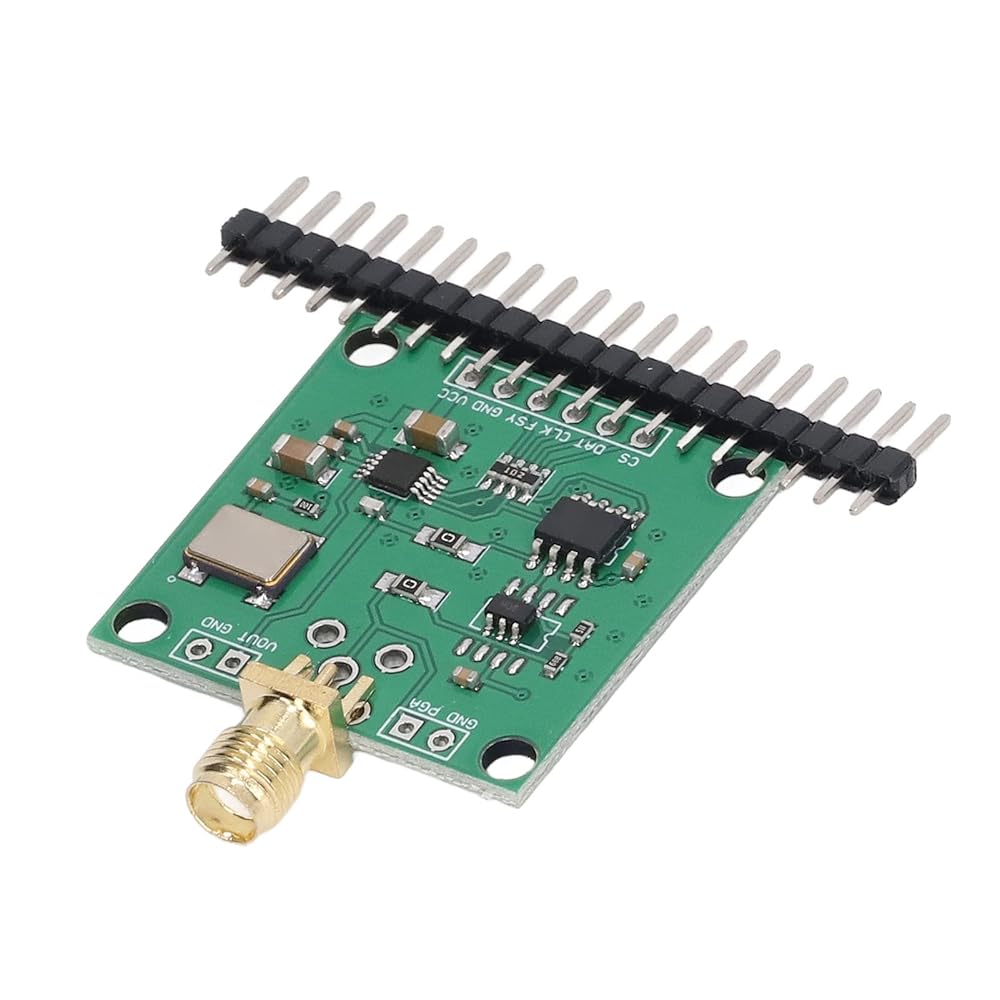

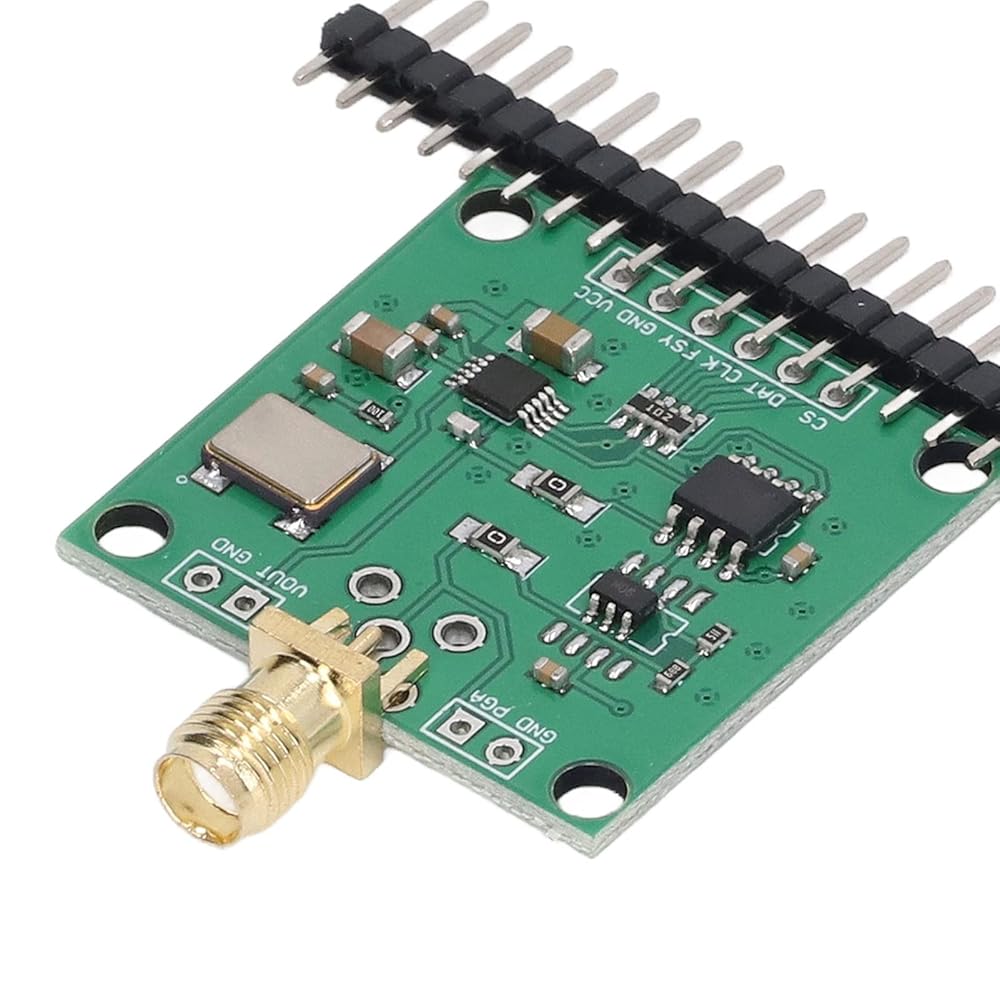

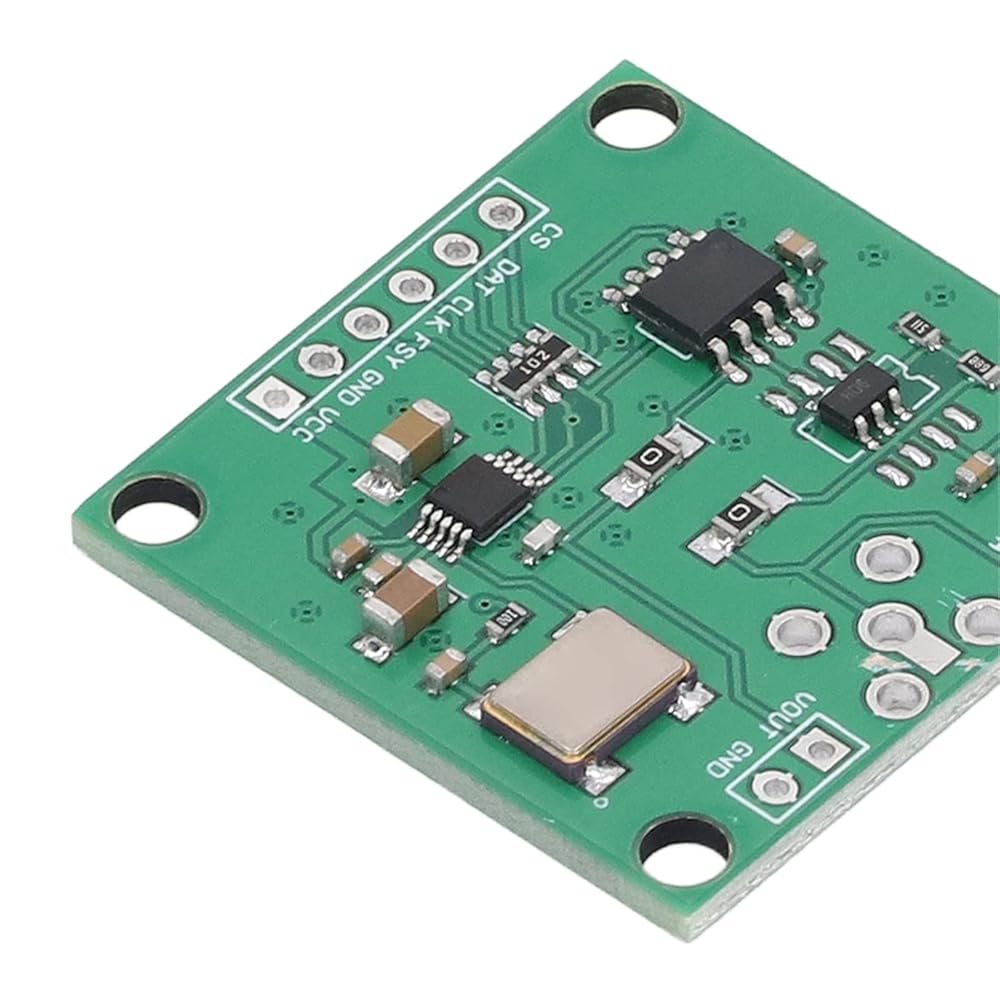

DDS Signal Generator Module 012.5MHz AD9833 Accurate Square Triangle Sine Wave Waveform Generator Module

SAR 73
Brand
JAOCDOEN
Weight
8 g
– 1 +

Special Features

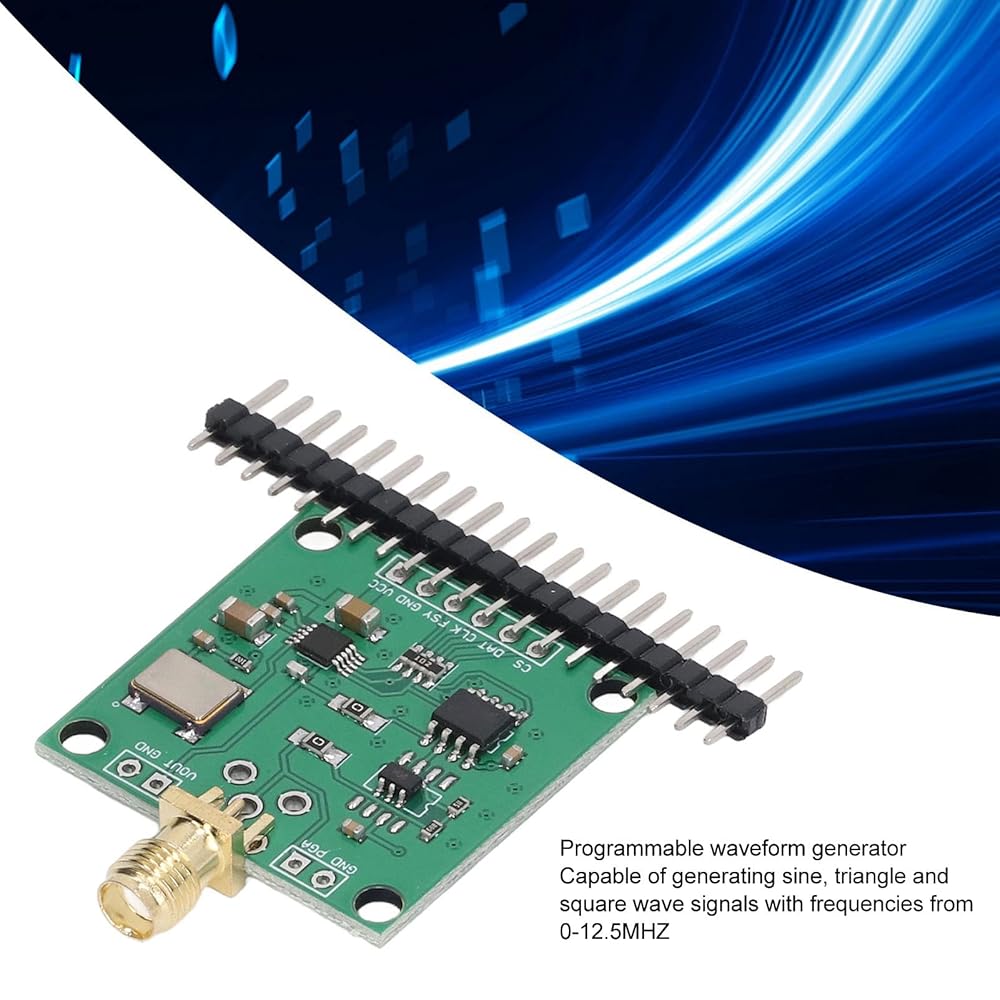

  • Signal Generator: This signal generator is a programmable waveform generator capable of generating sine, triangle and square wave signals with frequencies from 0‑12.5MHZ.

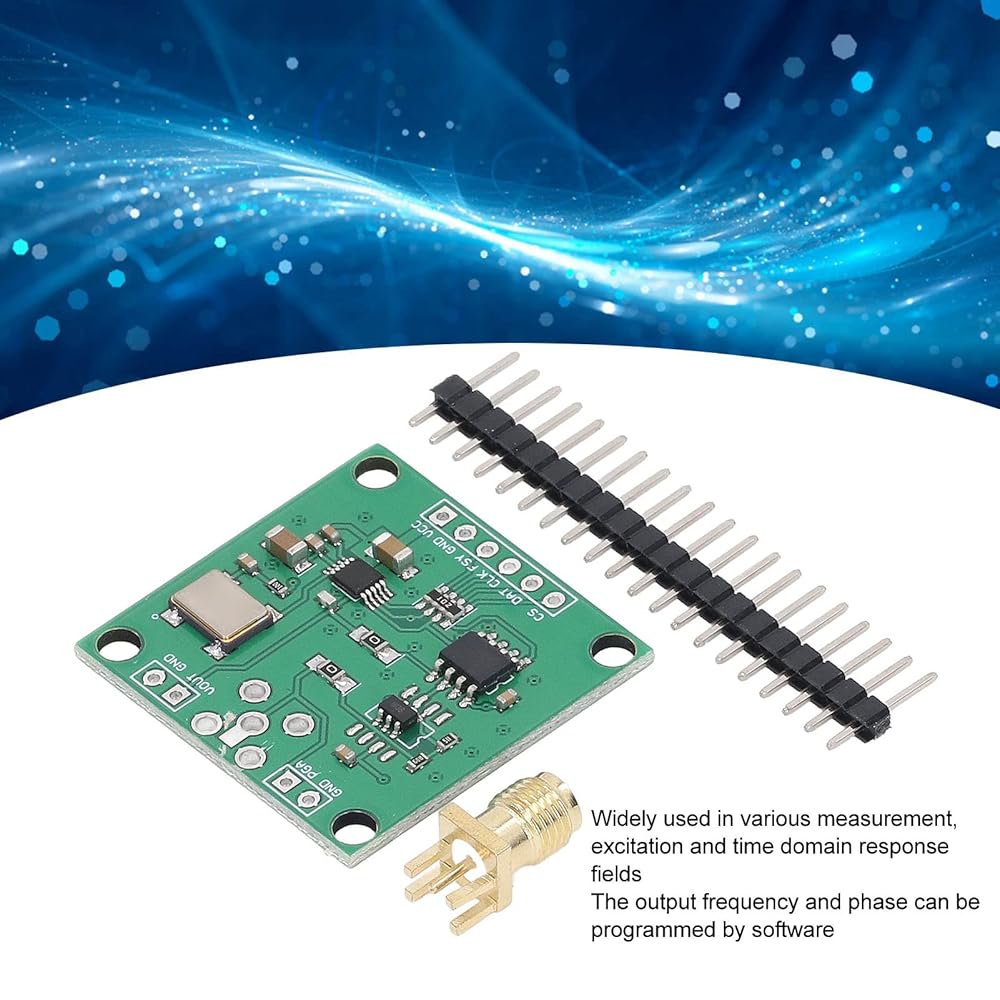

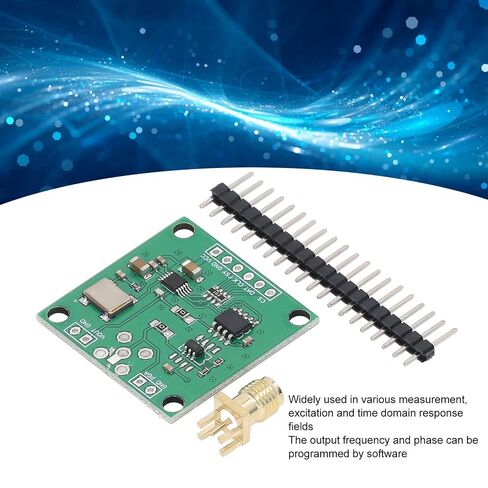

  • Widely Used: The waveform generator is widely used in various measurement, excitation and time domain response fields.

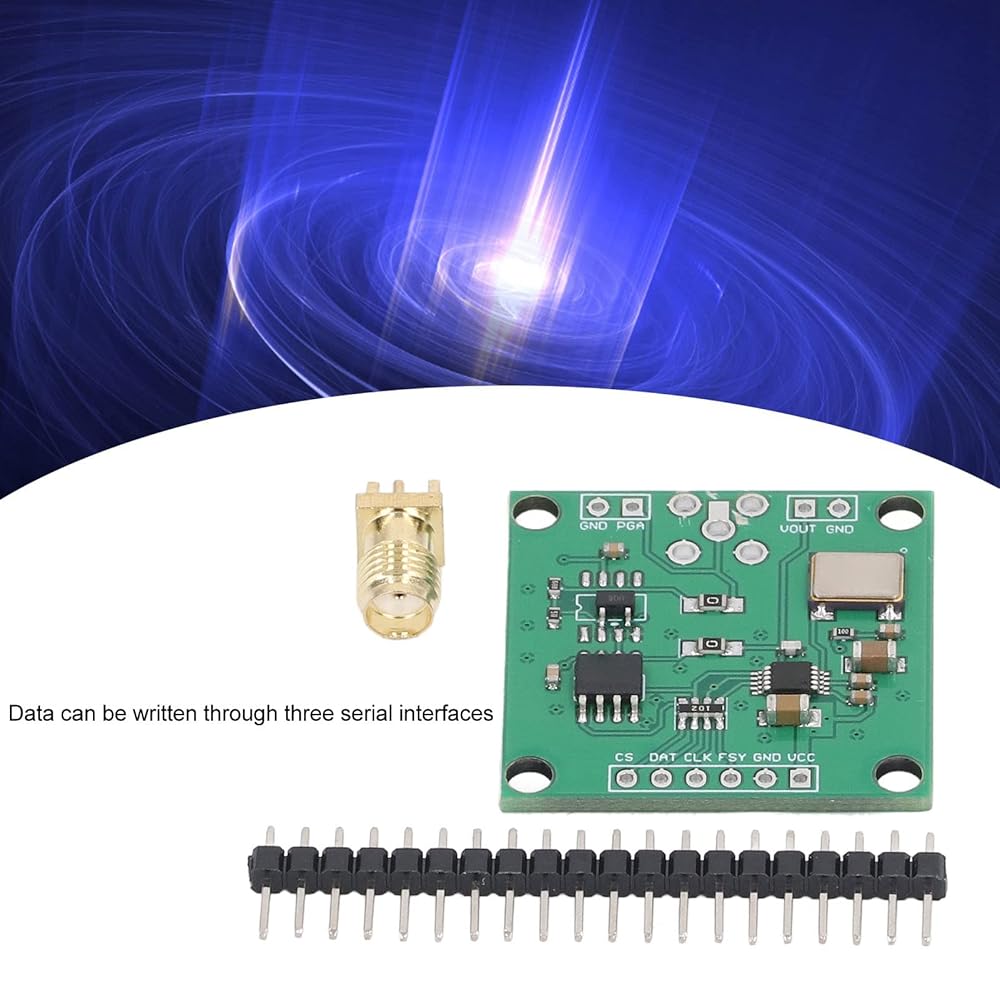

  • : Clocked at 25MHz with 0.1Hz accuracy, clocked at 1MHz with accuracy up to 0.004Hz, data can be written through three serial interfaces.
  • Programmable: The output frequency and phase of the signal generator can be programmed by software, which is easy to adjust.
  • 3 Waveforms: This signal generator is a built in three waveforms, which can be used for liquid and gas flow measurement.

Description

Specification:
Item Type: DDS Signal Generator Module
Material: PCB
Model: AD9833
Application: Widely used in frequency excitation, waveform generation. Liquid, gas flow​ measurement. Sensing applications, proximity, motion, defect detection. Linear loss, linear attenuation. Test equipment, medical​ equipment. Scanning clock generator.
Operating Voltage: 2.3V-5.5V
Operating Temperature Range: -40-105℃

How to Use:
Once assembled, you can use it

packing list:

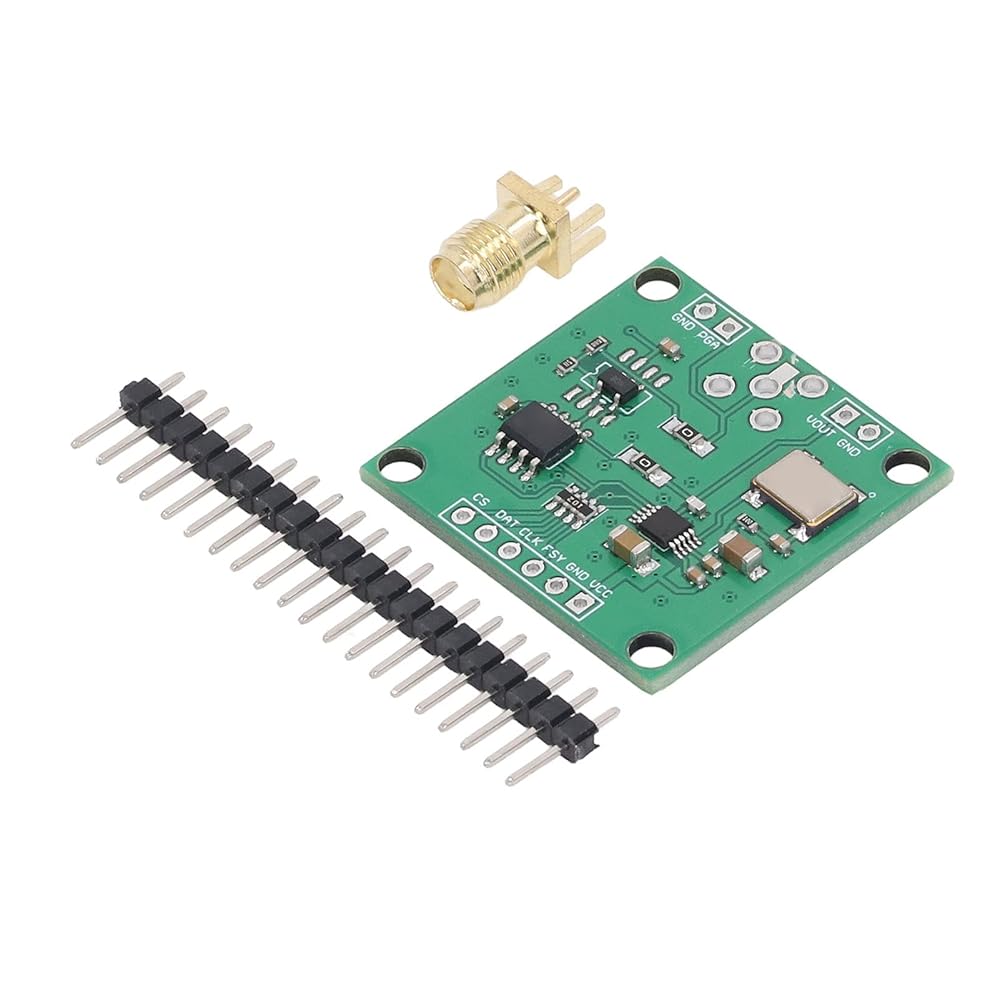

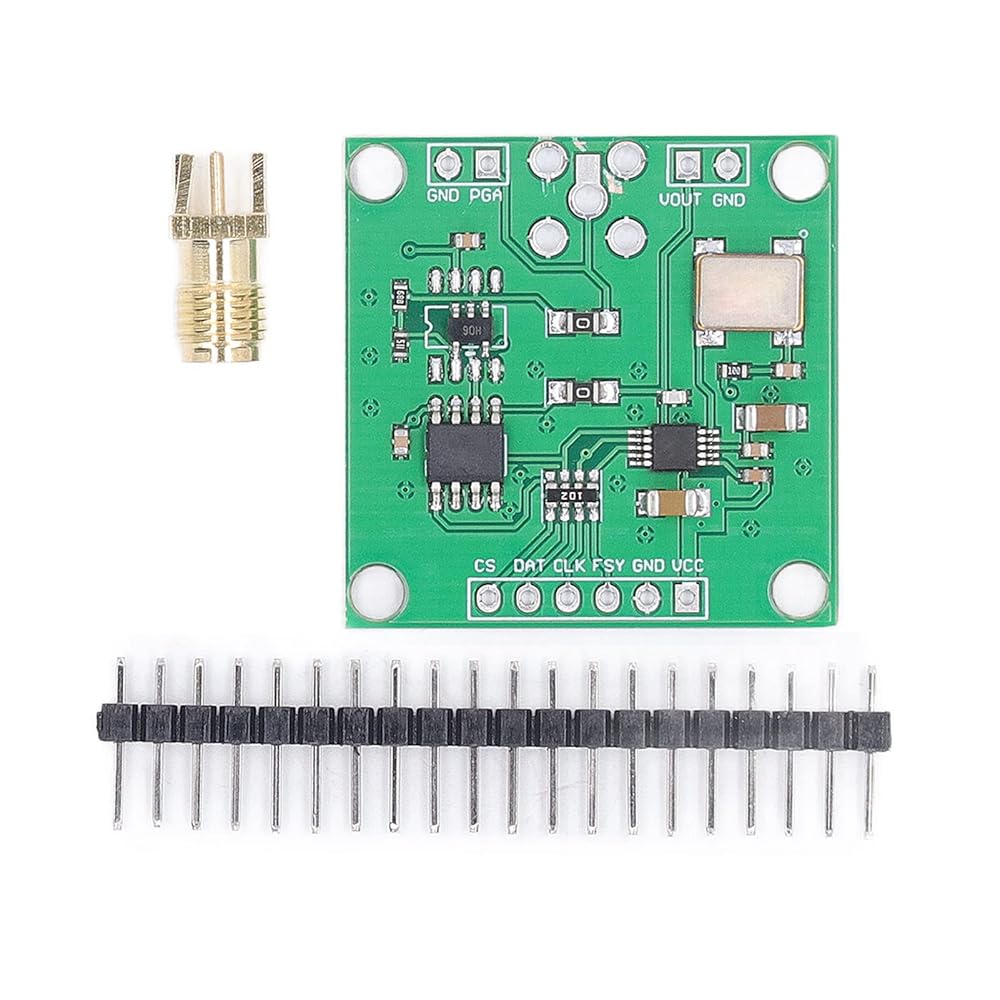

1 x DDS Signal Generator Module
1 x Interface

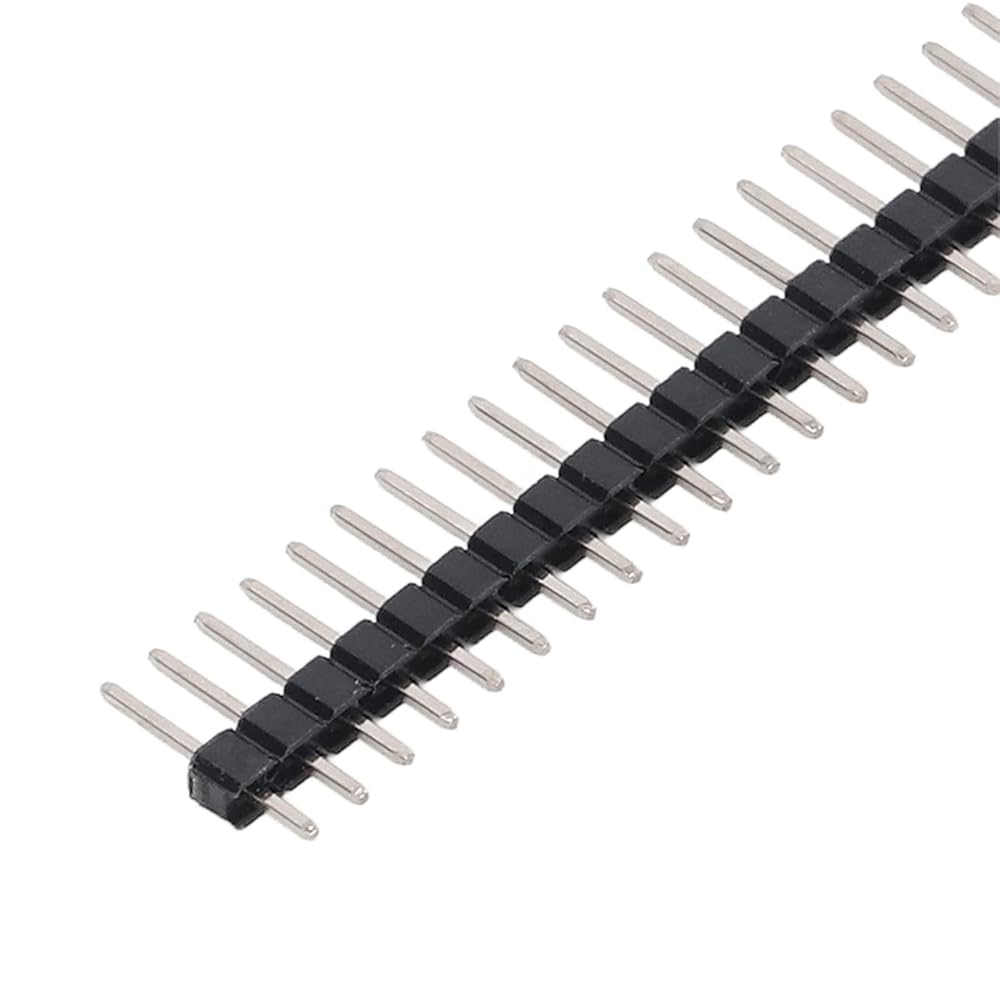

1 x Power Strip
