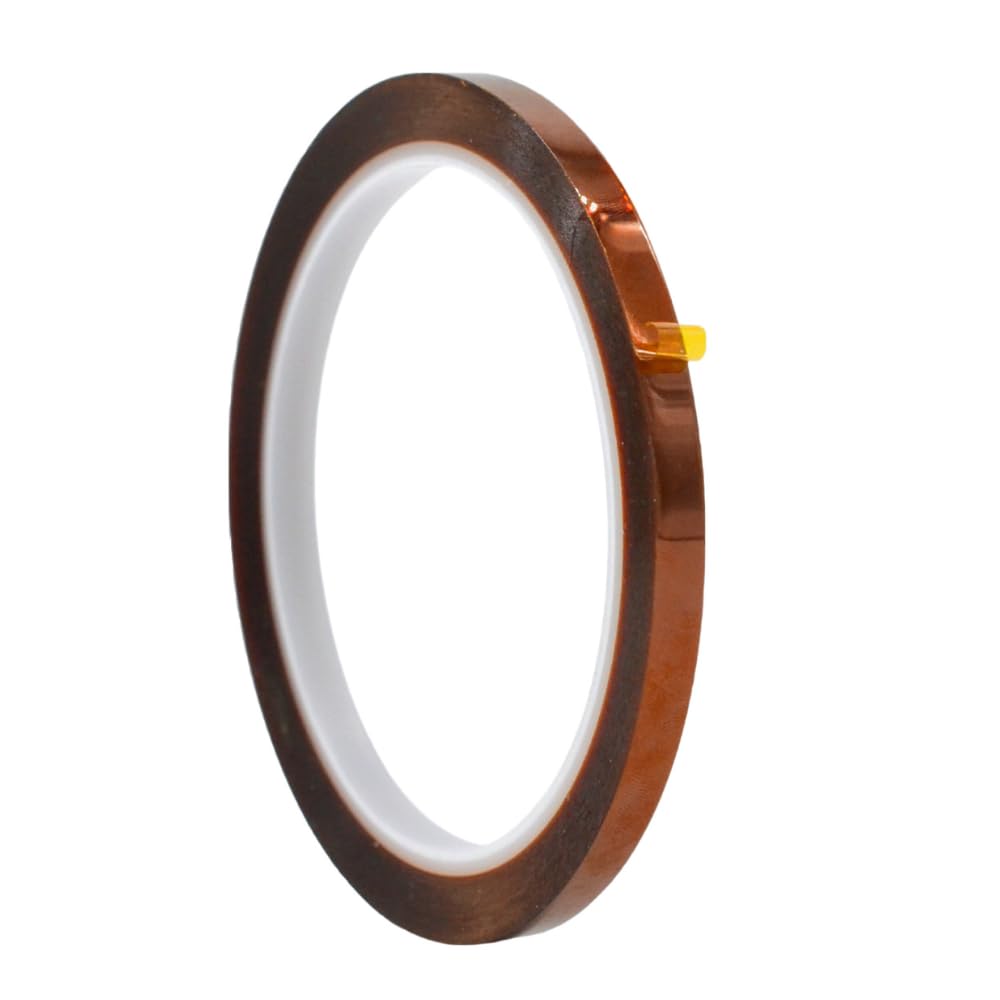

Kapton High Temperature Resistant Polyimide Tape
WOD PKT26 is layered with a high-performance silicone adhesive and polyimide film, which helps it withstand high temperatures, high insulation, acids, and alkalines, which makes it conducive for installing on 3D printers with the heated build platforms, circuit boards, electronics, transformers, and more.
Benefits
Resists up to 200 C.
Leaves no residue after removal.
Easy to peal.
Tape's width, not too wide, and not too narrow.
Thin, flexible, and tough, it nullifies the changes of getting punctured with sharp edges.
Resistant to acids, solvents, oils, aging, water immersion, and staining.
Wide enough to help maintain the alignment and cover your printer's bed.
Applications
Fiber optics cable protection.
Automotive manifolds or sensors protection.
Etching, and circuit boards protection.
Cross-over insulation.
Conductors bundling.
Reinforcing insulation.
Wave solder concealing of printed circuit boards.
Electronics screen repair when ghost touching problem.
Model railroad locomotives insulation.
Properties
Tape Thickness: 2.6 mil
Film Thickness: 1 mil
Adhesion 23.8 oz/in
Tensile Strength: >20.6 lbs/in
Elongation: >30%
Temperature Range: 200ºC (392 ºF)/30 min
Dielectric Strength: >4000 V
Film Color: Gold or Amber (Transparent)
3" plastic core
