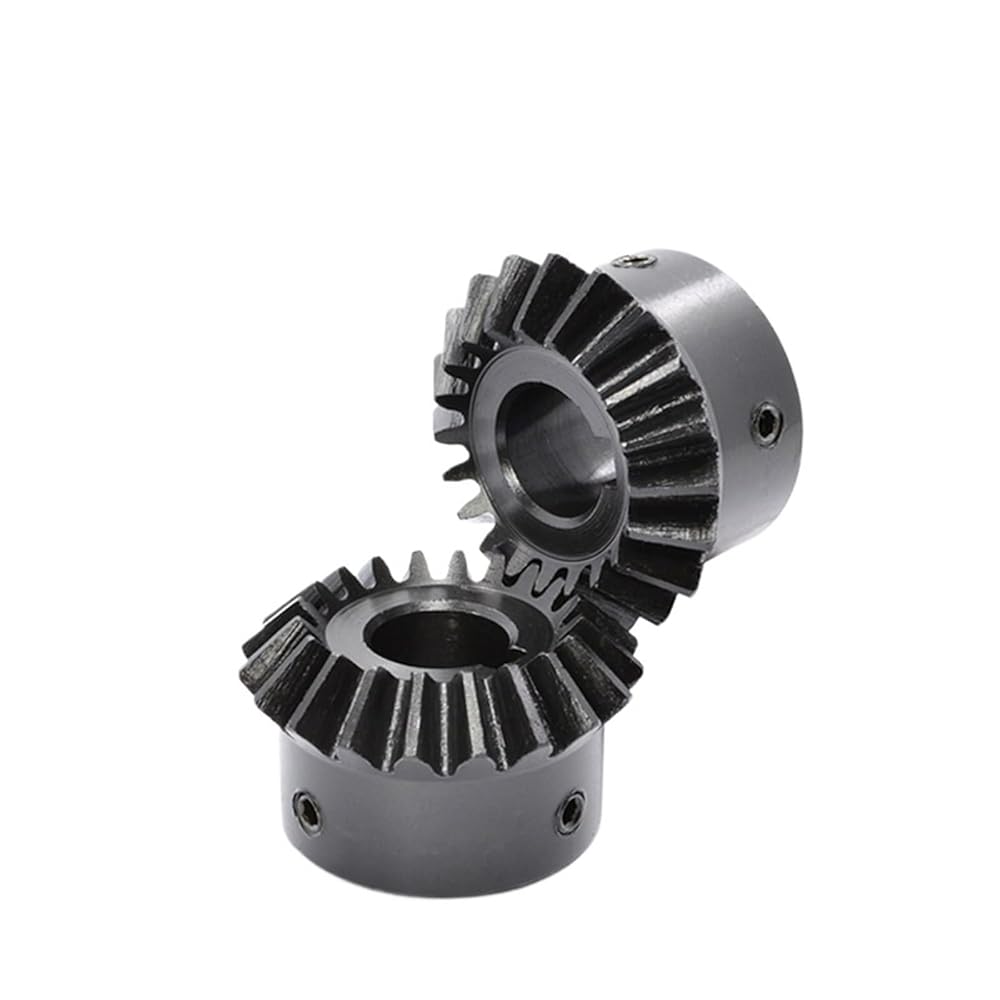

Miter Gears
Specification:
Name: Bevel Gear
Material: 45# Steel
Rotational Speed Ratio: 1:1
Meshing Angle: 90 Degrees
Model: 2M (2 Module)
Number of Teeth: 20/25/30Teeth
Round Bore: 8mm
Keyway Bore:
10mm (keyway 4mm)
12mm (keyway 4mm)
14mm (keyway 5mm)
15mm (keyway 5mm)
16mm (keyway 5mm)
17mm (keyway 5mm)
18mm (keyway 6mm)
20mm (keyway 6mm)
22mm (keyway 6mm)
24mm (keyway 8mm)
25mm (keyway 8mm)
28mm (keyway 8mm)
30mm (keyway 8mm)
Shaft Hole: Machining Completed
Model Number : 2M (2 Module)
Shape : Bevel
Tooth Profile : Bevel Gear
Material : Carbon Steel
