Specification:

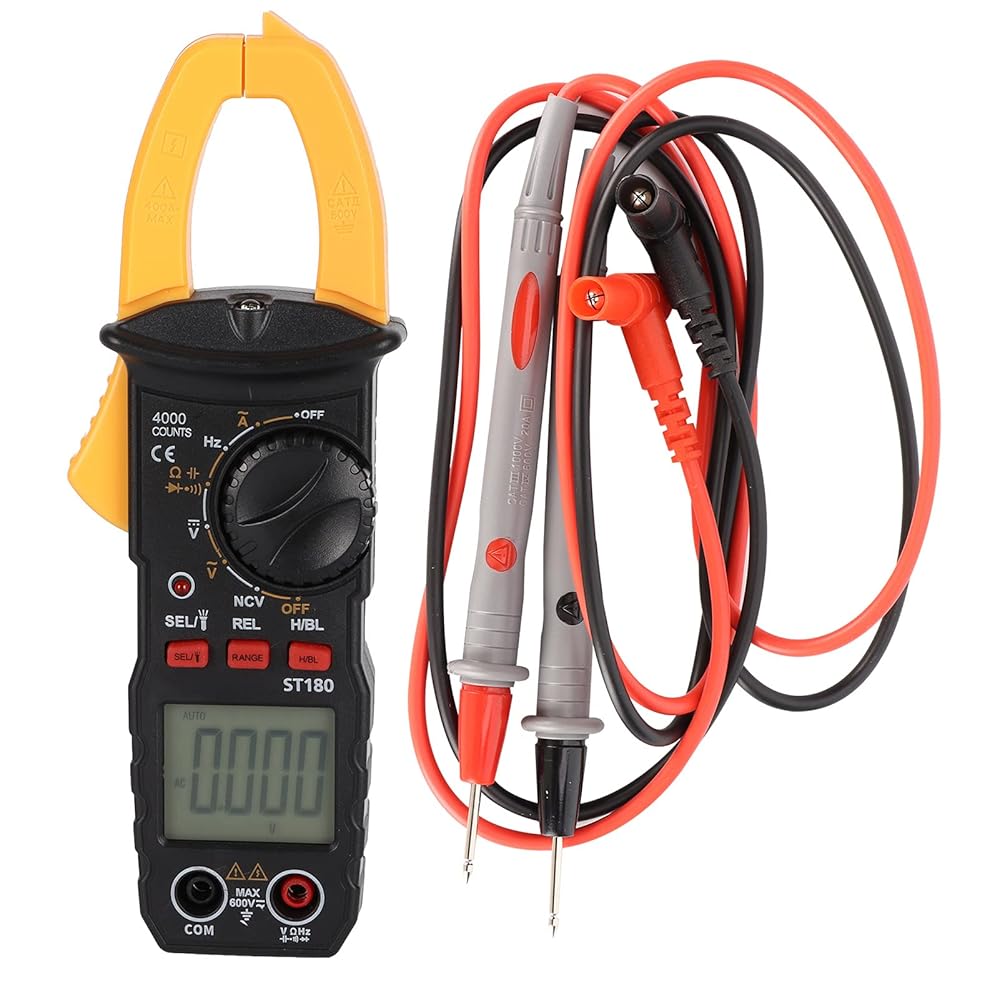

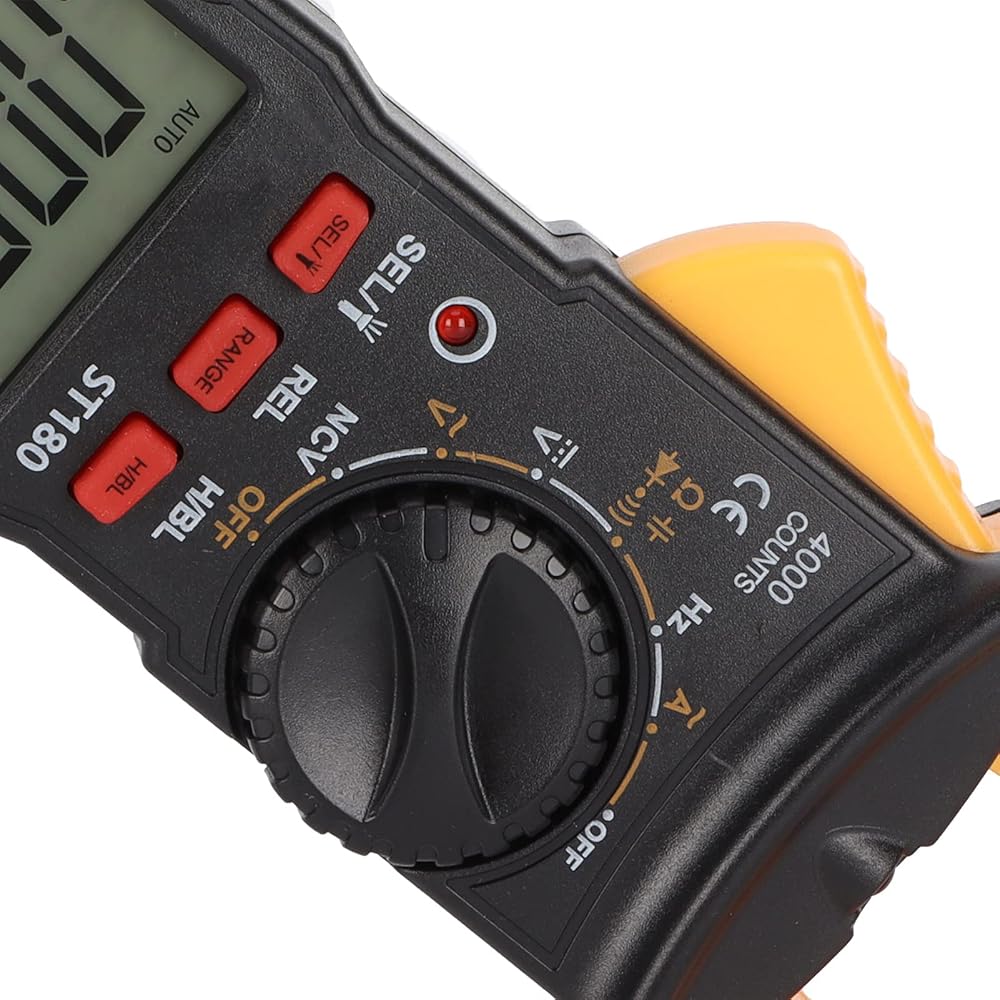

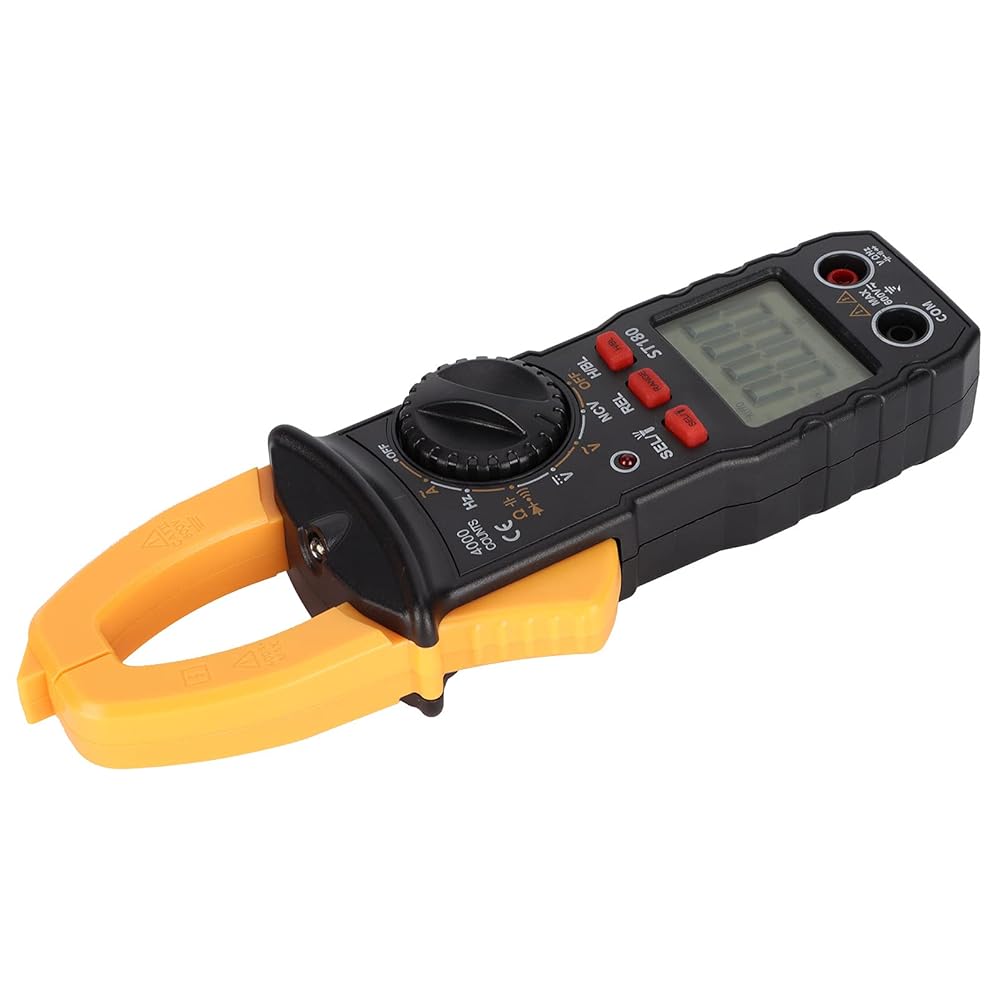

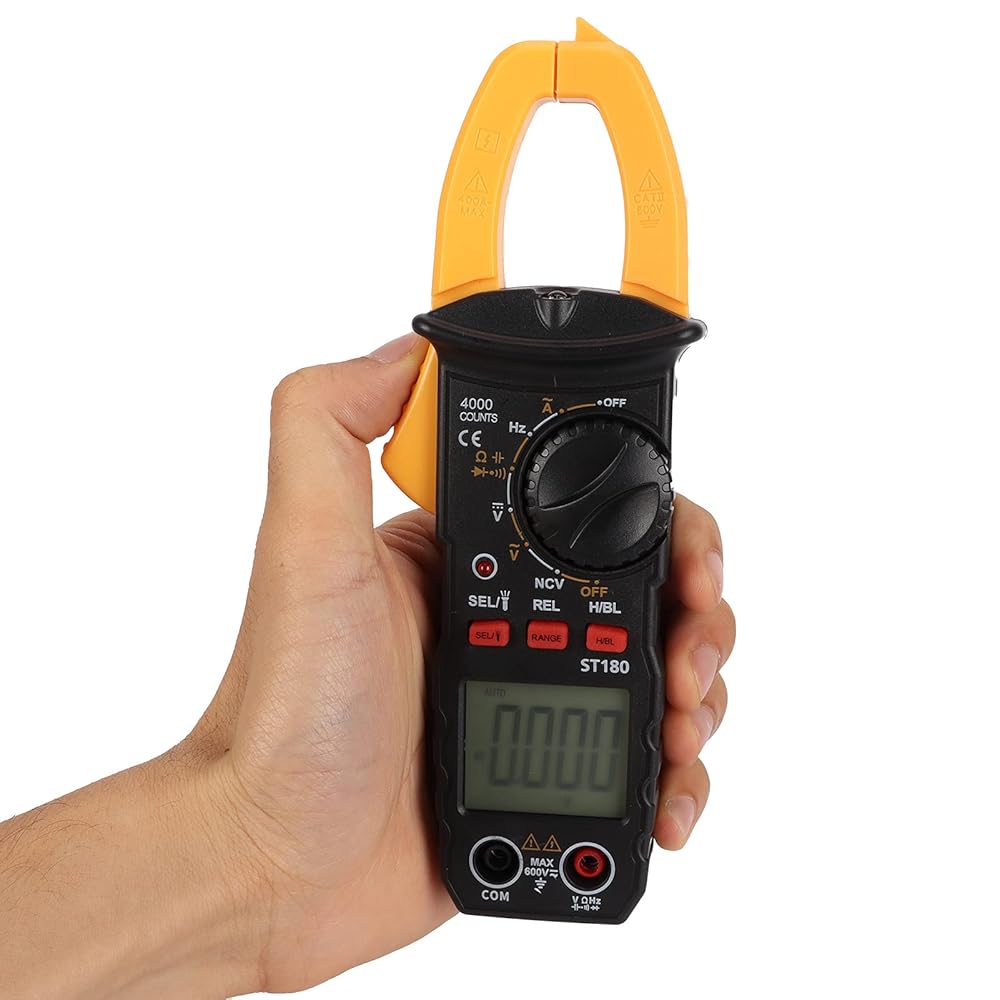

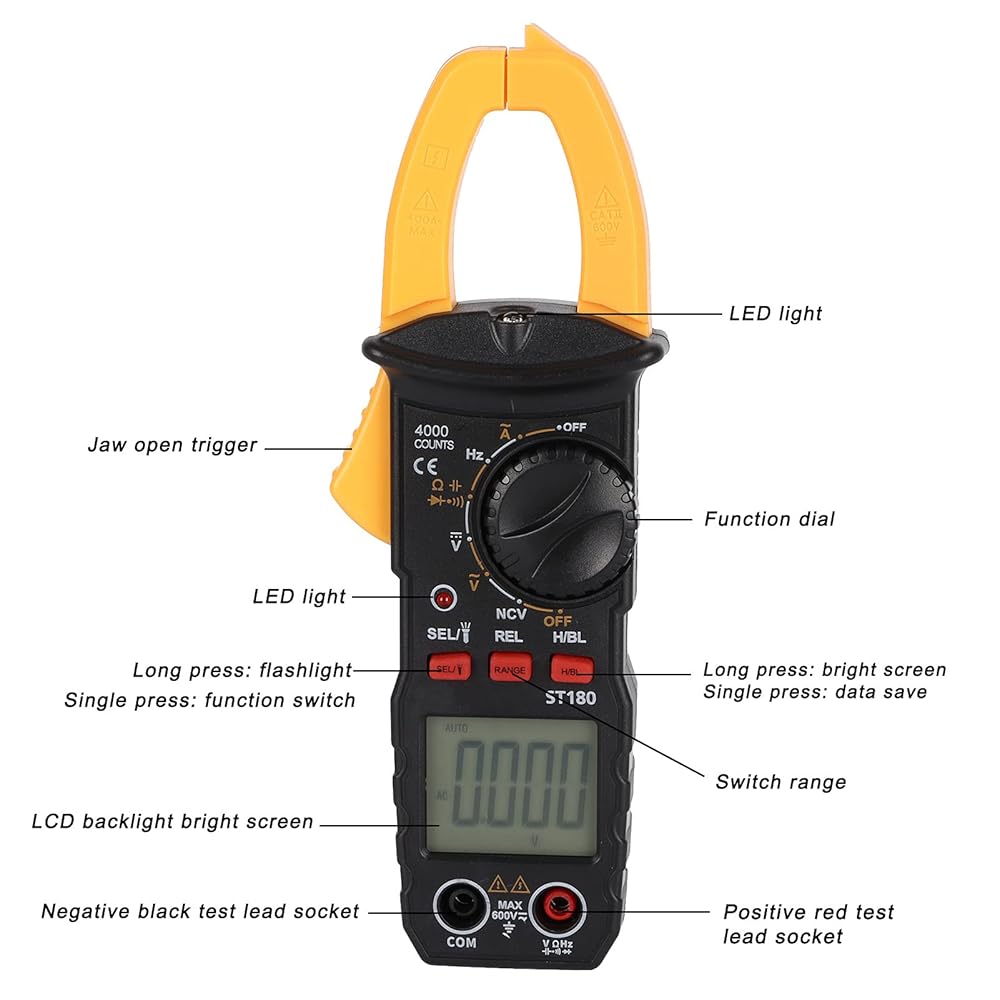

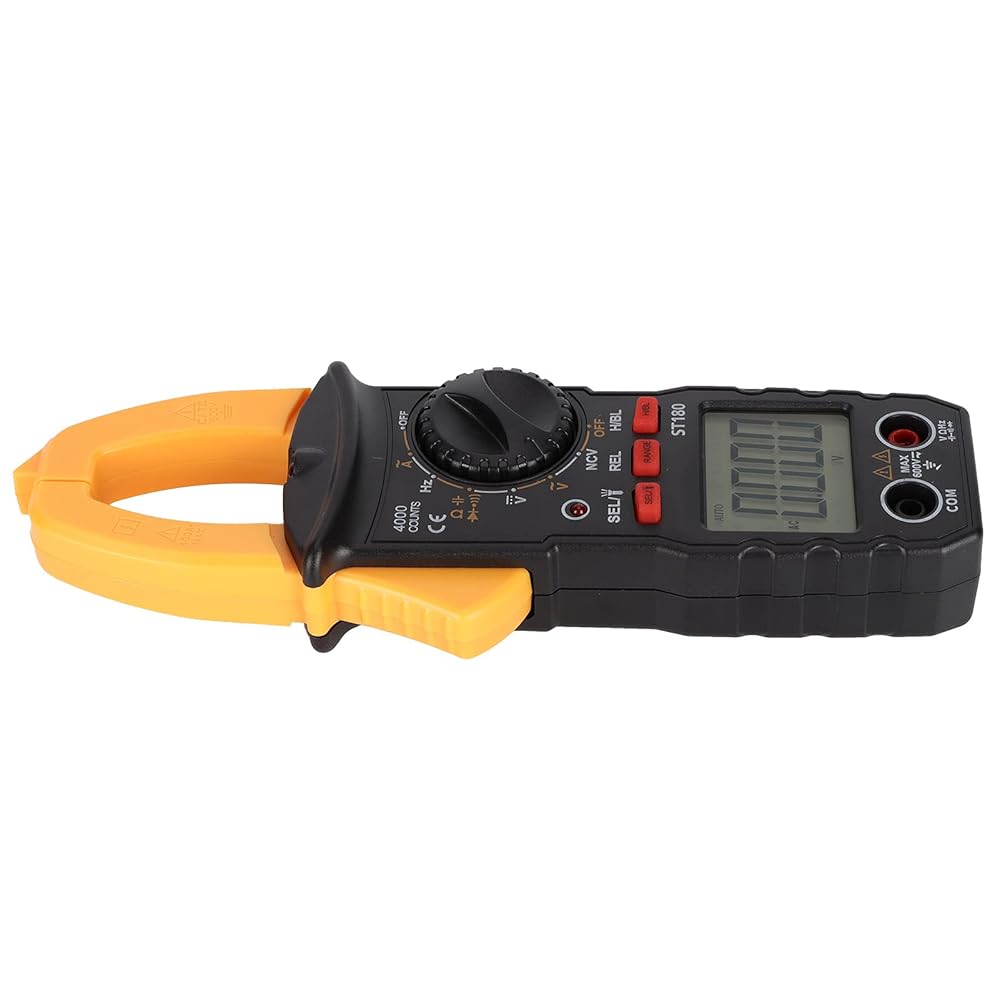

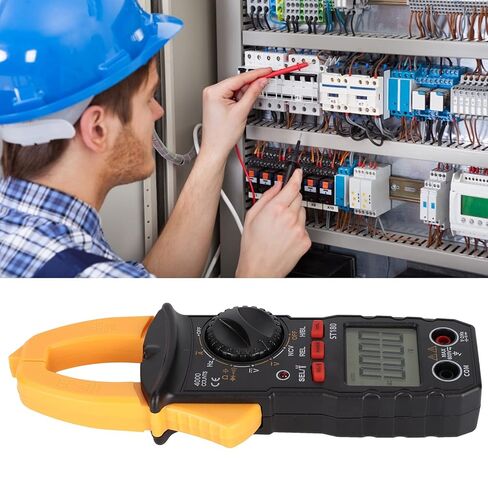

Item Type: Clamp Multimeter
Model: ST180
Material: ABS
Battery: 2 x 1.5V AAA batteries (battery not included)

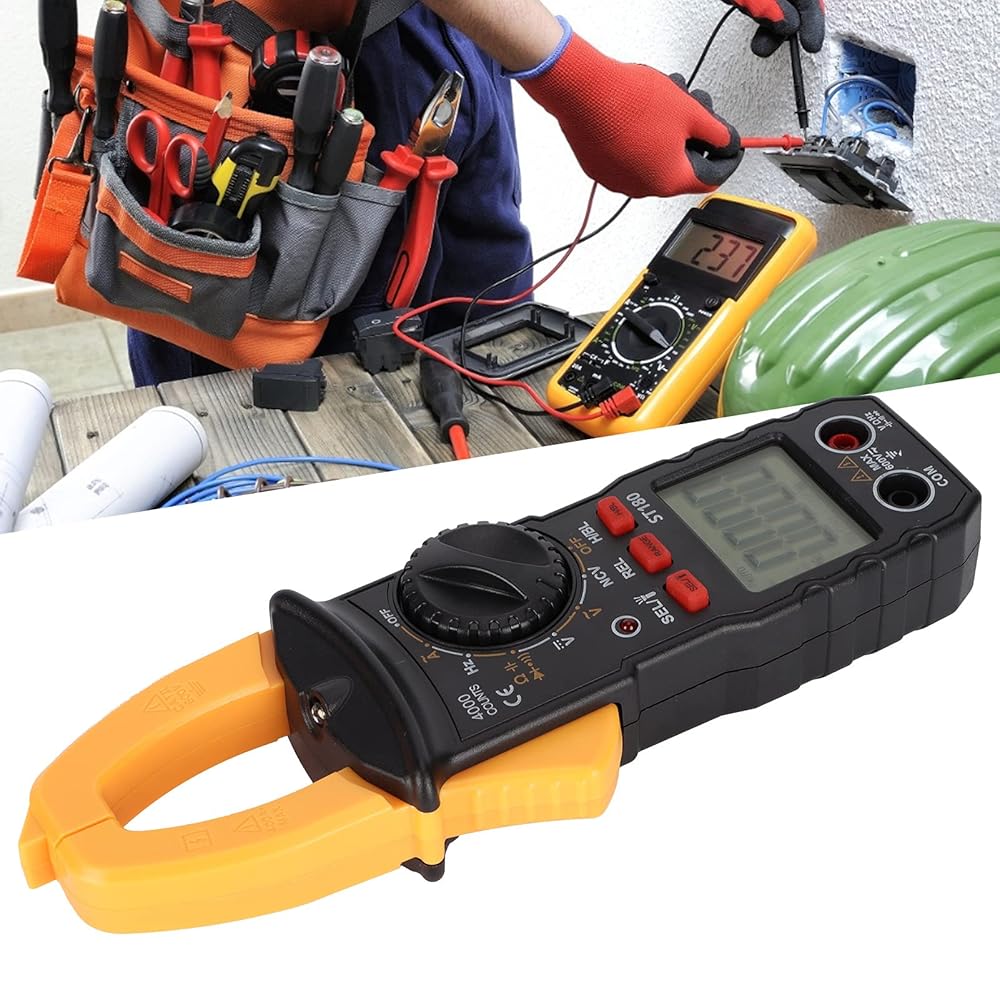

Purpose: electron and electron test

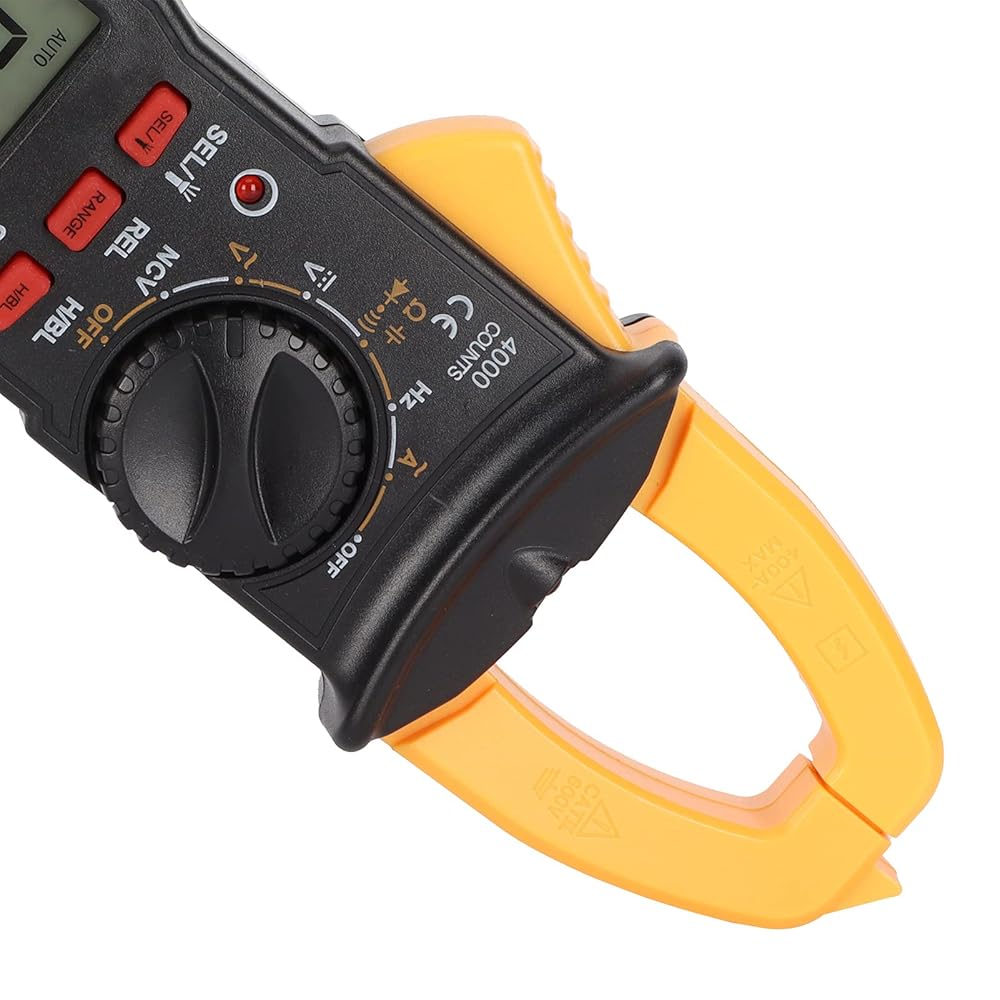

Clampa color: yellow
Range Resolution
AC Current 6A 0.001a ± (3.0% reading of 20) 0.01A ± (2.5% reading+8 words)
400a 0.1a
400~600a 0.1A ± (3.0% reading+10 words) for reference
DC voltage 6V 0.001V ± (0.5% reading+3 words)
60V 0.01V
500V 0.1V ± (0.8% reading+5 words) 6V 0.001V ± (0.8% reading+5 words)
60V 0.01V
450V 0.1V ± (1.2% Reading+5 words)
Frequency 99.99Hz 0.01Hz ± (0.1% Reading+2 words)
999.9Hz 0.1Hz
9.999KHz 0.001KHz
99.99kHz 0.01kHz
999.9kHz 0.1kHz
9.999MHz 0.001MHz
Service ratio 1-99% 0.10% ± (0.1% Reading+2 words)
Training 9.999nf 0.001NF ± (5.0% Reading+20 words)
9 0.01nf ± (2.0% reading+5 words)
999.9nf 0.1nf
9, μF 0.001 μf
99.99±
99.99MF 0.01MF not set
Temperature measurement -20℃~300℃ 1℃±(2.5%+5D)
311°C ~ 1000°C 1°C ± (2.5%+5D)
-4℉ ~ 600℉ 1℉± (2.5%+5D)
601℉ ~ 1 ~ 1 ~ 1 ~ 1 ~ 1 ~ 1 ~ 1832 ± (2.5%+5d)
resistance 6kΩ 0.001kΩ ± (0.8% reading+3 words)
60kΩ 0.01kΩ
600kΩ 0.1kΩ
6mΩ 0.001mΩ ± (1.2% reading+3 words)
10mΩ 0.1MΩ

Packagelist:
