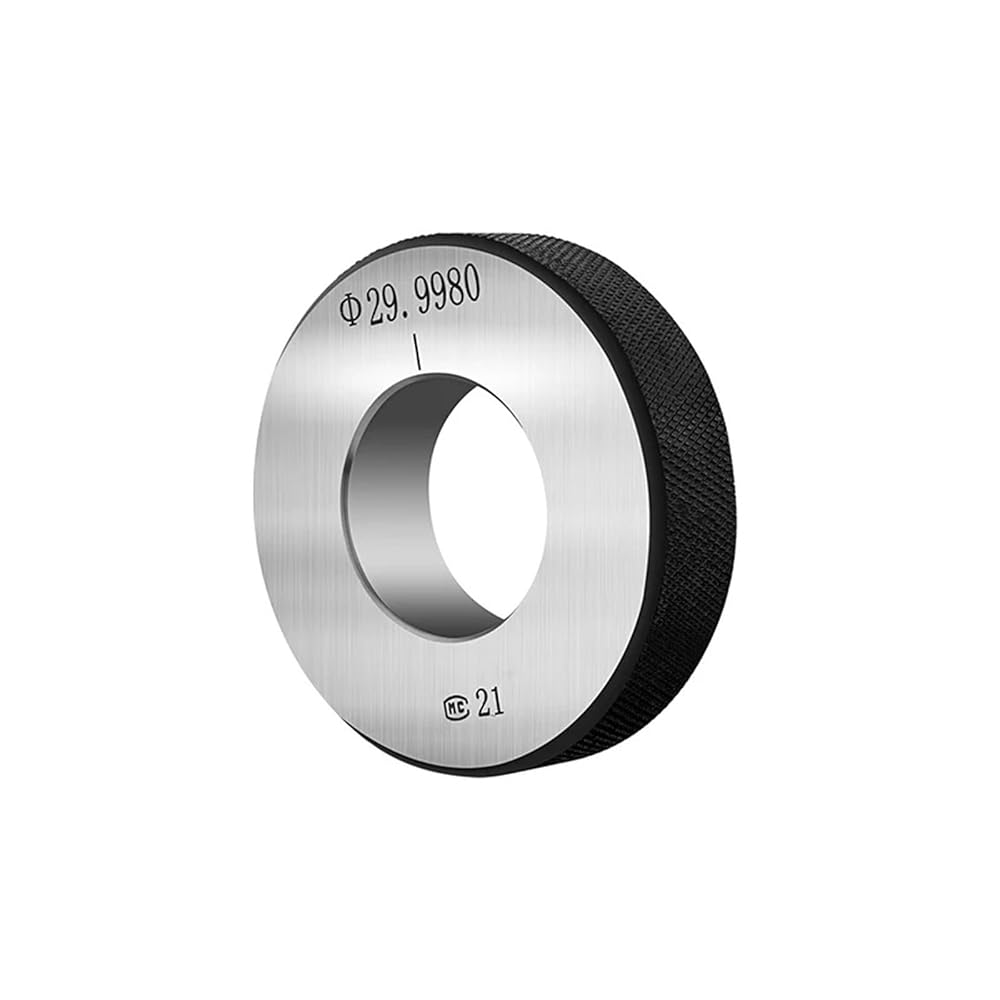

1 قطعة Φ2mm-80mm السلس حلقة قياس القطر الداخلي مقياس المعايرة عادي حلقة غيج ثقب السلس أدوات قياس (22 مللي متر) in Saudi Arabia

1 قطعة Φ2mm-80mm السلس حلقة قياس القطر الداخلي مقياس المعايرة عادي حلقة غيج ثقب السلس أدوات قياس (10 مللي متر)

SAR 282
ماركة
KOPADGU
وزن
50 g
اللون10 ملم
– 1 +

مميزات خاصة

  • 2.The product has high hardness measuring surface, wear resistance and long service life.
  • 1.This product is made of high quality steel.
  • 4.This product is simple to operate and easy to use.
  • 3.The product is used to test that the internal size of the workpiece is within tolerance.
  • If you have any questions, please do not hesitate to contact us. Thank you for coming, wish you a happy life！

وصف

Reference Dimension (Diameter)
Simple Description
For zero setting of inside micrometers, three pointsinternal micrometers and bore gages
Material: GCr15. The hardness of the measuring surface is greater than 60HRC.
Size difference (difference between the ordered size andthe size marked on the setting ring when supplied):For example, the ordered size is 10.00mm,the size marked on the setting ring when suppliedmay be 10.002mm
CUSTOM MADE
Non-standard calibrated plain ring gauges can be ordered according to the requirements of users.
Tolerance Direction:
Go Unilateral (one way) minus tolerance.
NoGo Unilateral (one way) plus tolerance.
Bilateral (split) tolerance.
==========
Number of Pieces : 1 PC
DIY Supplies : Metalworking
Type : Other
Accuracy : ±0.001mm
