USE OUR ANDERSON CONNECTORS TO QUICKLY CONNECT AND DISCONNECT POWER IN A SAFE AND CONVENIENT WAY
Product Attributes
Colors: Red+Black

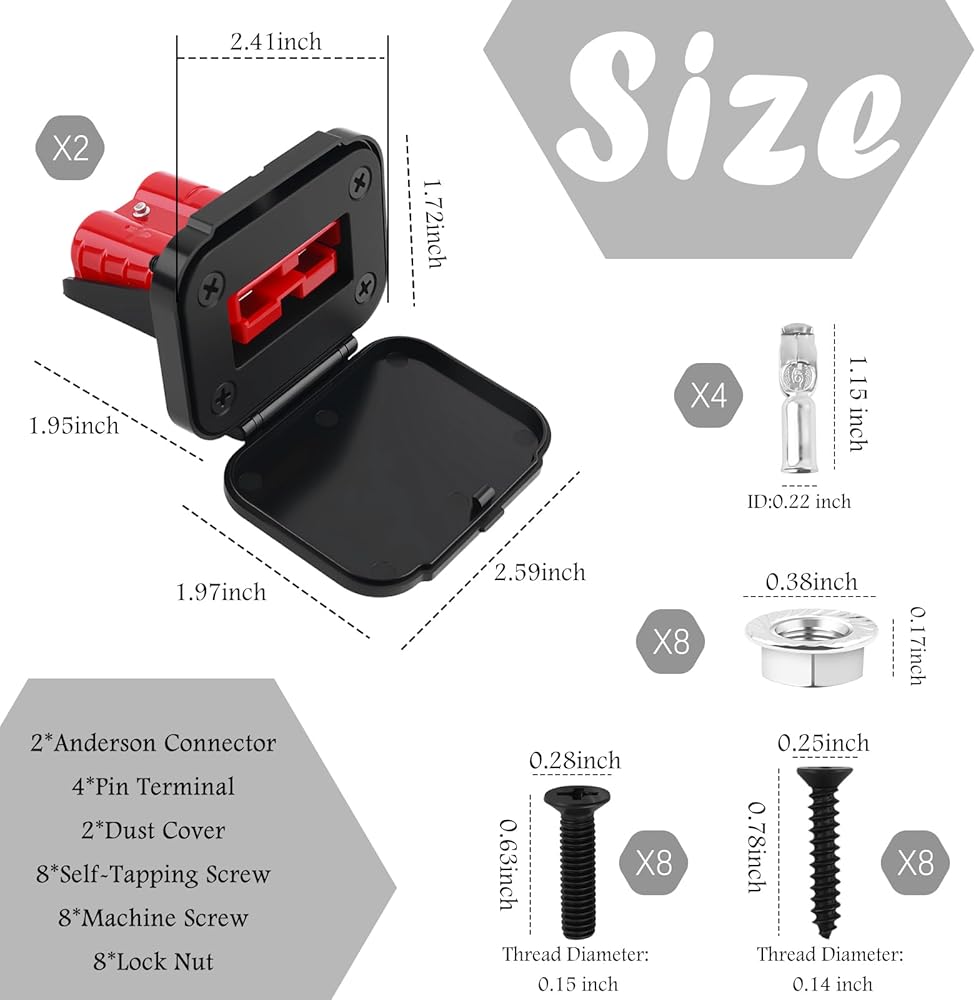

Sizes: 2.41×1.95×1.72 inch

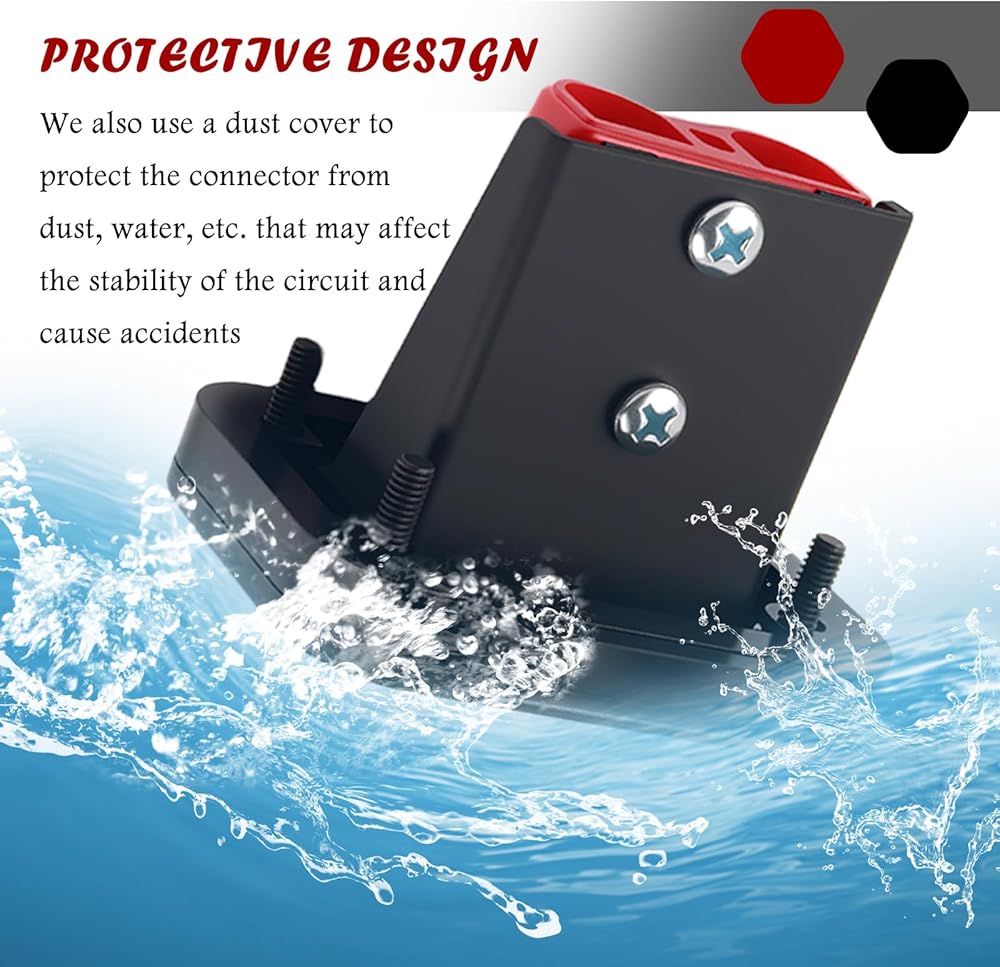

Dust Cover: 2.59×1.97×0.41 inch
Terminal Inner Diameter: 0.22 inch
Self-Tapping Screw: 0.78×0.25×0.25 inch/Thread Diameter: 0.14 inch
Machine Screw: 0.63×0.28×0.28 inch/Thread Diameter: 0.15 inch
Lock Nut: 0.38×0.38×0.17 inch/Inner Diameter: 0.14 inch
Weight: 5.04 oz

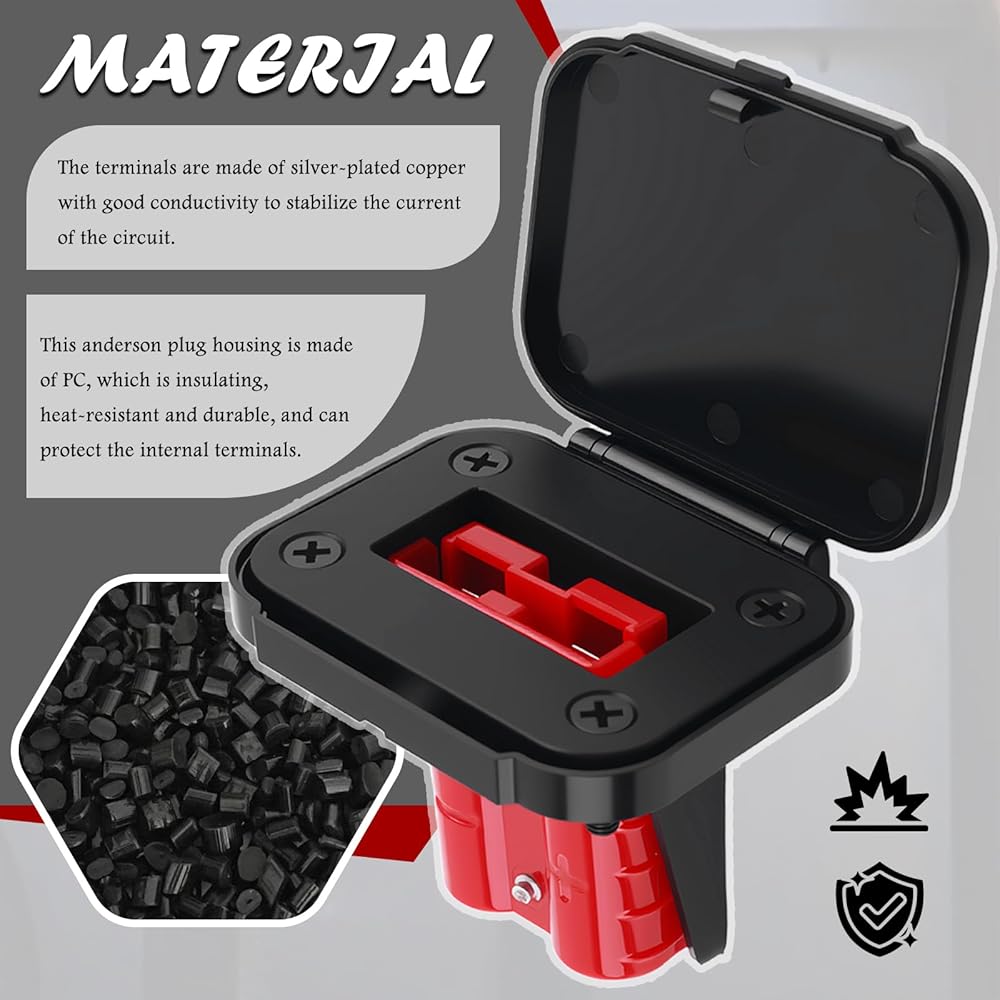

Material: PC, Copper Alloy, Iron

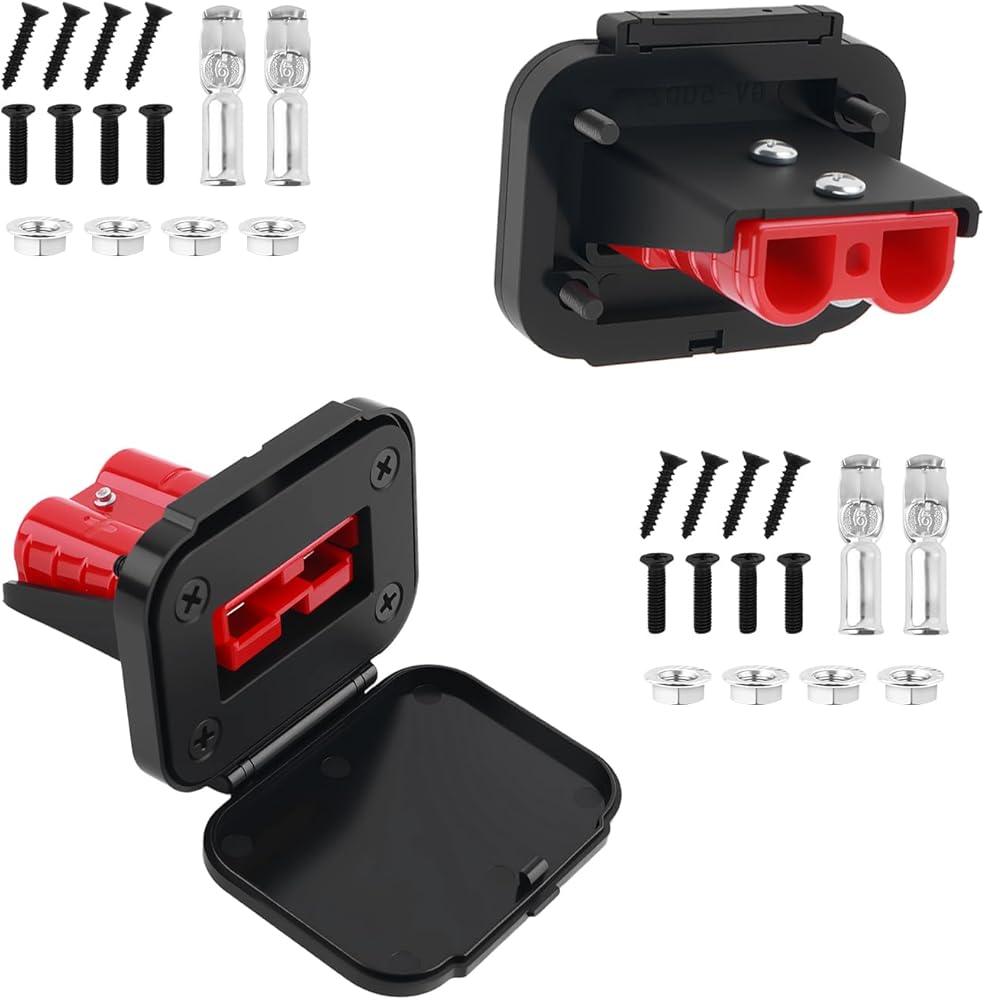

Packaging: 2*Anderson Connector, 4*Pin Terminal, 2*Dust Cover, 8*Self-Tapping Screw, 8*Machine Screw, 8*Lock Nut

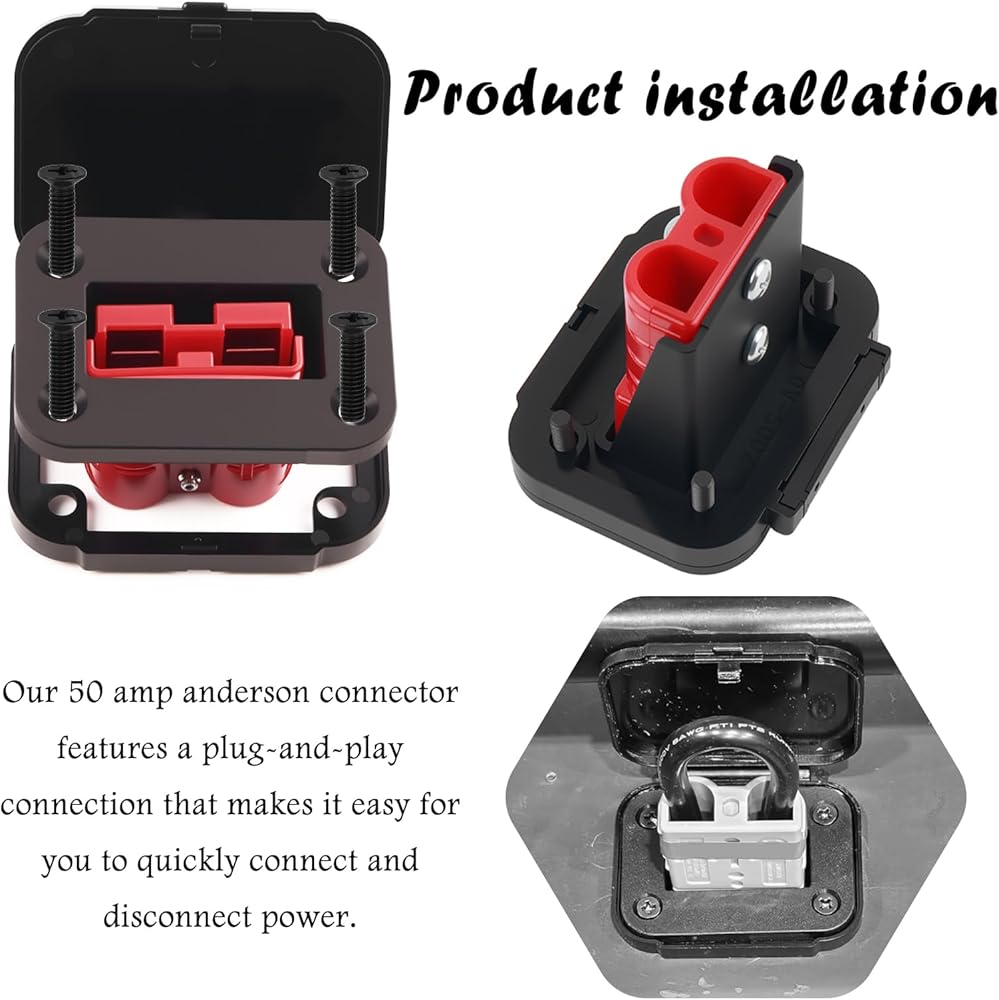

Installation Steps
1. We can install the dust cover and connector with screws and nuts
2. Use wire strippers to strip the insulation from the end of the cable
3. Put the cable end into the terminal and use crimping pliers to crimp the terminal so that the cable does not come loose
4. Install the terminal into the connector and snap into the connector clips, so that the terminal does not loosen
Installation Precautions
1. When connecting cables, please pay attention to the positive and negative markings on the surface of the anderson connector, so as not to connect the wrong one
2. Please check that the terminals are tightly seated in the clips to prevent accidents and damages caused by disconnecting the terminals
