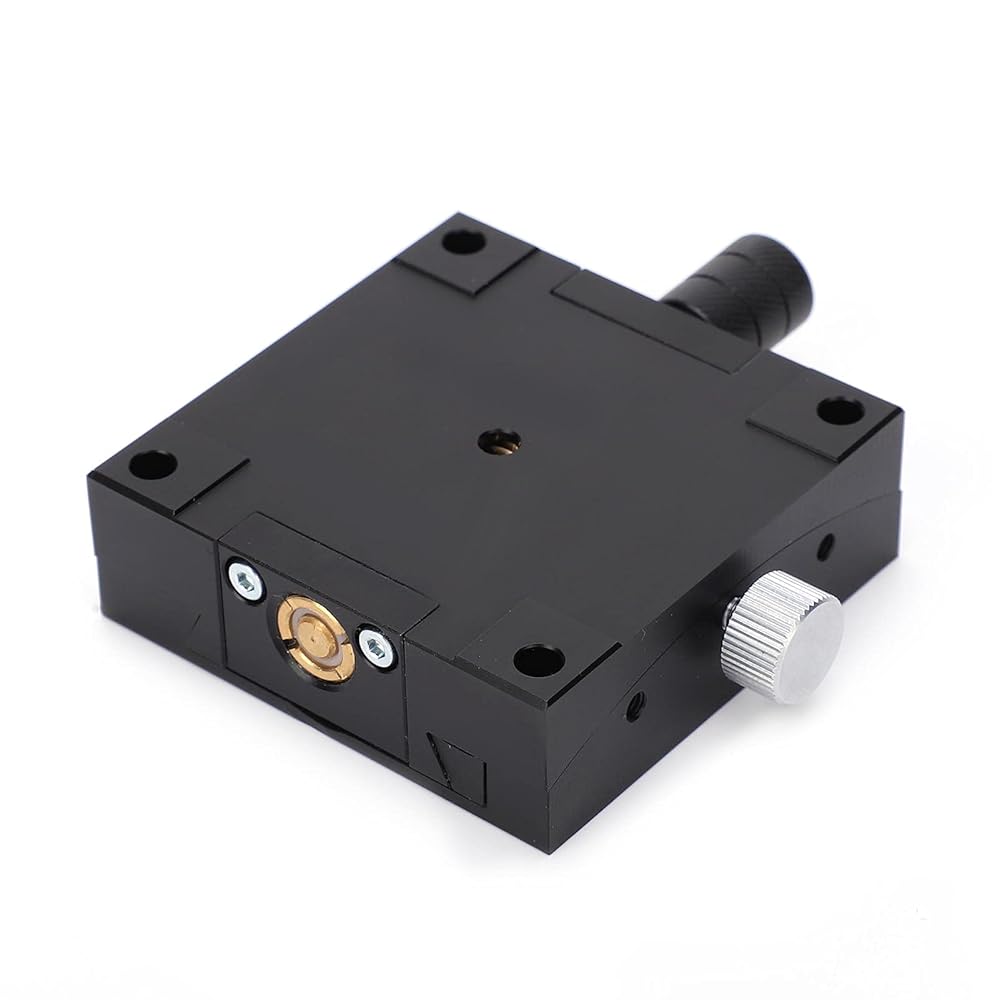

Linear Stage Manual Platform Optical Fine ‑ Tuning Curved Sliding Table HGFG60x60 60x60mm

SAR 838
– 1 +

Special Features

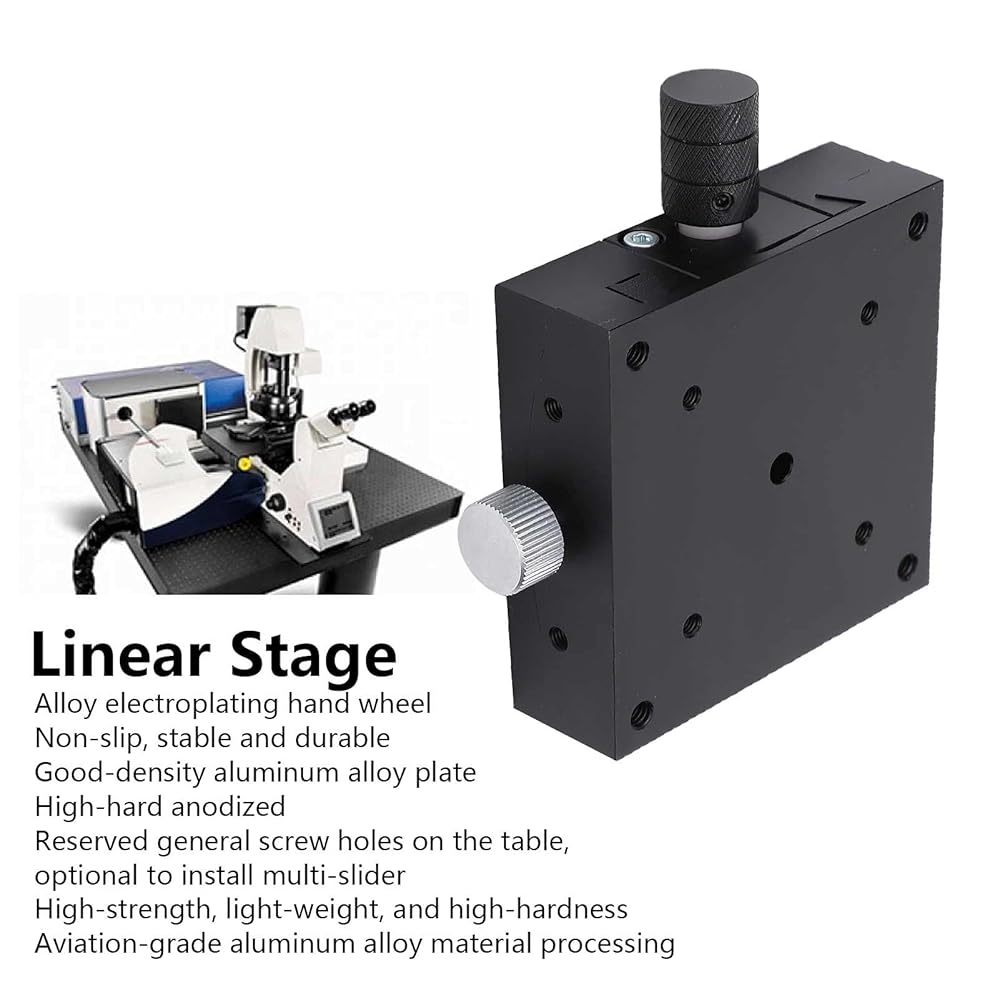

  • Linear stage come with alloy electroplating hand wheel, non‑slip, stable and durable
  • The work surface of good-density aluminum alloy plate, high-hard anodized, reserved general screw holes on the table, optional to install multi-slider
  • Using high‑strength, light‑weight, and high‑hardness aviation‑grade aluminum alloy material processing
  • The product has the advantages of no deformation after processing

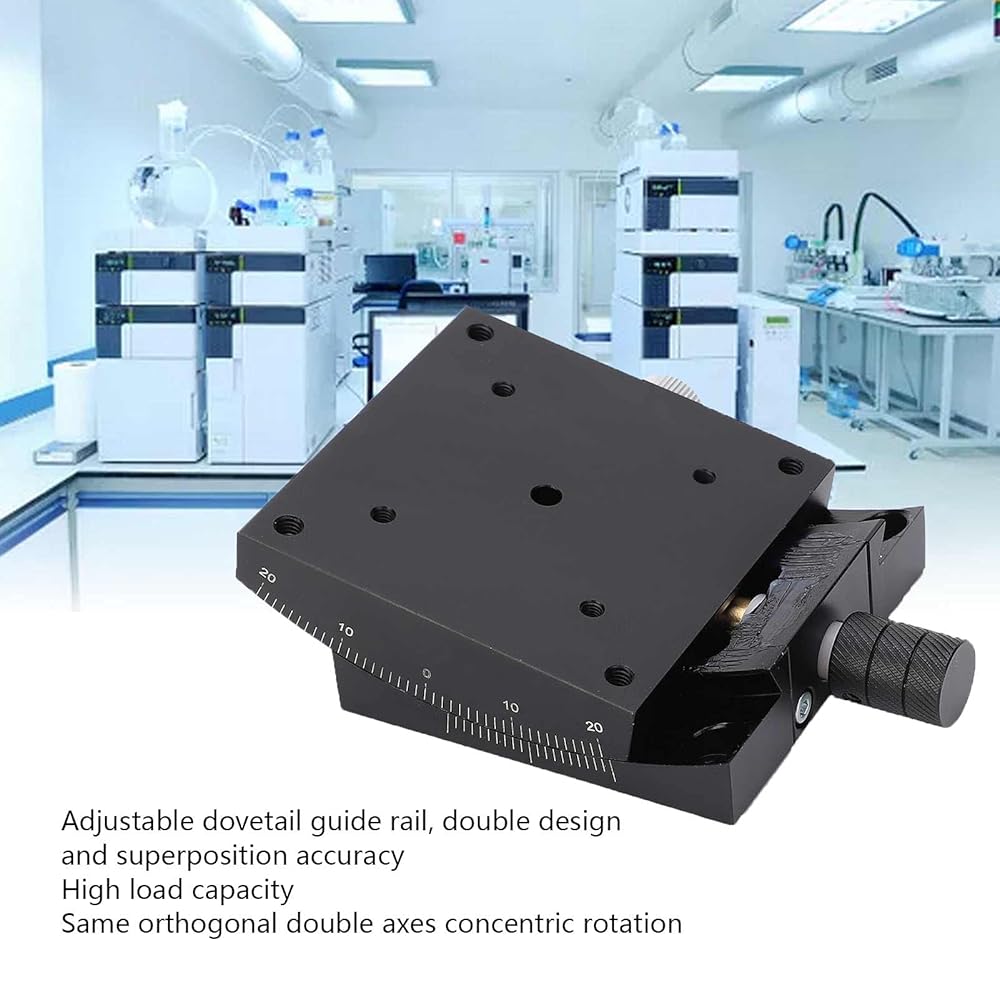

  • Adopting adjustable dovetail guide rail, double design and superposition accuracy, high load capacity can be carried out at one point, adjustment of the rotation center is the same orthogonal double axes concentric rotation

Description

Item Type: Linear Stage

Model HGFG60x60

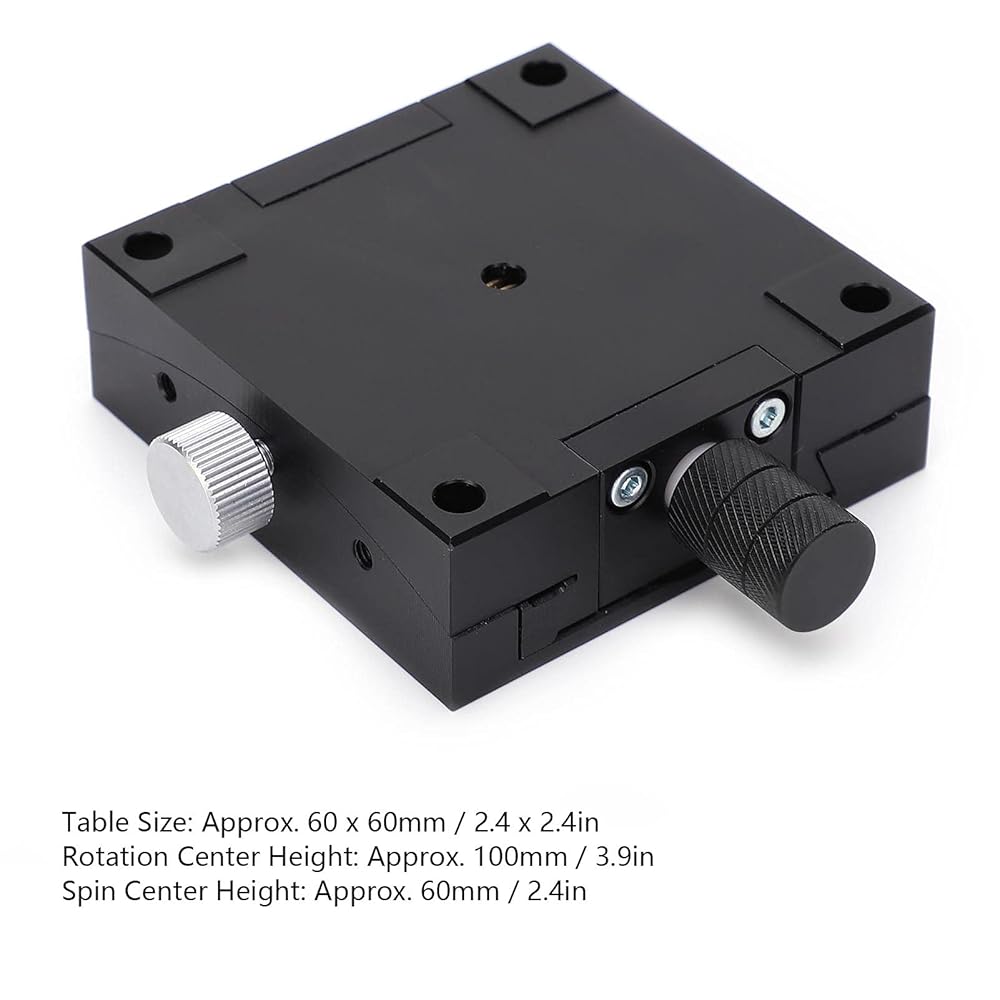

Table size(approx.) 60 x 60mm / 2.4 x 2.4in
Angle range ±10 degrees
Rotation center height(approx.) 100mm / 3.9in
Deviation of center of rotation 0.1mm
Drive method Turbine wormdrive
Rail form Accurate dovetail guide rail
Drive position Central drive
Minimum scale 1 Degree
Minimum reading 0.05mm
Movement amount of knob one turn 1.3°
Movement amount ±20°
Spin center height(approx.) 60mm / 2.4in±0.1mm
Withstand load 58.8N
Material Aluminum alloy
Surface oxidation Anodizing Scope of Application: DVD optical disc reading lens production and inspection, semiconductor related production equipment and inspection, accurate scientific research, optical communication system products and inspection, liquid crystal production and inspection, projector mirror positioning and installation, etc.
Size: Approx. 50mm / 2in
60mm / 2.4in
200mm / 7.9in
1.5mm / 0.1in
7.5mm / 0.3in
15mm / 0.6in

Package List：
1 x Linear Stage
