مميزات خاصة

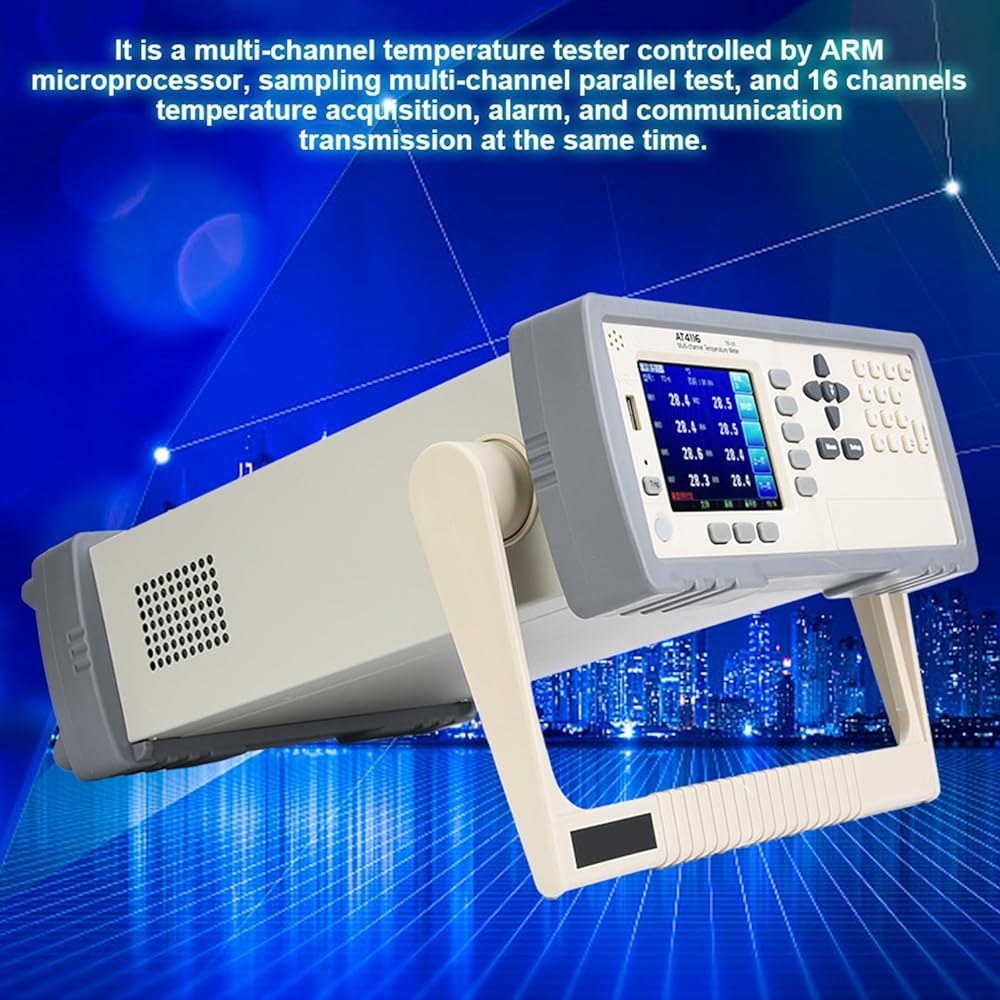

It is a multi‑channel temperature tester controlled by ARM microprocessor, sampling multi‑channel parallel test, and 16 channels temperature acquisition, alarm, and communication transmission at the same time.
Sampling the most advanced testing principles, so that the temperature measurement resolution to 0.1℃.
Compatible with a variety of temperature sensors, fast response, stable data, and with the function of couple fault detection.
Support K/J/T thermocouple. The test range is from ‑200℃ to 1300℃.
Suitable for household appliances, electric motors, heating appliances, temperature controller, transformer, oven, thermal protector, power supply, lighting, electric power, LED and other industries.

وصف

Specification:
Condition: 100% Brand New
Item Type: Temperature Tester
Material: ABS+Metal

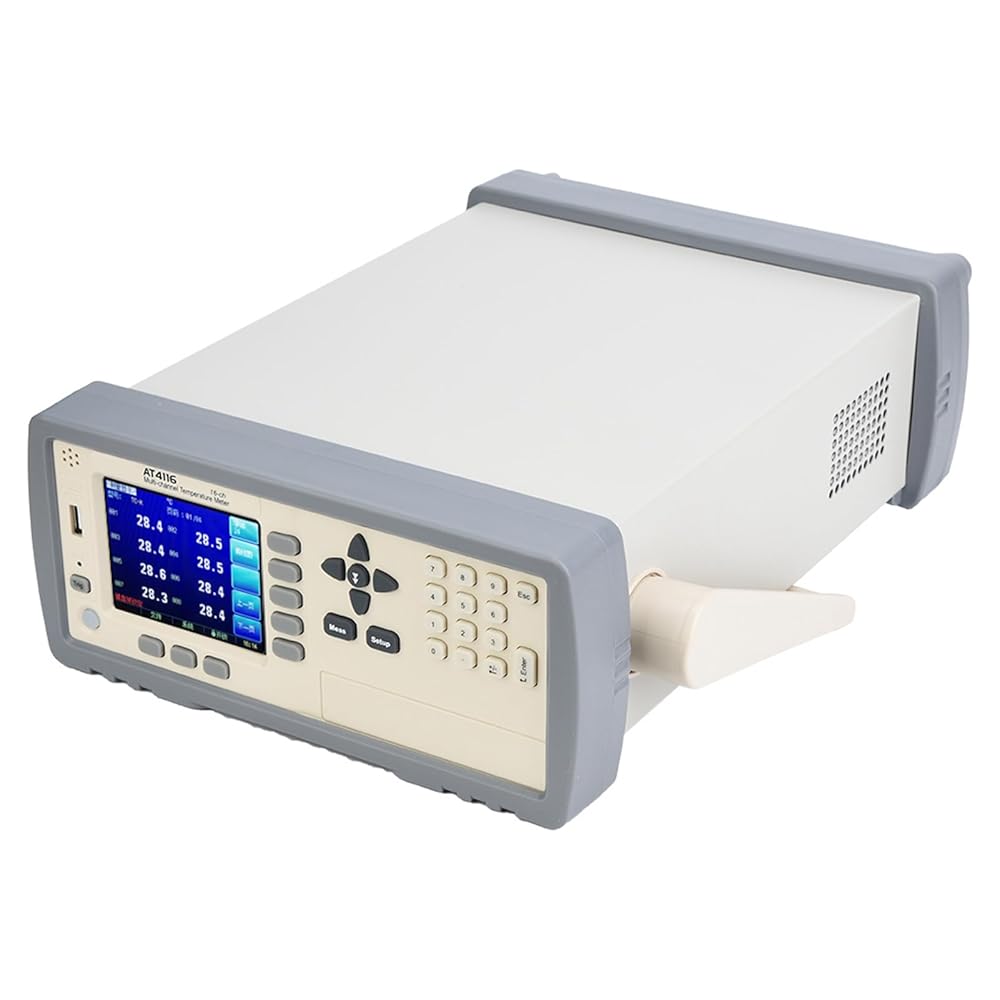

Model AT4116
Graduation Thermocouple：K/J/T Type
Accuracy 0.2℃±2 words
Testing Range - 200℃~1300℃(The test range varies with the graduation)
Resolution 0.1℃
Channel 16 Channel
Scanning Speed FastSpeed 100ms/Channel, intermediatespeed：500ms/Channel, Slow Speed：1s/ Channel
Revise Not support
Comparator Below/Above Alarm Each channel sets separately

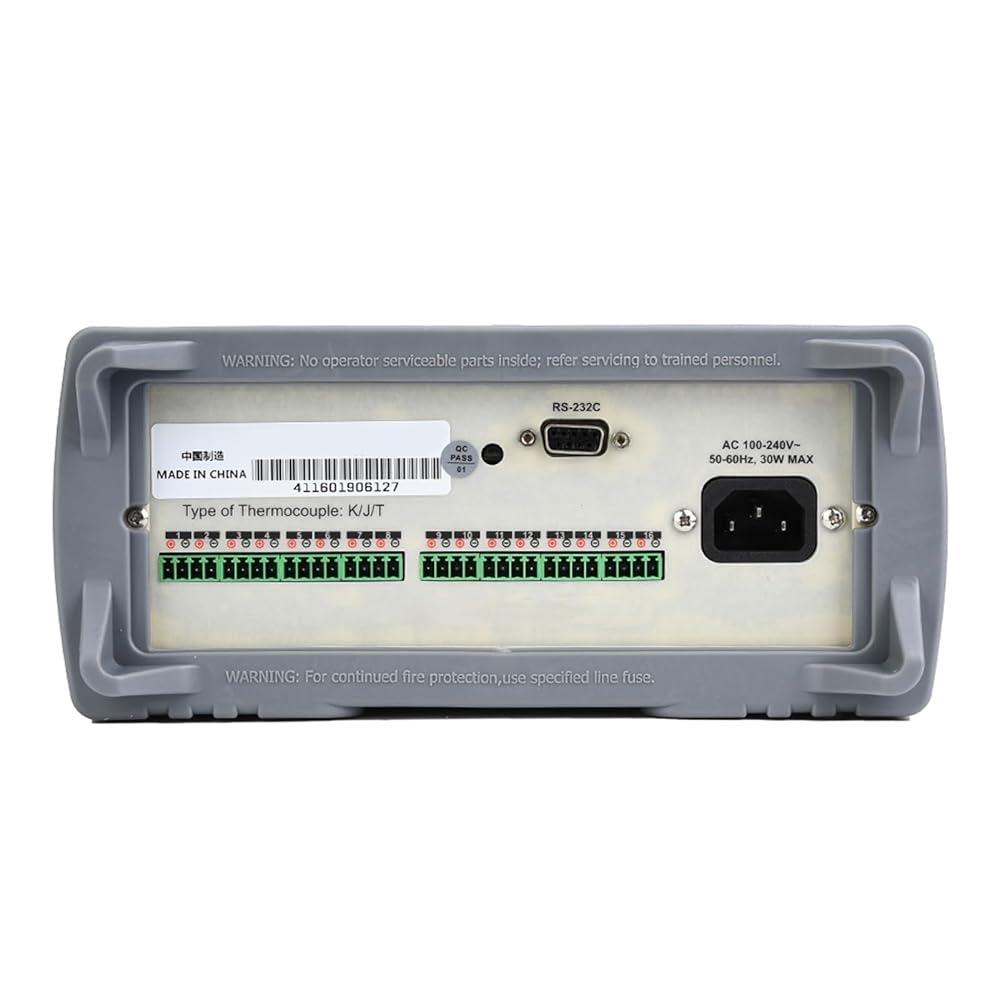

Standard Interface RS232C Port U Disc Port USB Communication Interface
Standard Software ATS45 Data Acquisition Software
Cold Junction Compensation Accuracy：0.5℃
Others TFT LCD Display，Couple detection function
Power Supply Frequency：50Hz/60Hz Power: 10VA

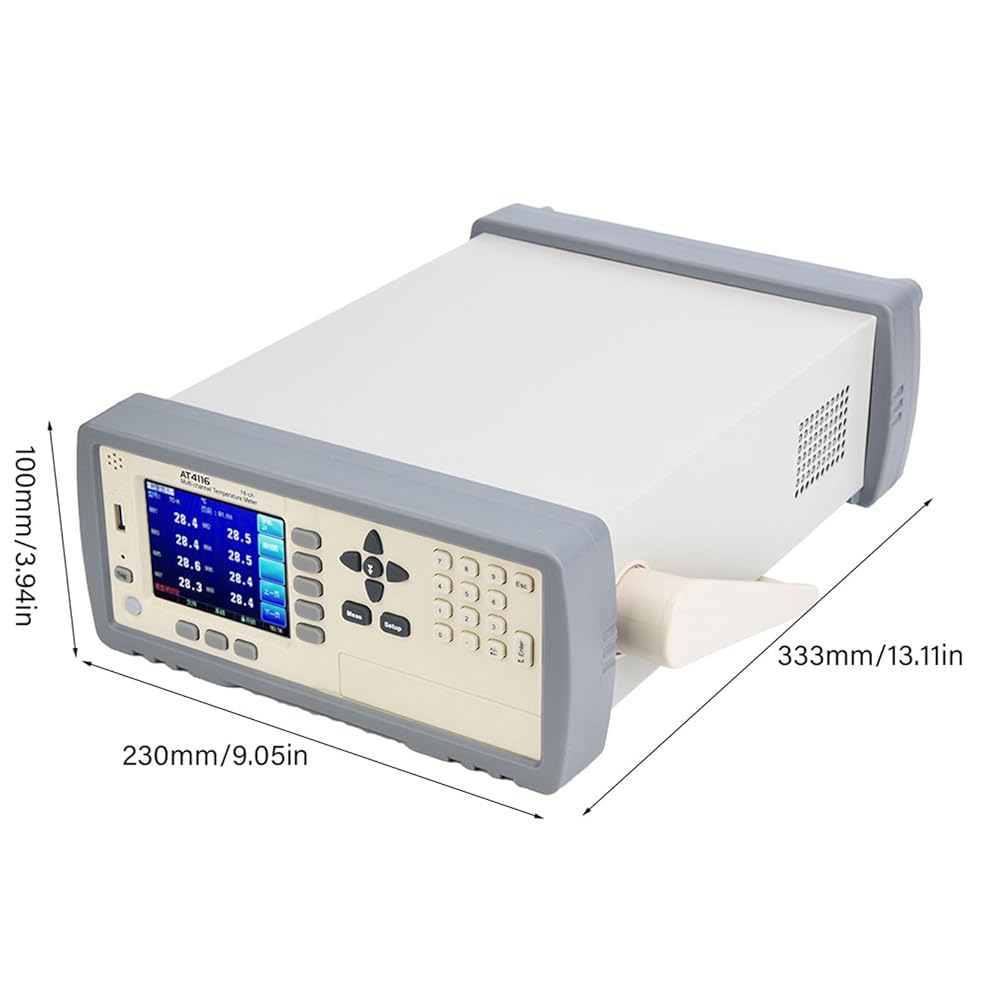

Size/Weight 333 (L) (W) x100 (H) mm / 13.1 x9.1 x3.9inWeight: 4650g/164oz

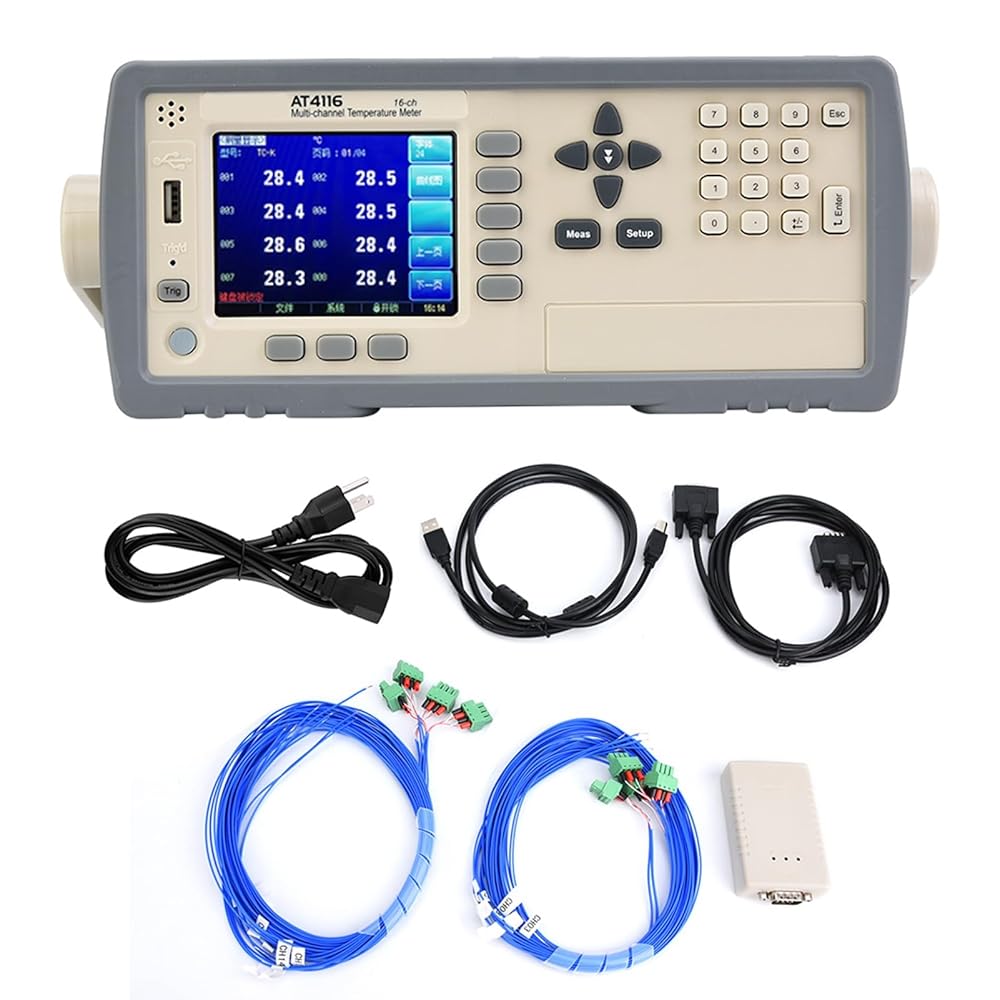

PackageList:
1 x Temperature Tester
1 x Instruction
1 x Power Cable
1 x U Disc
1 x K Type Thermocouple
1 x RS232 Communication Cable
1 x USB Interconnecting Box
1 x USB Cable

Note:
Please allow 1-3cm error due to manual measurement. Thanks for your understanding.

مرحبًا،

بحث

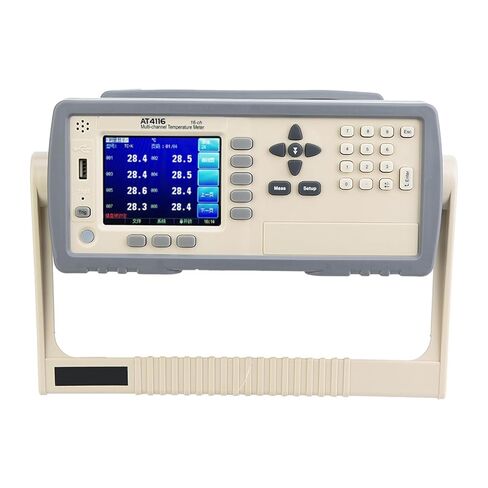

AT4116 جهاز اختبار درجة الحرارة بـ 16 قناة مع شاشة TFT LCD وشاشة ترانزستور رقيقة ومنفذ USB للاختبار المتوازي متعدد القنوات 200 إلى 1300 K J T دعم مزدوج حراري (قابس أمريكي 110 فولت)
