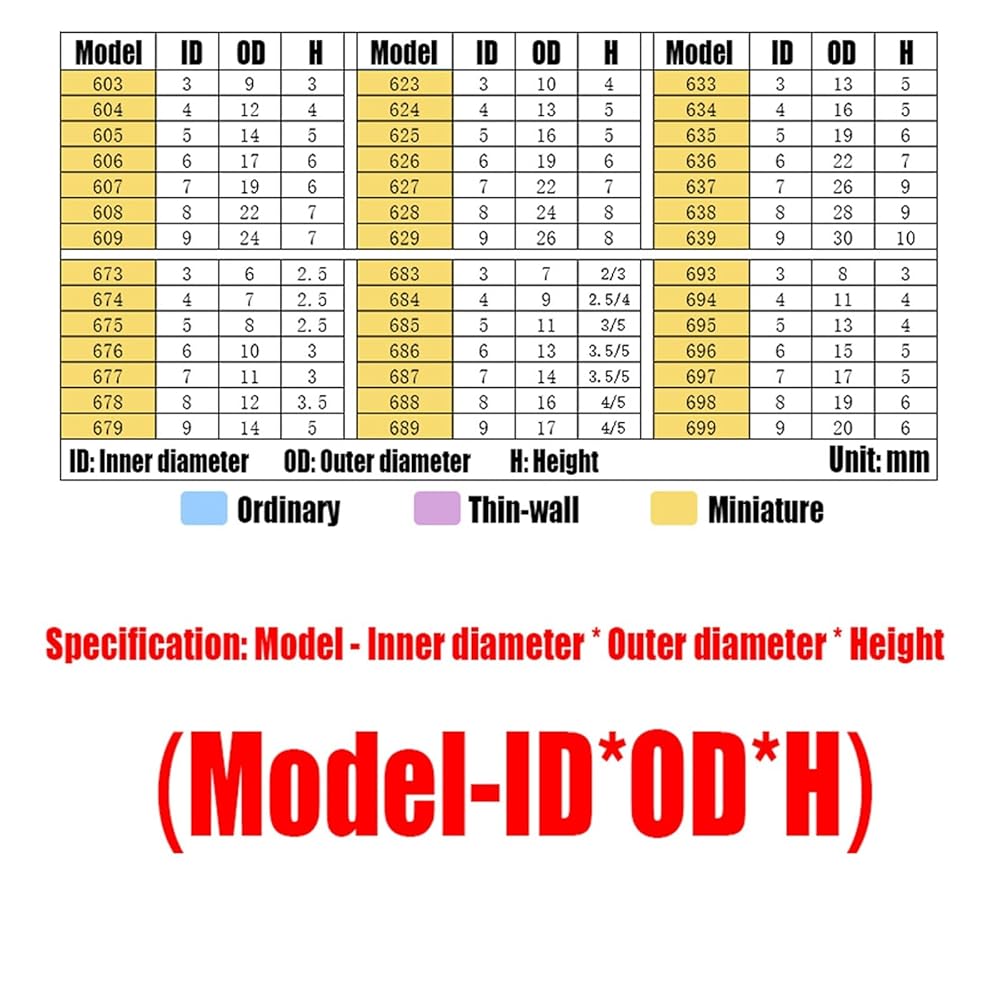

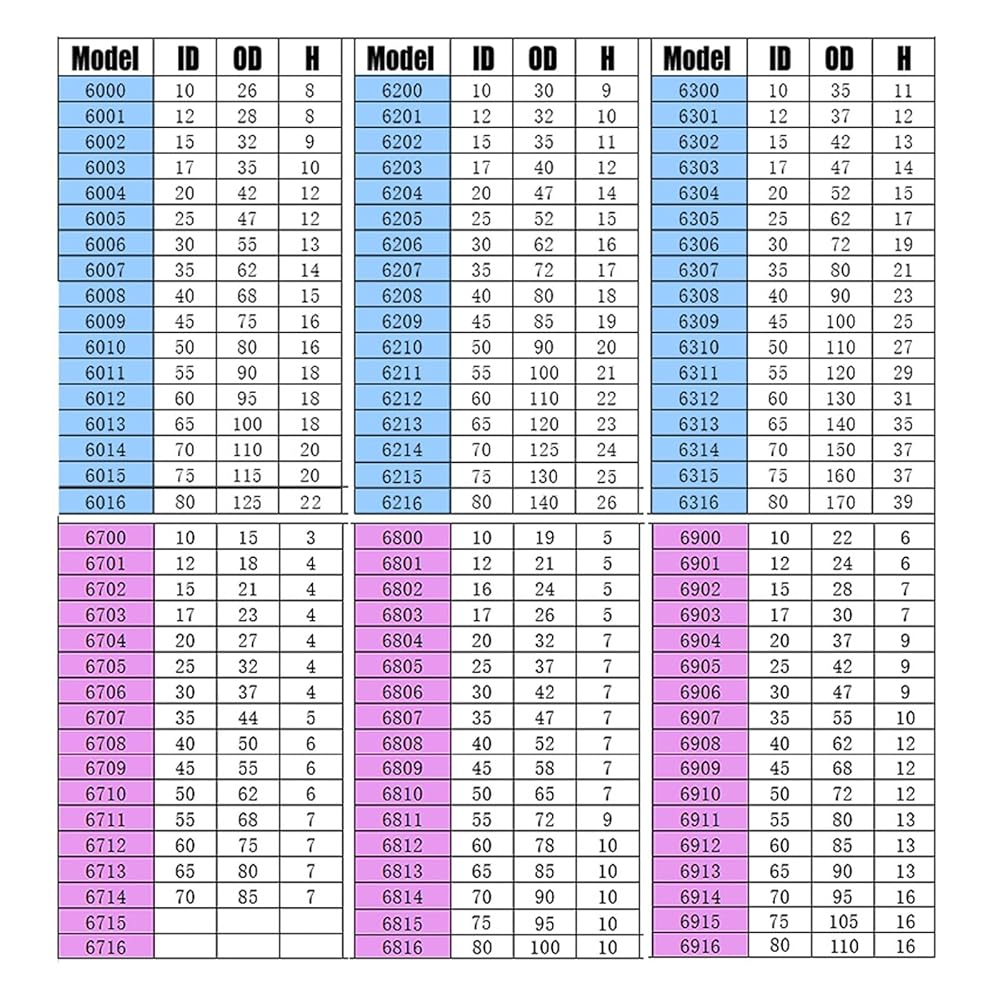

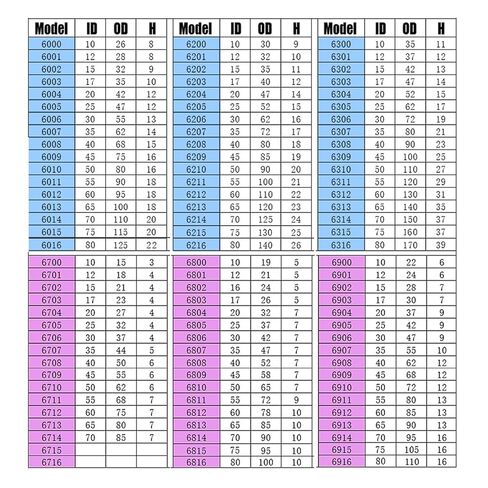

Size:(Model - Inner diameter * Outer diameter * Height)
Material:POM plastic (Ferrule); PA66 nylon (Holder); High strength glass ball (Rolling ball)
Example of specifications:
608-8x22x7mm:608 Model-8mm inner diameter * 22mm outer diameter * 7mm height (Open type)
608-RS: 608 Model- 8mm inner diameter * 22mm outer diameter * 7mm height (Single sided seal)
608-2RS:608 Model- 8mm inner diameter * 22mm outer diameter * 7mm height (Double sided sealing)
Uses:
1.High temperature working conditions: refining furnace, high temperature conveying device.
2.Non magnetic and insulation conditions: inspection equipment, wire and cable production lines.
3.Corrosion conditions: semiconductors, LCD screens, complete chemical equipment, electroplating equipment, photovoltaic equipment, food equipment, etching equipment, and various corrosive conveying devices.
4.Dust working conditions: food machinery, welding production lines.
5.Clean working conditions: Production equipment such as LCD screens and their internal conveying devices, solar cell production equipment, conveying devices in clean rooms, semiconductors.
6.Vacuum working conditions: vacuum coating equipment, vacuum manipulator.
Features:
1. Complete specifications, high-quality POM plastic material, corrosion resistance, weak acid and alkali resistance, non rusting, wear-resistant, good pressure resistance, insulation, waterproof, high hardness, flexible rotation, no lubrication required,oil-free self-lubricating, long service life, fatigue resistance, low noise, and a wide range of applications.
2.Stainless steel balls, ceramic balls, POM balls, etc. can be replaced according to the user's actual usage environment.
3. POM has good electrical insulation and is almost unaffected by temperature and humidity. There is little variation in humidity and frequency range.
4.POM has a low friction coefficient, good wear resistance, and uses high-strength glass balls for smoother rotation and reduced noise generation.
5.POM has excellent mechanical properties, with a strength of up to 50.5MPa, which is very close to that of metals. At 20 ° C, 21MPa, and 3000h, it is only 2.3%. It is minimally affected by temperature and has a high fatigue strength.
6.The glass ball and holder can be replaced according to the usage environment.
Kind tips:
1.You can check the exact size in the photo gallery, or you can contact us for consultation.
2.There are different sizes, colors, materials and styles of products in the store. If you have special needs, please contact us.
3.There are products of the same type, related and complementary in the store. Welcome to the store to find them and wish you a happy shopping.
4.The color of the picture is slightly different from the real object, please take the actual object as the standard.
5.There is a slight error in manual measurement, thank you for your understanding.
Package included: (according to your choice)
==========
is_customized : Yes
Material : POM Plastic
Model Number : 623 624-629 6000 6001-6010 6912 6914
