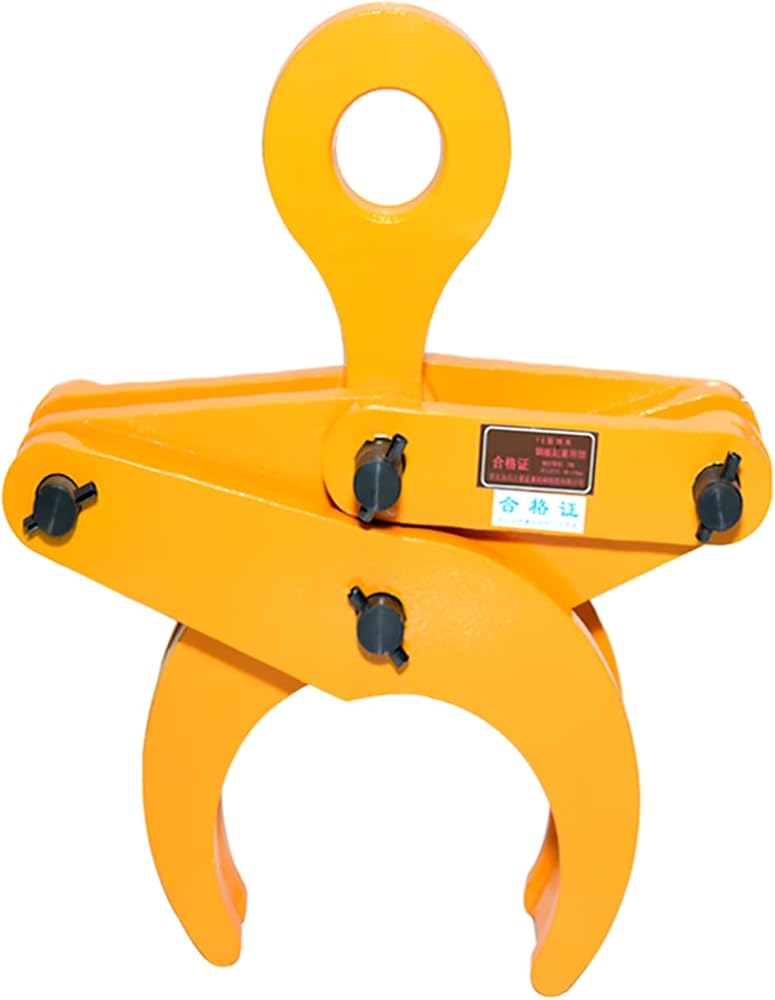

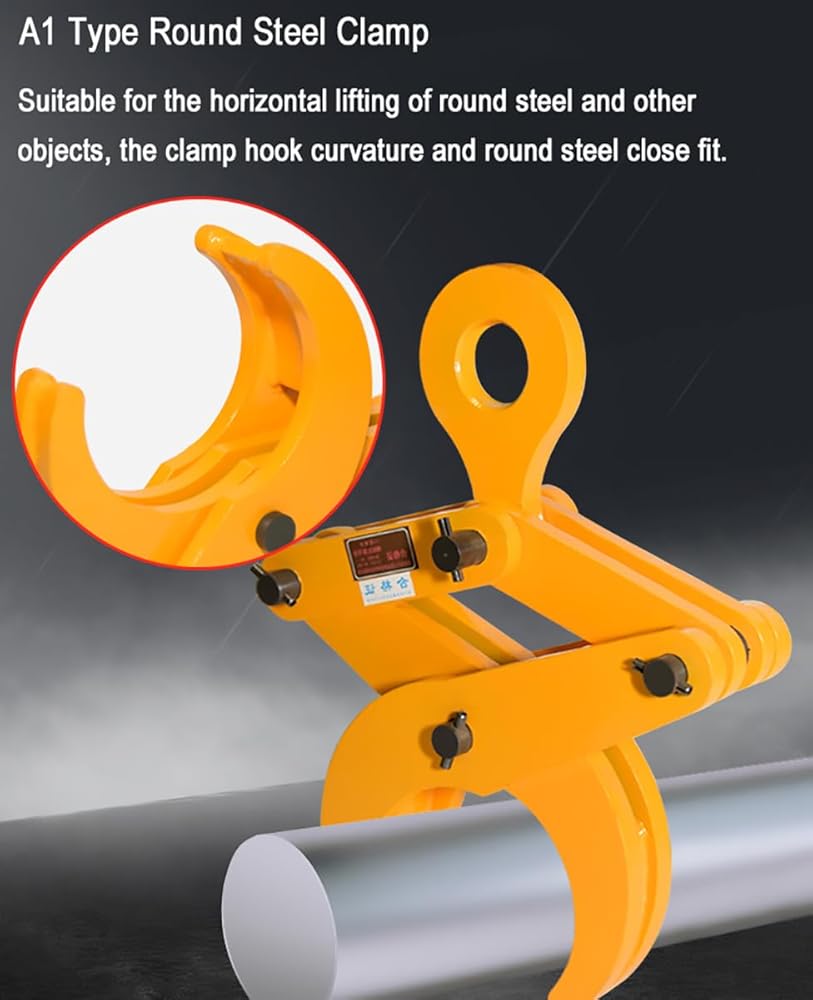

A1 round steel lifting tongs, clamping objects for solid round steel
A2 round pipe lifting clamp, lifting object for the hollow round pipe
Round steel and round pipe can not be used with each other due to different stress points.
Specification:

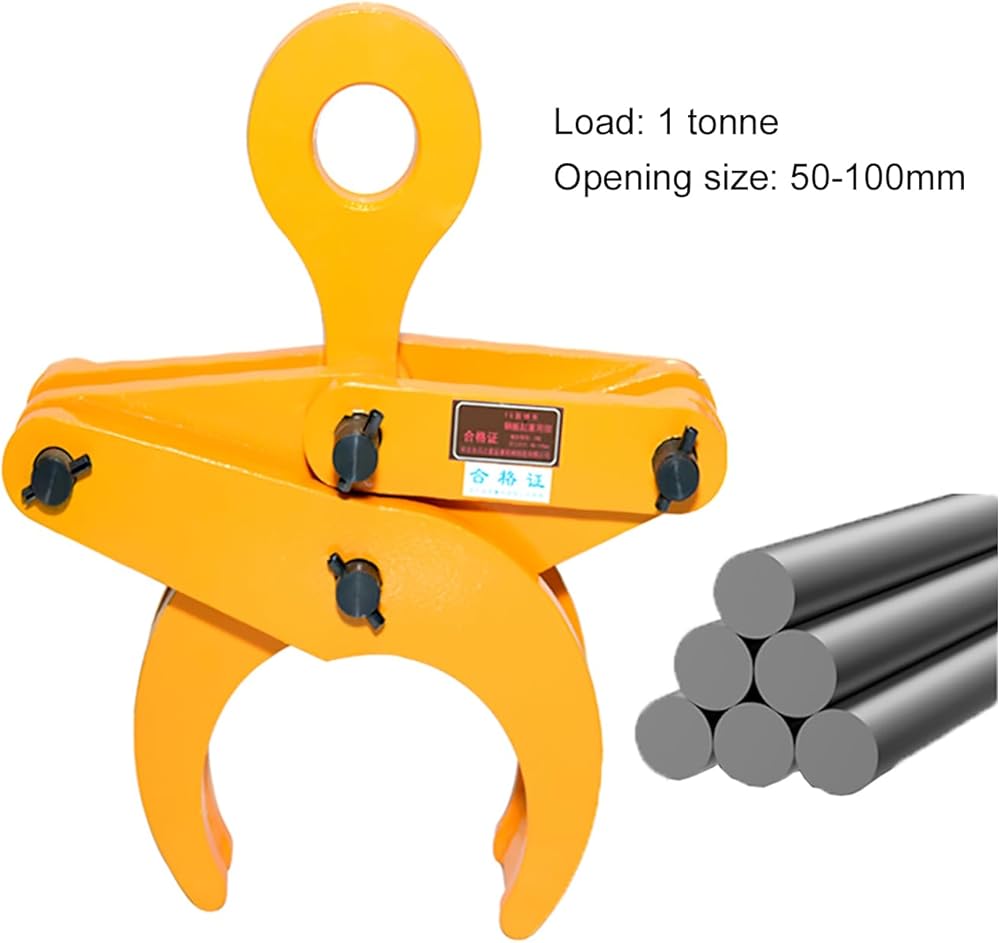

A1-1T
Load capacity:1tonnes
Opening size: 50-100mm
Net weight:4.1KG
A1-2T
Load capacity:2 tonnes
Opening size: 80-130mm
Net weight:16KG
A2-1T
Load capacity:1tonnes
Opening size: 70-160mm
Net weight:6KG
A2-2T
Load capacity:2 tonnes
Opening size: 160-300mm
Net weight:11KG
Caution:
1. Choose the right specification.
2. Check the bite head, gasket, blockage between teeth, wear status and other abnormal phenomena before use.
3. Do not knock or collide with the lifted object during the lifting process.
4. Do not enter the area where the lifting object falls or turns over.
5. Do not make the lifting object move sharply or stop sharply.
6. Avoid the lifting object biased weight recommended to use more than 2 lifting clamps.
7. Rigorous in the load, long stay in mid-air.
8. Overloading is strictly prohibited.
