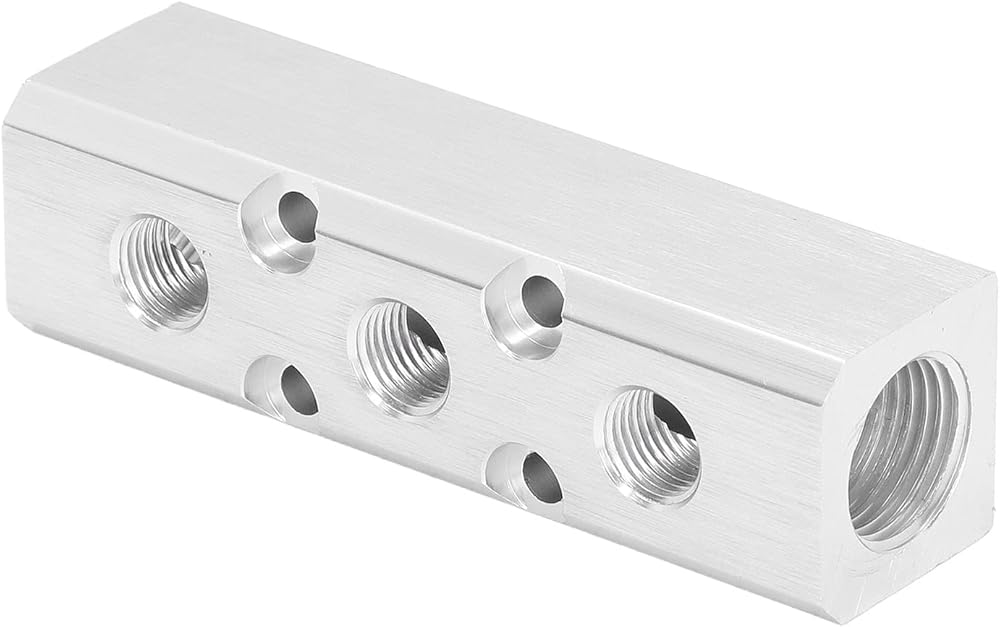

Pneumatic Manifold Air Distribution Block, 30*30mm Medium Air Circuit and Exhaust Base, Connector Splitter G1/2 Input G1/4 Output

Specification:
Item Type: Pneumatic Manifold Air Distribution Block
Material: Aluminum
Pressure Resistance: 1.0MPA(10kgf/cm²)
Working Pressure: 0~0.9Mpa(0~0.92kfg/cm²)
Adaptation Temperature: 0~60℃
Model
Total Length(approx.)
Positions/Holes
Length x Width(approx.)
Main Air Pipe
Branch
Branch Center Hole Diameter
Mounting Hole Diameter
Vertical Mounting Hole Center Spacing
Horizontal Mounting Hole Center Spacing
SY30-02-3F
106mm / 4.17in
3 Position 5 hole
30 x 30mm / 1.18 x 1.18in
G1/2 (approx.20mm / 0.79in)
G1/4 (approx. 12mm / 0.47in)
Approx.32mm / 1.26in
Approx.5.2mm / 0.2in
Approx.20.5mm / 0.81in
Approx.32mm / 1.26in
SY30-02-4F
138mm / 5.43in
4 Position 6 hole
Approx.64mm / 2.52in
SY30-02-5F
170mm / 6.69in
5 Position 7 hole
Approx.96mm / 3.78in

Package List:
1 x Pneumatic Manifold Air Distribution Block

Note:
1. Do not unplug and insert the air pipe frequently during the use of the connector, which will affect the service life of the connector and air pipe.
2. The pipe inserted into the joint needs to be inserted to the bottom of the joint to avoid the possibility of air leakage.
3. When pulling out the air pipe, first confirm that there is in the tube, press the end of the joint to the end and pull out the air pipe.
