مميزات خاصة

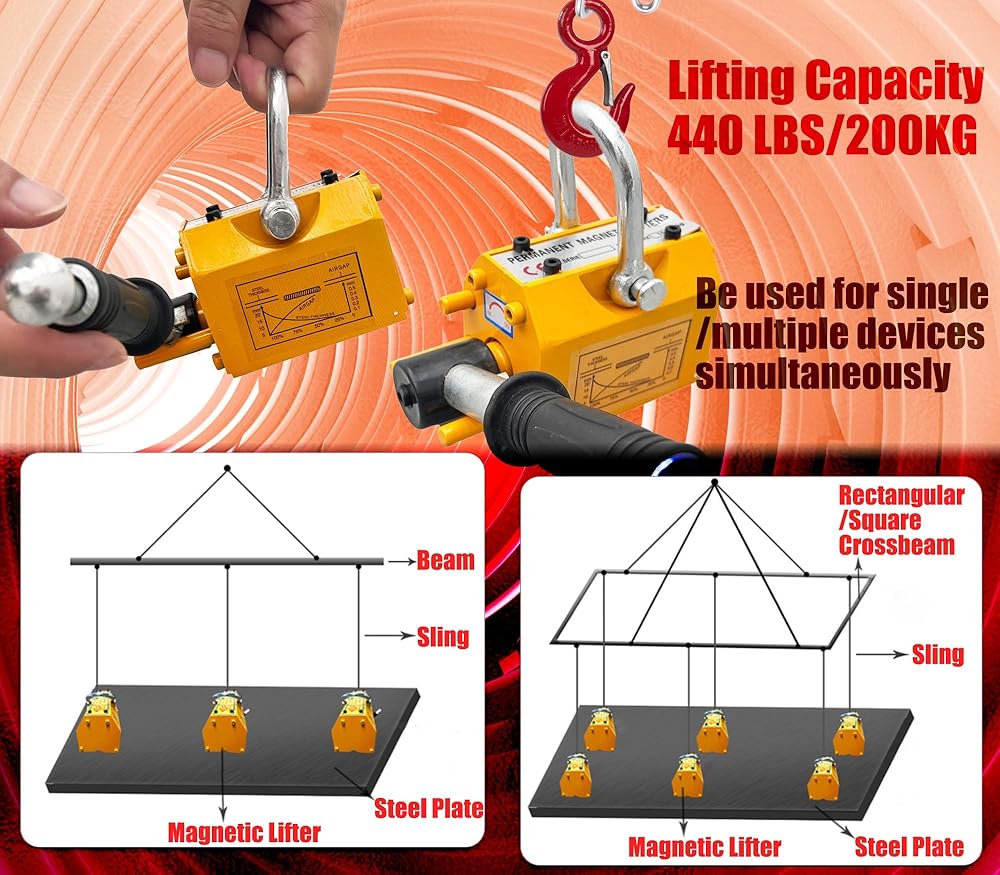

440LBS Hoisting Capacity: This magnetic lifter is made of neodymium magnets and alloy steel, providing strong magnetism and durability, with a lifting capacity of 440 pounds (200 kilograms); The overall color is yellow, with a regular shape and a thickness of 2.95"(75MM)

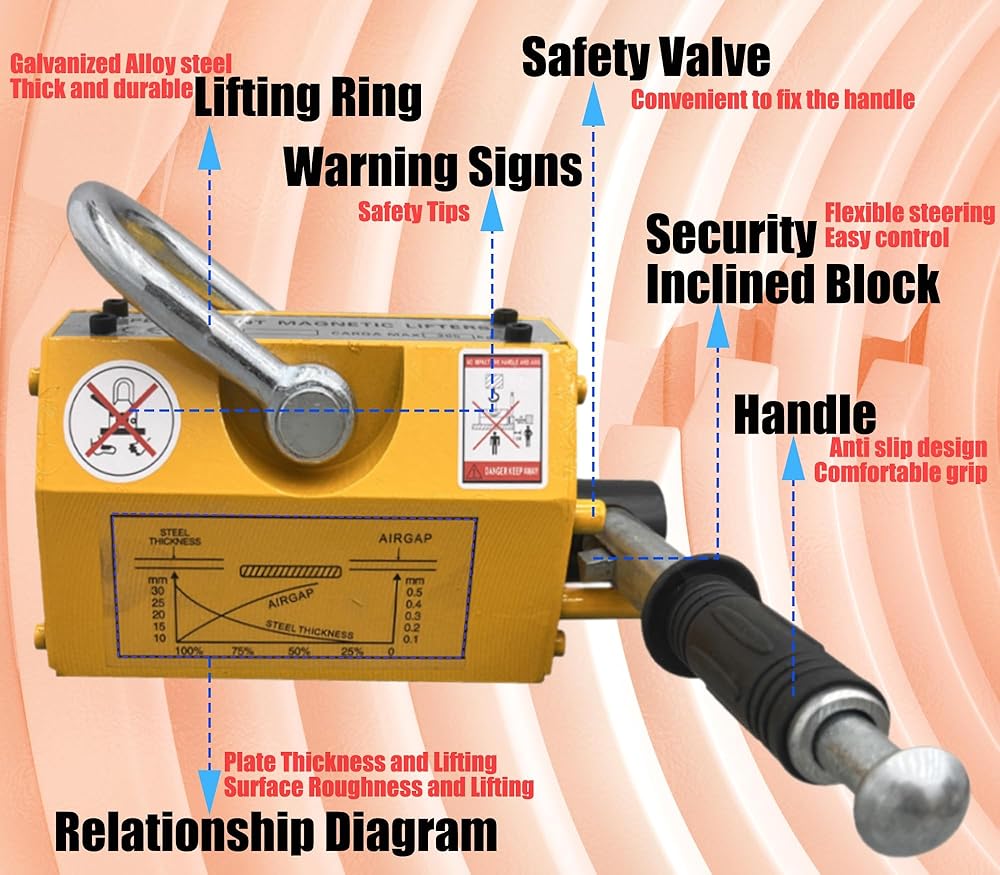

Hook Design: The hook of this magnetic lifter is made of high-strength steel and has been galvanized, which not only enhances its durability but also provides a rustproof and easy to clean surface; Equipped with a release mechanism that allows users to easily turn it on and off magnets for ease of operation

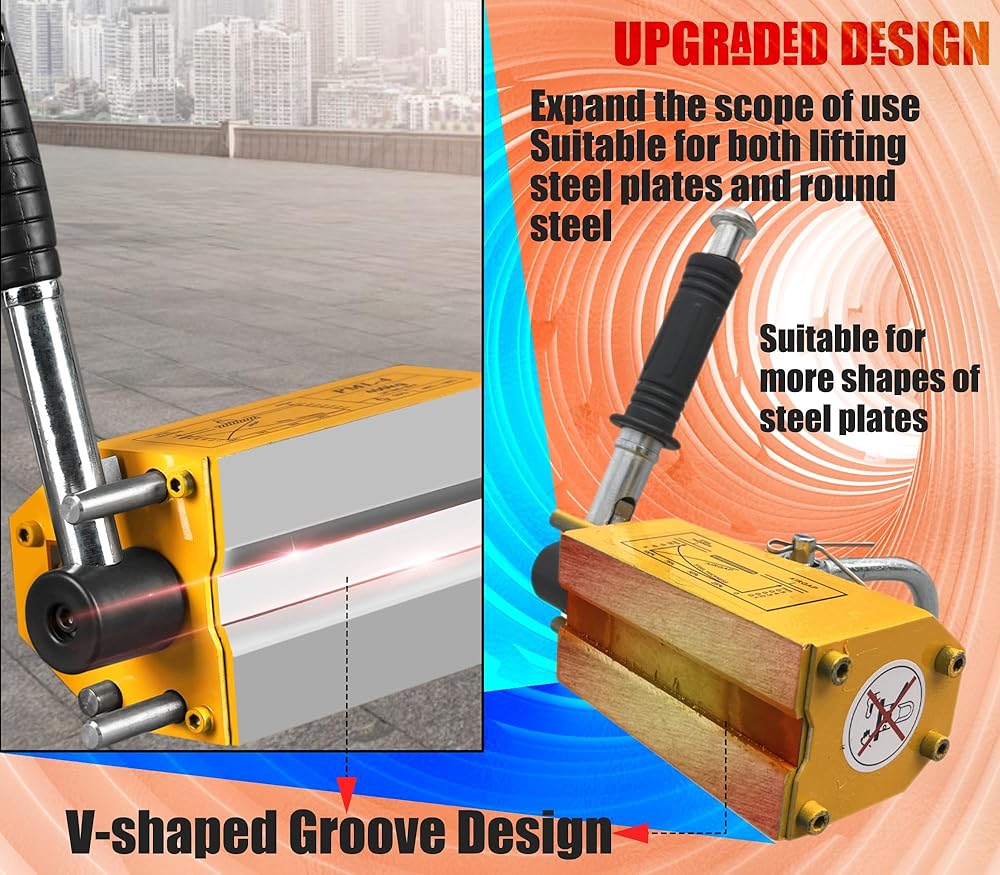

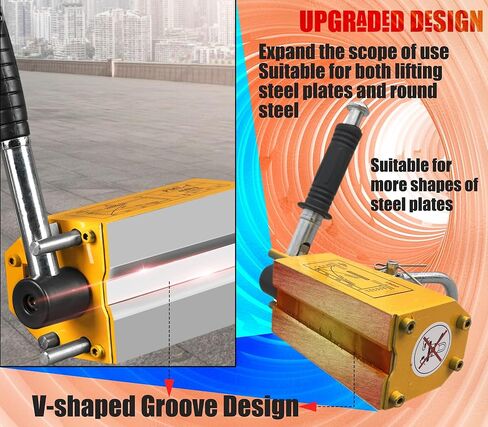

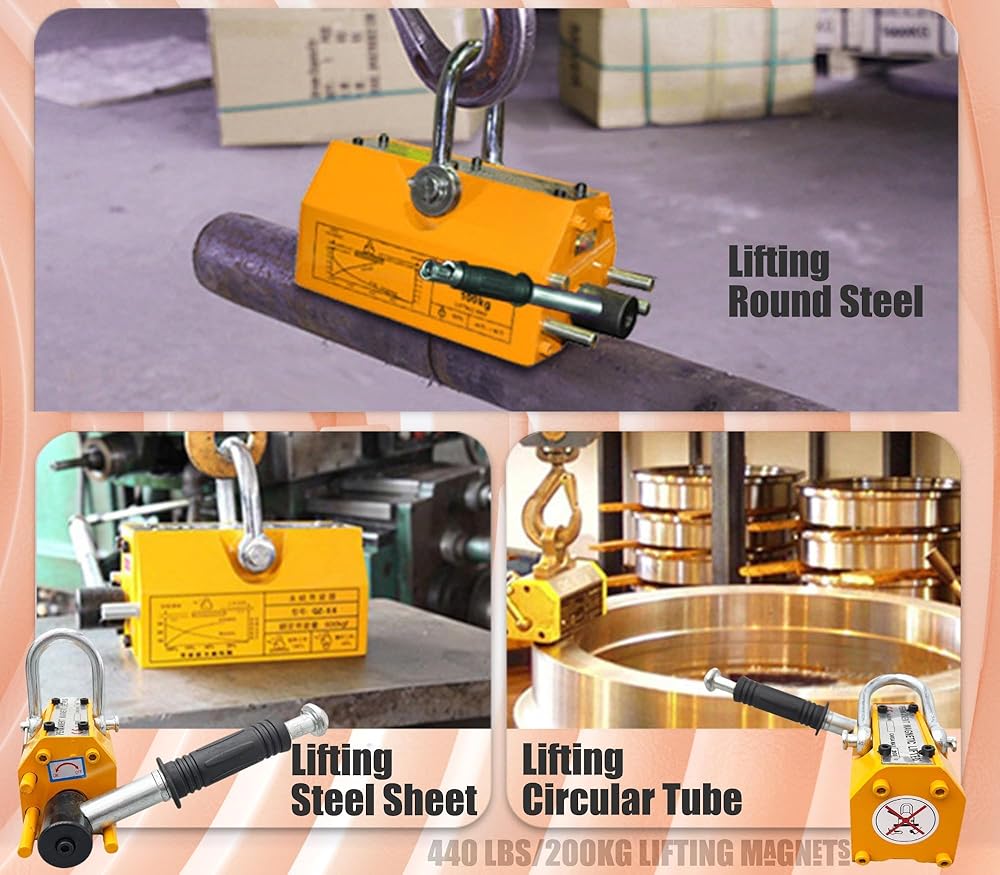

V-shaped Groove Design: The V-shaped groove design at the bottom allows it to be compatible with flat plates and round steel, expanding its application range; When lifting steel plates, the adsorption force can reach 100%. When lifting round steel, the adsorption force is only 30% to 50% of the load; Lifting steel plate thickness>0.2 "(5MM), (the thicker the steel plate, the stronger the suction force)

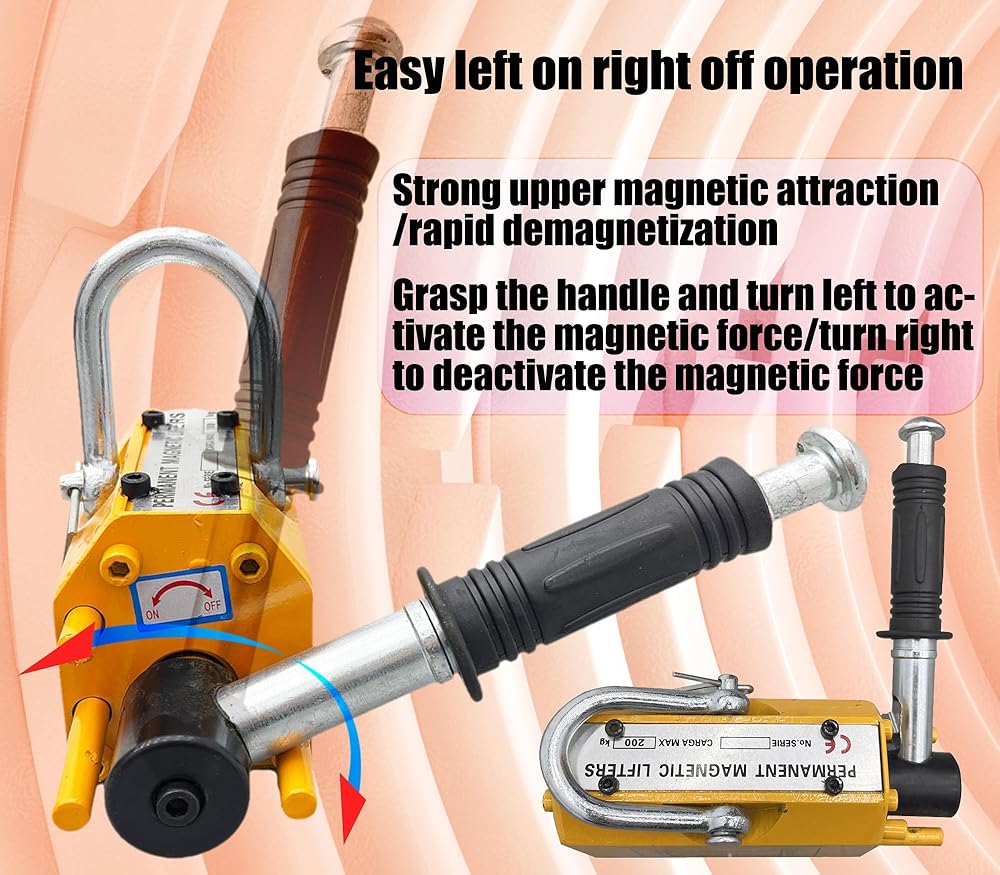

Single Operator / Automated Use: The magnetic lifter can be easily used by a single operator and requires almost no training. Simply turn it to the left to turn on the suction, and turn it to the right to turn off the suction; Magnetic lifting systems can also be used in automation systems, such as picking and assembly lines
Manufacturing & Assembly: Magnetic system lifters provide significant advantages for manufacturing, assembly, and storage, and are suitable for industries such as power, engineering, transportation, and mining. They are ideal tools for hoisting metal sheets, blocks, bars, and other magnetic materials

وصف

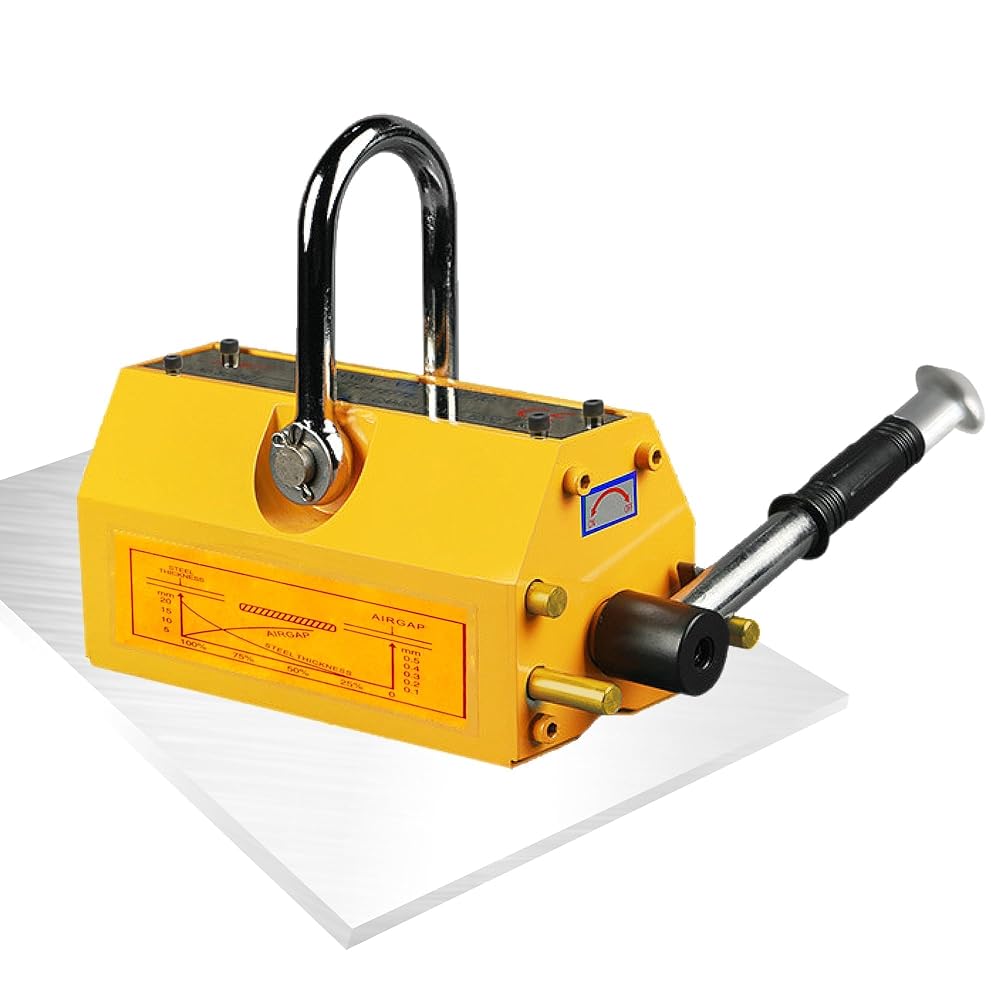

Feature-440lbs Magnetic Lifter
Easy to use: Handle with on/off control to arrach or remove material
V-shaped groove of bottom lift face-lift round and flat material
Low residual magnetism, easy for quick handling
A large U-shaped ring unloading hook makes it easy to connect to the sling

Take Note:
1. Clean the surface of the steel plate before use.
2. When hoisting the steel plate, never stand under the steel plate.
3. Do not control the handle when no steel plate is under the magnetic elevator.

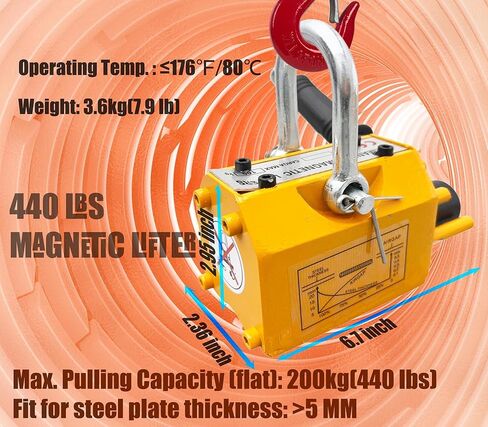

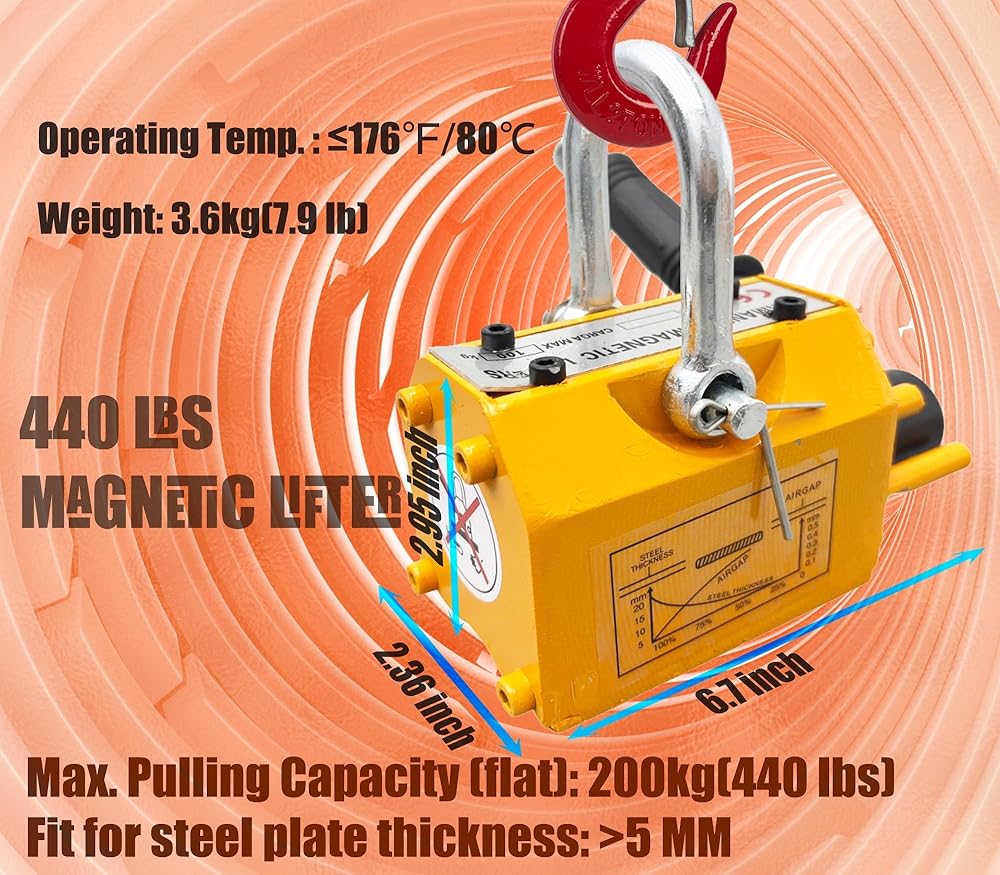

𝑺𝑷𝑬𝑪𝑰𝑭𝑰𝑪𝑨𝑻𝑰𝑶𝑵𝑺:
Model: PML-2
Item net weight: 3.6kg(7.9 lb)
Operating temperature: ≤80℃
Maximum weight capacity (flat surface): 200kg(440 lb)
Steel plate thickness: >5MM (the thicker the steel plate, the stronger the suction)

𝑷𝒂𝒄𝒌𝒂𝒈𝒆 𝑪𝒐𝒏𝒕𝒆𝒏𝒕:
1×Magnetic lifter 440LB(200KG)
