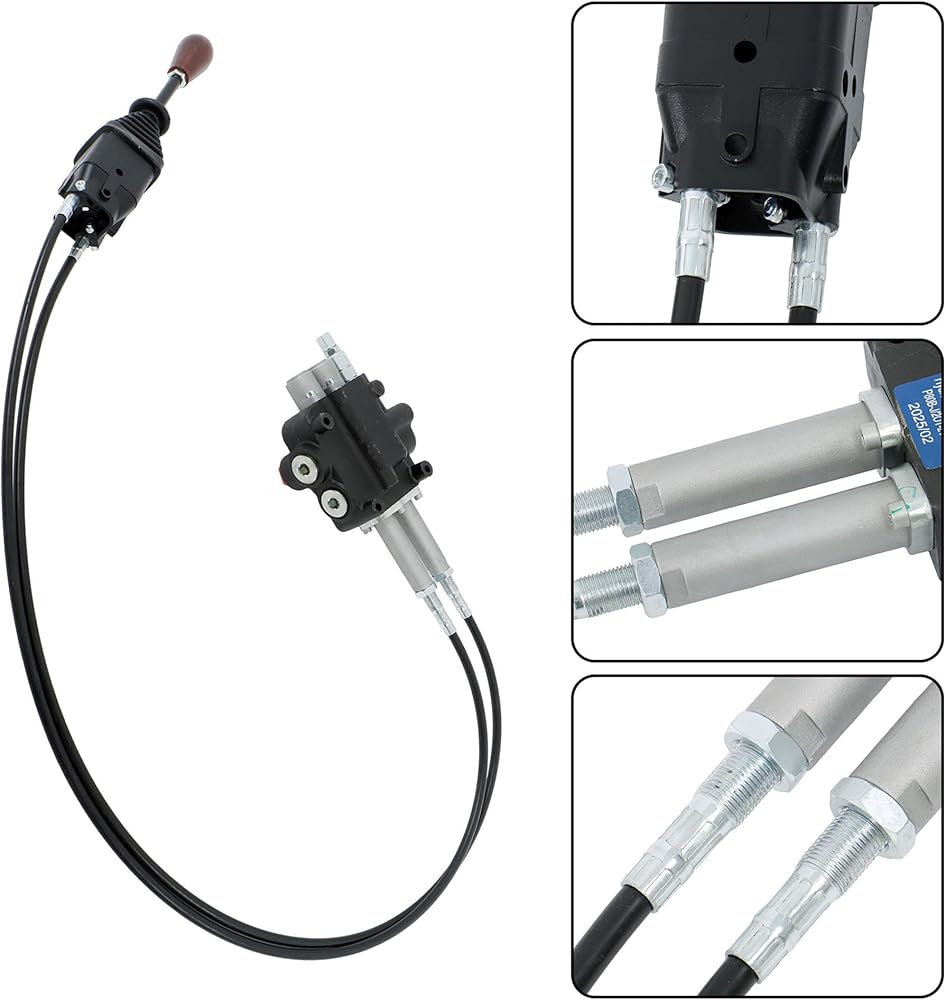

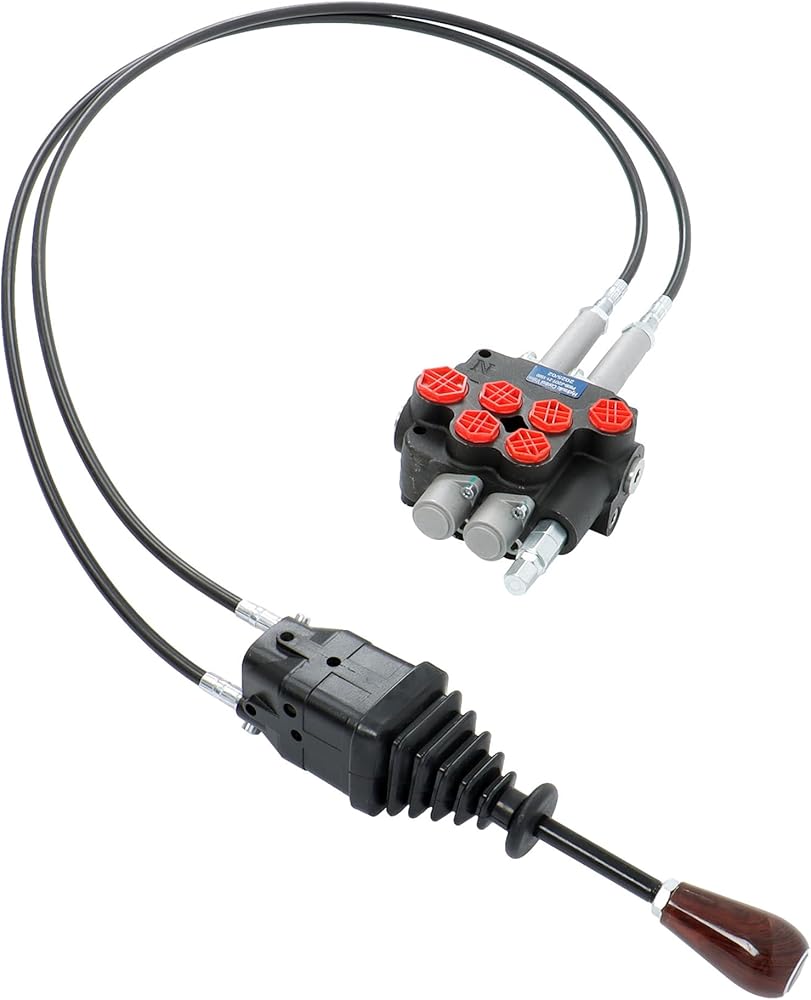

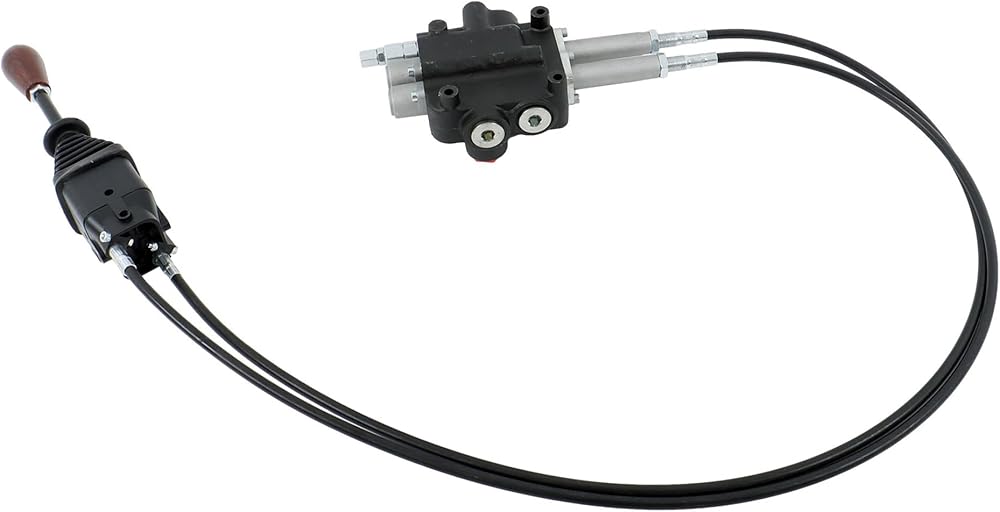

2 Spool P80 Hydraulic Control Valve Remote Control Double Acting 1.5m Cable Joystick for Construction and Agricultural Equipment

Specification:
GPM(Gallon per minute)
PSI(Pounds per square inch)
Model: P80, 2 Spool
Nominal flow: 21gpm (80l/min)
A , B = 4300psi (300 bar)
P, A, B ports: G 1/2"
T, N port: G 3/4"
Max. working pressure: 25MPa (3625PSI)
Max operating pressure P = 3600psi (250 bar); T = 150psi (10 bar)

Features:

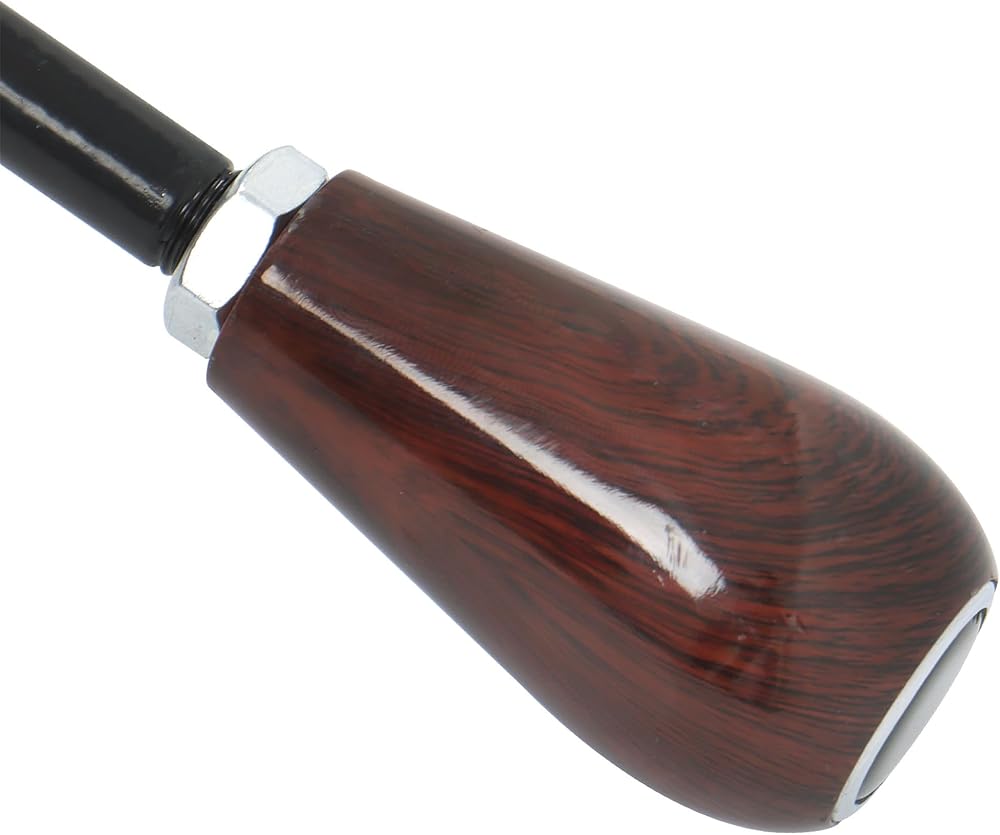

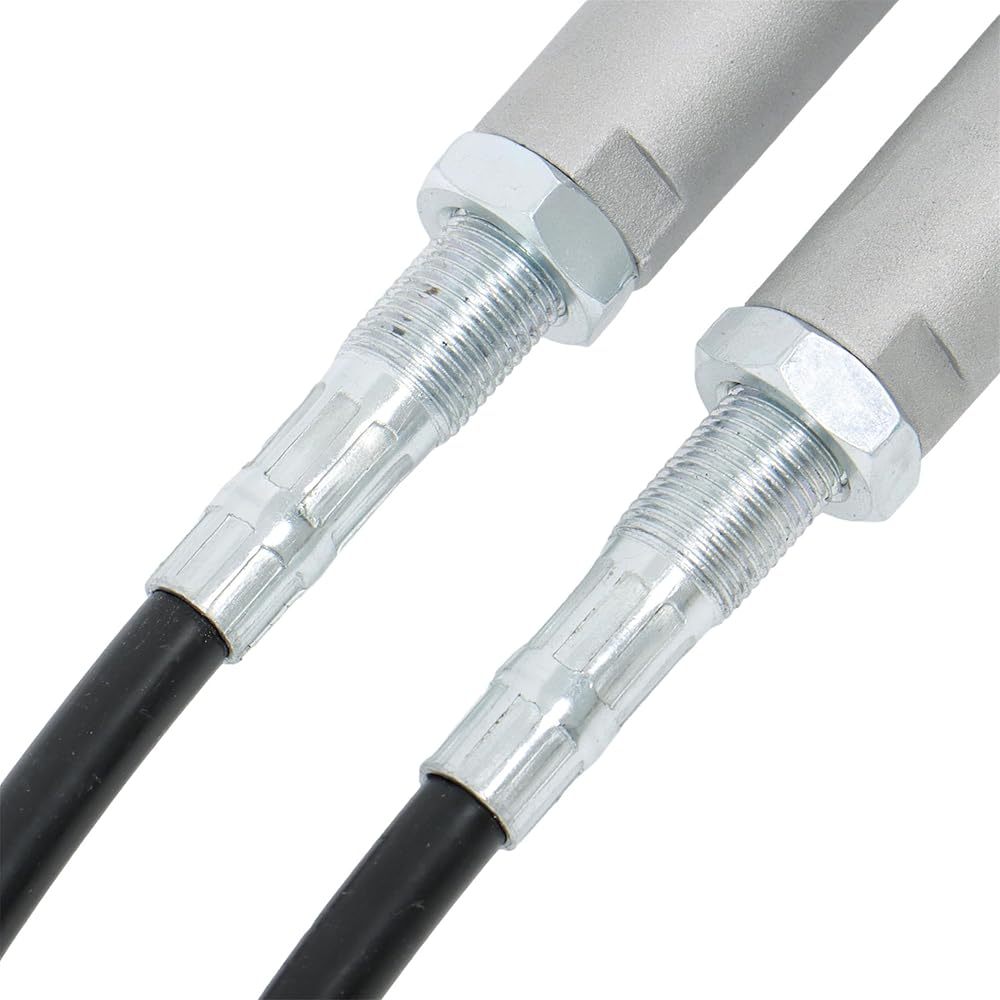

1. Remote control operation: Equipped with 1.5 meters extension cable and joystick, the operation radius is larger, and the valve can be security controlled from the cockpit or outside the dangerous area.
2. Spring automatic reset: Automatically cut off the oil circuit and reset after the operation is completed, reduce abnormal pressure in the hydraulic system and secure the core components of the equipment.

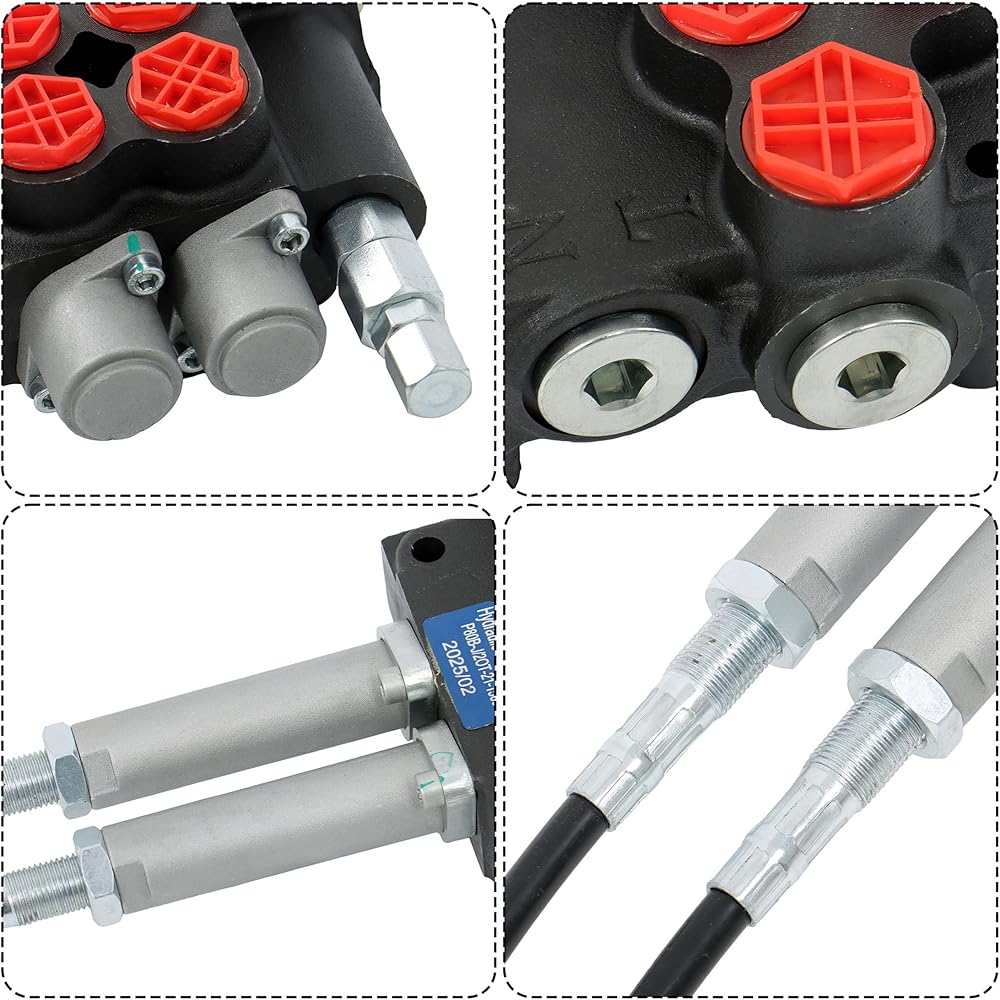

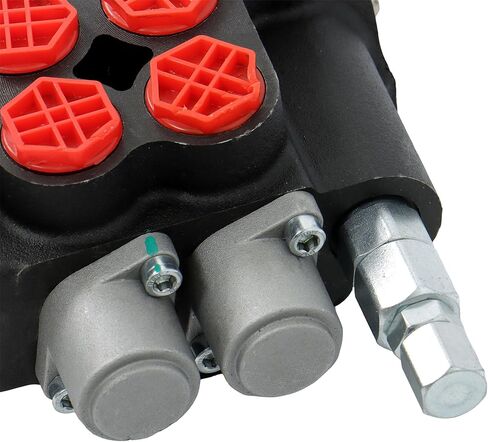

3. Cast iron material: The valve body is made of high-strength cast iron casting, which is not not easy to wear, and can be used for a long time.
