Home / Danfoss / Hose Nozzles

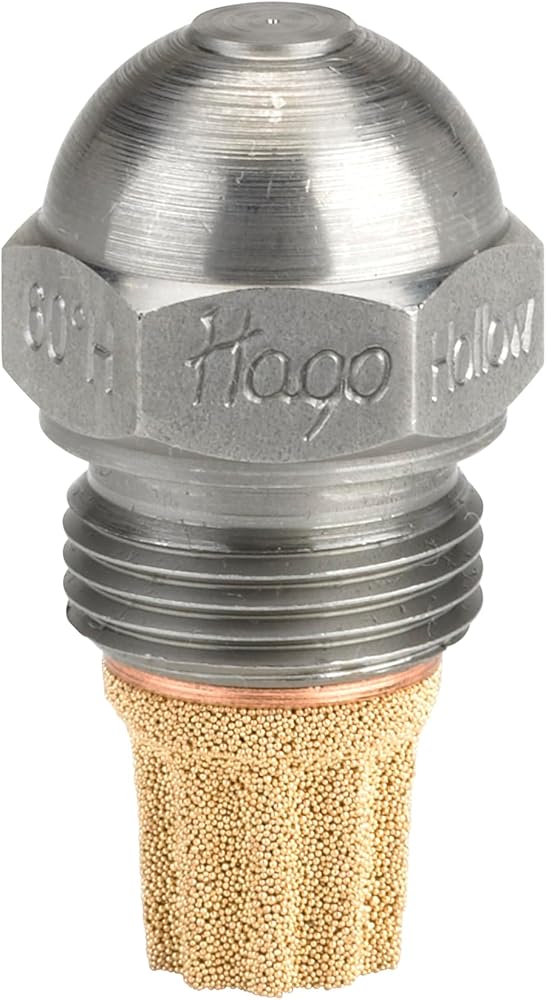

Danfoss Hago 80° Oil Nozzle | Stainless Steel Fuel Spray Tip with 30-40 Micron Sintered Bronze Filter | High-Pressure HVAC Burner Jet for Light & Heavy Fuel (Type H - Hollow, 0.75 GPH) in Saudi Arabia Danfoss Hago 80° Oil Nozzle | Stainless Steel Fuel Spray Tip with 30-40 Micron Sintered Bronze Filter | High-Pressure HVAC Burner Jet for Light & Heavy Fuel (Type H - Hollow, 0.75 GPH) in Saudi Arabia

Type H - Hollow 0.65 GPH

SAR 80
Brand
Danfoss
Category
Hose Nozzles
ColorType H - Hollow
Size0.65 GPH
– 1 +

Special Features

  • Hollow Spray Pattern -- higher volume concentration in the periphery of the spray. Well suited for low firing rates and burners with hollow air pattern.
  • Precision Fuel Delivery – The 0.75 GPH flow rate and 80° hollow cone spray pattern ensure efficient and consistent fuel atomization for optimal combustion in HVAC burners.
  • Durable & High-Quality Materials – Made with AISI 416 stainless steel for longevity and resistance to corrosion, along with a 30-40 micron P-sintered bronze filter to prevent clogging and ensure smooth operation.
  • Versatile Compatibility – Suitable for both light and heavy fuel oils, making it ideal for residential and commercial high-pressure HVAC burner systems.
  • Consult your burner's manufacturer or refer to Danfoss technical documentation to ensure the nozzle meets your system's requirements.

Description

Danfoss Hago oil nozzles are designed for domestic and commercial high pressure oil burners operating with light or heavy fuel.

An optimal combustion process is only achieved by a perfect match between nozzle capacity and spray pattern, air supply and air distribution and the design of combustion chamber.

Danfoss Hago offers a very broad range of nozzles with different capacity and spray patterns – which means that it is possible to cover all demands in the market.

Compatibilty
- Delavan 0.75gph - 80 Degree Type A Fuel Nozzle
(Hago 00075-80A1; 095243115079) - Steinen 0.75gph - 80 Degree Type H Fuel Nozzle
- Monarch 0.75gph - 80 Degree type NS Fuel Nozzle

Stamped on the flats
Reference capacity (USgal/h): 0.75
Spray angle and pattern (B=Solid, S-S=Semi Solid and H=Hollow): 80°H
HOLLOW for “Hollow” spray pattern.

Recommended and maximum tightening torque
Recommended 200-310 in-lbs (25-30 Nm) and max. 310 in-lbs (35 Nm) for steel and nickel plated adapters.

Recommended 130-180 in-lbs (15-20 Nm) and max. 220 in-lbs (25 Nm) for brass adapters.
