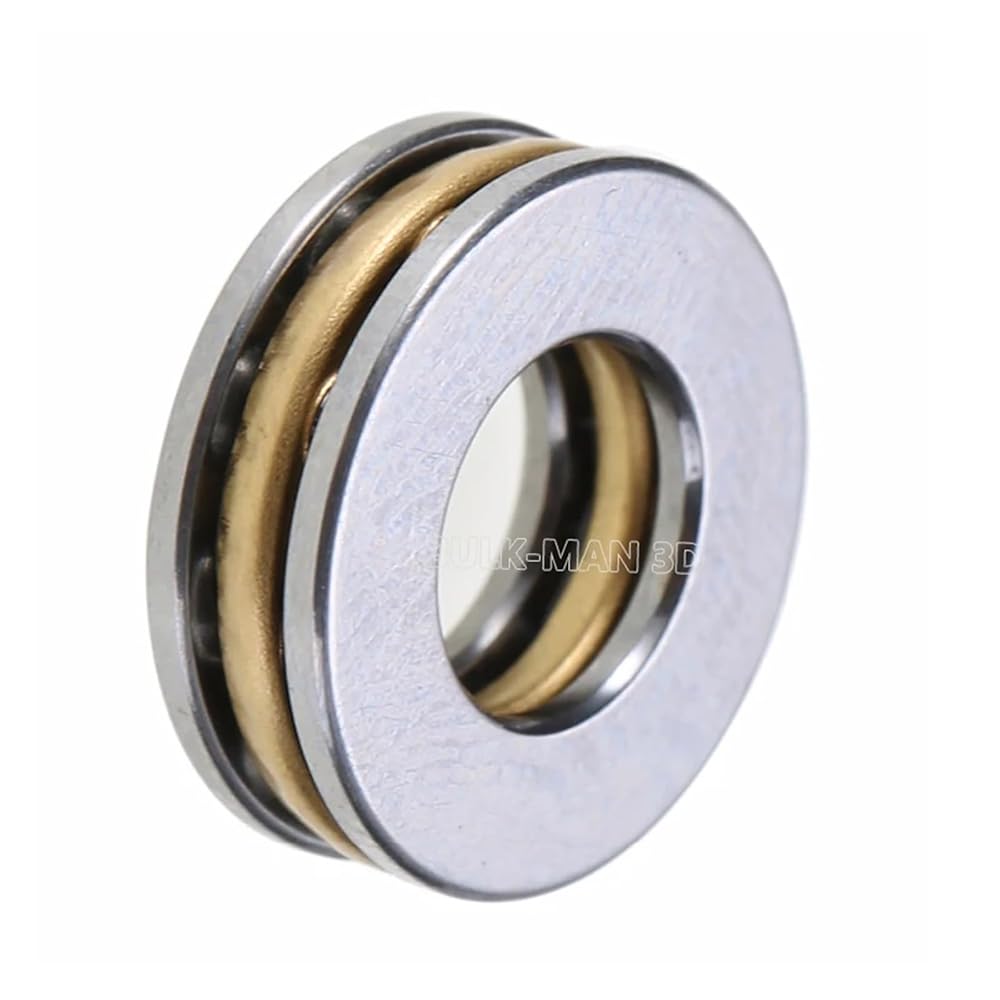

Mini 3-in-1 Plane Axial Ball Bearing Thrust Bearing
These Thrust Bearings include two washers and a cage, the washers use high hardness chrome steel which can bear a large load.
These are great bearings and can be used in our Actuator Kits andC-BeamKits.
The universal Ball Bearings is great for you to replace the damaged Ball Bearings in your devices to improve them efficiency and save energy.
And they are widely used in metallurgy, papermaking, mining, petroleum, coal, cement, port machinery, construction machinery, wind power heavy machinery and other industries.
Feature:
Low friction resistance, low power consumption and high mechanical efficiency.
The size is standardized, easy to install and disassemble, and easy to maintain.
High precision, high speed, small wear and long service life.
Description:
Model: F2.5-6M; F3-8M; F4-9M; F4-10M; F5-10M; F5-11M; F5-12M; F8-16M; F8-19M; F8-22M; F9-20M; F10-18M
Type: Thrust Bearing
Material: Bearing Steel Gcr15
Cage Material: Brass
Dynamic Load Rating (Cr): 2500 (Newtons)
Static Load Rating (Cor): 3000 (Newtons)
Max Speed (Grease): 4000 RPM
Max Speed (Oil): 8000 RPM
Color: Silver Tone,Gold Tone
Size: e.g: F8-16M 8x16x5mm=inner diameter x outer diameter x thickness
Package included:
4pcs x Thrust Bearing
Note:
The measurement allowed error is +/- 1-3mm.
The color may have different as the difference display, pls understand.
High-concerned chemical : None
is_customized : Yes
Material : Bearing Steel
Item Name : Thrust Bearing
Material : Bearing Steel
Cage Material : Brass Outside
