220V Rechargeable Digital Roughness Tester, Precision Surface Profile Gauge 0.001μm & Ra 0.005-16μm, for Industrial Measurement & Quality Control

SAR 5,870
– 1 +

Special Features

  • MULTIFUNCTIONAL MEASUREMENT: The Surface Roughness Gauge is capable of measuring a wide range of surface roughness parameters including RA, RZ, RY, RO, RT, RP, RV, RMAX, R3Z, RSK, RS, RSM, and RMR.

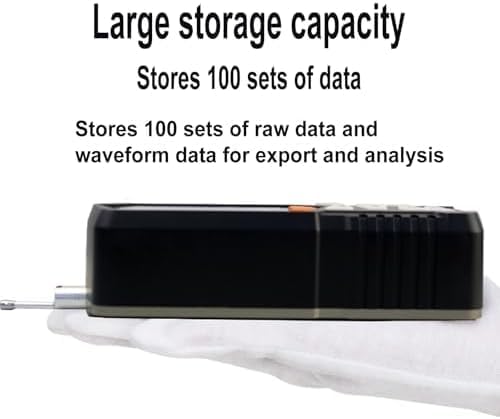

  • EXTENSIVE DATA STORAGE: This profiler can store up to 100 sets of measurement data along with their corresponding waveforms, making it highly effective for record-keeping and data analysis. It also features a USB interface for easy data transfer and external connectivity.
  • SURFACE ROUGHNESS ANALYZER: Designed to measure the surface roughness of machined components, this device computes and displays all relevant parameters and graphics based on selected settings.

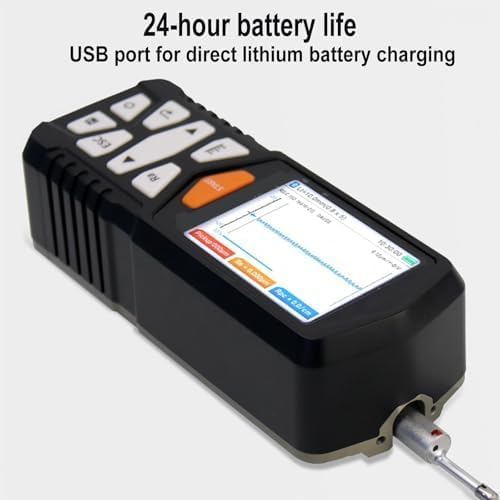

  • RECHARGEABLE BATTERY: Equipped with a built-in lithium-ion rechargeable battery and charging control circuit, it offers a large capacity and eliminates memory effect, providing over 20 hours of continuous operate.note：This product does not support 110V voltage. Please do not place an order if the voltage is not compatible, otherwise you will need to provide your own transformer.

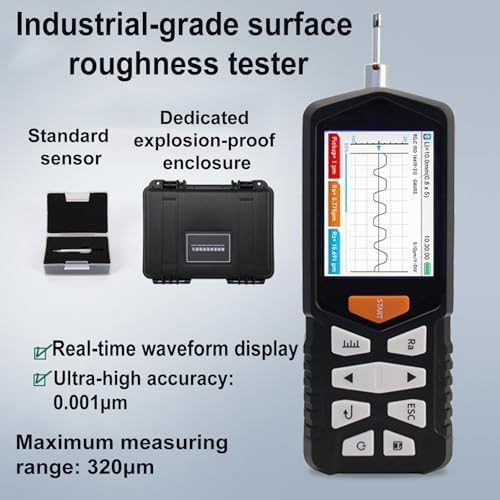

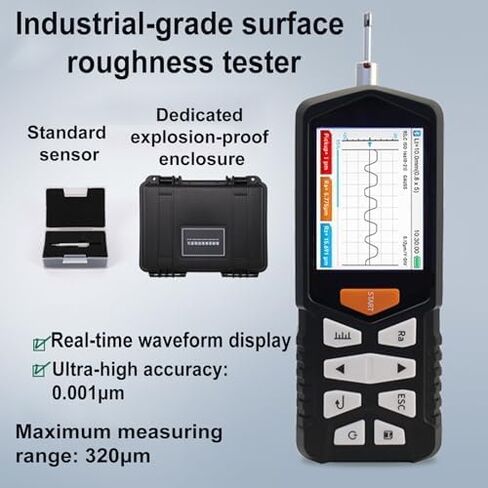

  • EASY-TO-USE DESIGN: The large LCD screen shows the profile curve and all parameter values in real-time. Its intuitive menu and high-definition color display make it the tool for engineers, quality inspectors, and maintenance professionals.

Description

Technical Parameters (for reference only):

Parameters: RA, RZ, RY, RO, RT, RP, RV, RMAX, R3Z, RSK, RS, RSM, RMR
Measurement Range:
RA: 0.005-16μm
RZ, RY, RT, RP: 0.005-16μm
RV, RMAX, R3Z: 0.02-160μm
Error Correction Range: One-button measurement correction
Resolution: 0.001μm
Filters: RC, PC-RC, GAUSS, D-P
Sampling Length Options: 0.25mm, 0.8mm, 2.5mm
Evaluation Length: 5L (1-5)L (selectable), where L represents the sampling length
Drive Stroke: 1.25-17.5mm
Indication Error: Less than or equal to±10%
Indication Variation: less than 6%
Compatible Workpieces: Suitable for large flat surfaces, thin shafts (requires fixture), flat surfaces, curved surfaces, and other special workpieces
Display: LCD
Power Supply: Rechargeable lithium battery

Standard Accessories Included:
Main Unit: 1
Test Block Bracket: 1
Standard Test Block: 1
Standard Sensor: 1
Height Adjustment Bracket: 1
Probe Protective Cover: 1

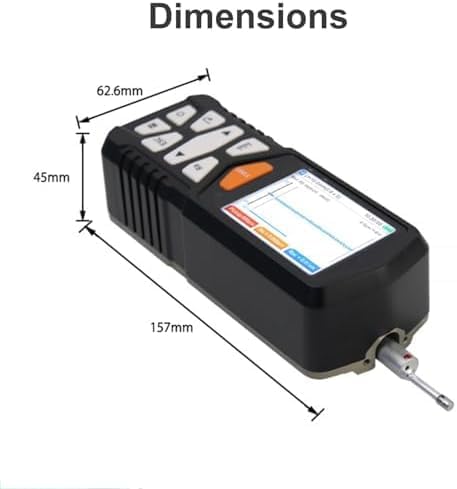

Dimensions: 157x62.6x45 mm
Weight: 456.8g
note：This product does not support 110V voltage. Please do not place an order if the voltage is not compatible, otherwise you will need to provide your own transformer.
