Note:
1. Support SCPI and MODBUS RTU protocols

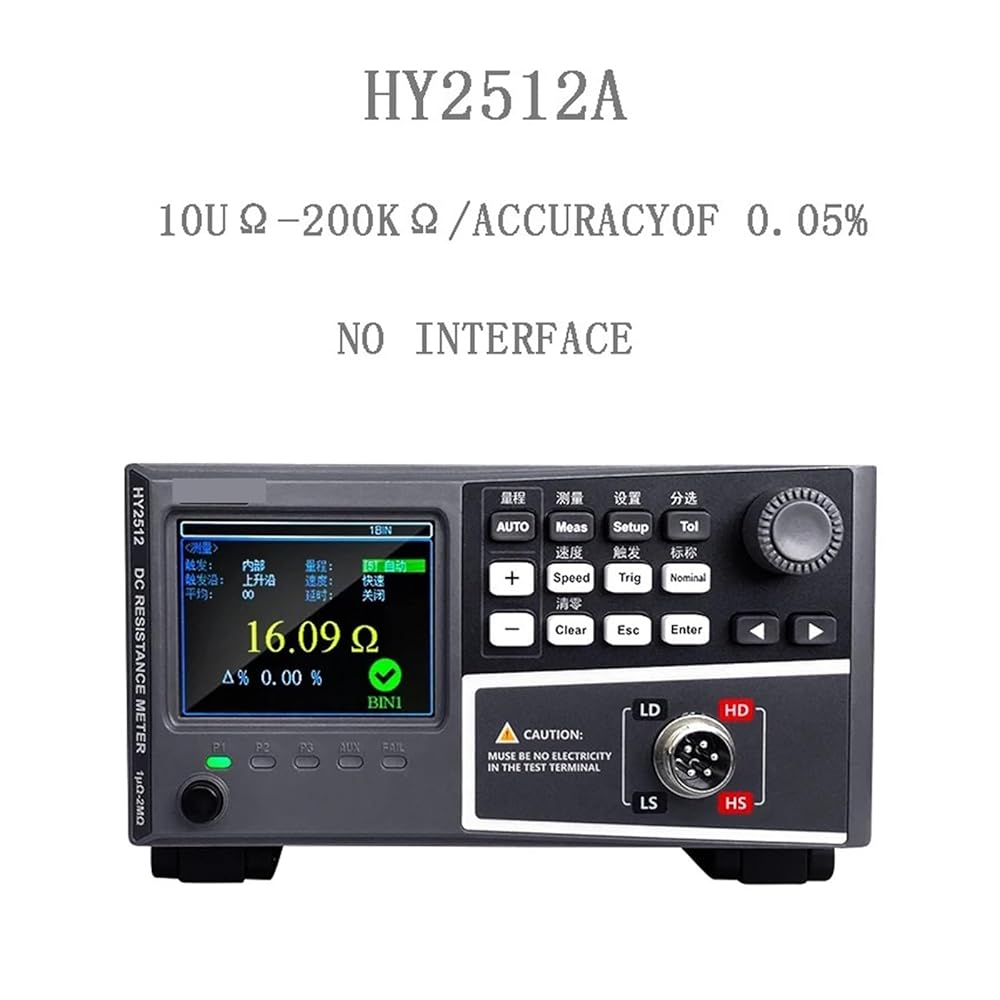

2. HY2512A without interface
Standard configuration RS232 HANDLER
Optional RS485

Product Features
Fast speed: 40ms/time, medium speed: 70ms/time, slow speed: 110ms/time
Standard RS-232C and HANDLER communication interfaces (HY2512A+and HY2512)
Supports SCPI and MODBUS RTU protocols
Suitable for standard 2U cabinets

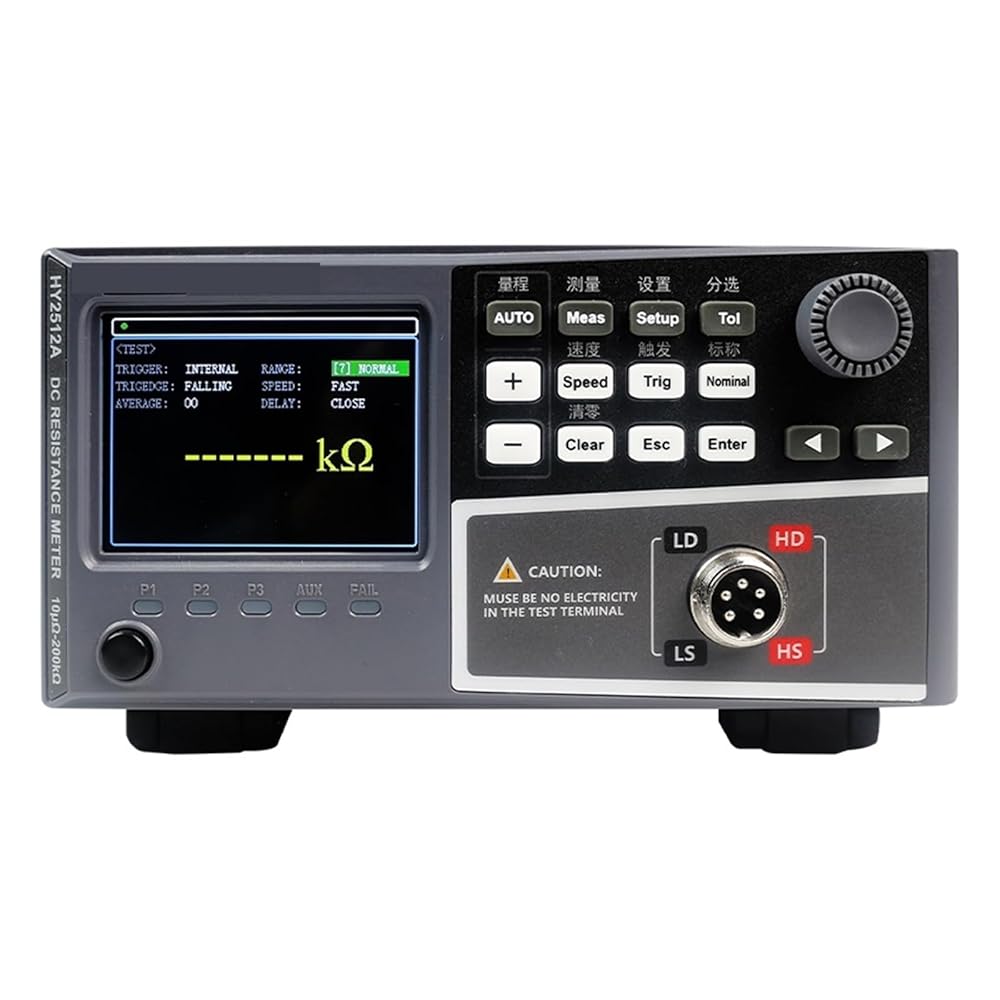

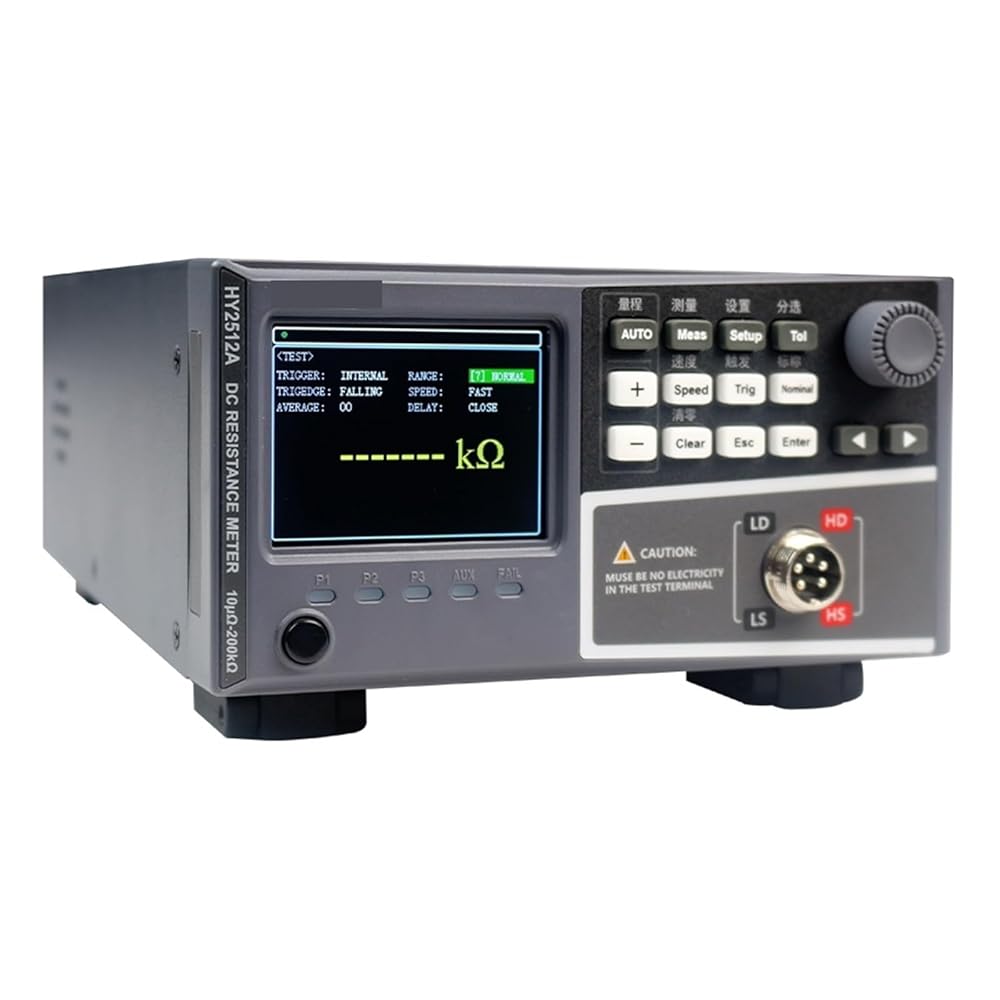

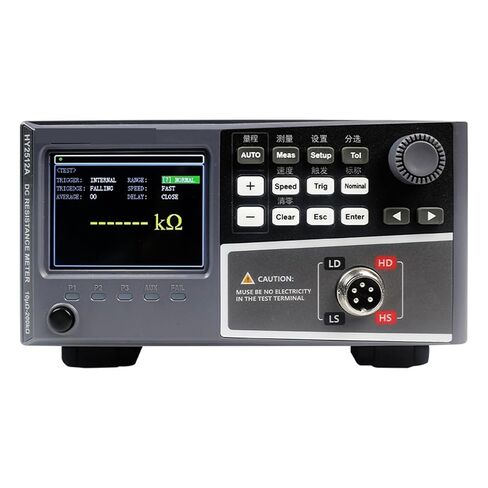

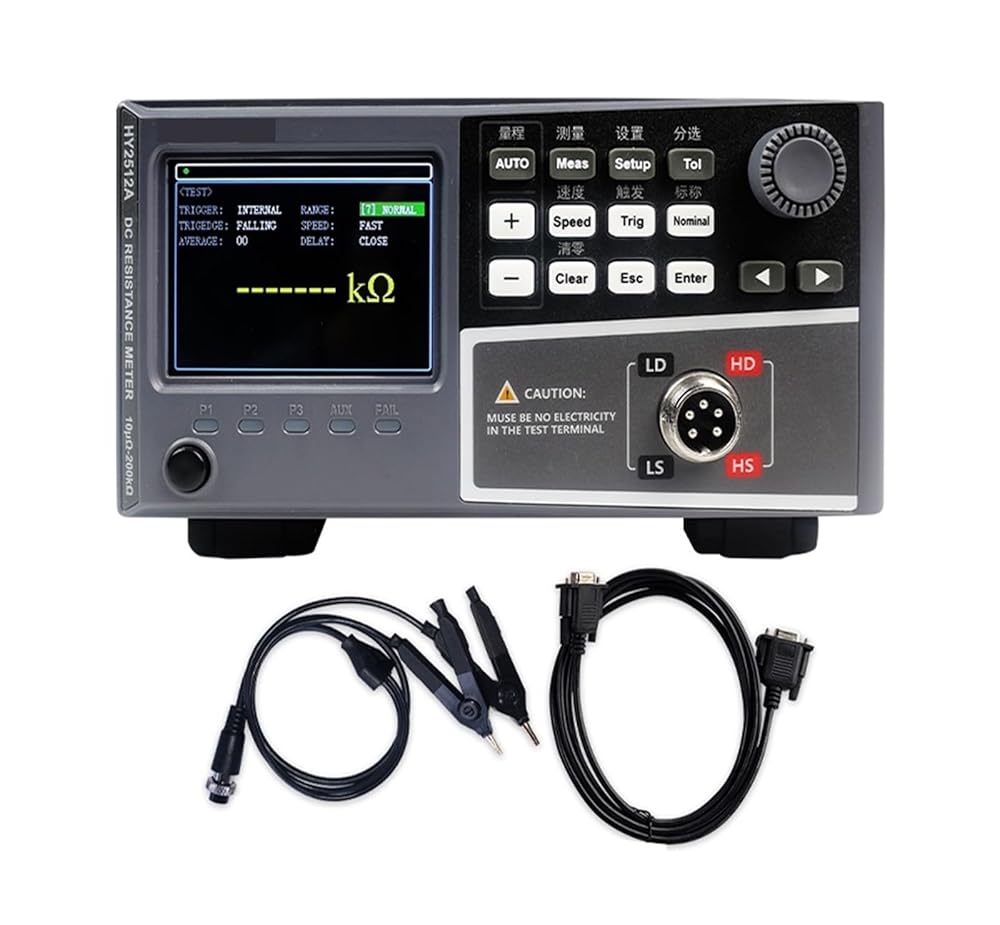

Model: HY2512 series
Range selection method: automatic, manual, nominal
Maximum reading: 21000
Calibration: short circuit full range reset
Sound: off, qualified sound, unqualified sound
Sorting function; There are three outputs that exceed the upper limit/lower limit/comply with, and the sorting results include BIN1 - BIN3, HIGH, and LOW
Comparison method: absolute value tolerance, percentage tolerance, read-only comparison
Trigger method; Internal trigger, external trigger, manual trigger, contact trigger
Test speed; Fast speed: 40ms/time, medium speed: 70ms/time, slow speed: 110ms/time

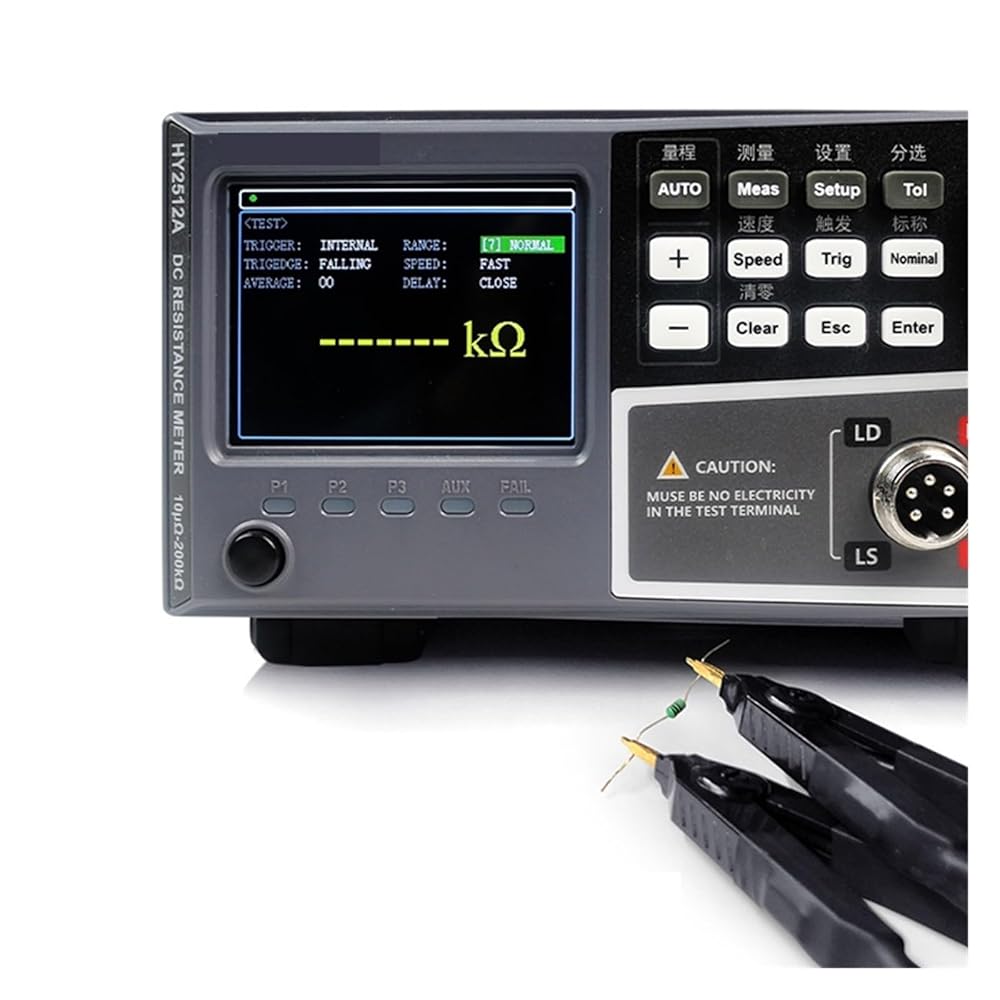

Test end configuration; Four terminal measurement
Interface: RS-232, HANDLER, RS485 (optional) (HY2512A None)
Operating temperature: 10 - 40
Storage temperature: 0 - 50
Working humidity: 10-80% RH
Storage humidity: 10-90% RH
Working altitude: 2000m
