Rotary Shafts

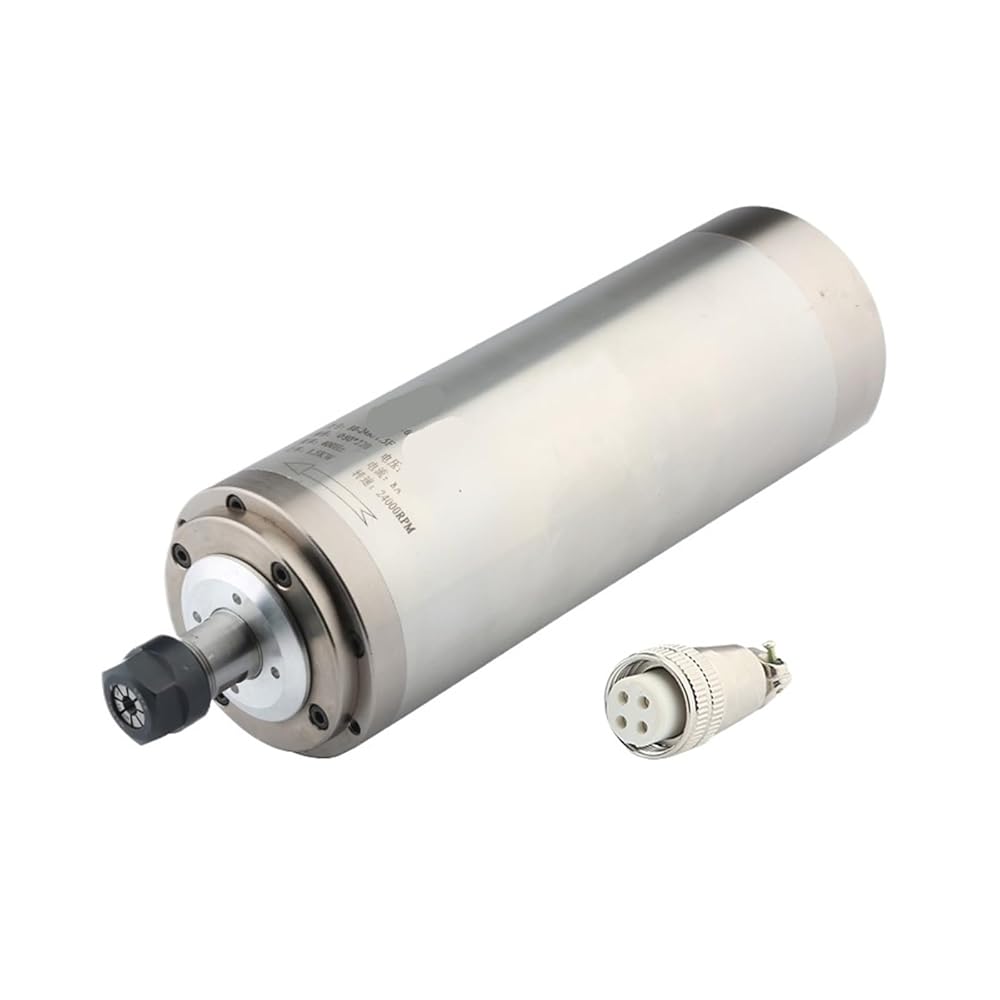

Middle body diameter: 80mm;
Speed regulation method: Through the three-phase output inverter, adjust the inverter frequency to change the spindle speed.
Cooling method: water cooling
Power interface: An optional H20-4-pin waterproof aviation is available. The aviation plugs are labeled "1," "2," "3," and "4." Connect "1," "2," and "3" to the inverter (U, V, and W) respectively, and connect "4" to the inverter ground.
Power: 1.5 kW (1 hp = 725 watts)
Current: 8A
Frequency: 400Hz
Speed: 24000 rpm
Jump: 0.01m
Bearing type: H7002 P4*2; H7000 P4*2 (4 bearings)
4 fully sealed angular contact ball bearings
Chuck: ER11 and ER16
Clamping knife diameter: 1mm, 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 6.35mm, 7mm, 8mm, 9mm, 10mm.
Grease lubrication
