مميزات خاصة

▶Wide Input : This millivolt voltage amplifier module is designed with an AD620 chip that plify microvolts and millivolts. The wide input makes this equipment superior in accuracy and linearity c ared to the LM358 in the market. This makes it an ideal solution for any application that requires accurate amplification of small voltages.

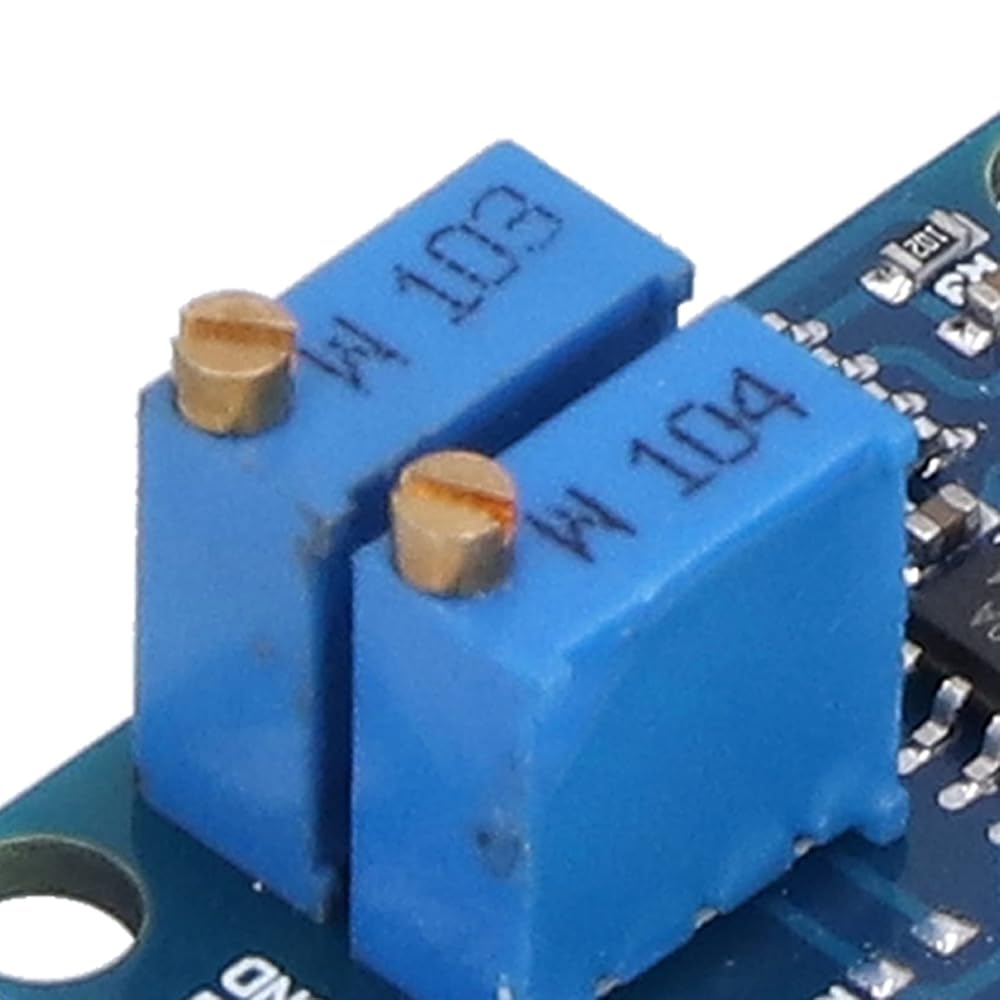

▶Adjustable Magnification : The amplifier module uses a potent potentiometer for amplifying an input . With this, the magnification can up to 1000 times and is easily adjustable through the potentiometer. This feature allows for smooth and precise operations in varying conditions.
▶Null Point Adjustment : To enhance the accuracy of this microvolt voltage amplifier module, a null point adjustment potentiometer is incorporated. This eliminates any null point drift phenomena, offering you unmatched and accuracy to meet your specific needs.
▶Negative Pressure Output : The AD620 transmitter comes with a negative pressure output module. The 7660A negative pressure chip is used for a negative pressure output which can be provided to customers to drive other power loads. This function offers more utility in driving various loads.

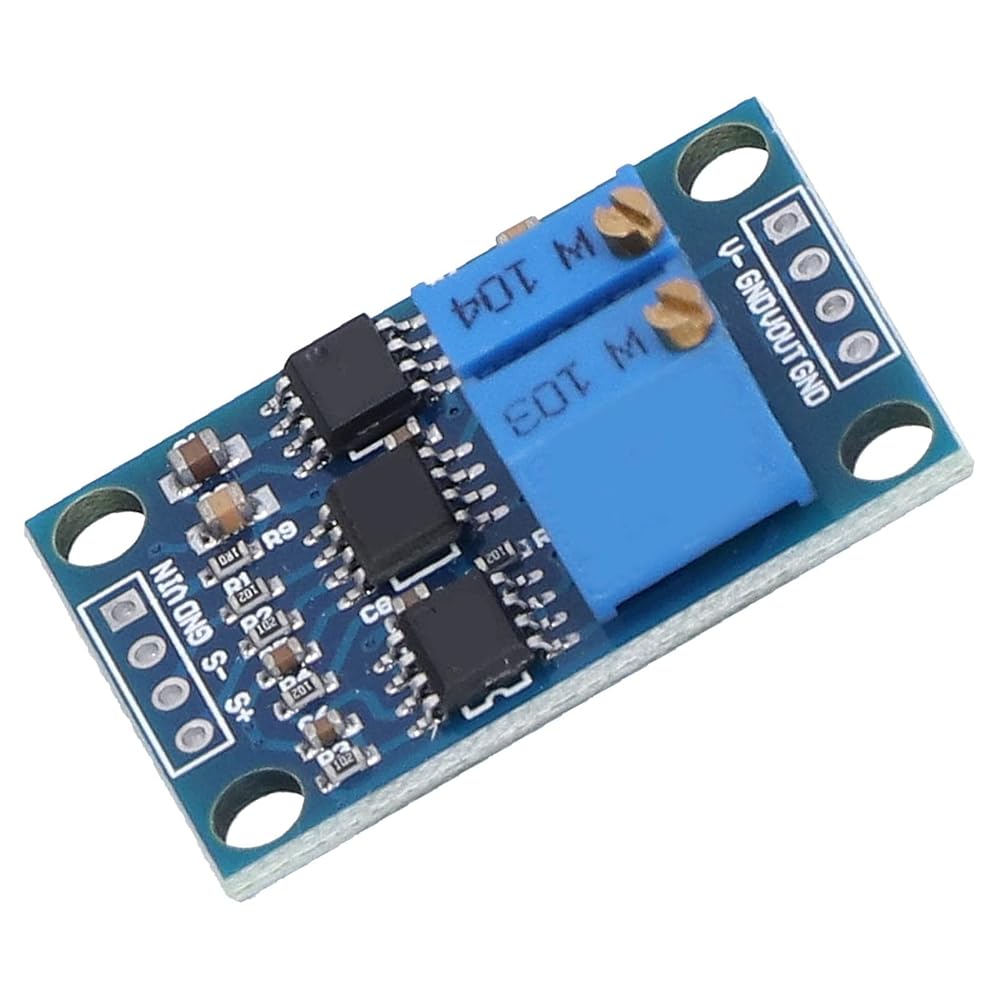

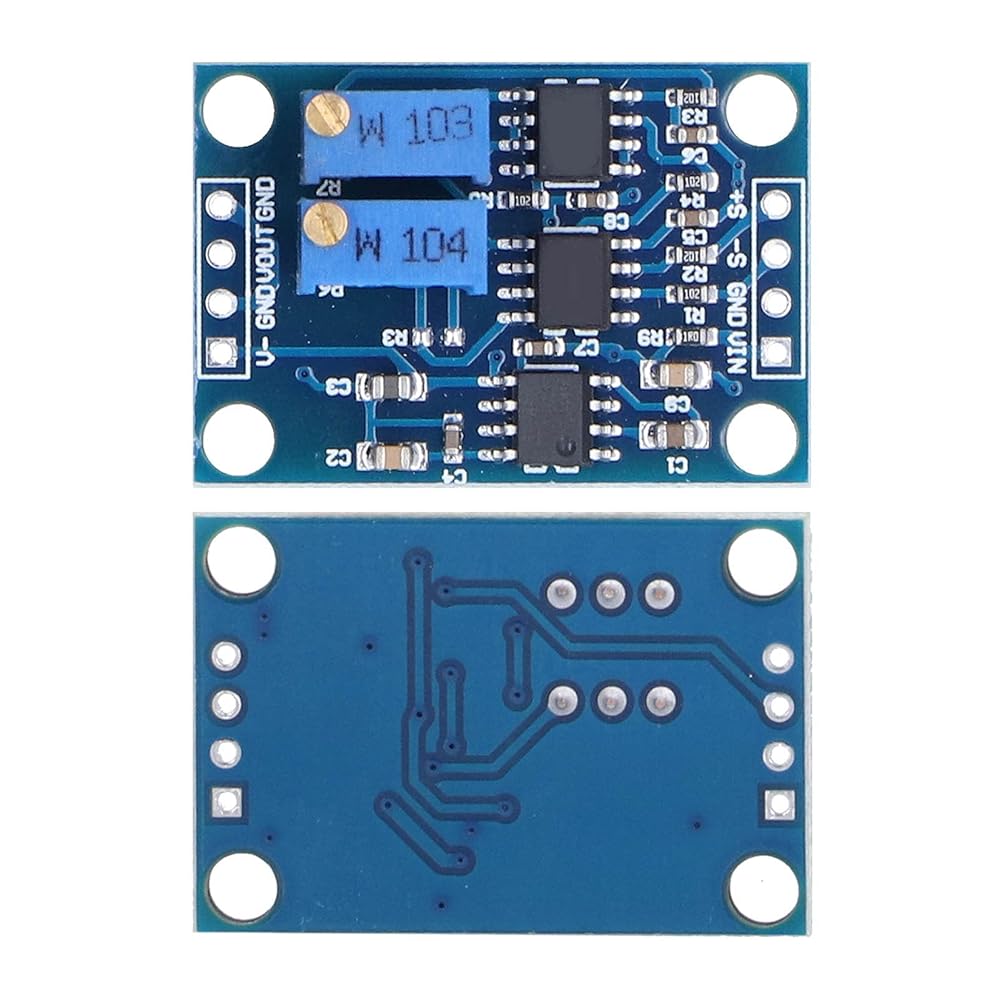

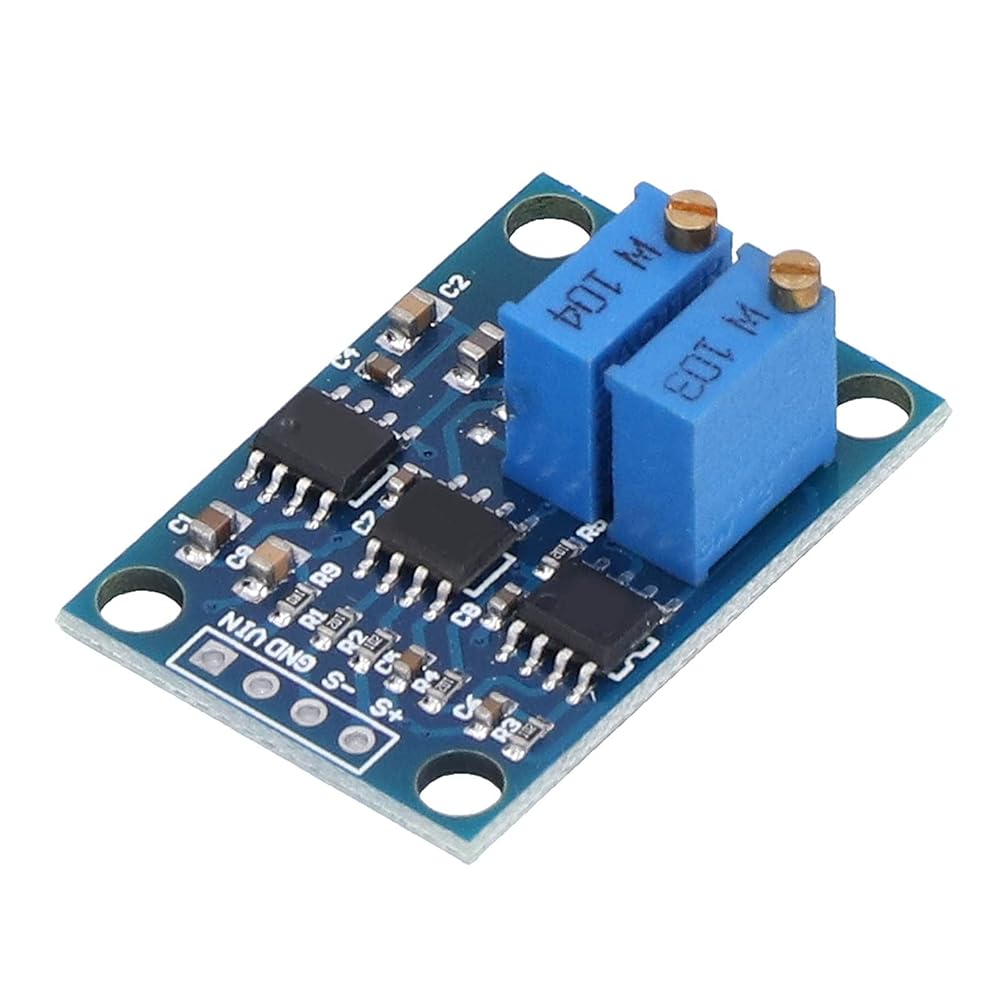

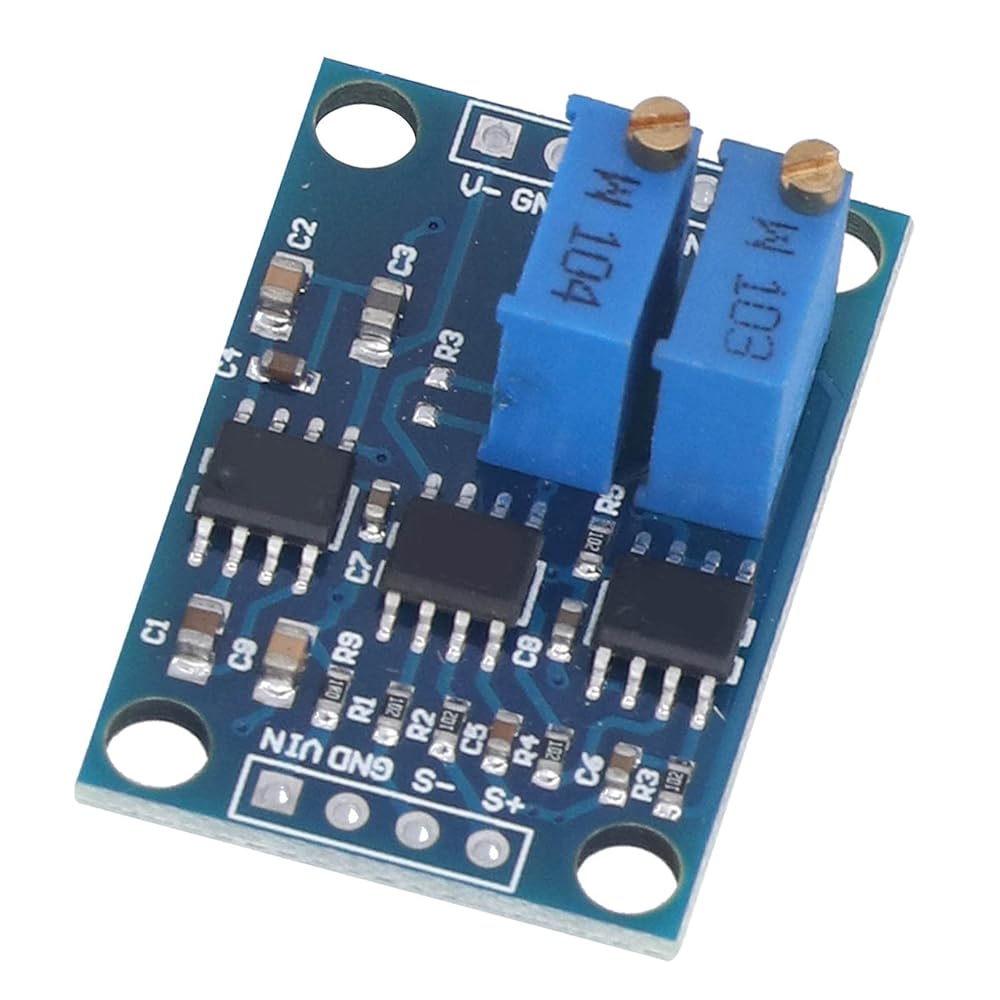

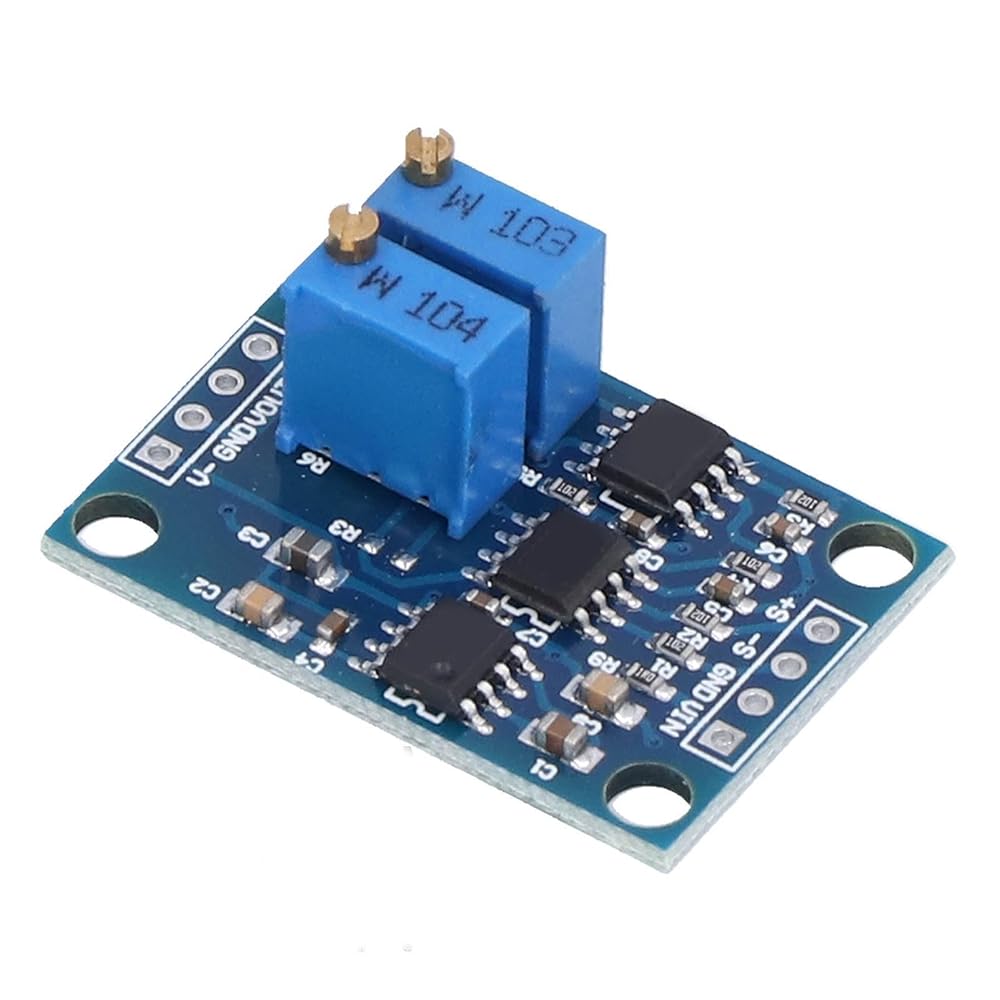

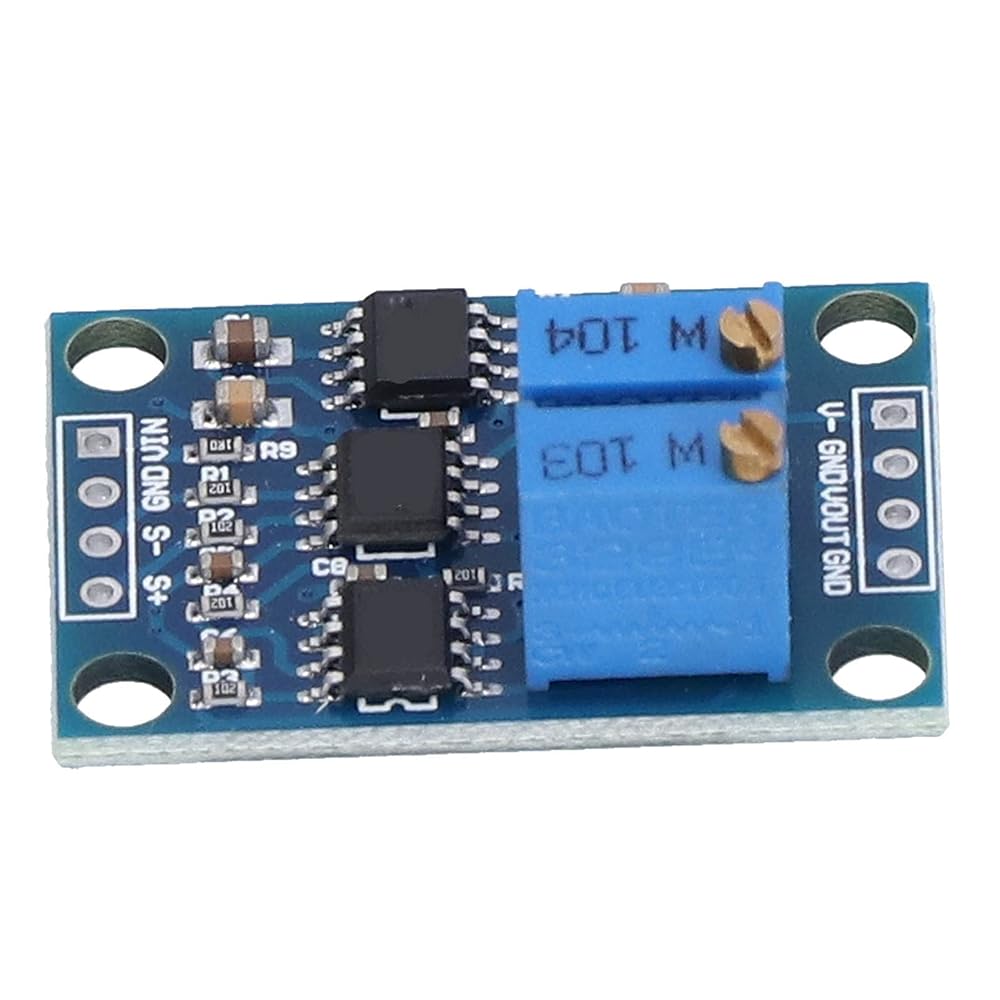

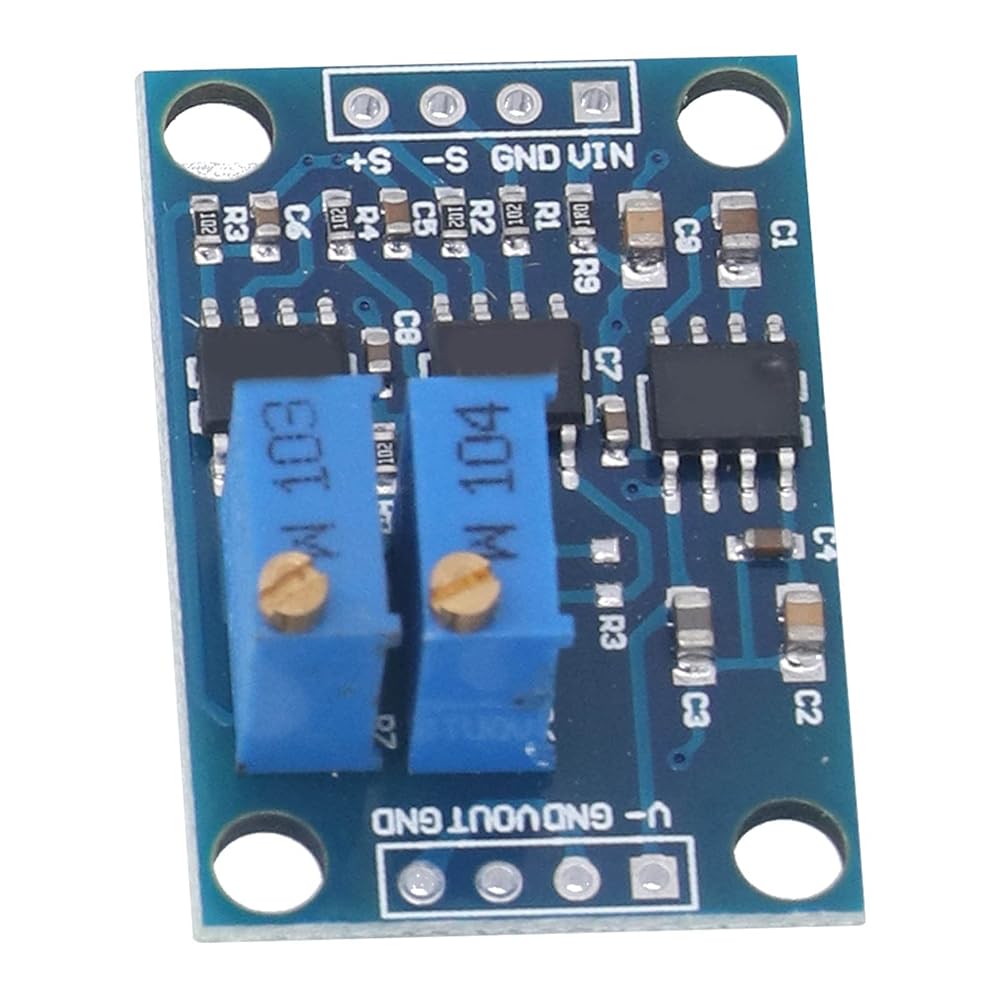

▶C act Design : This small instrumentation amplifier is designed with a c act size and comes with four 3MM positioning holes evenly distributed around it. The 2.54MM standard spacing is ar d on both sides, and the maximum voltage output is ±10V. It's the design that offers ideal c atibility and utility for various applications.

وصف

Specification:
Item Type: Millivolt Voltage Amplifier
Input Voltage: 3-12VDC
Magnification: 1.5-1000 Times Adjustable, the Null Point Can Be Adjusted the Same As the Lower One
Input Voltage: 100UV--300MV
Output : ± (VIN-2V)
Negative Pressure Output: Greater Than -VIN. Due to the Output Internal of the Negative Pressure Chip, the Actual Output is Greater Than -VIN, the Greater the Load Power, the Greater the Negative Pressure Drop
Offset Voltage: 50MV
Input Bias Current: 1.0NA (Maximum)
Common Mode Rejection Ratio: 100DB
Offset Voltage Drift: 0.6MV / C (Maximum)
Stable Time: 2MV / Month Maximum Simultaneous Interpretation Set
Size: Approx. 32 x 22mm / 1.3 x 0.9in
How to Use
Package List
1 x Millivolt Voltage Amplifier
Note
The use of the module requires a certain electronic basic. If there is no basic customer, please purchase with caution. Our store provides technical support.
