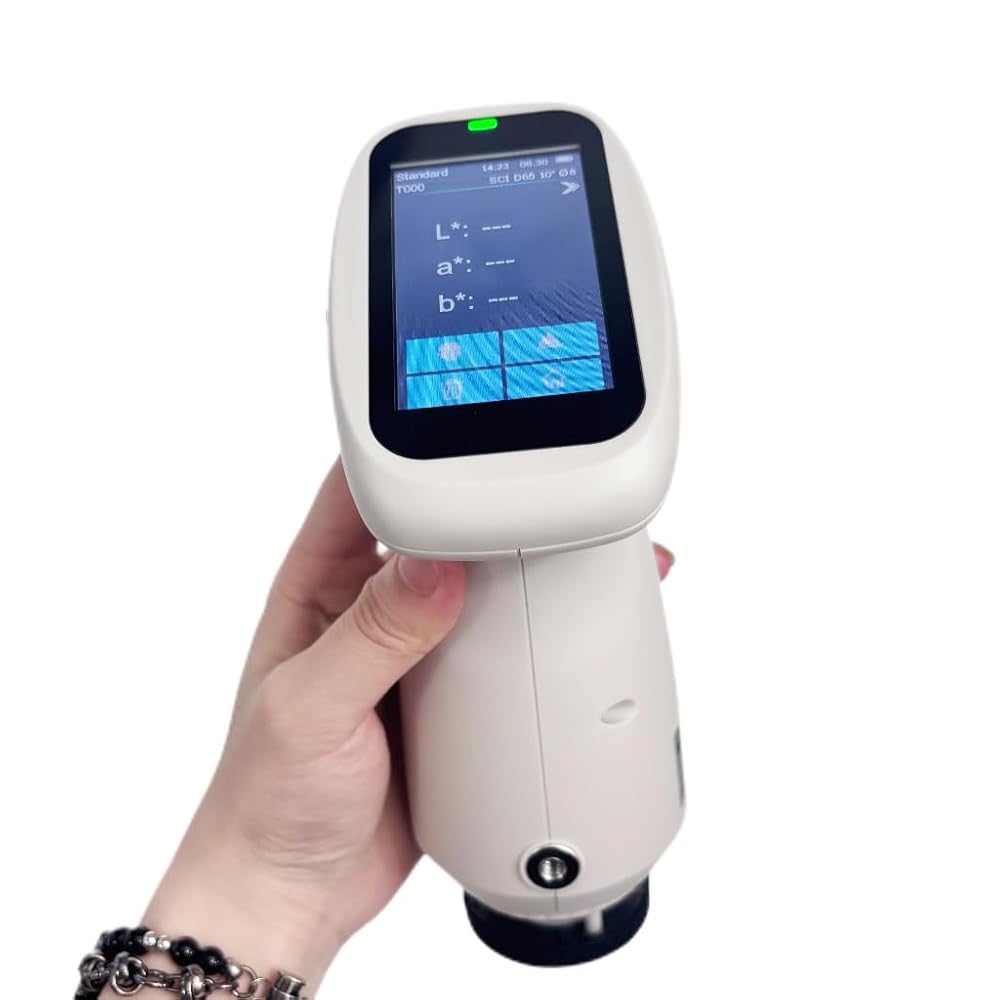

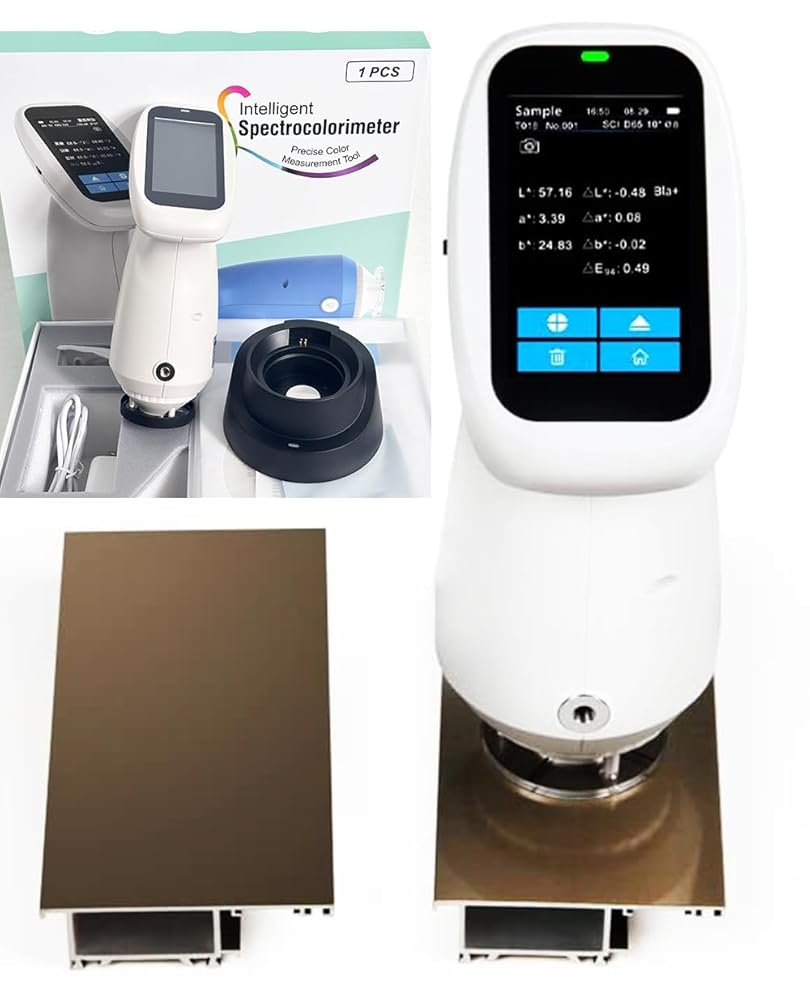

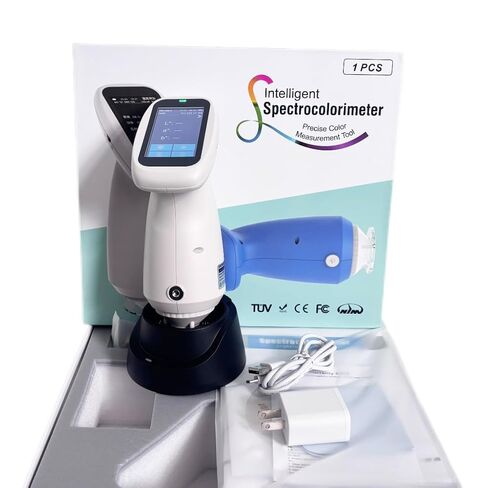

Lab Spectrocolorimeters Color Spectrometer with Φ4mm Flat Single Aperture Wavelength Range 400-700nm D/8 SCI/SCE Mode ASTM ISO Standard for Color Difference Quality Control USB
Measuring Aperture: Single aperture Φ4mm; Wavelength Range:400-700nm;Displayed Accuracy :0.01;Measured Reflectance Range:0-200%;Reflectance Resolution:0.01% Color Space :CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99; Color Difference Formula:ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Display: Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset Data Storage : Standard 500Pcs, Sample 10000Pcs(One data is able to include SCI/SCE); PC mass storage It is not only a colorimeter, but also a spectrocolorimeter, with excellent repeatability and the inner-instrument error. The measurement data is stable, accurate and reliable. with a comfortable and round appearance more people love it. It also has quality management software facilitate quality monitoring and data management.

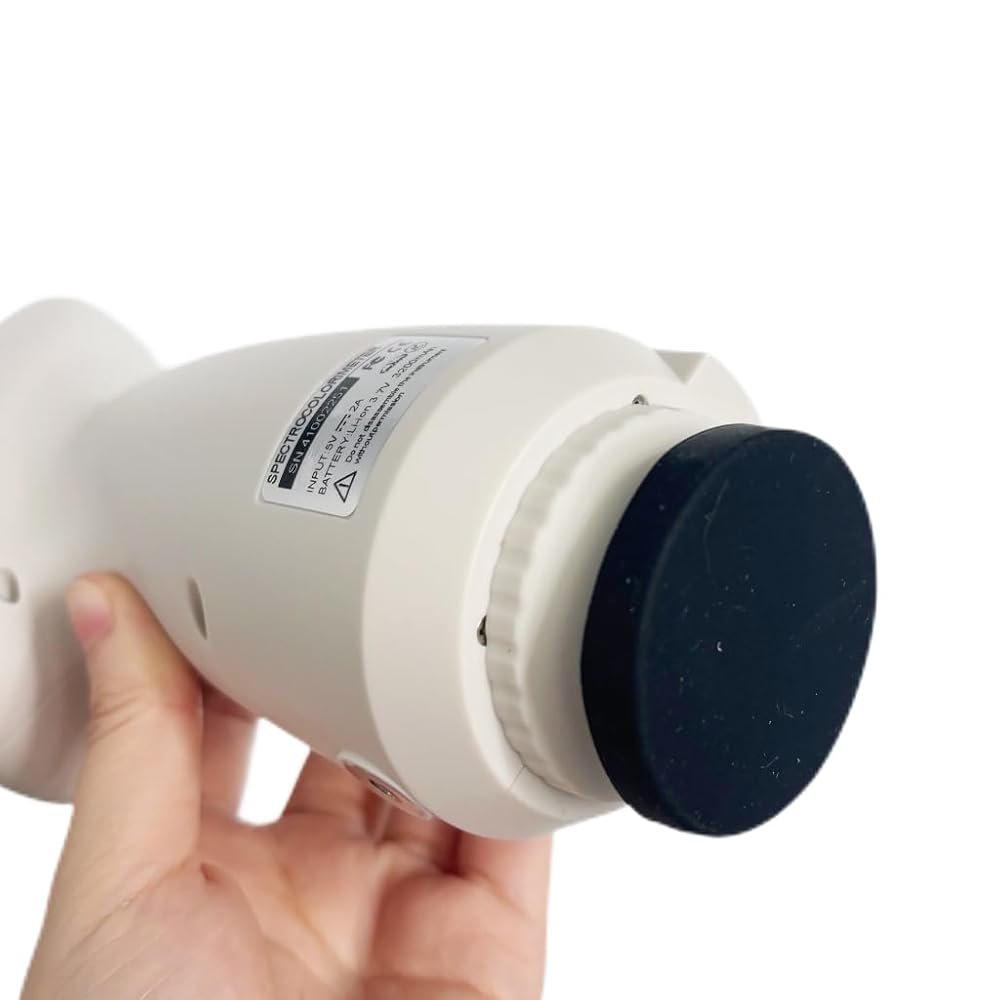

Spectrocolorimeter is developed by CMOS spectrocolorimeter sensor, which is not only a colorimeter, but also a spectrocolorimeter, with excellent repeatability and the inner-instrument error. The measurement data is stable, accurate and reliable. With a comfortable and round appearance more people love it. It also has quality management software facilitate quality monitoring and data management. Spectrocolorimeter is equipped with single aperture:Φ4mm flat, widely used for plastic electronics, paint ink, textile and garment printing, printing, ceramics and other industries color difference quality control.
1.,Adopt D/8 optical structure and SCI/SCE mode. Spectrocolorimeter adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology. It is suitable for color management and quality control in various industries such as color matching and coating, textile, plastic, food, building materials, cosmetics, etc. 2. Adopt full waveband balanced LED light source The 400~700nm full waveband balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LED in specific waveband

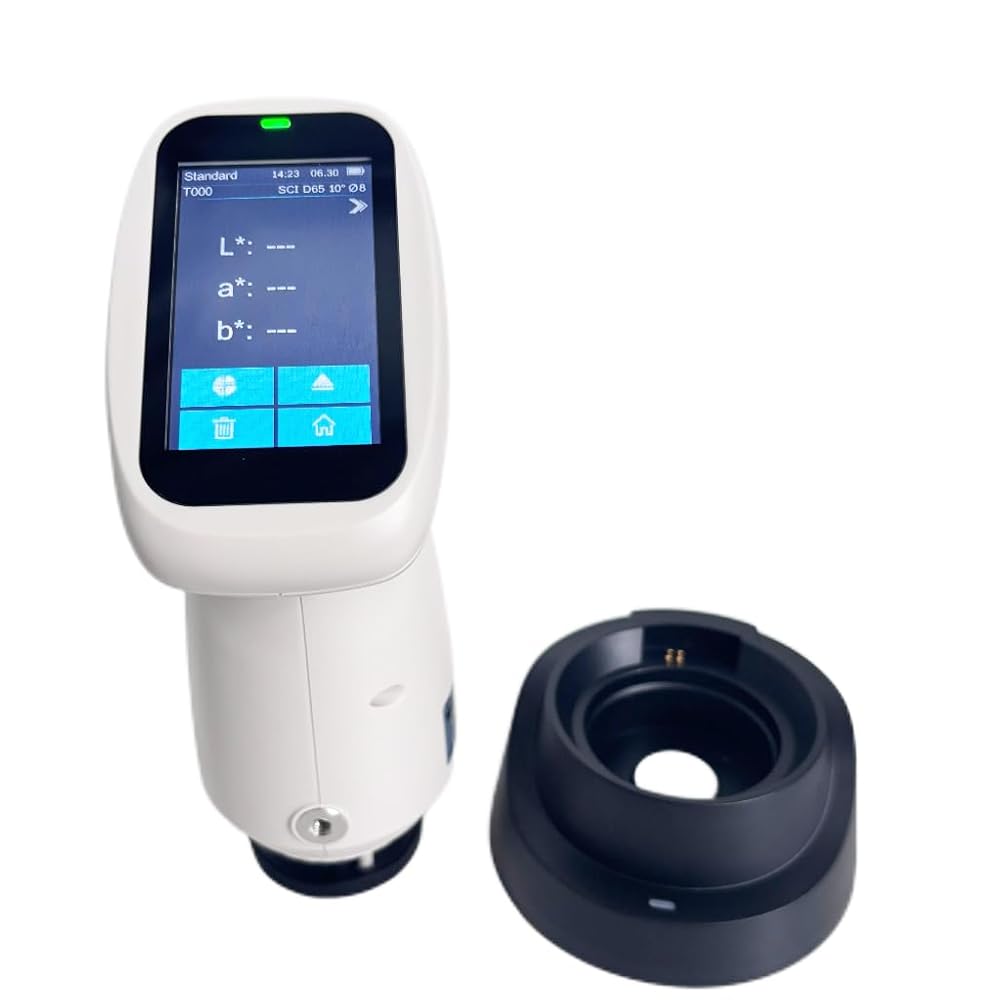

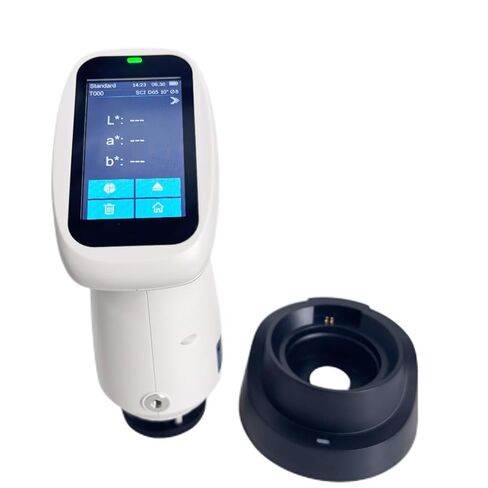

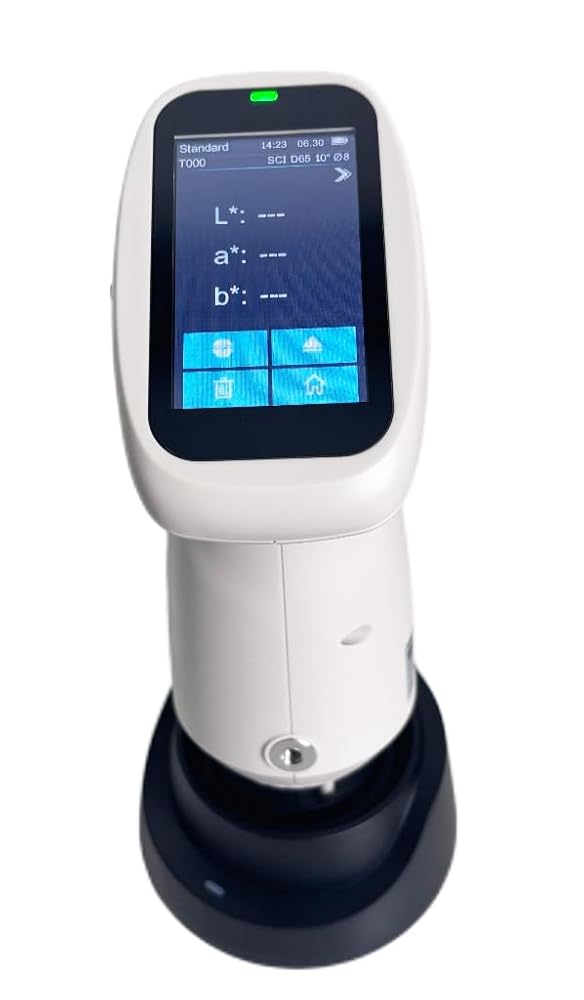

3. CMOS dual beam splitting sensor High speed and high sensitivity CMOS dual beam splitter sensor makes color data processing more efficient and accurate. 4. Contact automatic whiteboard calibration The spectrocolorimeter is equipped with an intelligent calibration base. Contact automatic whiteboard calibration is available, professional standard whiteboard reflectivity R%≥95%, good surface uniformity. It has high stability and can obtain repeated and accurate data.
5. Multiple color measurement spaces, multiple illumination source The spectrocolorimeter support CIE LAB,XYZ,Yxy, LCh, CIE LUV,S- RGB, βxy, DIN Lab99 Color space and D65, A, C, D50, D55, D75, F1, F2(CWF) ,F3, F4 F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), U35, NBF, ID50, ID65 multiple illumination source, Meet different measurement requirements. 6. Ergonomic design and easy measurement The fitted palm is suitable for continuous detection, which makes you fast and easy to use. An easy to measure device for automatic measurement is added. Which is portable, fast, easy to measure and use.
7. Calibration Certificate Each spectrocolorimeter has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metro technical Institute to ensure the authority of the instrument test data. 8. Color management software SQCX quality management software with spectrocolorimeter is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide multiple color space measurement data
