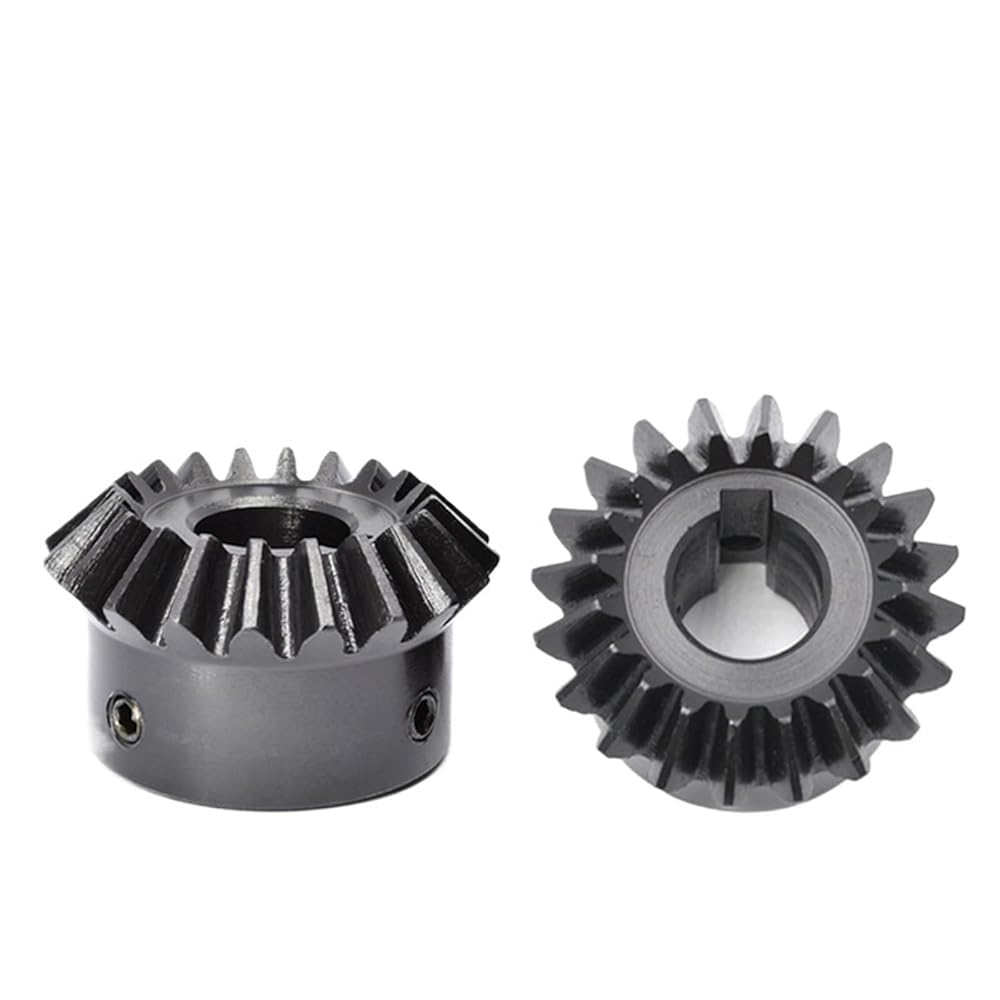

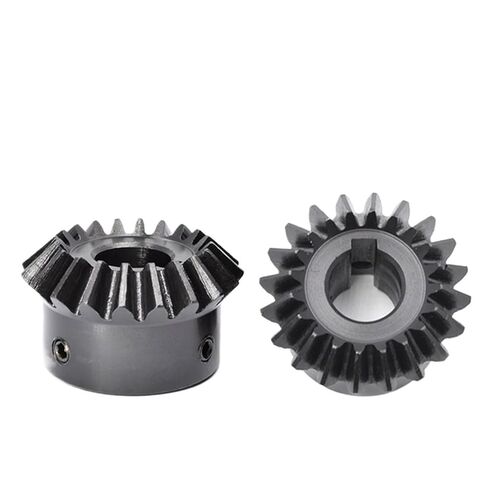

Miter Gears
Specification:
Name: Bevel Gear
Material: 45# Steel
Surface Treatment: Overall Blackening
Rotational Speed Ratio: 1:1
Meshing Angle: 90 Degrees
Model: 2.5M (2.5 Module)
Number of Teeth: 20/25/30Teeth
Keyway Bore:
12mm (keyway 4mm)
14mm (keyway 5mm)
15mm (keyway 5mm)
16mm (keyway 5mm)
18mm (keyway 6mm)
20mm (keyway 6mm)
22mm (keyway 6mm)
24mm (keyway 8mm)
25mm (keyway 8mm)
28mm (keyway 8mm)
30mm (keyway 8mm)
32mm (keyway 10mm)
35mm (keyway 10mm)
Tooth Surface Hardness: Hardened Tooth Surface
Model Number : 2.5M (2.5 Module)
Shape : Bevel
Tooth Profile : Bevel Gear
Material : Carbon Steel
