Description:

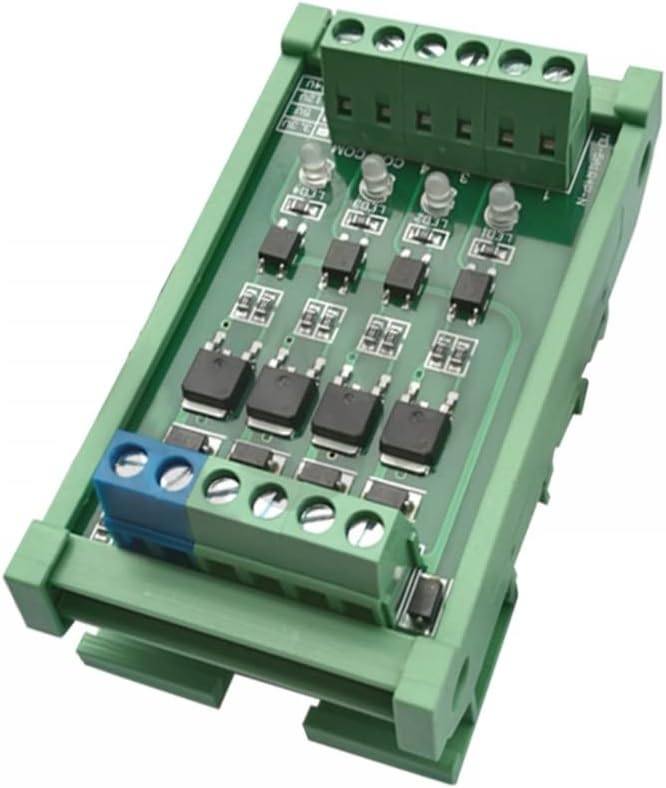

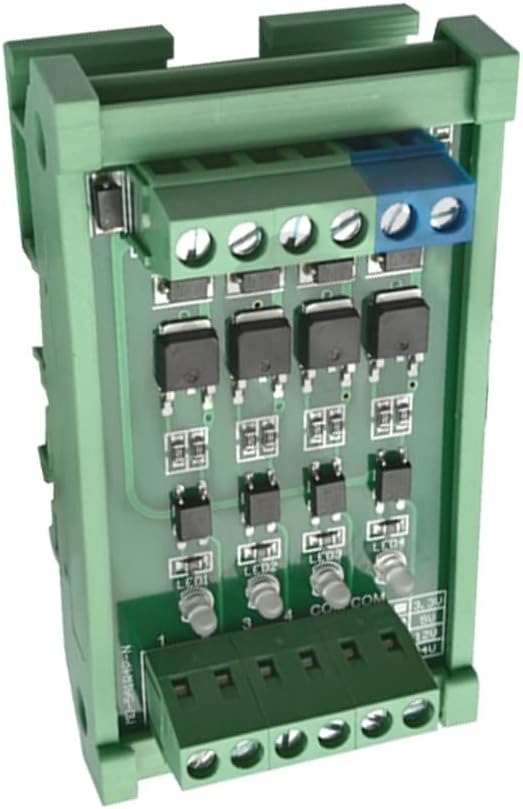

It is a 4-channel PLC amplifier circuit board.lt is suitable for positive/negative input modes.Support independent output of each channel,the maximum output capacity can reach 30V,5A.

Features:
lt uses high-quality transistors,superior performance,stable and reliable quality.

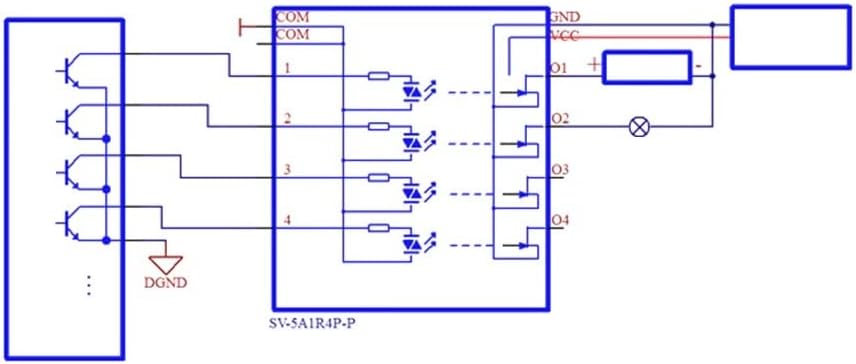

lnput signal optocoupler isolation,strong anti-interference ability.
lt adopts DIN35mm flame retardant shell and standard guide rail type installation design.
lt supports anti-reverse protection.

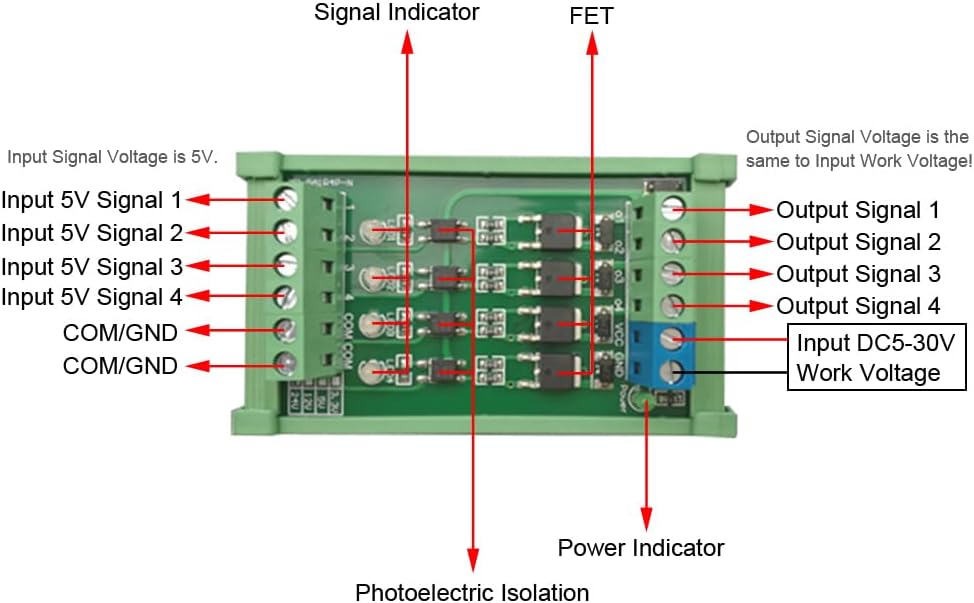

lt has a signal indicator and a power indicator,which can be used to see the working status of the module.

Parameters:
Input Work Voltage:DC 5V-30V
Input Signal Voltage:DC 5V
lnput Current:5mA-10mA
Output Current:5A(Max)

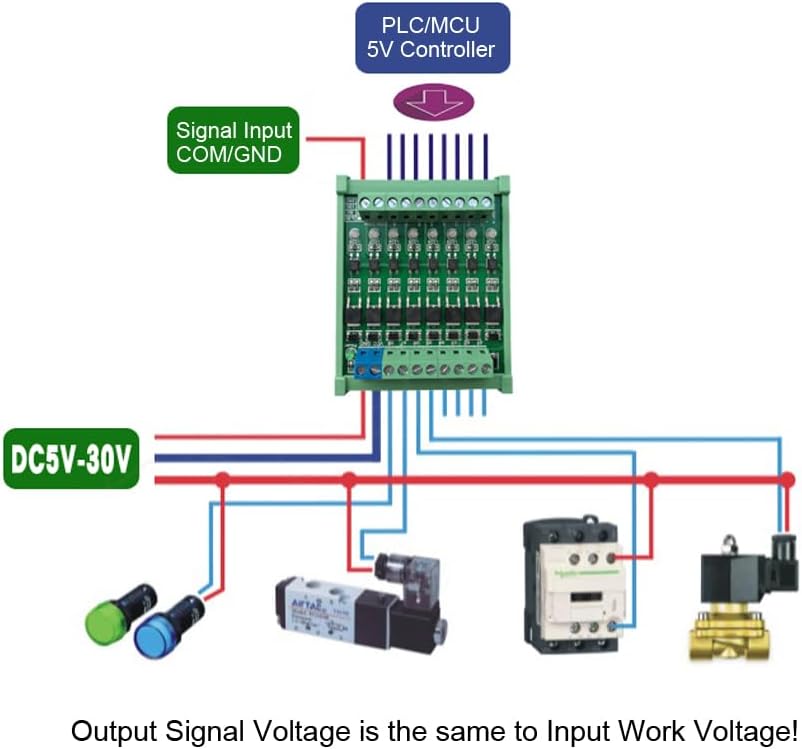

Output Voltage:Same to Input Work Voltage
Output Type:non-contact type

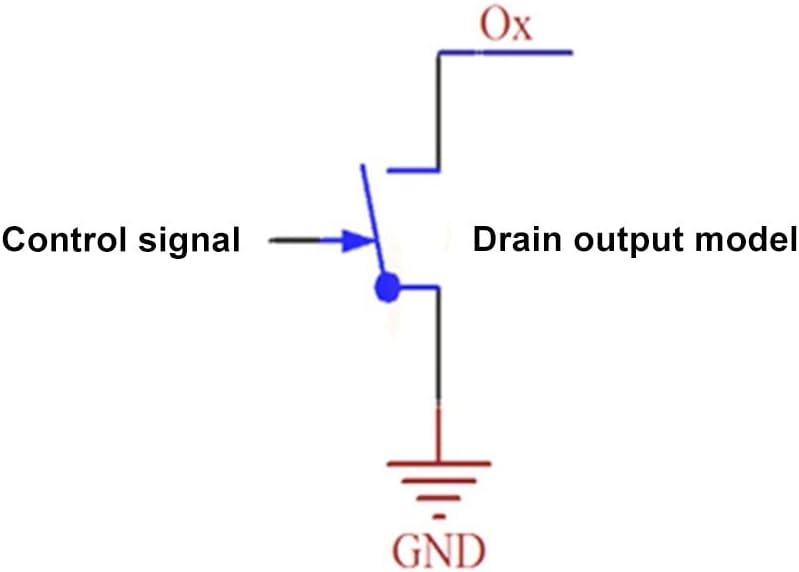

Driving Element:P/N channel field effect transistor
Action Time:1ms (Max)
Reset Time:1ms(Max)
Switching Frequency:2000Hz(Max)
Output Property:NPN output
Work Temperature:-25°C~85°C
Work Humidity:5%~95%RH

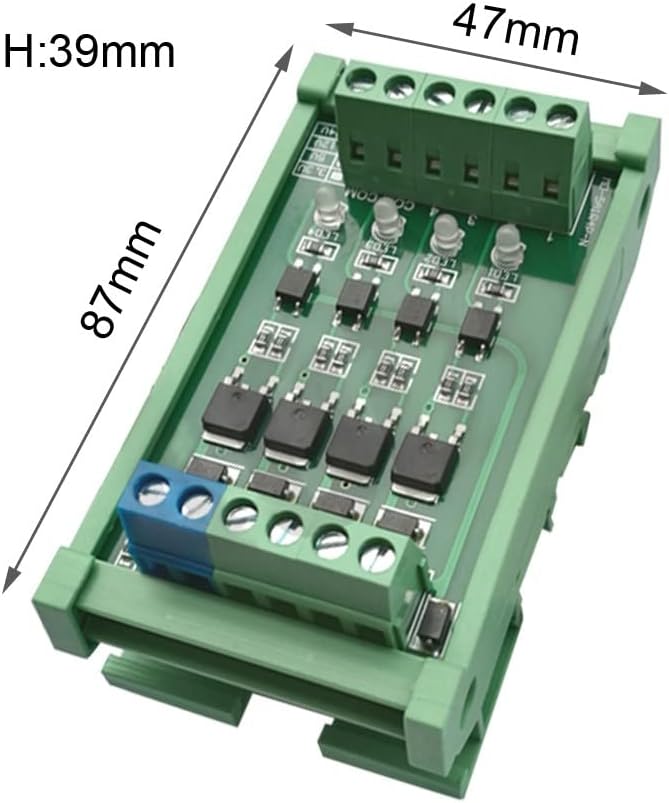

Size:87*47*39mm

Package List:
1 X 4-Channel PLC Amplifier Circuit Board
