أطراف التوصيل السريع 14-12 AWG (5 قطع) in Saudi Arabia

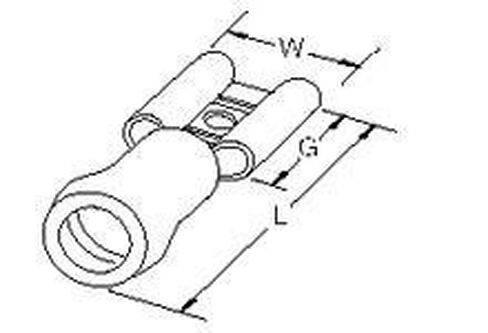

أطراف التوصيل السريع 14-12 AWG (5 قطع)

SAR 46

ماركة
Molex
وزن
91 g
1 +

مميزات خاصة

  • Manufacturer: Molex Product Category: Terminals RoHS: Product: Disconnects Series: Wire Gauge: 14-12 Stud / Tab Size: 0.81mm x 6.35 mm Insulation: Insulated Color: Yellow Gender: Female Contact Material: Brass Insulation Material: Nylon (PA) Mounting Angle: Straight Operating Temperature Range: - 65 C to + 105 C Tradename: Voltage Rating: 300 V Part # Aliases: 0190190052 P-8142

وصف

14-12 gauge 0.250" width, 0.032" tab, female nylon-insulated quick-disconnect terminals. Also known as slip-on or fast-on connectors, these quick-disconnect terminals offer the fastest way to connect and disconnect two wires. They are also reusable. Simply slide the male terminal into the female terminal. The nylon insulation provides relief from vibration that can cause the wire to fail prematurely. The nylon insulation also prevents incidental metal to metal contact that can cause shorts. Requires two crimps (terminal to wire strands, terminal to insulation of wire). Standard tools perform both crimps. For heavier usage, use a tool that performs both crimps at the same time.
