بيت / IPDBLBYL / منتجات الحركة الخطية
شريحة ضبط المنصة ذات المحور X LWX4060 ذات الأخدود الدقيق in Saudi Arabia شريحة ضبط المنصة ذات المحور X LWX4060 ذات الأخدود الدقيق in Saudi Arabia شريحة ضبط المنصة ذات المحور X LWX4060 ذات الأخدود الدقيق in Saudi Arabia

شريحة ضبط المنصة ذات المحور X LWX4060 ذات الأخدود الدقيق

SAR 1,033
ماركة
IPDBLBYL
وزن
50 g
– 1 +

مميزات خاصة

  • Roller Tables
  • Multiple stability ratings: The fine-tuning platform can withstand loads up to 49N (5kgf), with a parallelism of 0.04mm and a weight of 0.28KG.
  • Rugged Aluminum Construction: Fine-tuning platform is constructed from durable aluminum alloy
  • High-precision fine-tuning: Precise adjustment is achieved through the X-axis fine-tuning platform, with a minimum scale of 0.01mm and a parallelism of 0.3mm/24mm.
  • Multi-directional movement: The X-axis platform slides smoothly with a stroke of ±15mm, which is very suitable for large stroke and fast movement needs.

وصف

Roller Tables
The main material is aluminum alloy, which is lightweight and suitable for built-in other equipment.

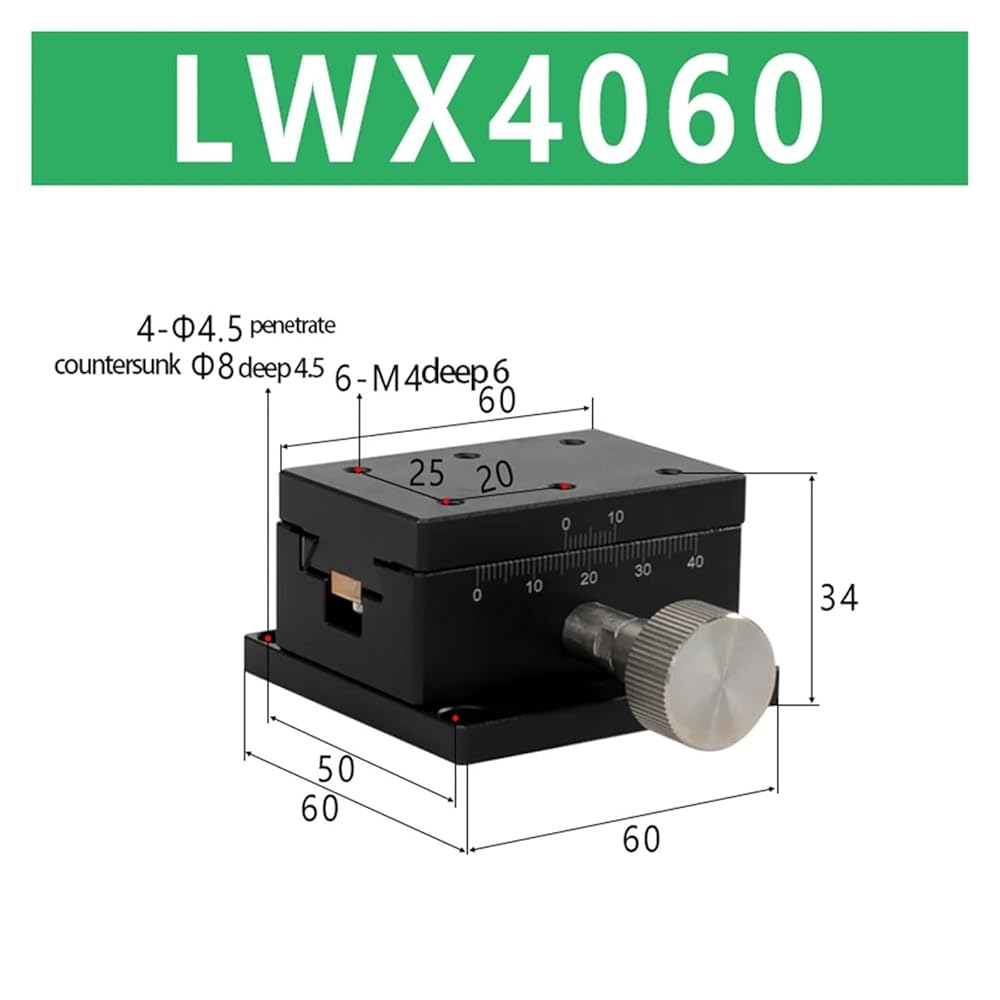

1 Workbench size: 40*60mm
2.Moving direction: X axis
3. Stroke: ±15mm
4. Load: 49N (5kgf)
5.Material: aluminum alloy
6. Minimum scale: 0.01mm
7.Moving parallelism: 0.3mm/24mm
8. Parallelism: 0.04mm
9. Weight: 0.28KG
