Description:
Hole size: 22mm
Introduction:

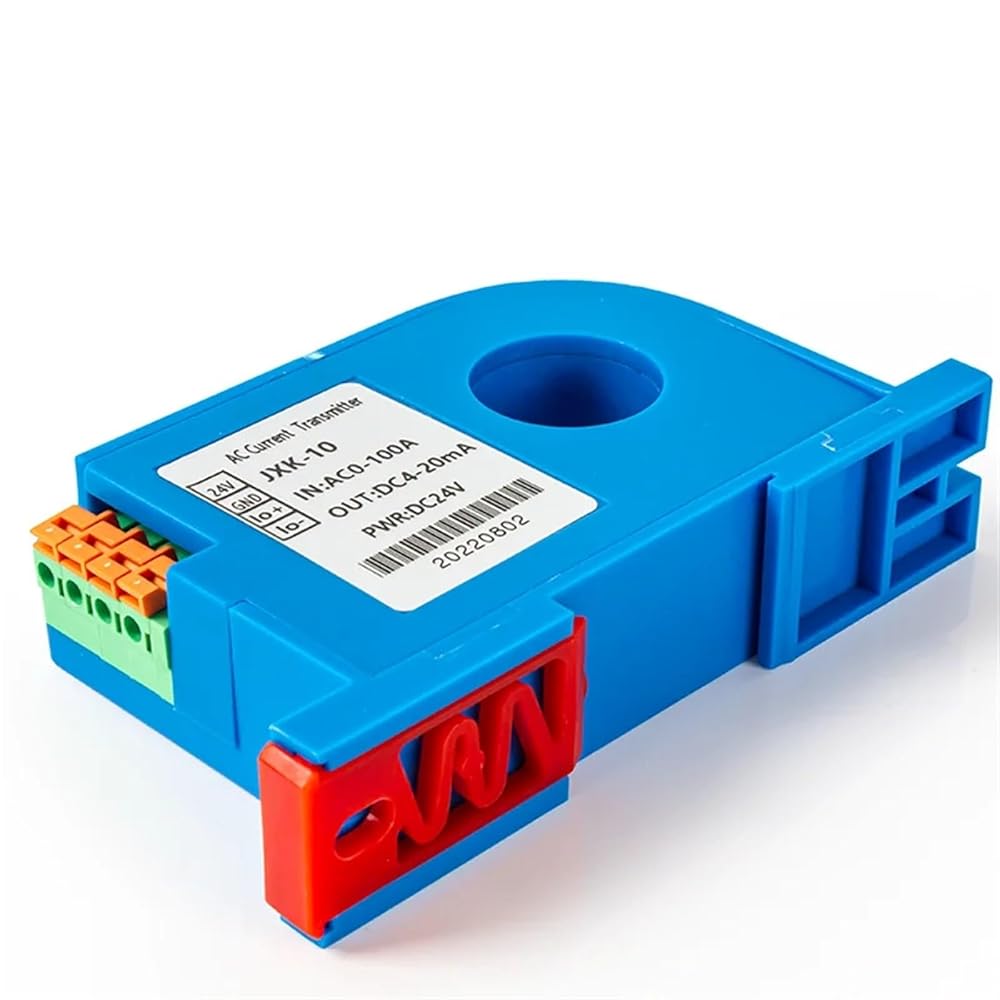

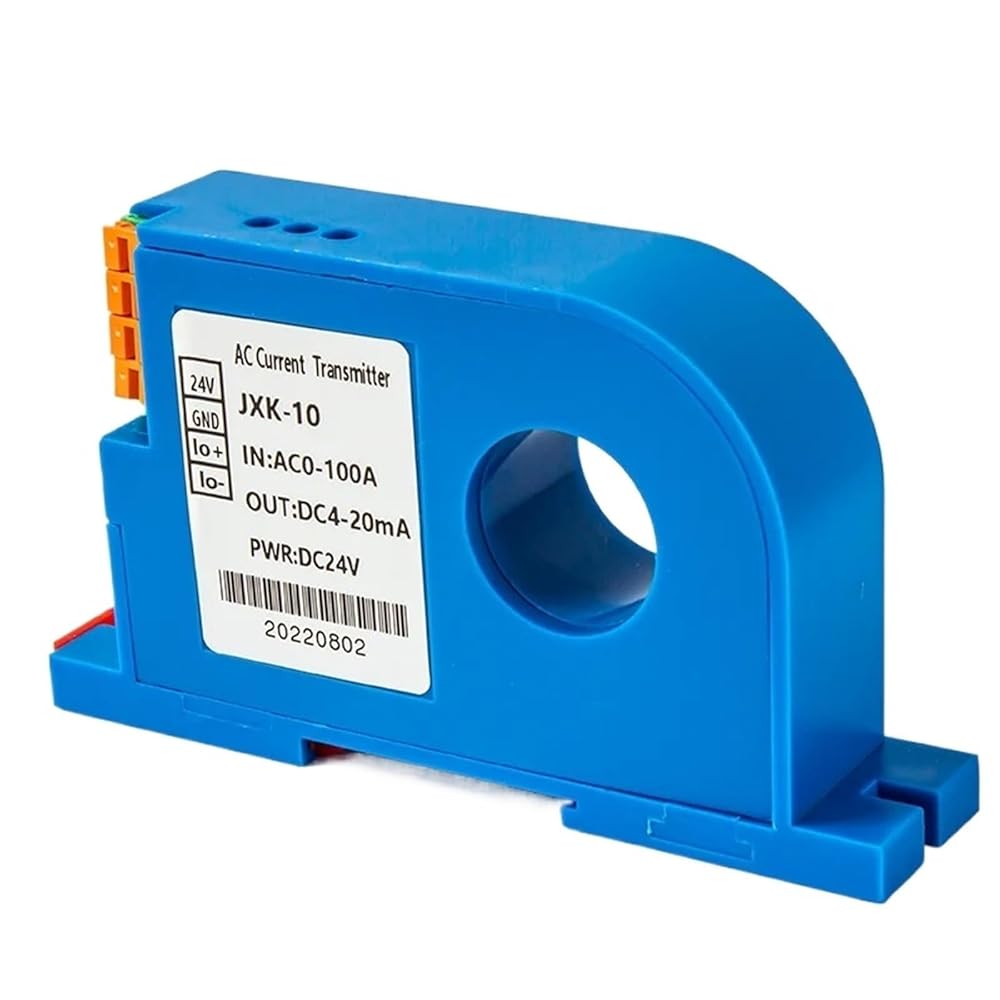

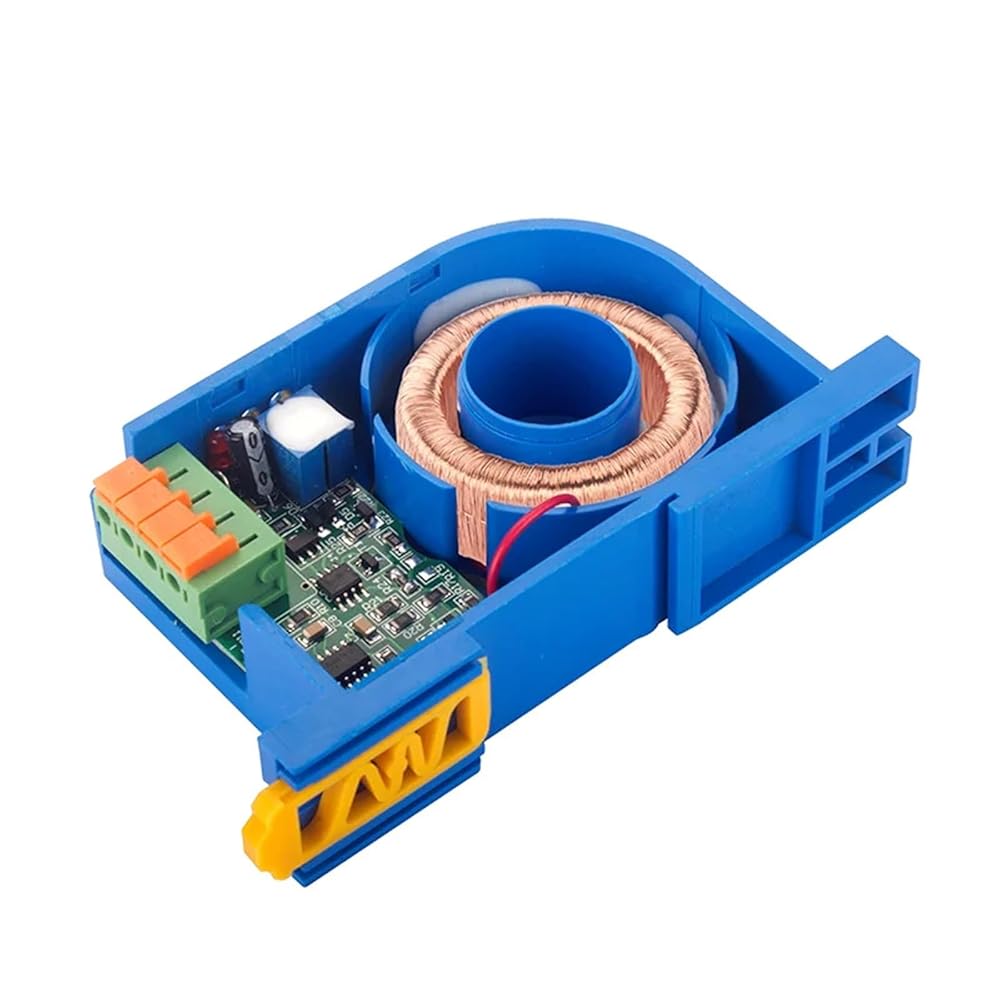

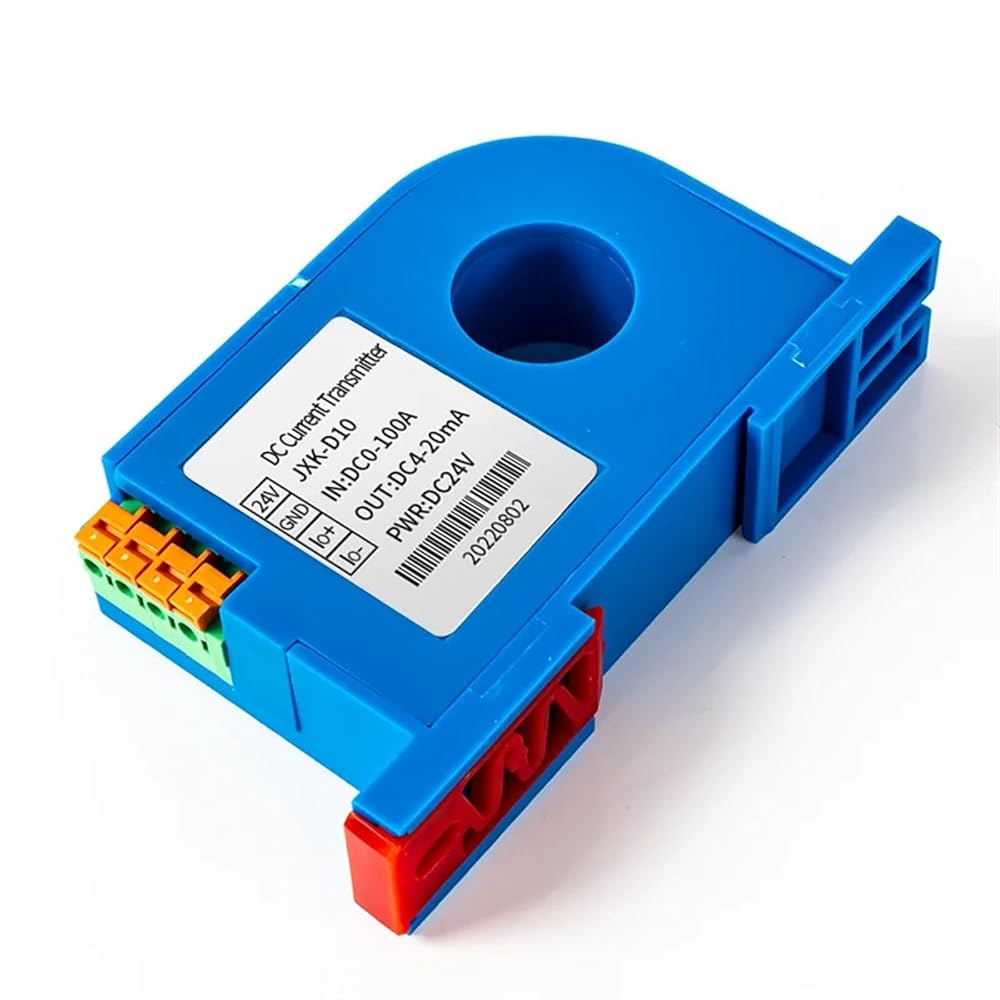

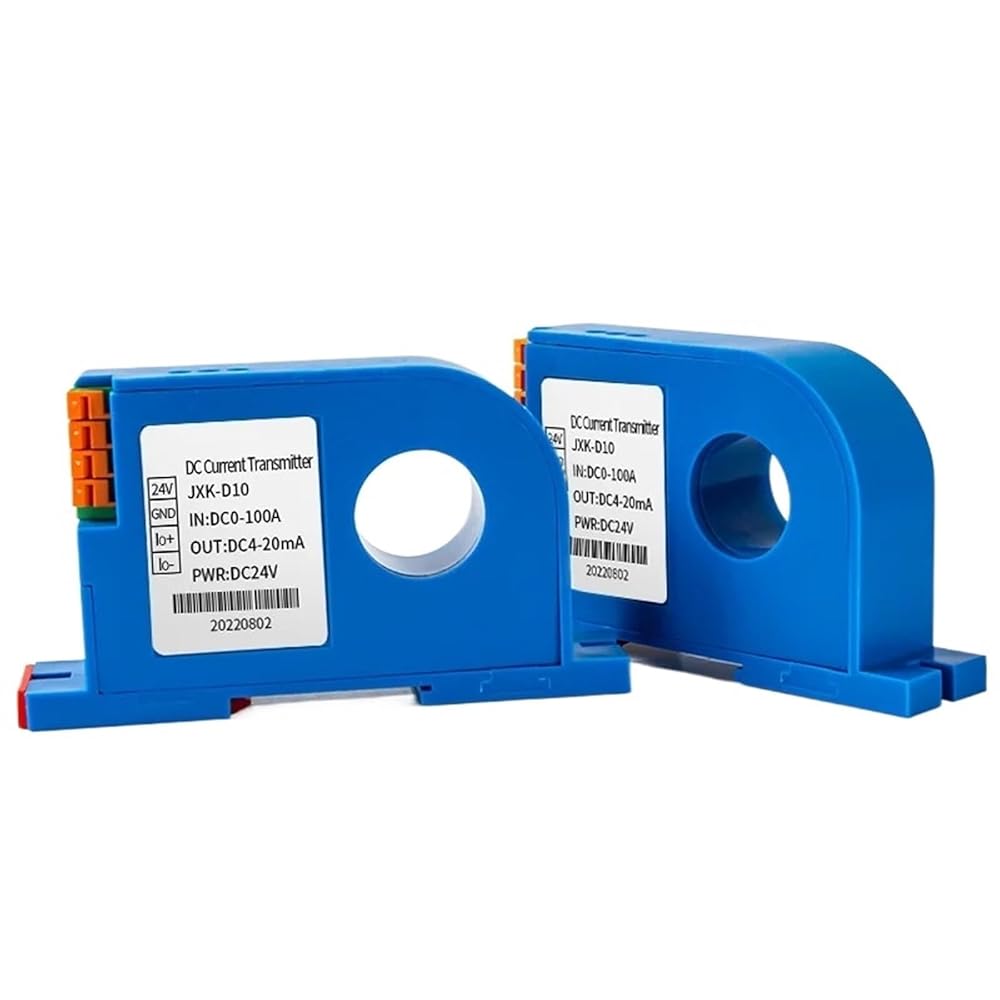

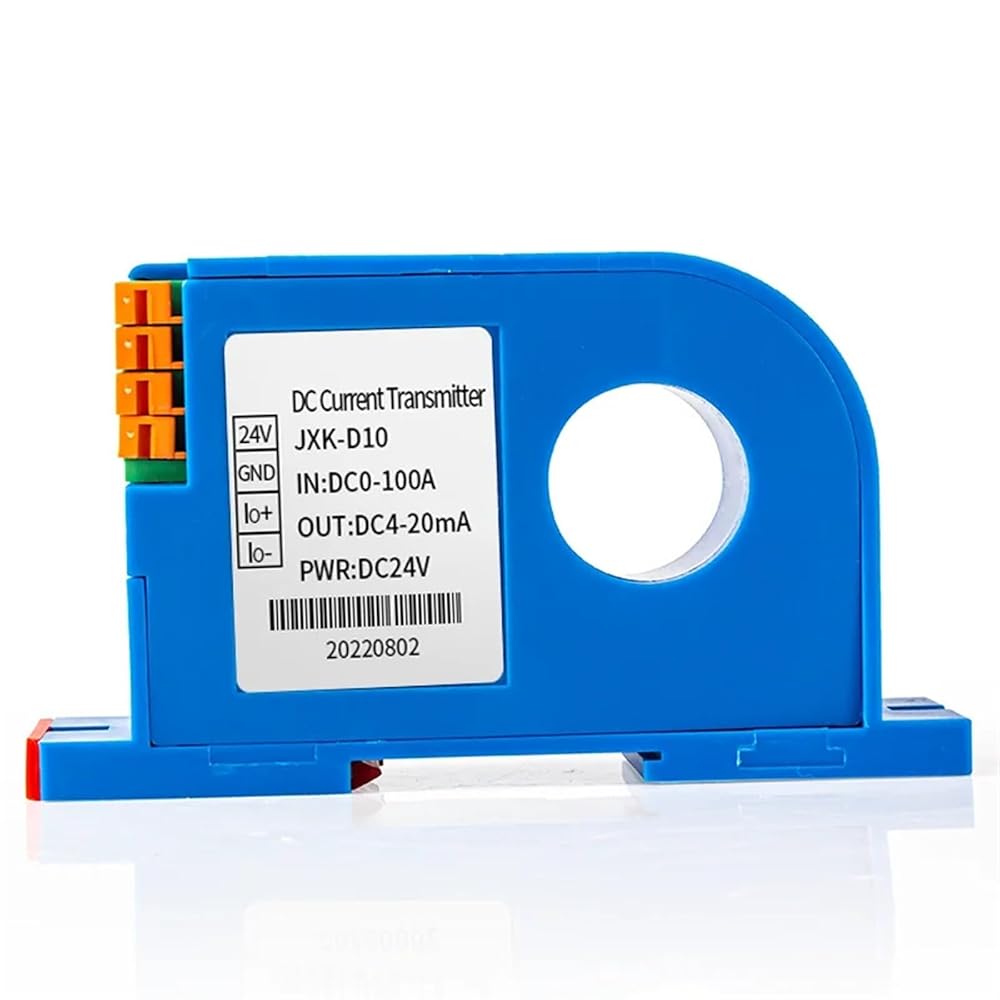

JXK-10/JXK-D10 Current Transducer
Product uses: Used for measuring AC, pulse current and other arbitrary waveform current.
Product advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
Product application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
Full channel configuration,Parameter customizable.
Product Display
==========
Dimensions : 106*60*24(mm)
Operating Temperature : -20~+55
Supply Voltage : DC24V,DC12V
Accuracy Class : 0.5%FS
Model Number : JXK-10
Display Type : Analog Only
DIY Supplies : ELECTRICAL
Channel : 1 In 1 Out
Input Signal : DC0-600A
Output Signal : 4-20mA,0-20mA,0-10V ,0-5V,1-5V,RS485
Feature1 : Current Transducer Sensor
Feature2 : Hall Current Signal Converter Sensor
Feature3 : Transducer Current Sensor
Feature4 : Current Transmitter
Feature5 : Current Converter Sensor
