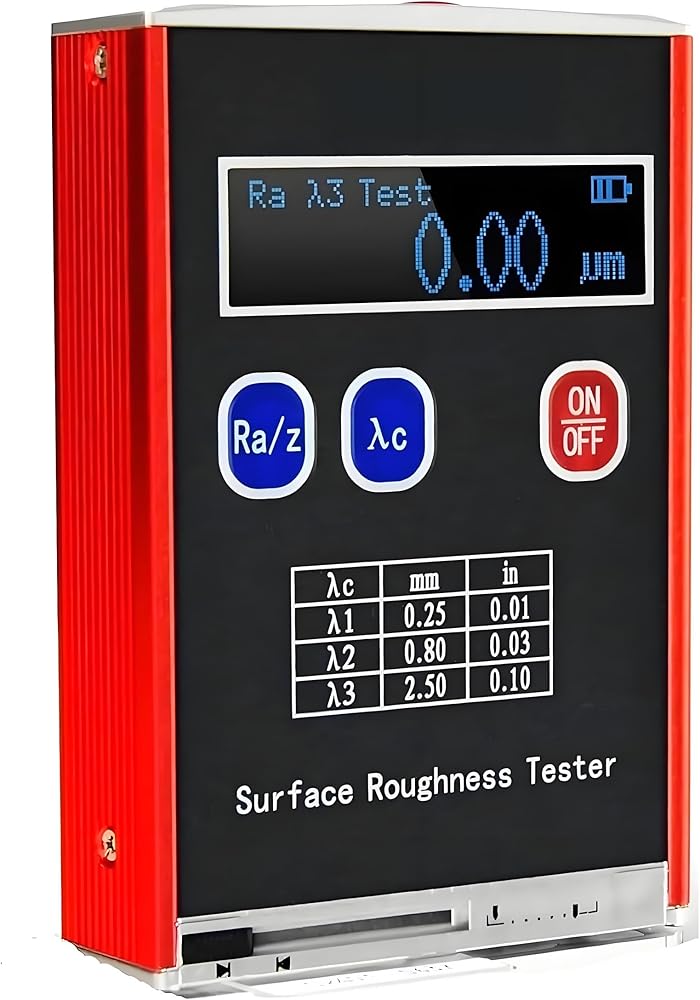

Surfaces Roughness Tester, High Accuracy 0.01μm Portable Roughness Gauge, 4 Testing Parameters Ra/Rq 0.05~15.0μm Rz/Rt 0.1~50.0μm with Standard Calibration Block and Bracket

SAR 1,868
– 1 +

Special Features

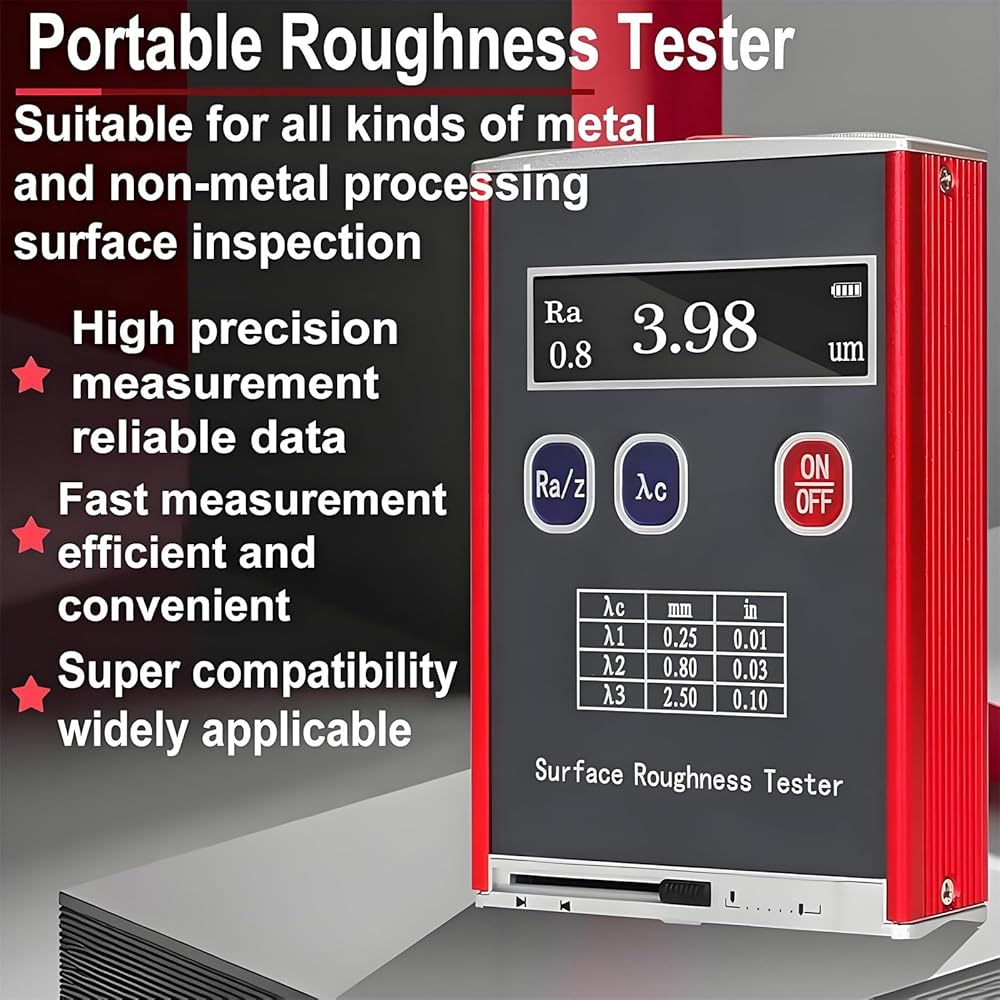

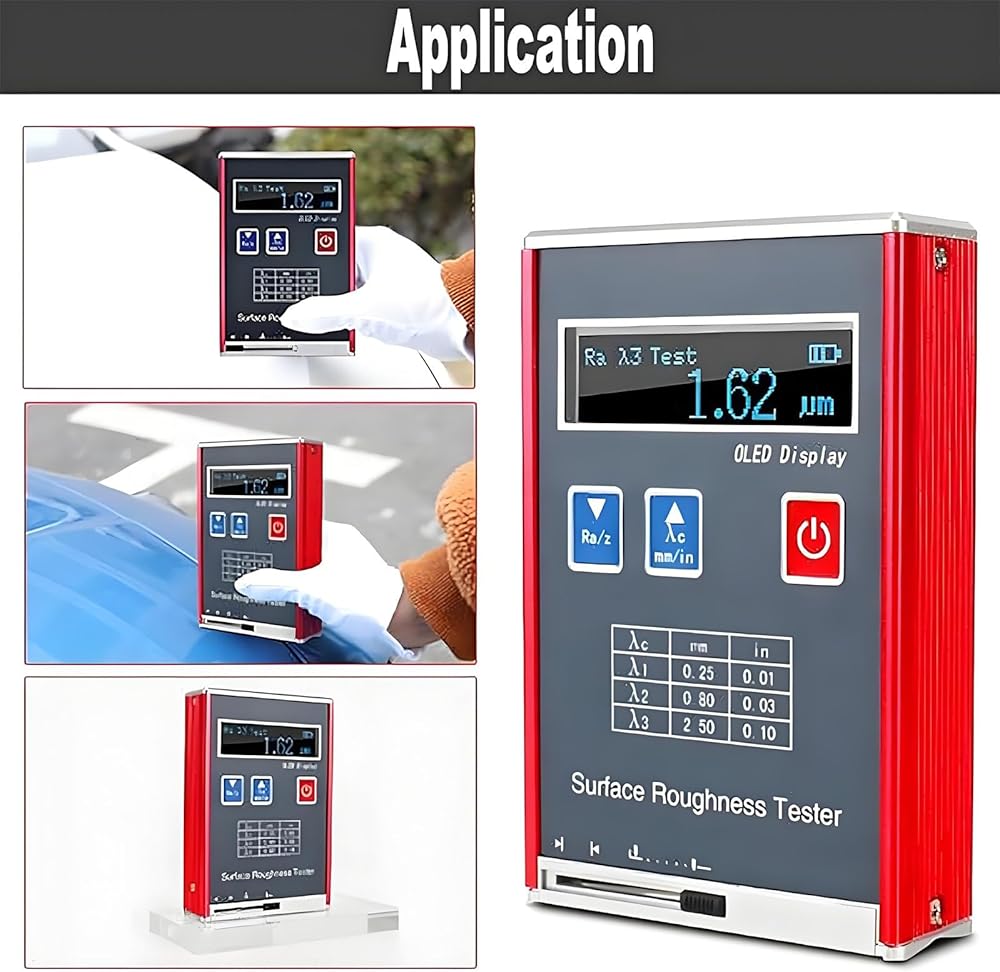

  • 【SURFACES ROUGHNESS TESTER】The Surfaces Roughness Tester is suitable for a variety of surfaces, including ex-circle, flat, conical, and grooved surfaces, accommodating sizes larger than 80 x 30mm, making it an ideal choice for professionals across different industries
  • 【PRECISION MEASUREMENT ACCURACY】With an exceptional accuracy of 0.01μm, this Surfaces Roughness Gauge can measure a wide range from 0.05 to 15.0μm for Ra and Rq, and 0.1 to 50.0μm for Rz and Rt, ensuring reliable results

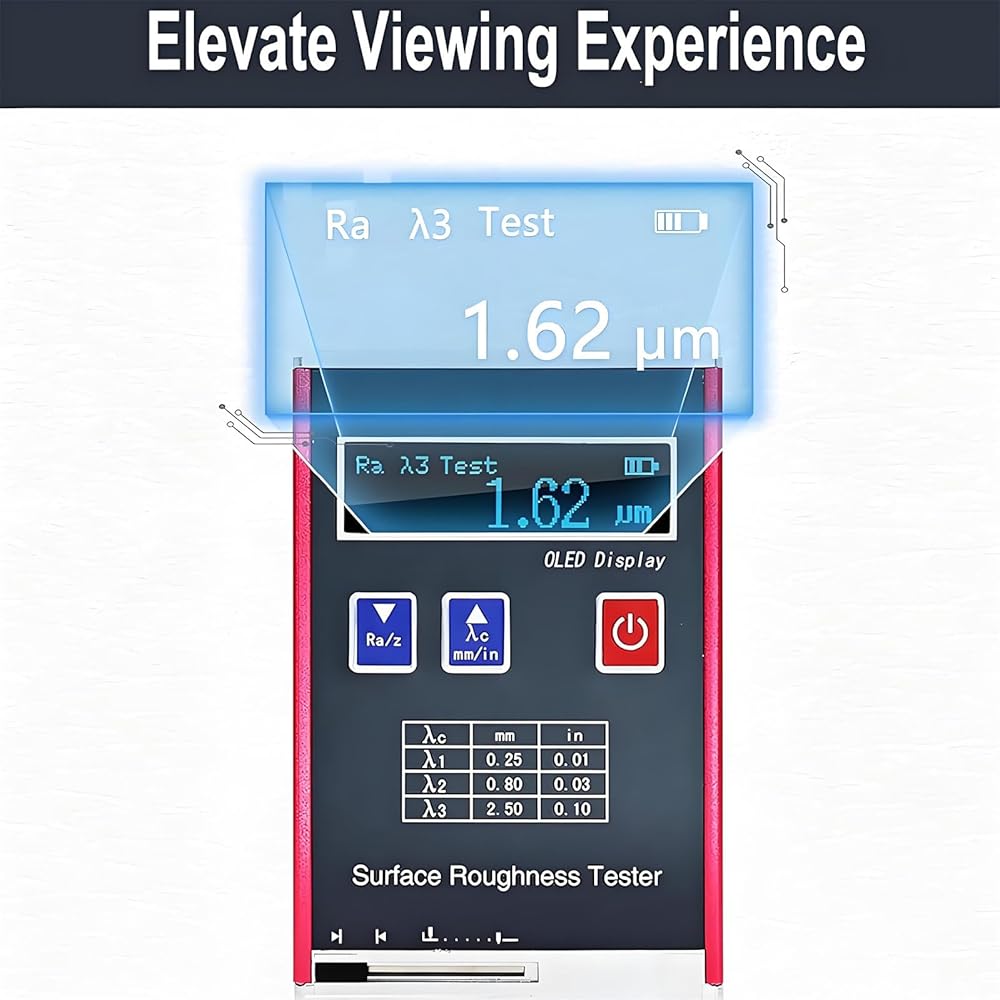

  • 【OLED DISPLAY】The surfaces roughness gauge is fitted with a popular, high-brightness OLED color display which offers clear readings from any angle, making it suitable for various occasions and environments

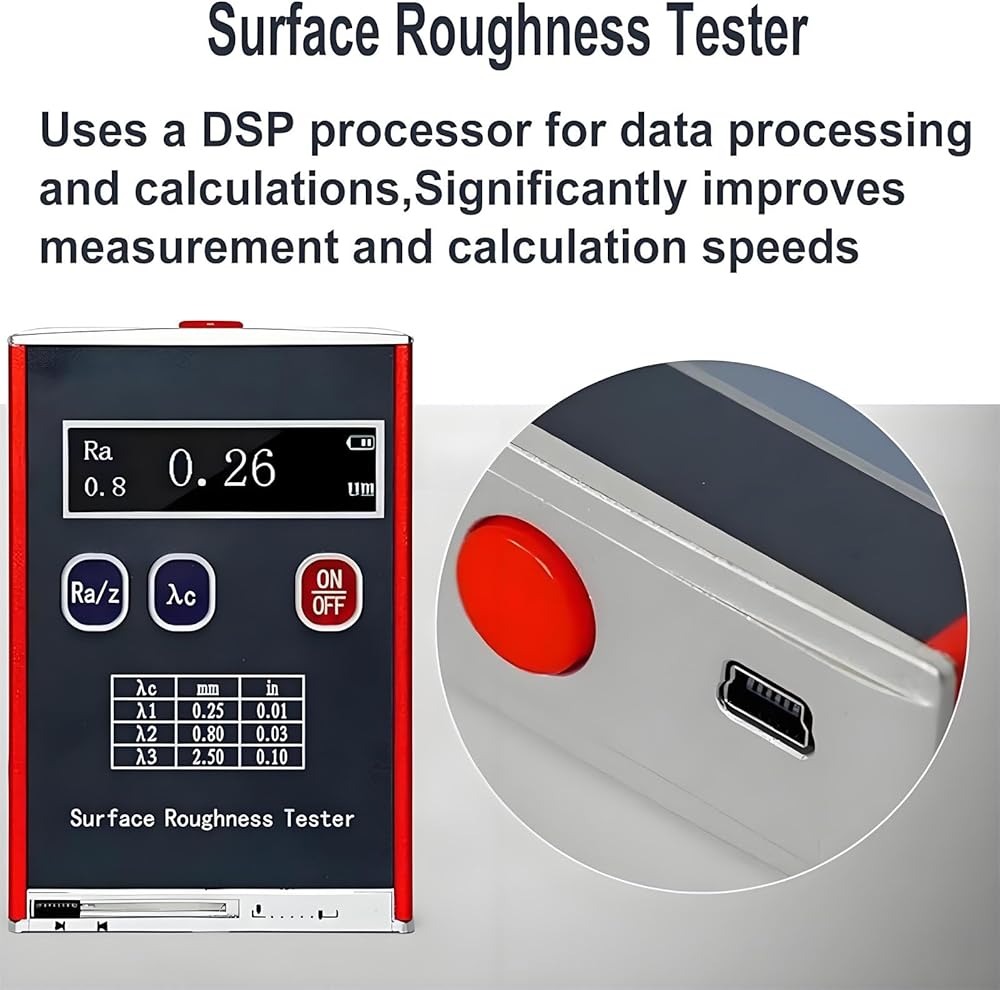

  • 【ADVANCED PROCESSING】Equipped with a high-speed DSP processor, the Surfaces Roughness Tester Meter greatly enhances data processing and computation speed, promising quick and efficient measurements
  • 【COMPREHENSIVE TESTING PARAMETERS】Accurately measure Ra, Rz, Rq, and Rt, fulfilling a diverse range of applications for dependable surfaces roughness data. Features a common USB interface for charging and data transfer

Description

Surfaces Roughness Gauge is thoughtfully designed for your convenience. Its OLED display ensures exceptional brightness, making it suitable for a range of working conditions.

Specifications:
Measuring Range: Rz / Rt: 0.1-50° Ra / Rq: 0.05-15.00°
Resolution: 0.01μm
Sampling Length: 0.25/0.80/2.50mm
Parameters: Ra / Rz / Rt / Rq
Sensor Stylus Tip Radius and Angle:
Tip Radius: 10μm ± 1μm
Angle: 90°
Sensor Stylus Static Force and Change Rate:
Stylus Static Force: 0.016N
Force Change Rate: 800N/m
Indication Variability: 6%

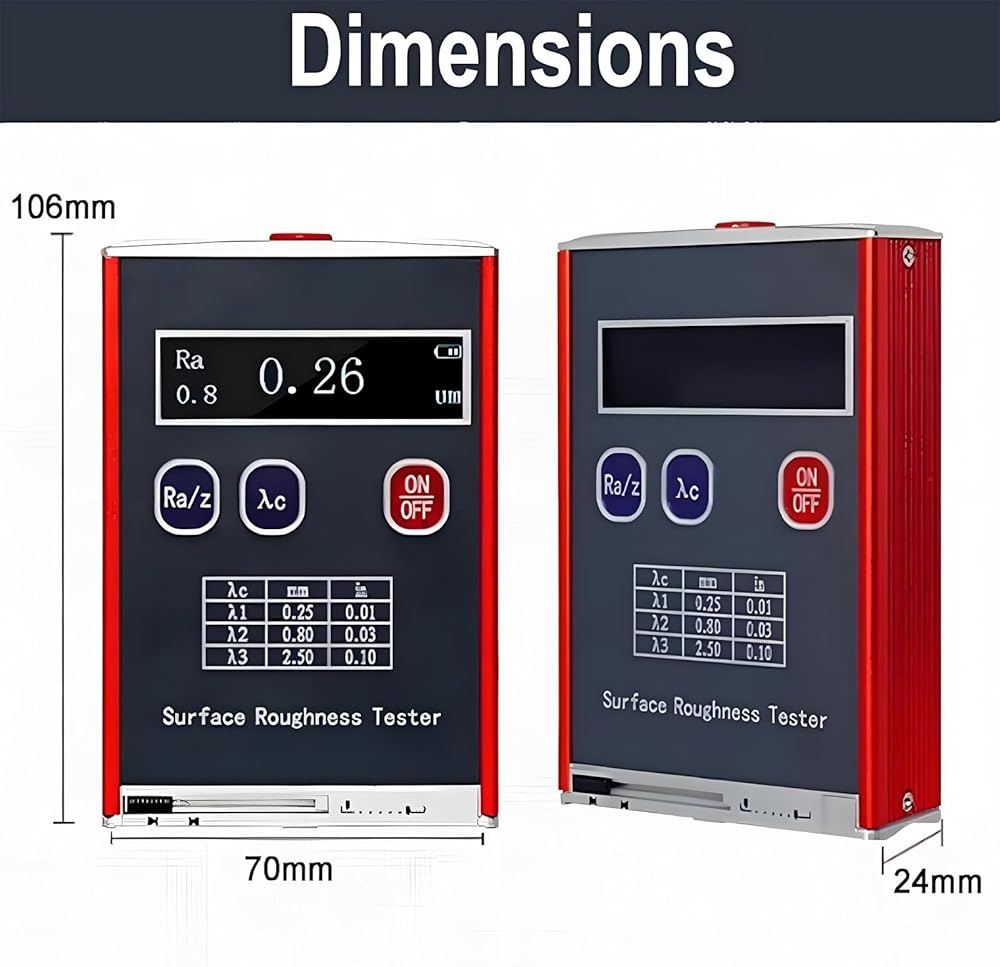

Dimensions: 106 x 70 x 24mm
Weight: 200g

Package Included:
1x Surfaces Roughness Tester
1x Standard Calibration Block
1x Storage Box
1x Instruction Manual
