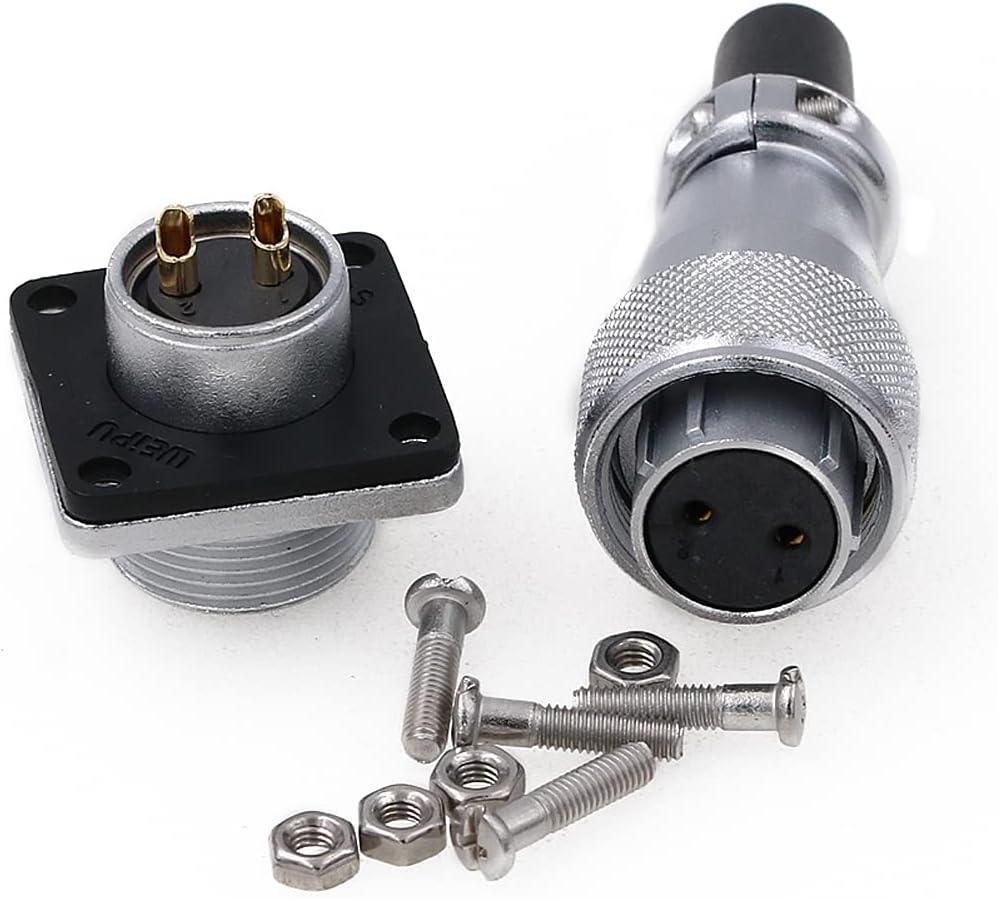

The WEIPU WS20 series is part of the broader WS series of unsealed threaded connectors. These connectors are designed for in line cable to cable connections or cable to panel mount connections, with both male and female ends available. The series features a panel cut out size of 20.5mm, which is suitable for a wide range of installation scenarios. It includes various styles such as round or square flange style panel connectors and straight or angled cable connectors, providing flexibility to adapt to different installation requirements. The WS20 series is specifically engineered to meet the demands of indoor power and data applications, such as in office automation systems, data centers, and small scale industrial control setups, offering reliable connectivity solutions for these environments.​
Electrical Specifications​

Rated Current:​2 pin，3 pin，4 pin versions: 25A​
5 pin, 6 pin（5A/25A), 7 pin versions: 10A​
9 pin, 12 pin versions: 5A​
Rated Voltage: 500V (AC) for all pin configurations​
Withstanding Voltage: 1500V (AC) for 1 minute across all pin configurations​
Contact Resistance:​
2 pin，3 pin，4 pin versions: 1mΩ​
5 pin, 6 pin（5mΩ​/1mΩ​), 7 pin versions: 2.5mΩ​
9 pin, 12 pin versions: 5mΩ​
Mechanical Specifications​
Coupling: Threaded coupling for a secure connection​
Shell Material: Zinc alloy, providing high strength and corrosion resistance​
Insert Material: PPS, with a maximum temperature resistance of 260°C​
Contact Material: Brass (gold plated) for enhanced conductivity​
Termination: Solder, screw, or crimp termination available​
Cable Outer Diameter Range: Generally suitable for cables with an outer diameter of 6-10mm​
Durability: Can withstand ≥500 times of connection and disconnection​
Environmental Specifications​
Working Temperature: Operates within a temperature range of - 40°C to + 85°C​
Protection Level: Not suitable for outdoor use due to lack of waterproof and dust - proof features; designed primarily for indoor applications
