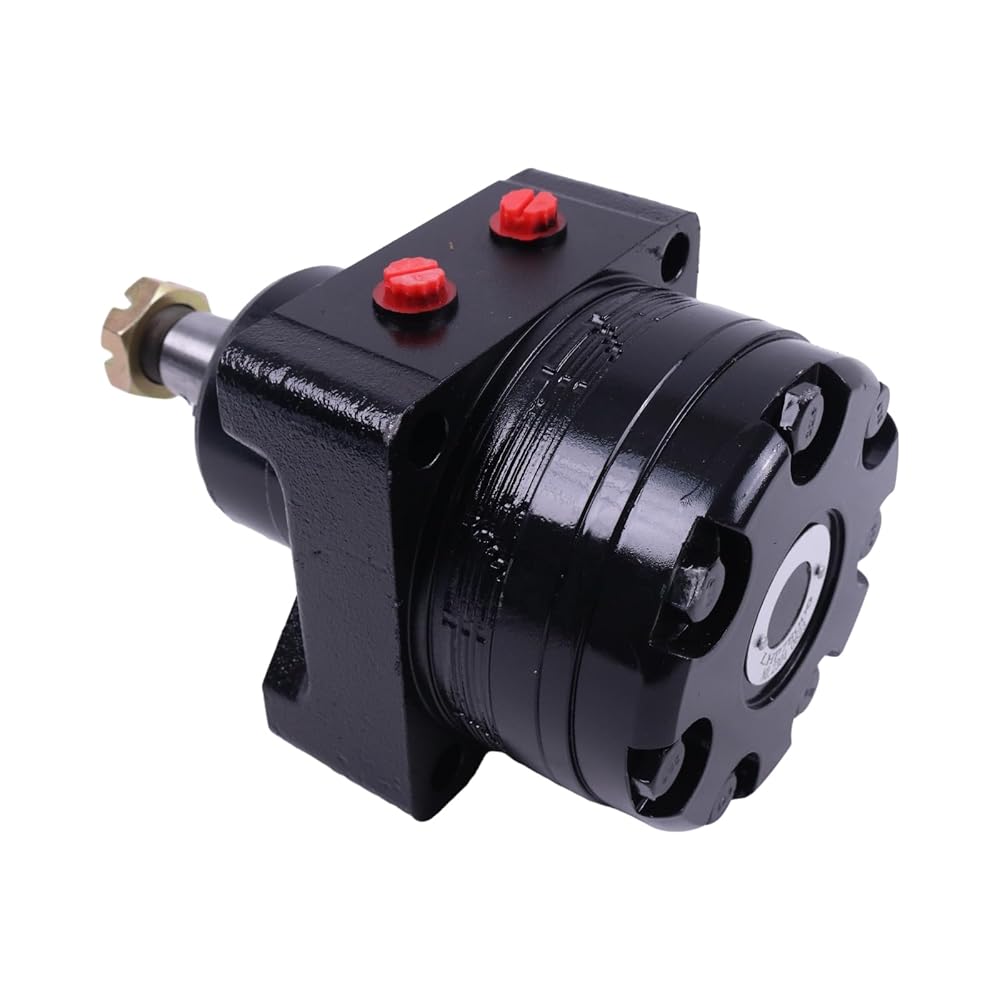

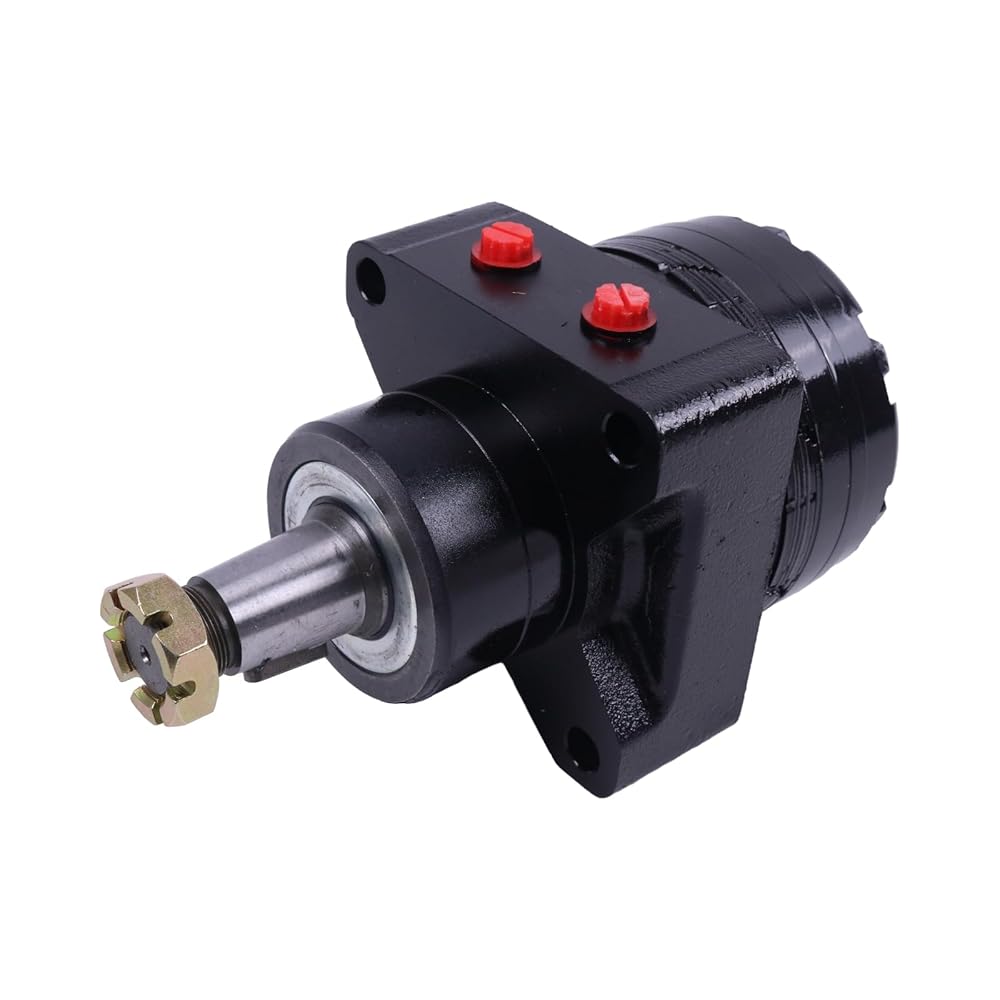

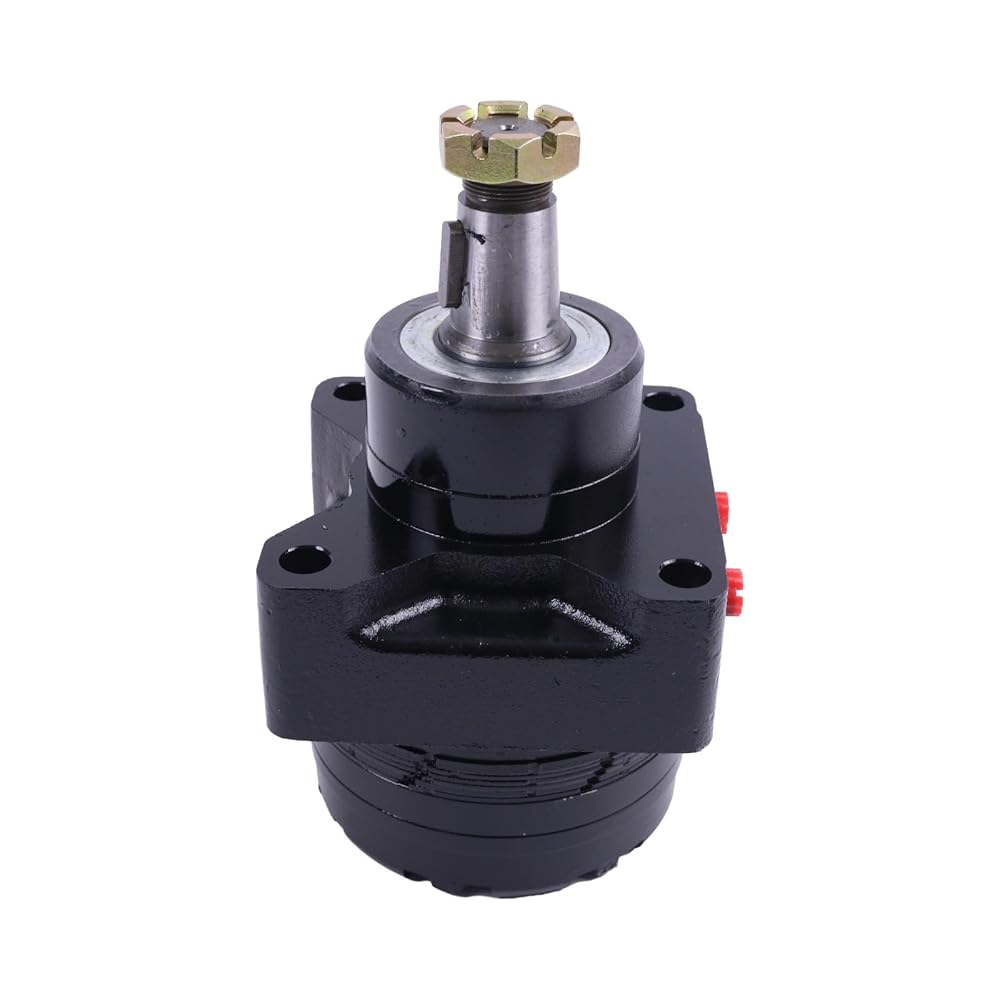

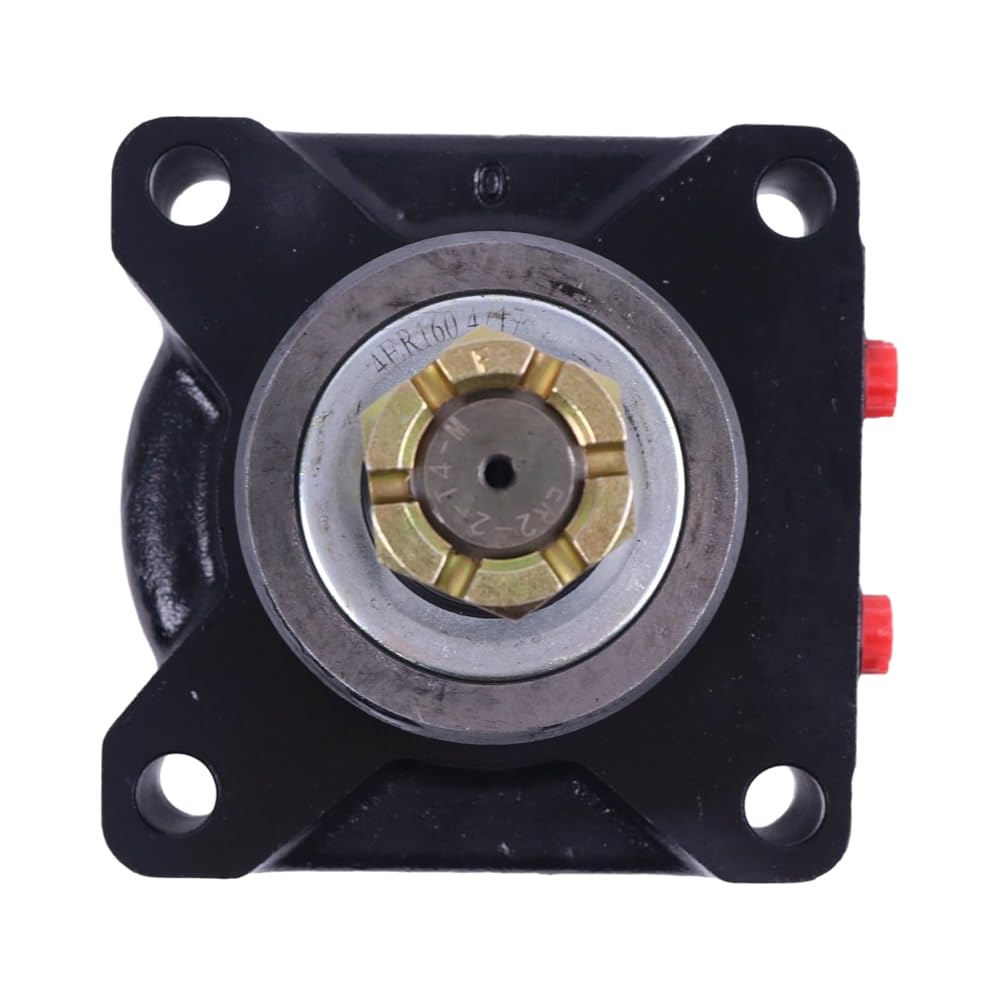

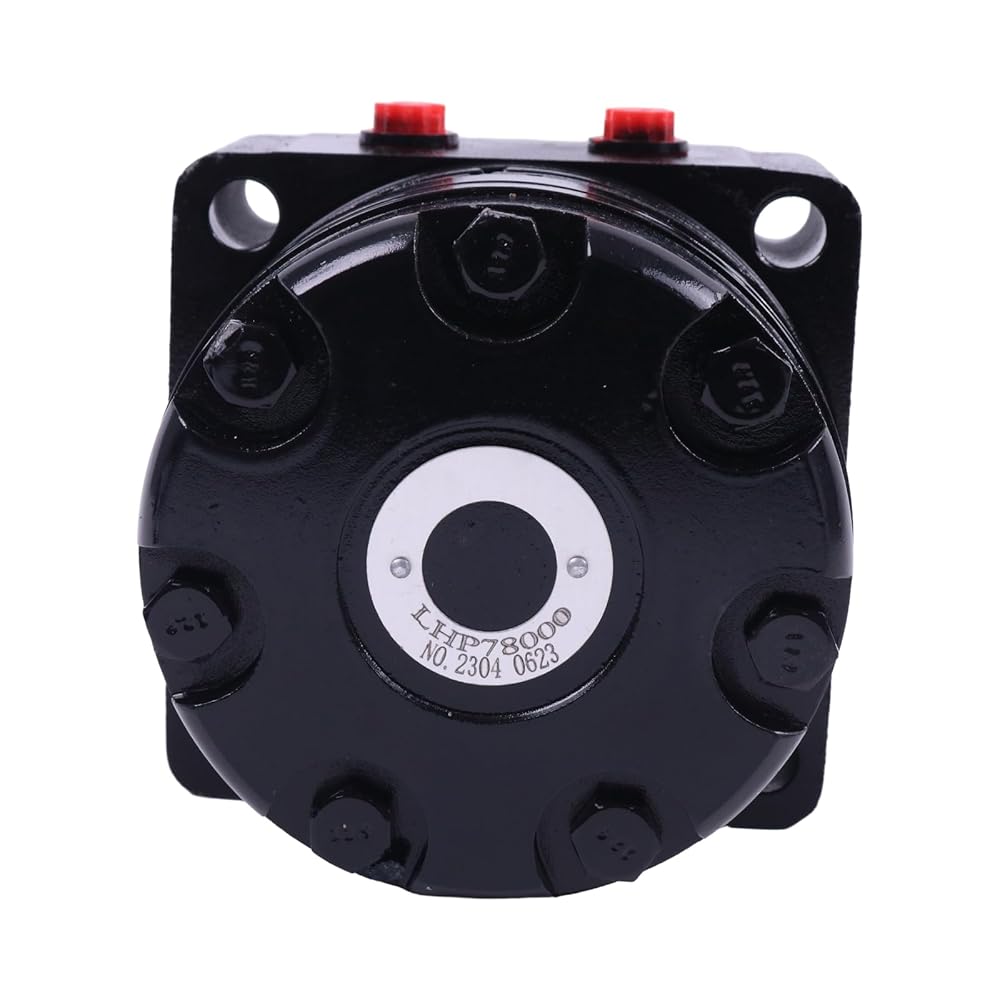

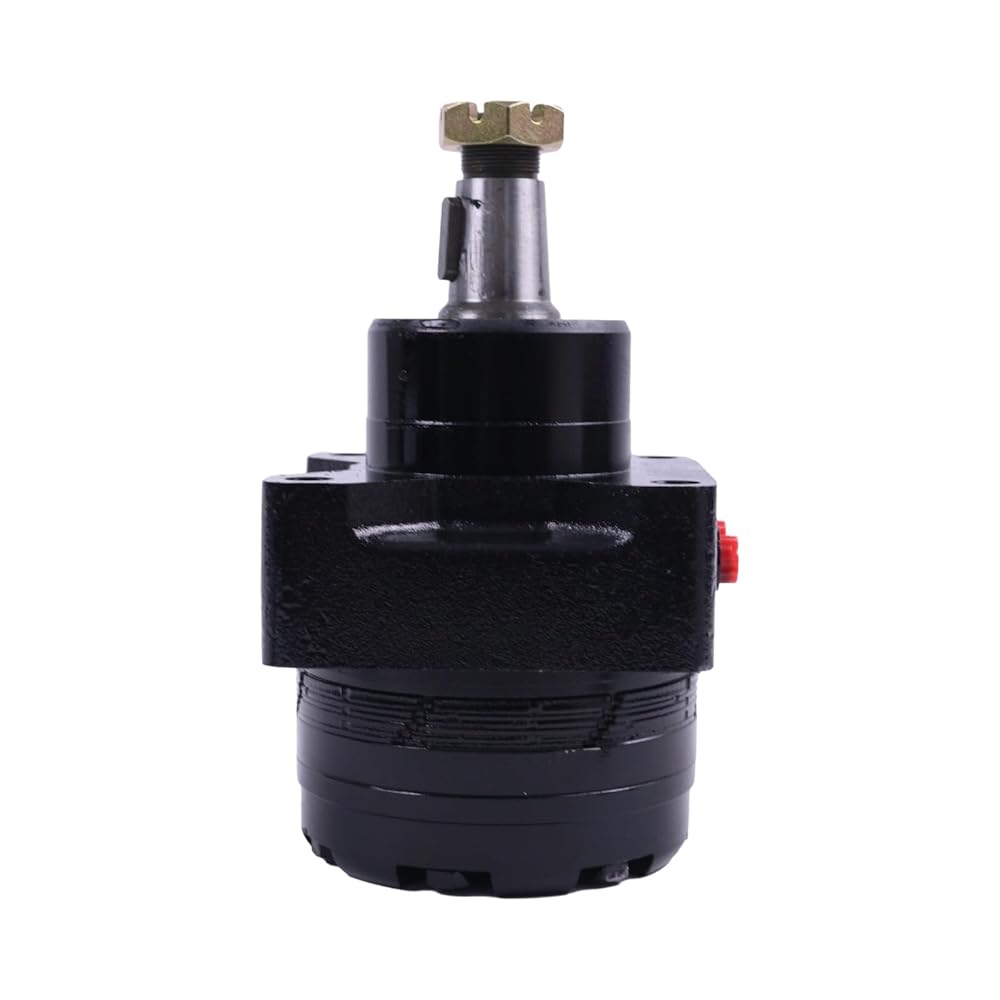

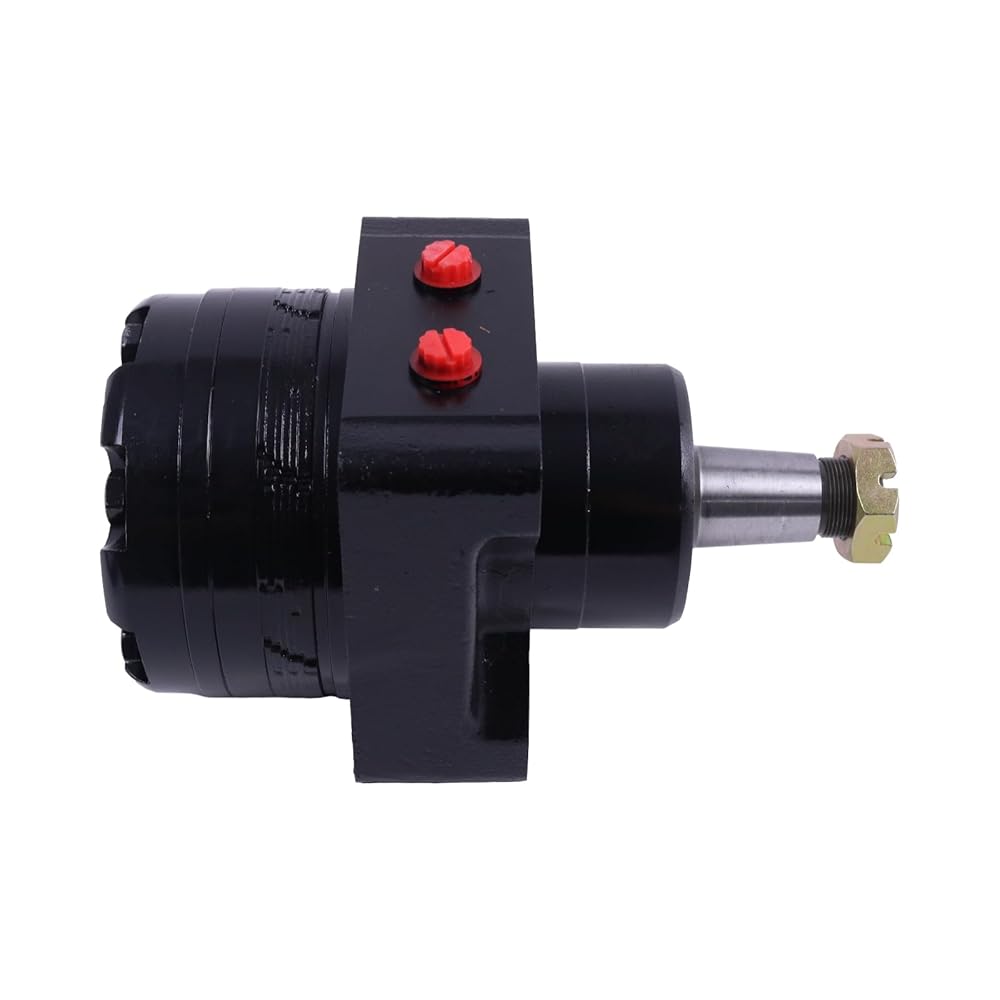

Part Number: OMEW 160 151H3043

Application:
Walk-behind Mowers
Ride on Mowers
Scissor Lifts
Sweepers
Road Rollers

Parameters:
Motor Size: 160
Max Speed min﹣¹[rpm] cont.: 375
Max Speed min﹣¹[rpm] int.: 470
Max torque Nm[lbfin] cont.: 410[3630]
Max torque Nm[lbfin] int.: 430[3810]
Max output kW[hp] cont.: 12[16.1]
Max output kW[hp] int.: 15[20.1]
Max pressure drop bar[psi] cont.: 200[2900]
Max pressure drop bar[psi] int.: 210[3045]
Max oil flow I/min[US gal/min] cont.: 60[15.9]
Max oil flow I/min[US gal/min] int.: 75[19.8]
Max starting pressure with unloaded shaft bar[psi]: 7[100]
Min starting torque at max press drop cont. Nm[lbfin]: 360[3190]
Min starting torque at max press drop int. Nm[lbfin]: 380[3360]
Max Inlet Pressure bar[psi] cont.: 200[2900]
Max Inlet Pressure bar[psi] int.: 210[3050]
Max Inlet Pressure bar[psi] peak: 225[3260]
Max Return Pressure bar[psi] cont.: 200[2900]
Max Return Pressure bar[psi] int.: 210[3050]
Max Return Pressure bar[psi] peak: 225[3260]
