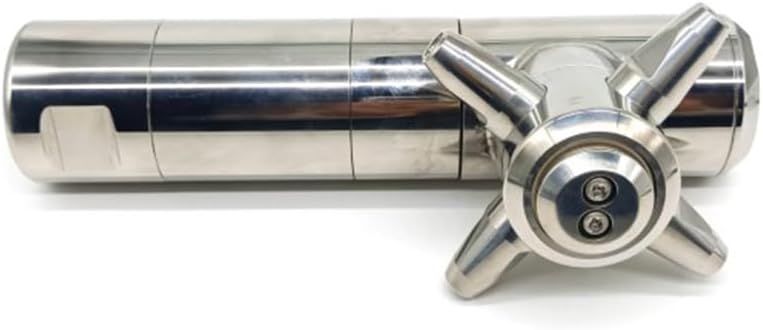

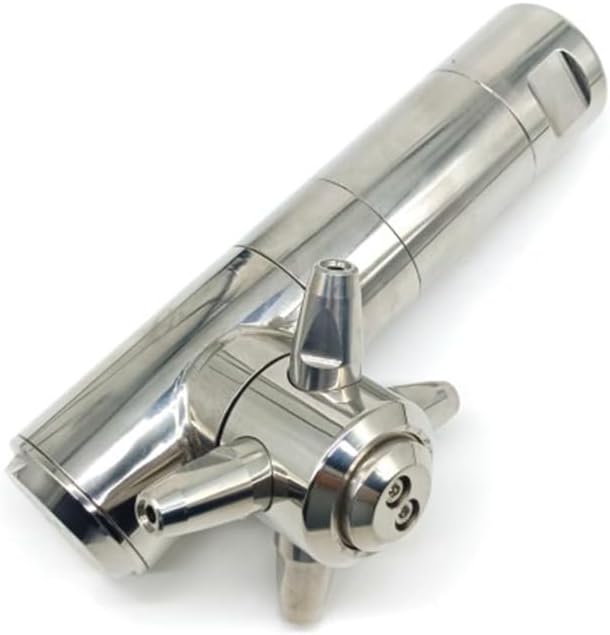

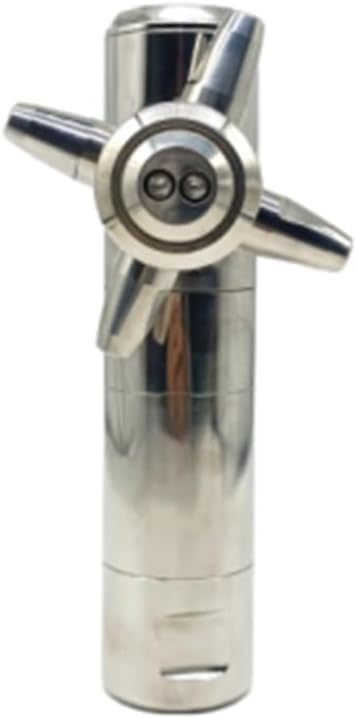

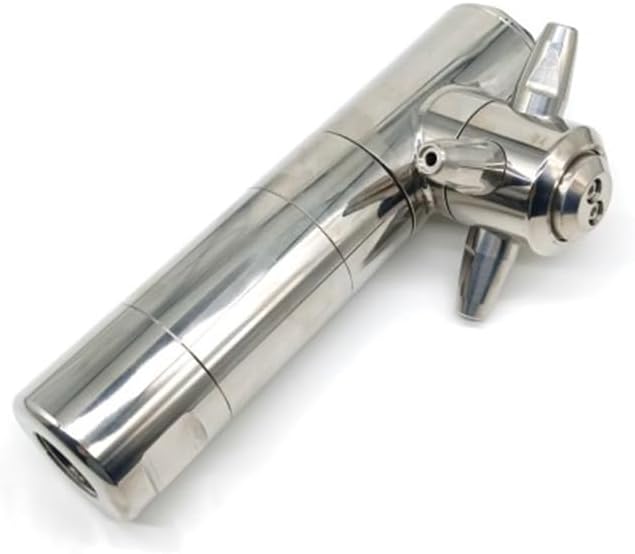

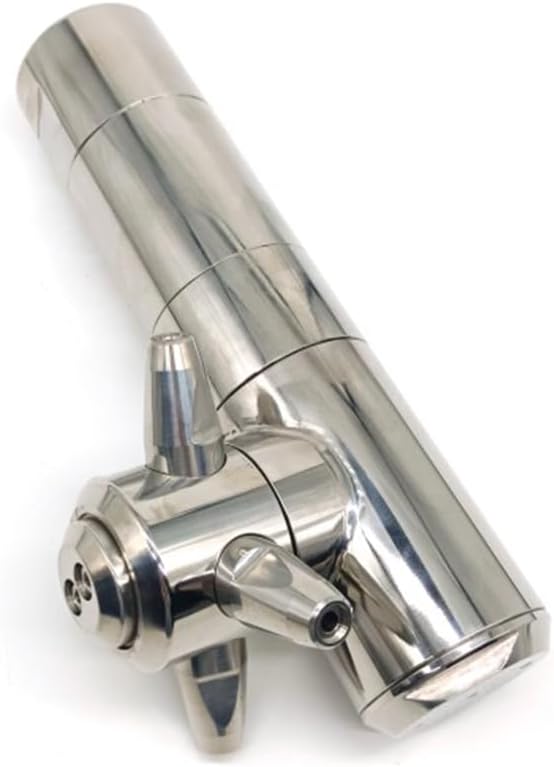

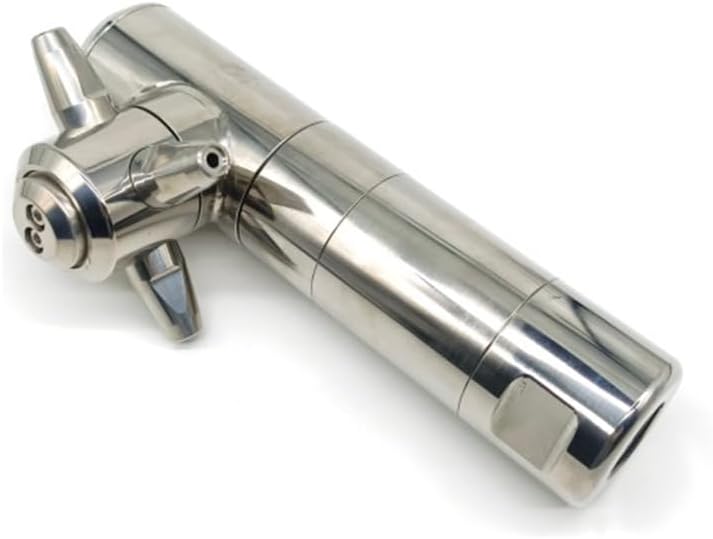

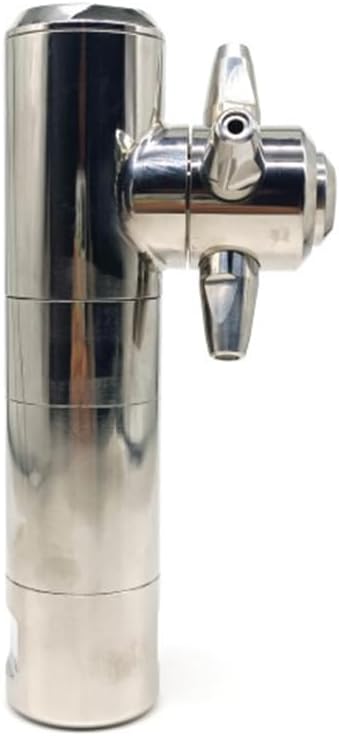

This rotating tank cleaning nozzle is driven by cleaning fluid that powers an internal gear reduction mechanism. The gear system follows a programmed trajectory, simultaneously achieving axial and radial rotation for complete 360-degree coverage without blind spots. The precision gear ensures consistent cleaning patterns across each cycle for tanks up to 9.1 meters in diameter. The unit is constructed from 316L stainless steel with PTFE components, offering excellent resistance to corrosion and chemical attack.
Engineered with a self-lubricating, independent gear box design, this industrial spray head protects internal components from damage even when operating with challenging water quality. The sealed design isolates the gear mechanism from the cleaning fluid, extending operational life and maintaining reliable performance. The unit features an advanced seal design that achieves a leakage rate of only 3 percent, translating to more economical cleaning operations by conserving cleaning solution while maintaining higher internal pressure.
Incorporating a flow stabilization design, this rotating spray ball delivers concentrated water jets that produce high impact force. The stream pattern is optimized to effectively remove stubborn residues from interior tank surfaces. Flow rates range from 2.5 to 6 cubic meters per hour, providing the capacity needed for medium to large tank cleaning applications. The unit operates within recommended pressure ranges of 3.4 to 15 bar and handles temperatures up to 93°C, with cleaning cycles adjustable from 5 to 35 minutes depending on application requirements.
Engineered to fit through access openings as small as 105mm, this tank cleaning nozzle delivers high-impact cleaning force while accommodating space-constrained installations. The 3/4-inch NPT or BSPT female connection provides flexible installation options with a compact 2.6kg weight. The design is well-suited for medium-sized tanks, reactors, IBC totes, and closed containers where space efficiency and high impact cleaning are required.
This cleaning nozzle is widely used across industries including food and beverage, dairy, pharmaceutical, biotechnology, chemical processing, coatings, paints, resins, cosmetics, agricultural processing, and renewable energy manufacturing. It is particularly effective for biological fermentation, biopharmaceutical production, and petroleum chemical applications where thorough cleaning and material compatibility are essential requirements.
