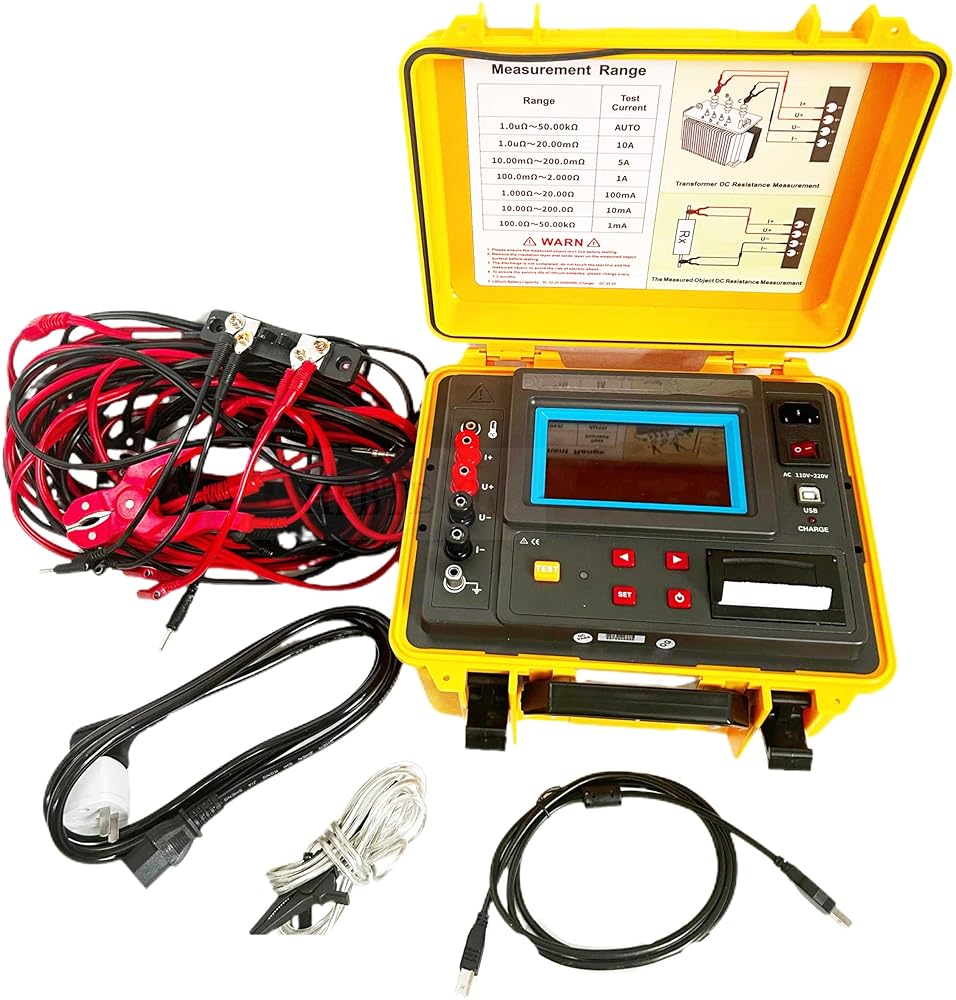

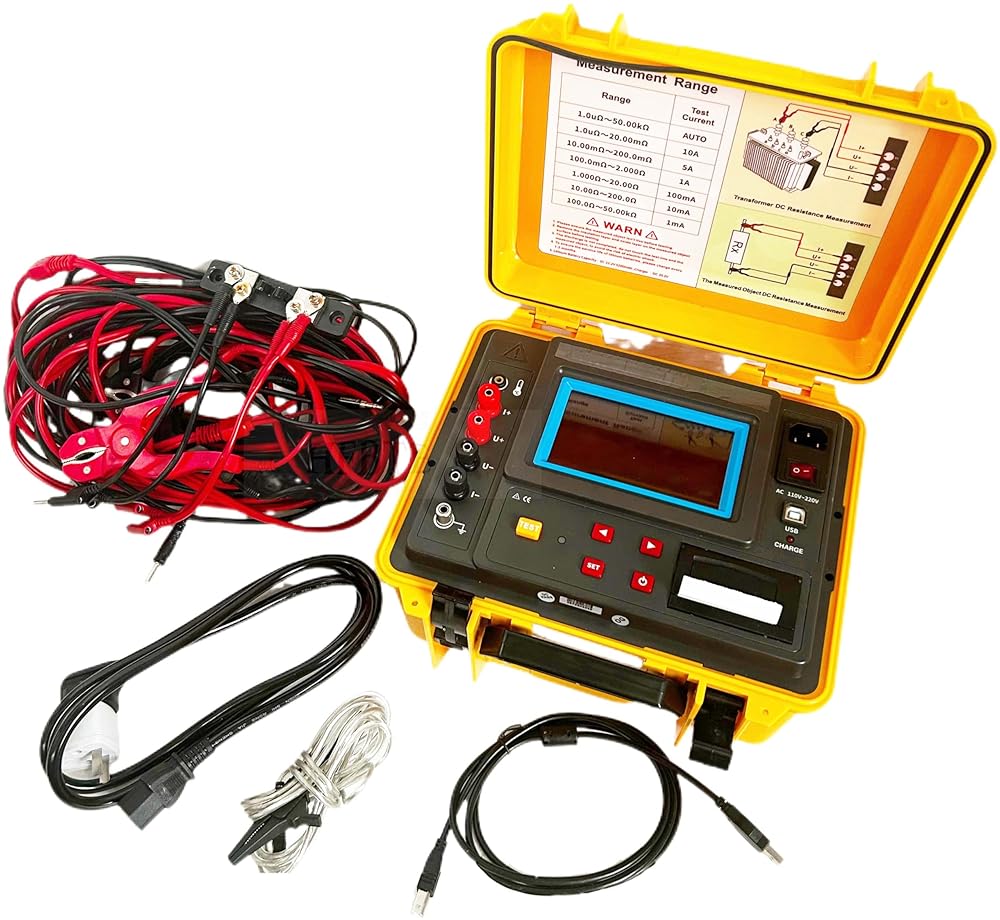

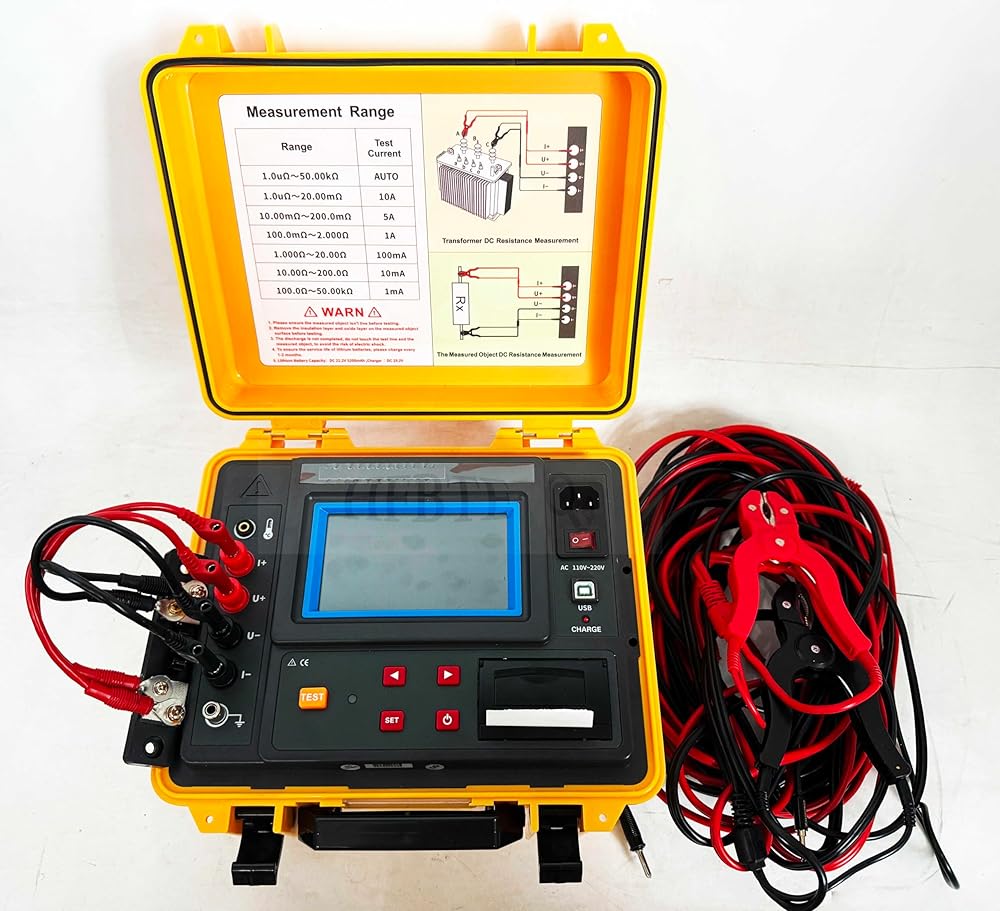

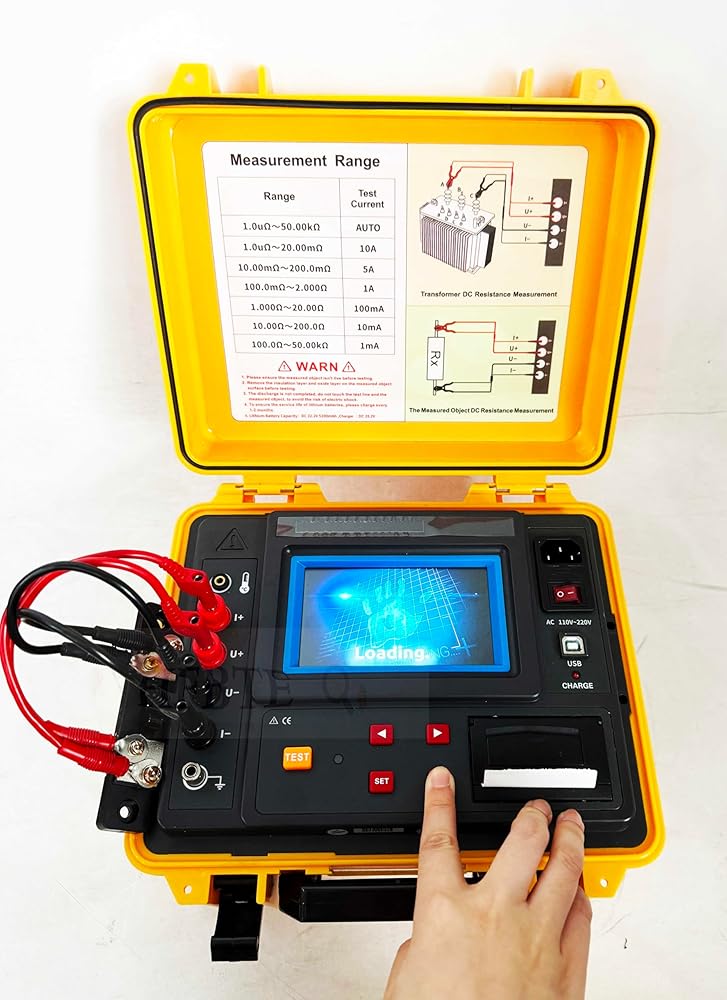

Transformer Winding DC Resistance Tester Used to Quickly Measure The DC Resistance of Various Transformer Winding with Built-in Printer Touch Screen Resistance 50kΩ Test Current 10A Output Voltage 24V
Special Features
(1) {Function}--------Used for transformer winding resistance measurement and conductor DC resistance measurement.
(2) {Resistance range}--------1.0uΩ~50kΩ
(3) {test method}--------Precision four-wire method, 2 A/D simultaneous detection
(4) {Test current}--------AUTO, 10A, 5A, 1A, 100mA, 10mA, 1mA
(5){Output Voltage}--------24V MAX
(6) {Data Storage}--------600 groups(no data will be lost if the battery is powered down or replaced)
(7) {Bluetooth Communication}--------Yes
(8) {USB Interface}--------With USB interface, software monitoring, storage data can be uploaded to computer
(9) {Built-in printer}--------Yes
(10) {Displayer}--------5 Inch True-Color Touch Screen
