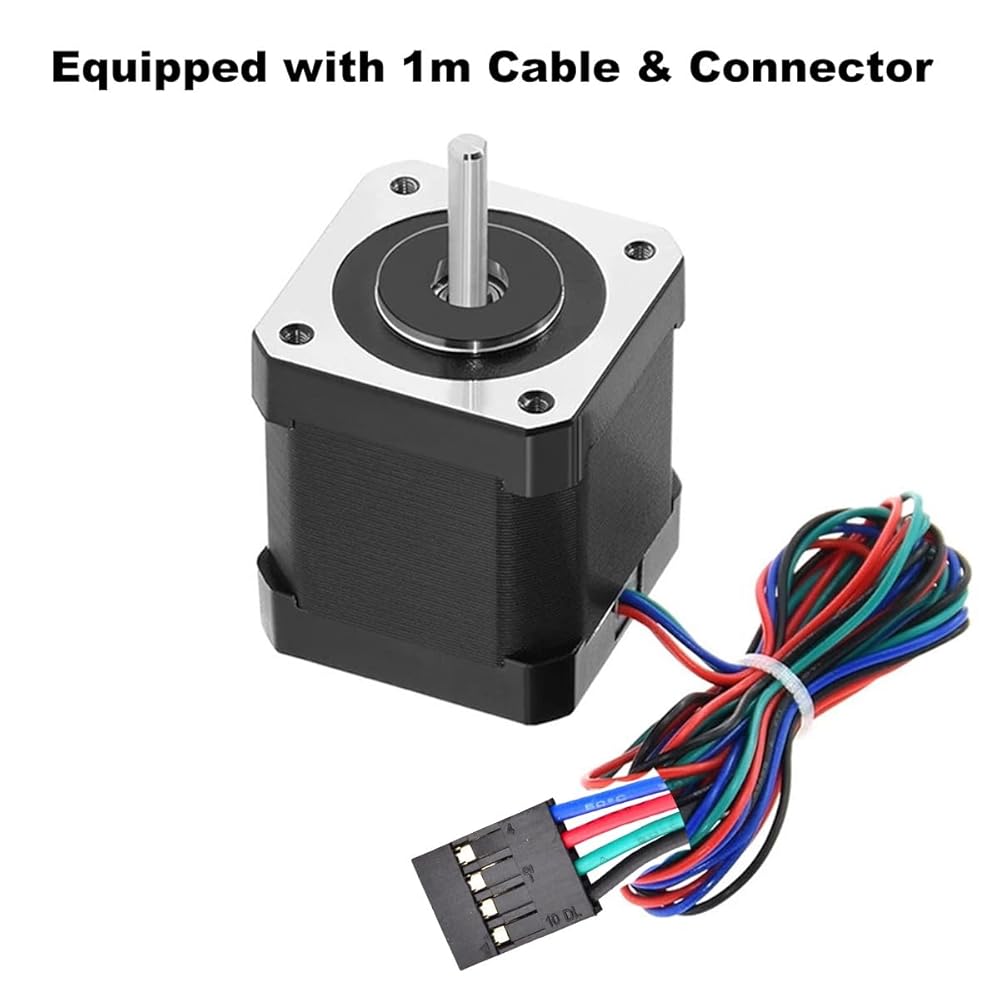

Nema 17 Stepper Motor, 2A Bipolar Stepper Motor, 59Ncm 84oz.in High Torque Stepper Motor, 48mm 4-Lead with 1m Cable & Connector for 3D PrinterCNC Machines DIY Projects

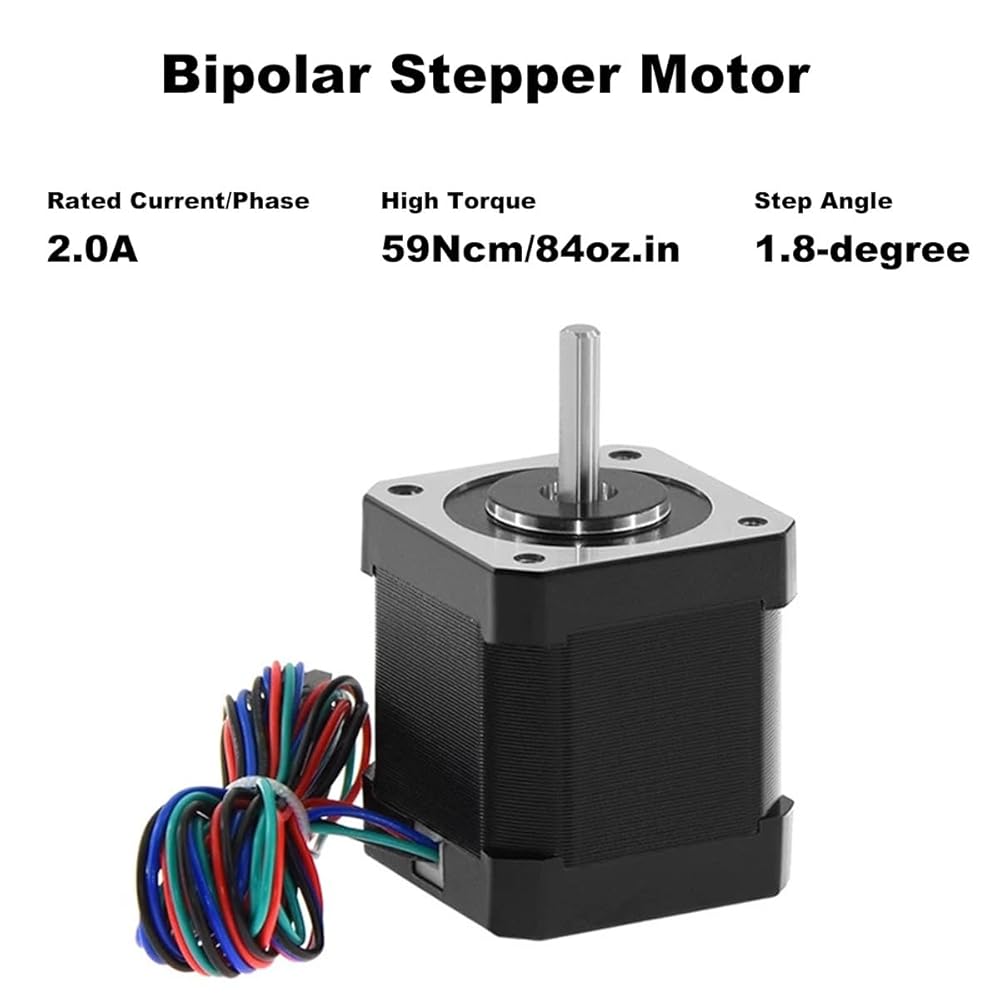

Powerful: Designed with a rated current of 2.0A and a phase resistance of 1.4ohms, stepper motor offers superior performance and efficiency
High Torque: NEMA 17 Stepper Motor delivers a holding torque of 59Ncm (84oz.in), ensuring reliable performance in demanding applications
Precise: With a step angle of 1.8° (200 steps/rev), stepper motor provides precise positioning control, ideal for applications that require high accuracy and repeatability
Durable Construction: Crafted from premium materials in a precision structure, stepper motor ensures smooth and quiet operation

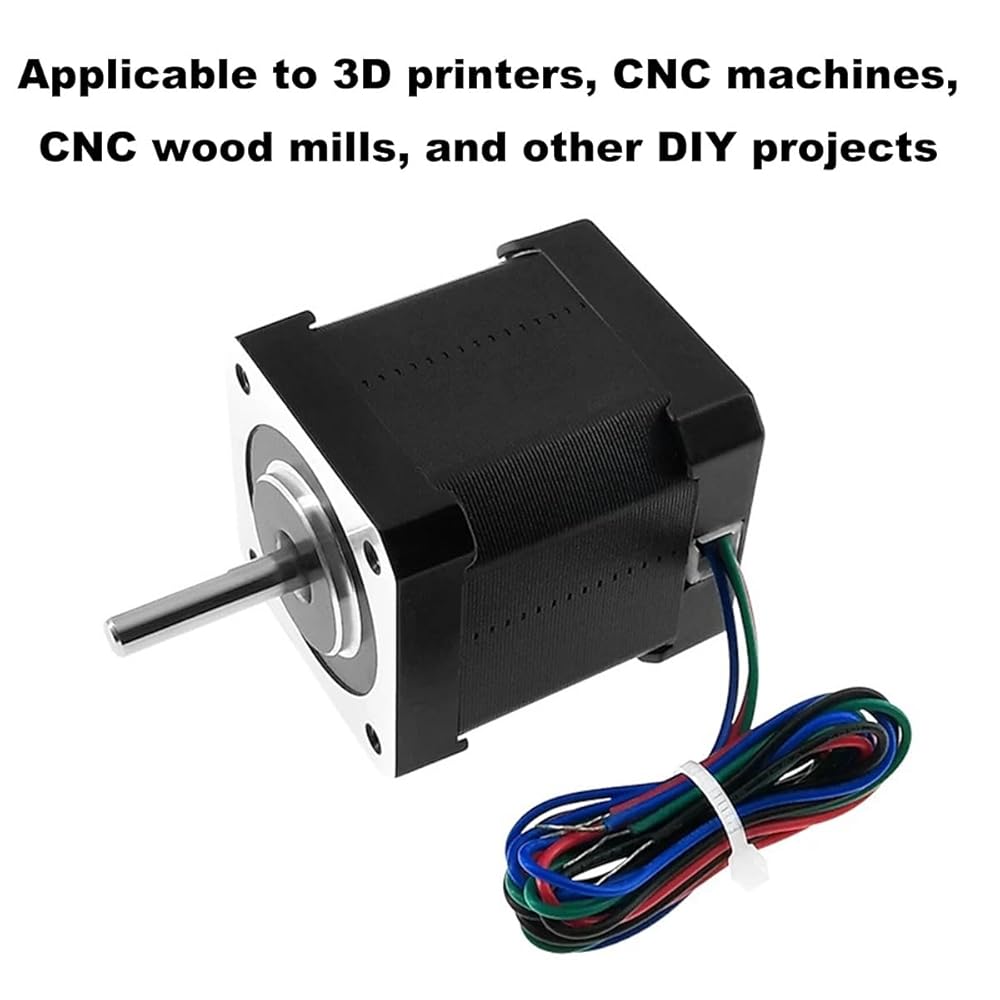

Application: Stepper motor is highly versatile and suitable for a wide range of applications, including 3D printers, CNC machines, CNC wood mills and other DIY projects
Efficiency: Bipolar stepper motor allows for higher efficiency and better torque output, cost-effective for precision control applications
SPECIFICATION
Part No.: 17HS19-2004S1
Motor Type: Bipolar Stepper
Step Angle: 1.8 degree
Holding Torque: 59Ncm (84oz.in)
Rated Current/Phase: 2.0A
Phase Resistance: 1.4ohms
Inductance: 3.0mH ± 20%(1KHz)
Driving Voltage: 12-24V (suggested 24V)
Weight: 0.88 lbs each

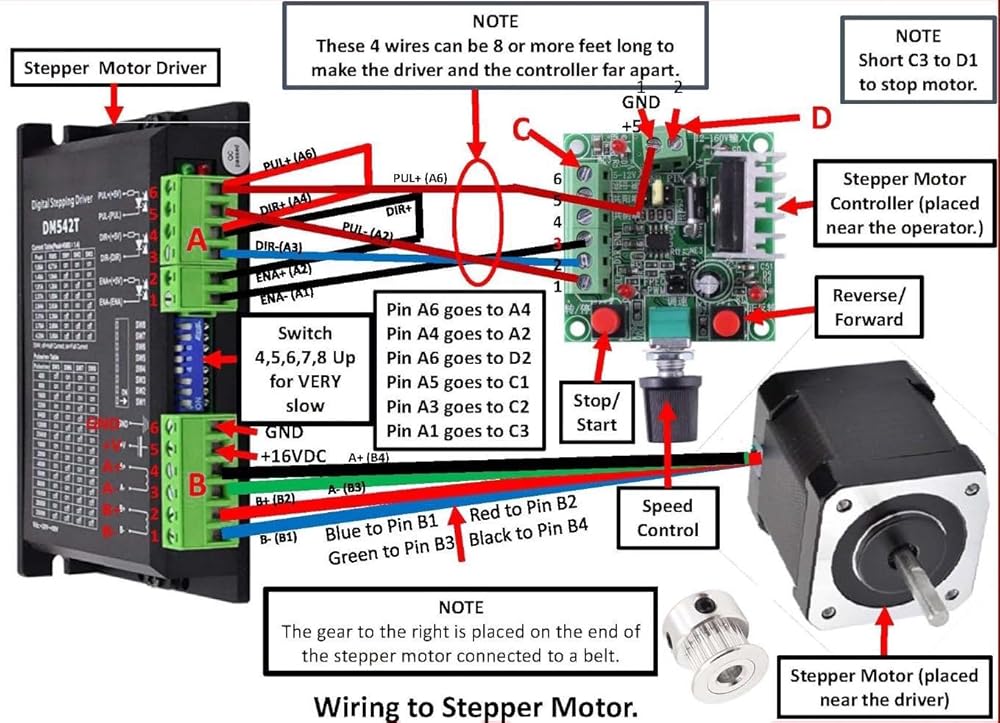

WIRING
A+: Black
: Green
B+: Red
B-: Blue
PACKAGE

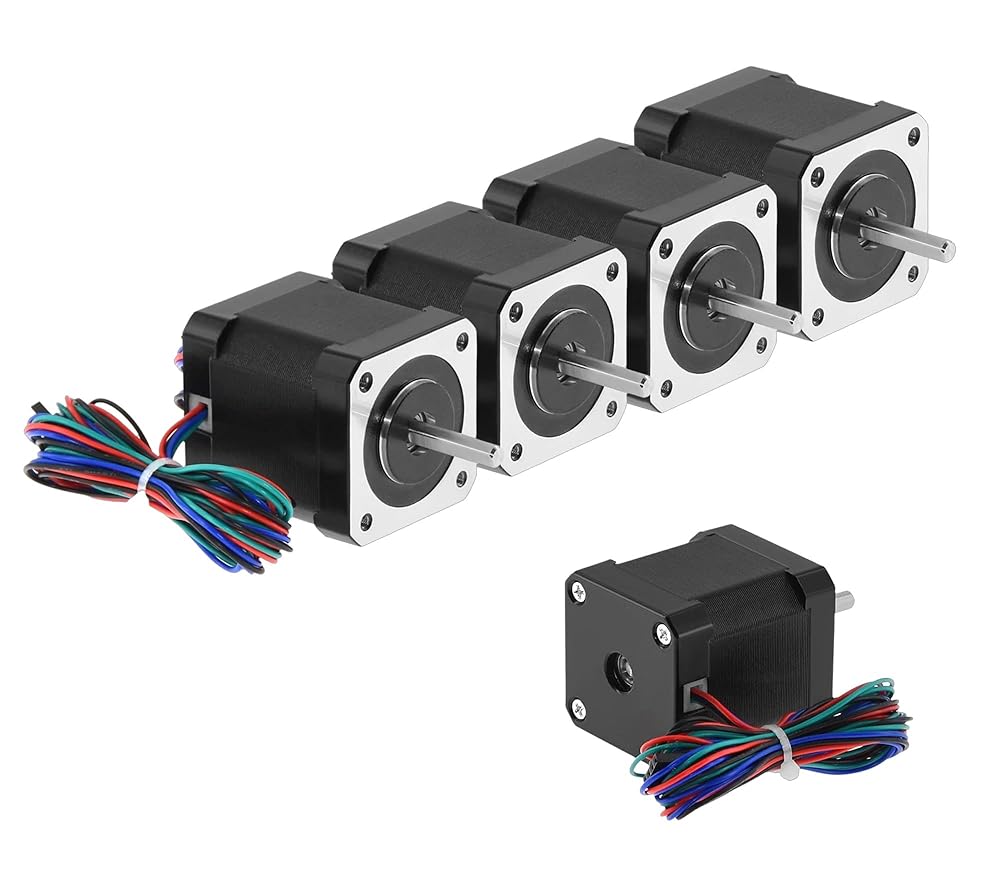

5 x Nema 17 Stepper Motor
