مميزات خاصة

Input Voltage: 12V DC, Peak Force: 200N, Holding Force: 150N; Input Voltage: 12V DC, Peak Force: 25N, Holding Force: 18.5N, Thread size: M3*6, Duty-cycle: 50%, Time: Less than 7 minutes
Overall Size 1: 34 x 25 mm / 1.3 x 1inch(Dia. *T); Overall Size 2: 20 x 15 mm / 0.8 x 0.6 inch(Dia. *T)
Electric lifting magnet; Powerful and compact; Smooth and flat surface; Low consumption and reliable; Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc
Cautions for the use of electromagnets: 1.The object absorbed must be a good magnetic material; 2.The suction surface of the electromagnet must be smooth and clean; 3.The thickness of the object is 5mm best; 4.The contact surface of the object must be larger than the adsorption surface of the electromagnet
Note: The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect. It is recommended that the actual force is less than 80% of the sucked force on the name plate

وصف

Feature:
Electric lifting magnet
Powerful and compact
Smooth and flat surface
Low consumption and reliable
Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc.

Note: The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.
It is recommended that the actual force is less than 80% of the sucked force on the name plate.

Specification
Duty-cycle : 50%
Time:Less than 7 minutes

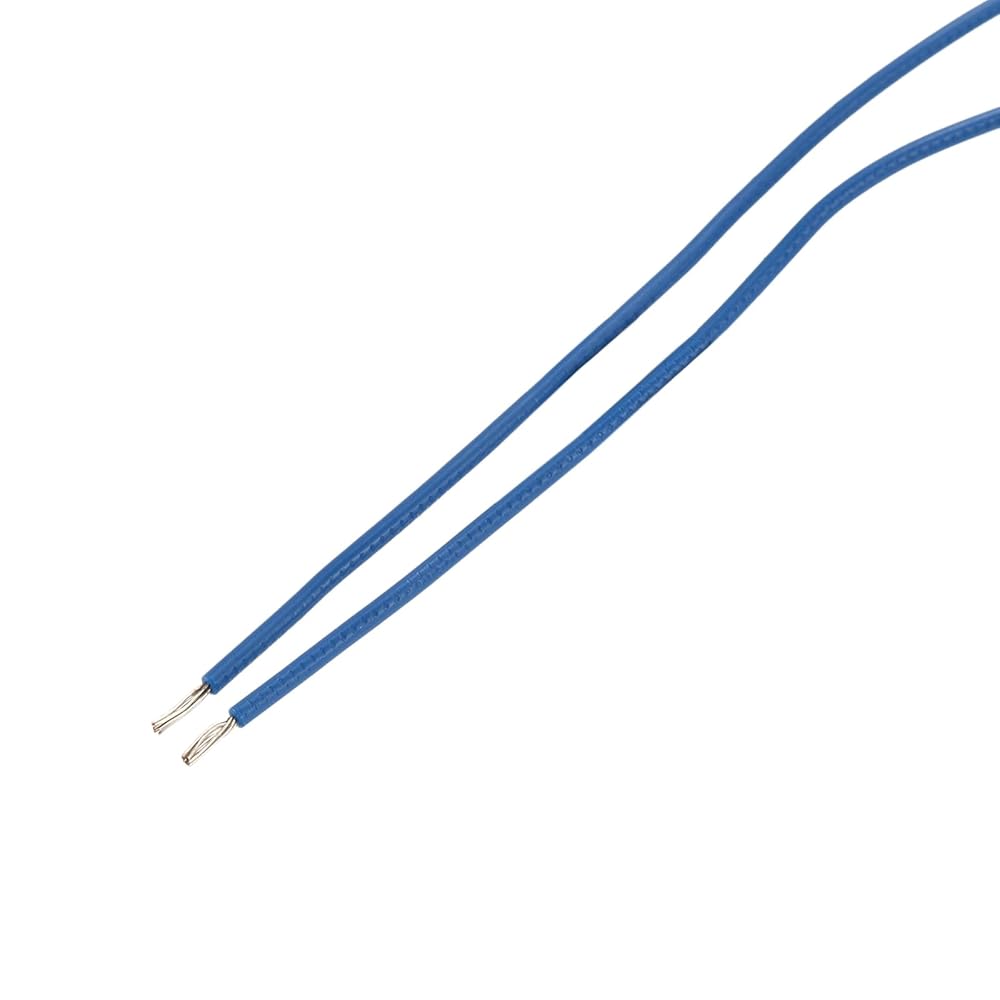

Lead Length : 24cm/9. 5 inch

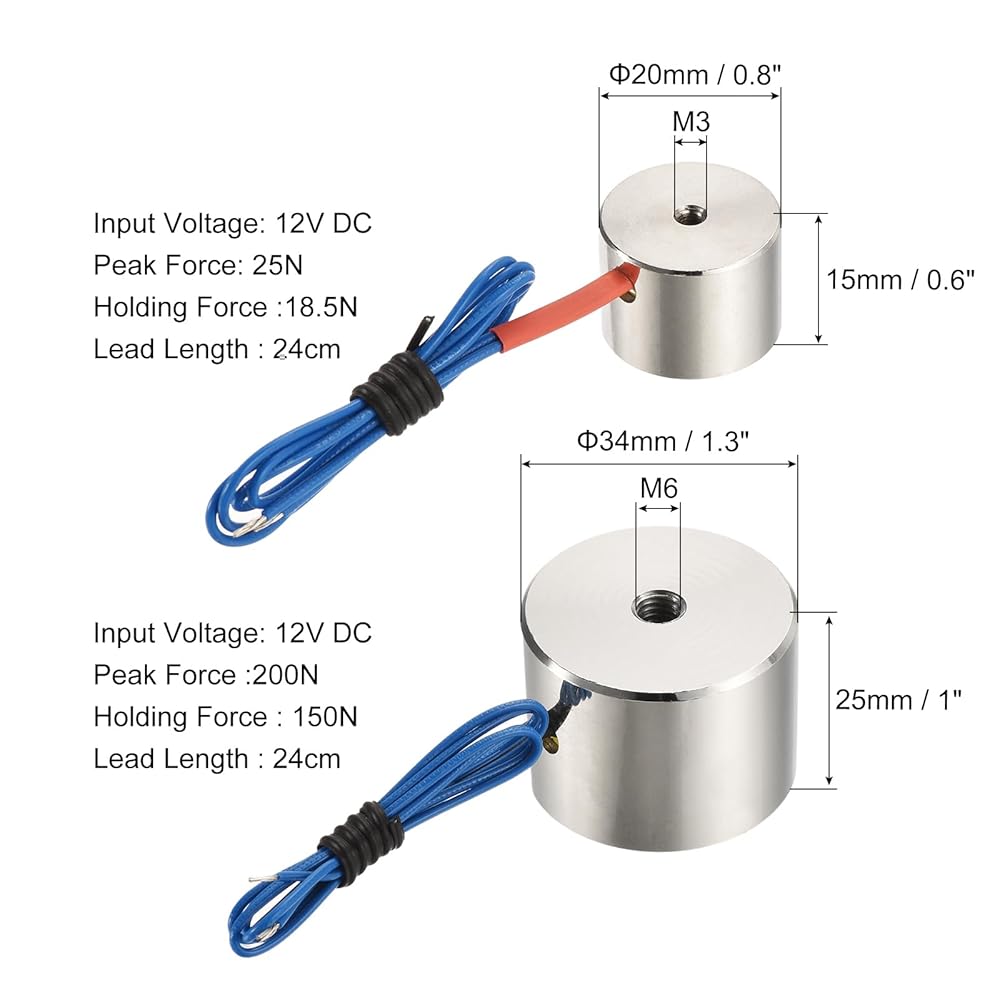

Size 1:
Material: Pure Iron
Input Voltage: 12V DC
Peak Force :200N
Holding Force : 150N
Overall Size : 34 x 25 mm / 1.3 x 1inch(Dia. *T)

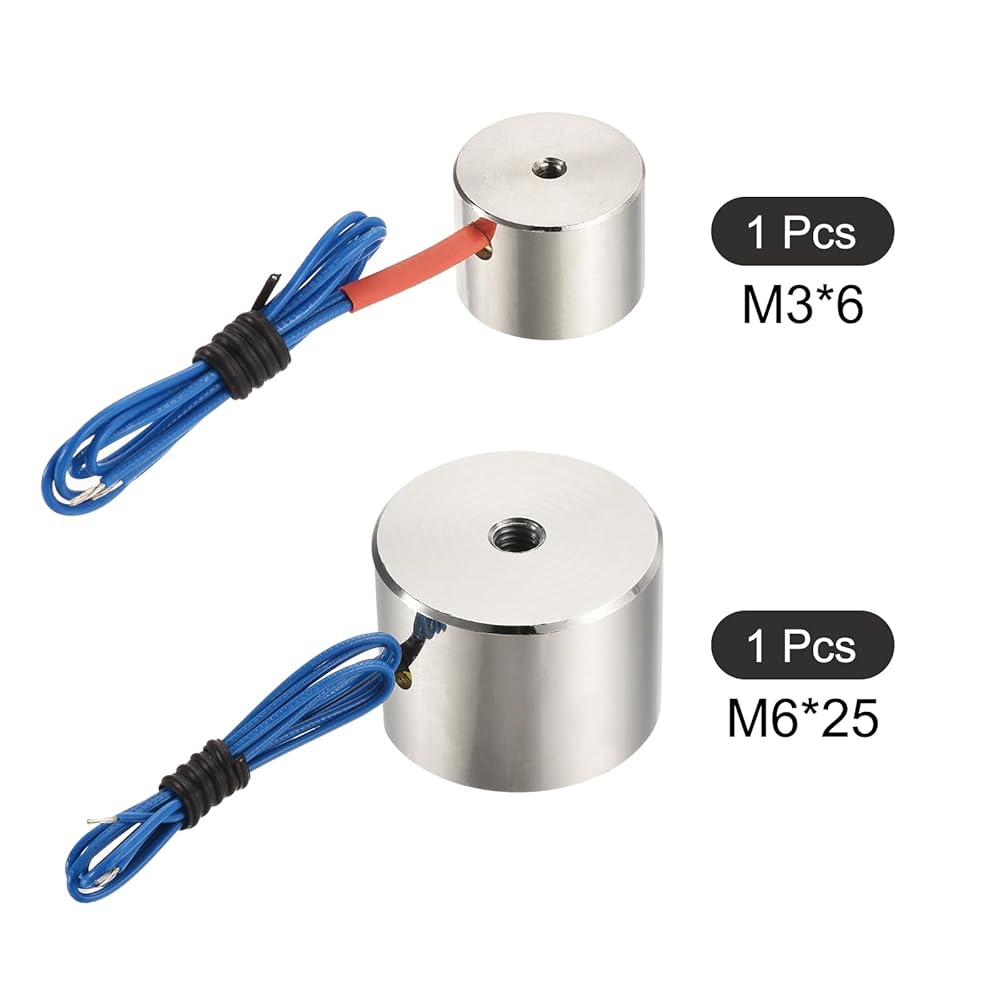

Thread size : M6*25

Size 2:
Material: Metal
Input Voltage: 12V DC
Peak Force: 25N
Holding Force: 18.5N
Overall Size : 20 x 15 mm / 0.8 x 0.6 inch(Dia. *T)
Thread size : M3*6

Package Includes:

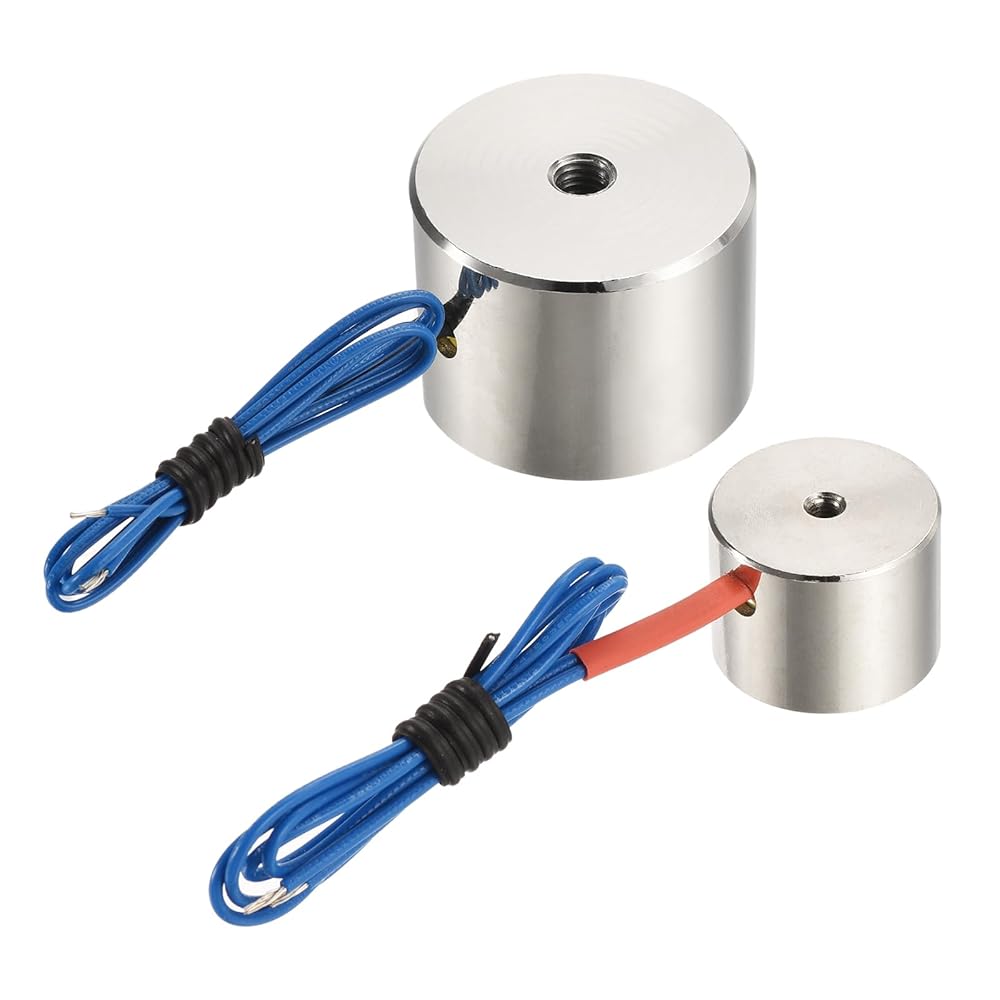

Package Contents (2pcs in total): 1 Piece Holding Electromagnet for Each Size
