Application
For Eaton Char-Lynn 2000 Series
OE/Part number
104-1027-006, 1041027006, 104-1027, 1041027
Specification
Type: Hydraulic Motor
Material: Cast Iron
Color: Black
Series: 2000 Series
Port Type: 875-14 UNF-2B SAE O-Ring Ports - Staggered Ports
Displacement: 244.3 CM3/R [14.91 in³/r]
Output Shaft: 31.75 [1.250] DIA. Straight Shaft with. 375-16UNC-2B Thread in End, 7.938 [.3125] SQ X 31.75 [1.250] Straight Key
Output Shaft Size: 1-1/4 in Straight - Straight Key
Case drain: 7/16"-20 UNF-2B O-ring port size 4
Mounting Type: Standard, 2 Bolt; 82.6 [3.25] Pilot Dia. 13.59 [.535] Dia. Holes on 106.4 [4.19] DIA. Bolt Circle. SAE A
Package included
1*Hydraulic Motor

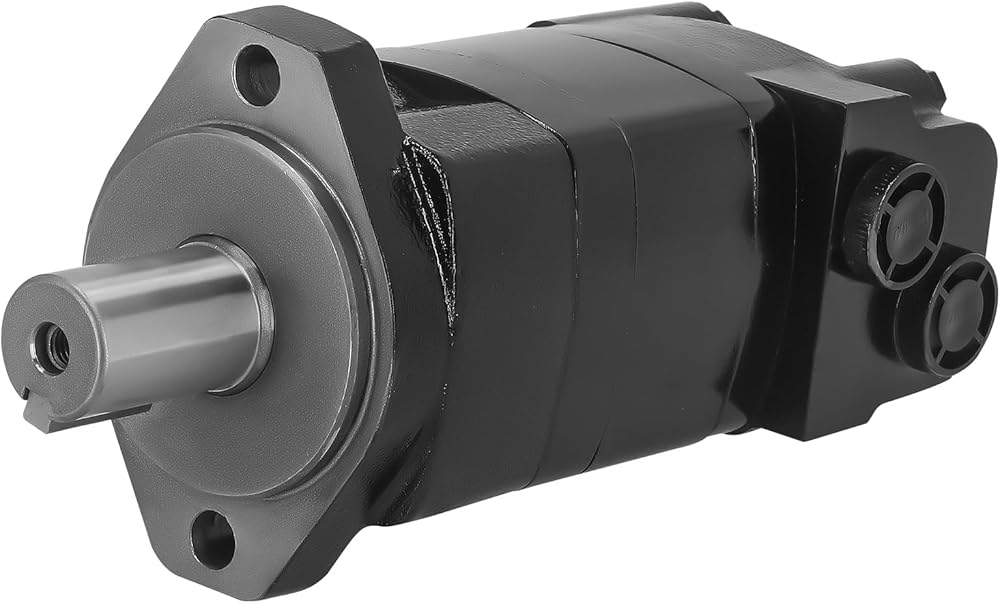

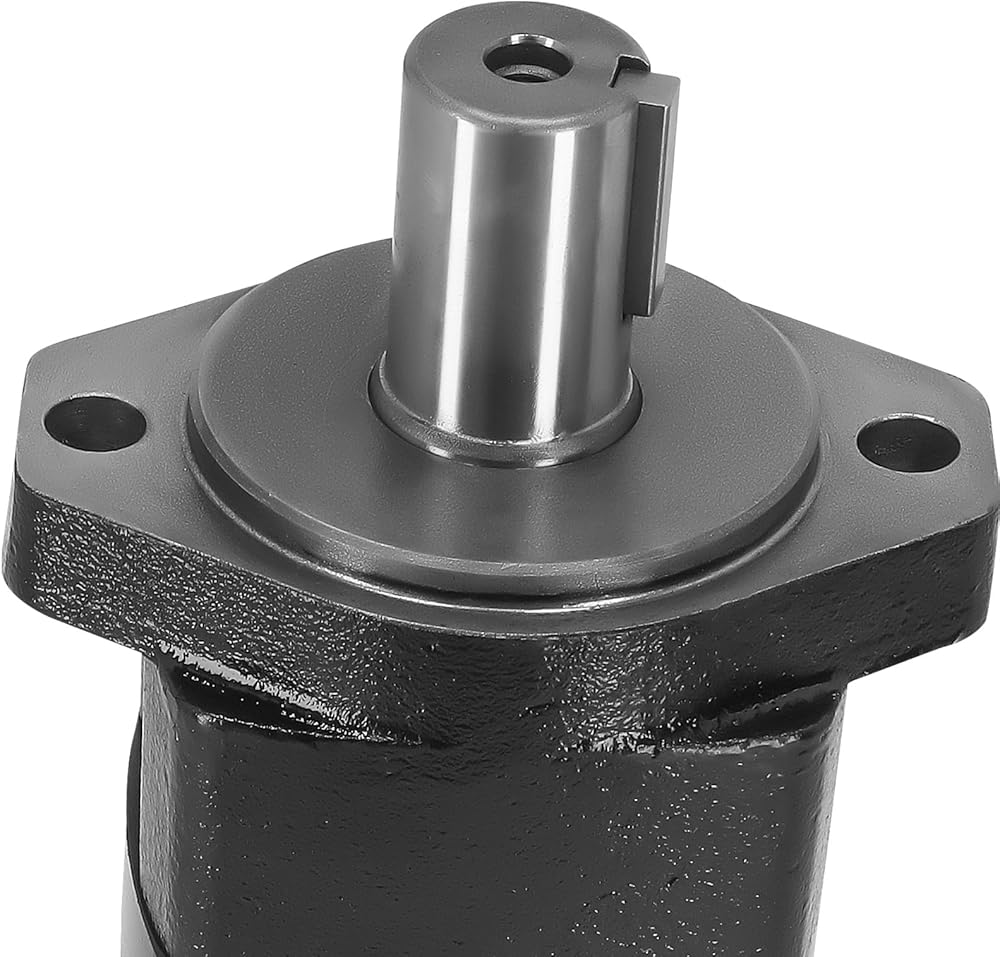

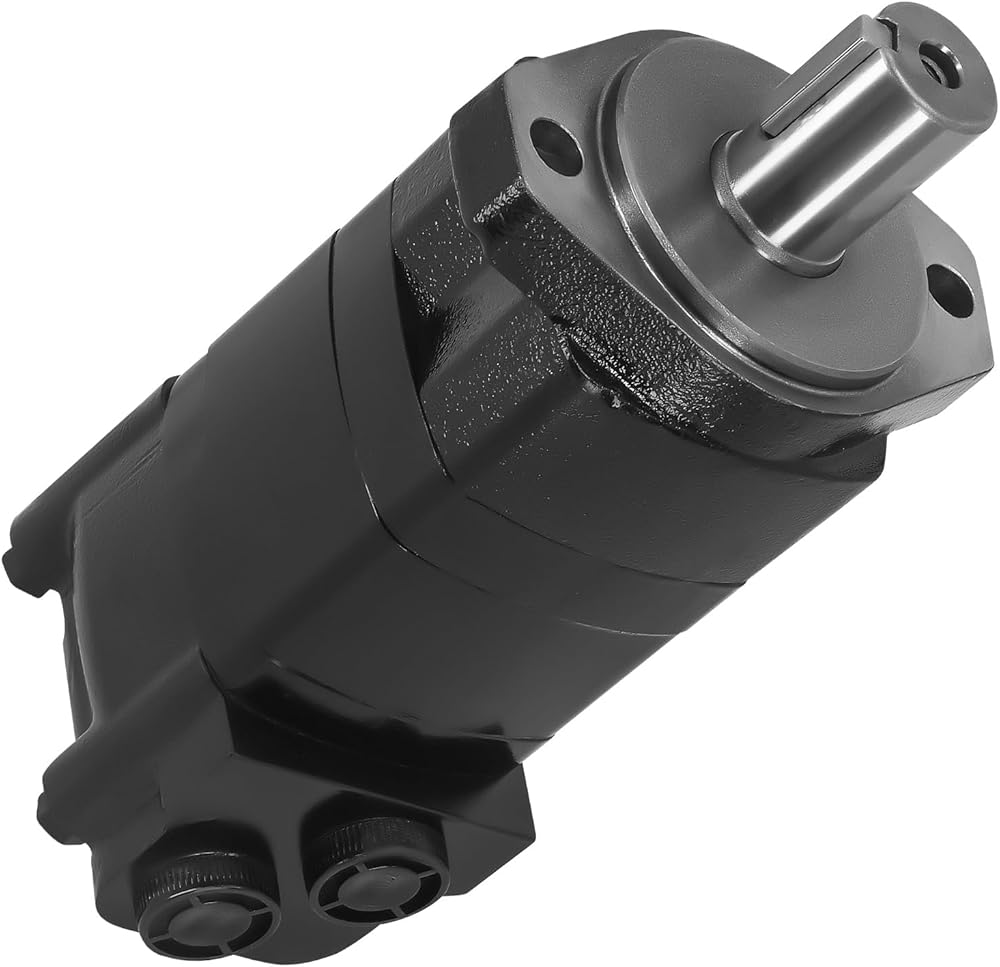

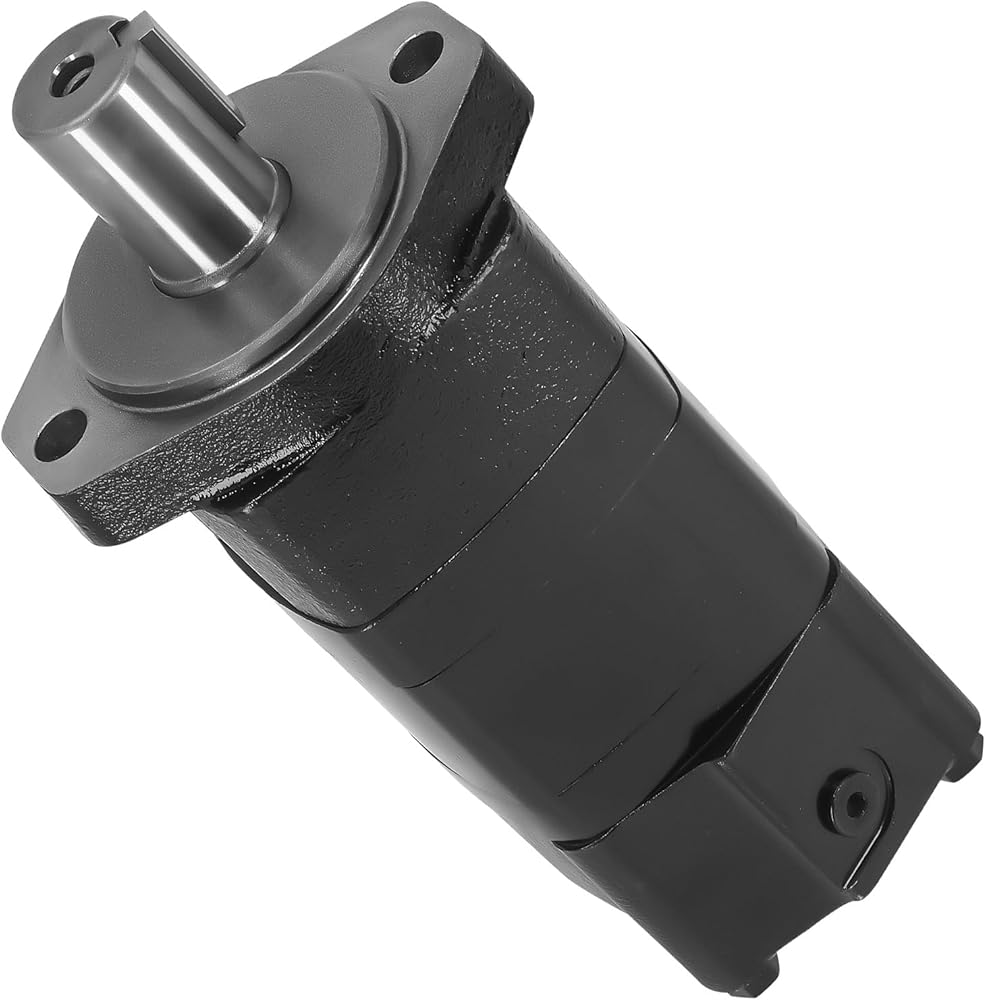

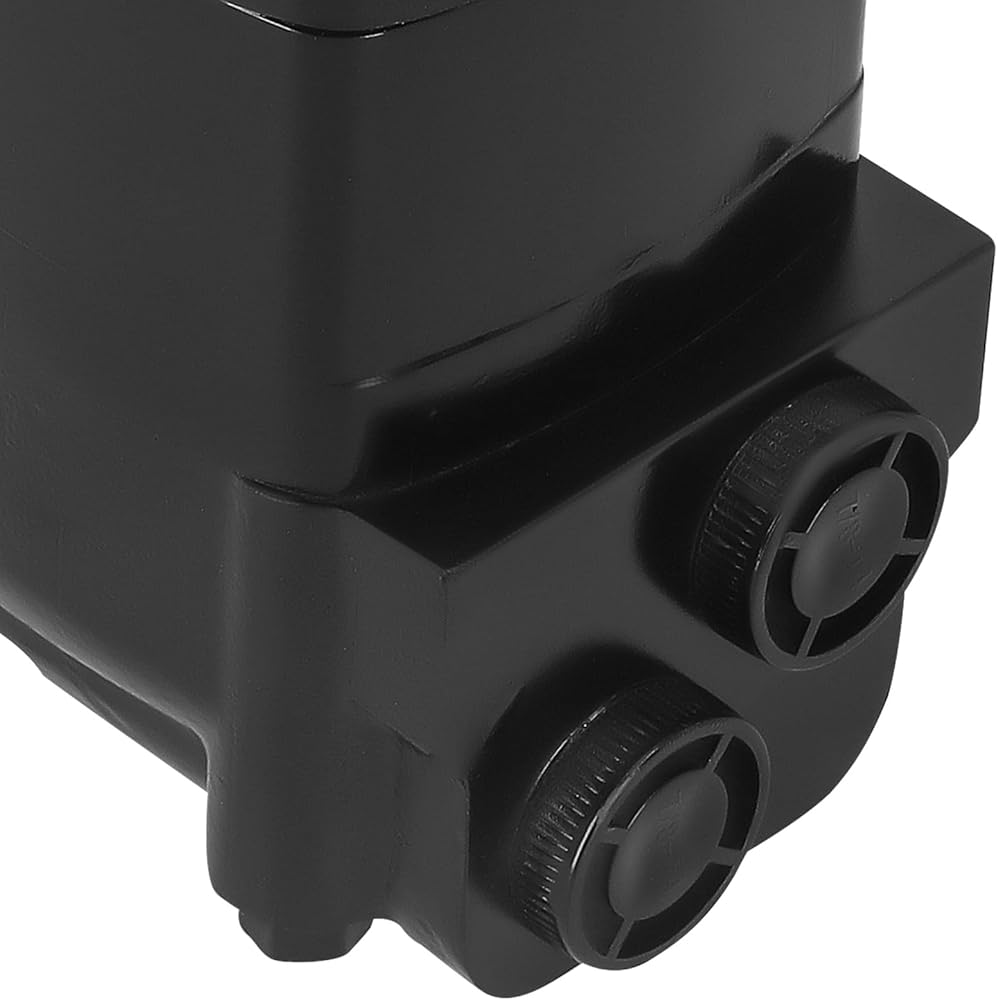

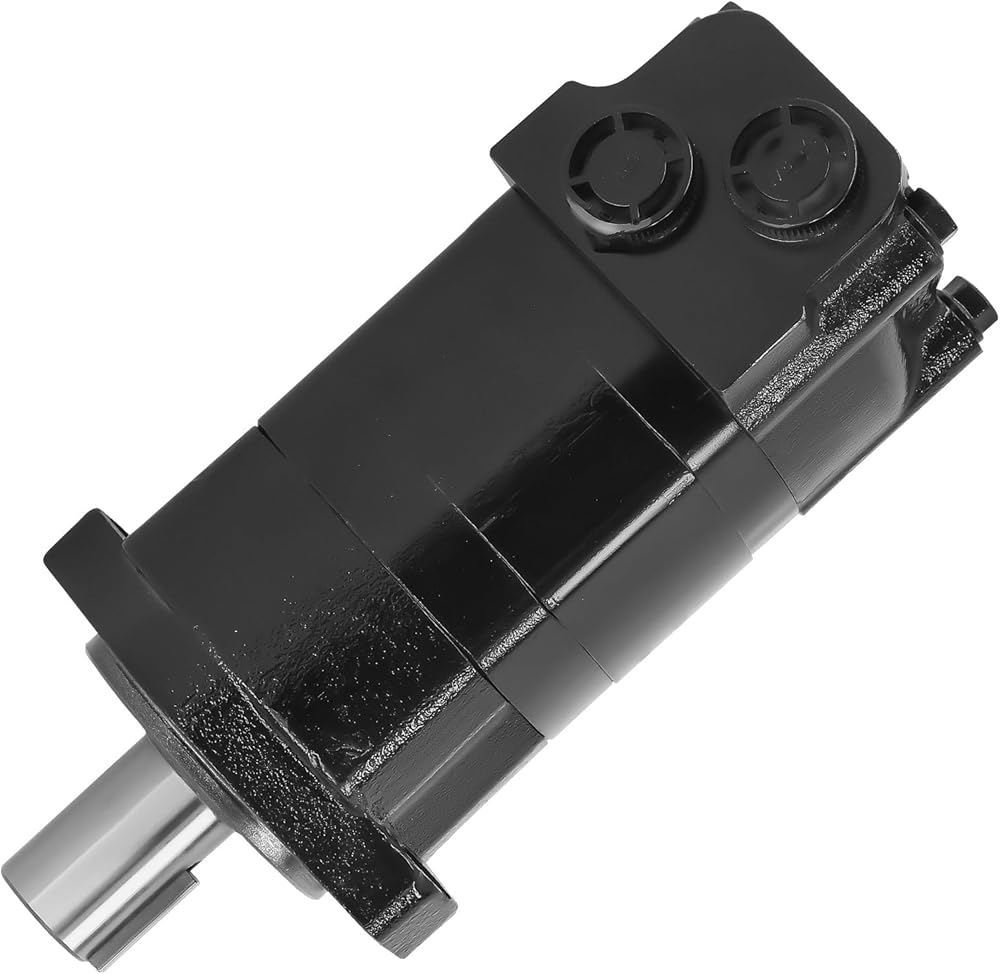

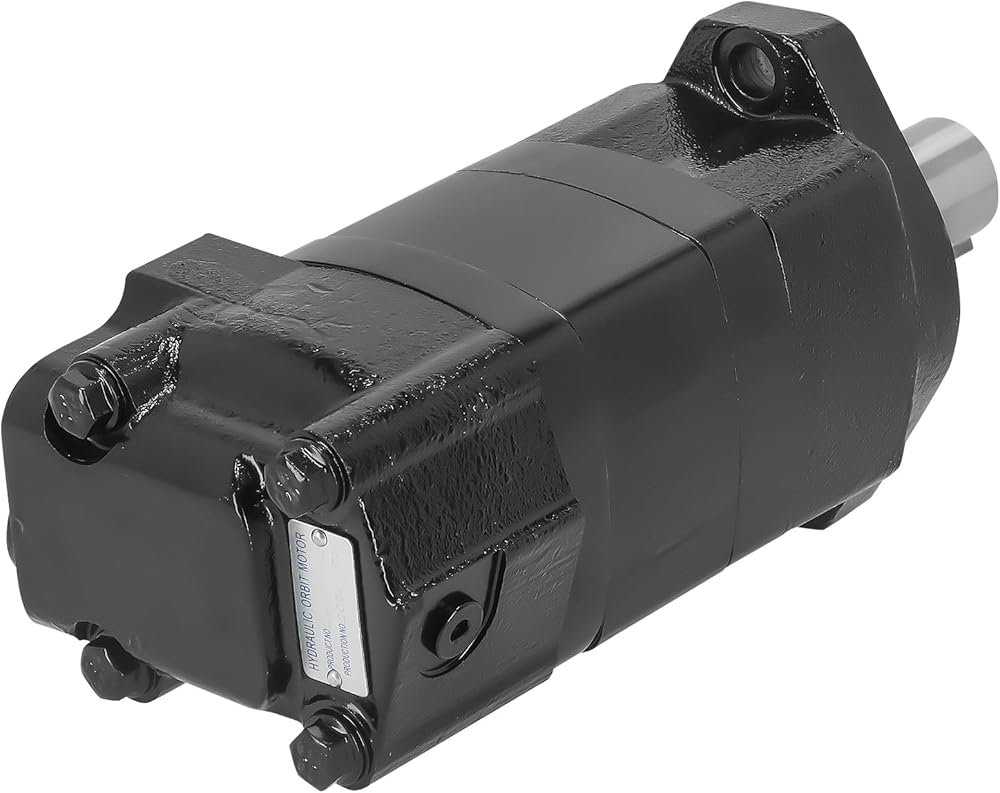

（Showing as the picture）
Feature
1. Stable characteristics, high reliability
2. Made of high-strength iron housing, protecting the shaft inside very well, solid and durable, long service time
